Porsche Parts Catalogs Cayenne

Access.,Infotainment,Miscell. Diagrams

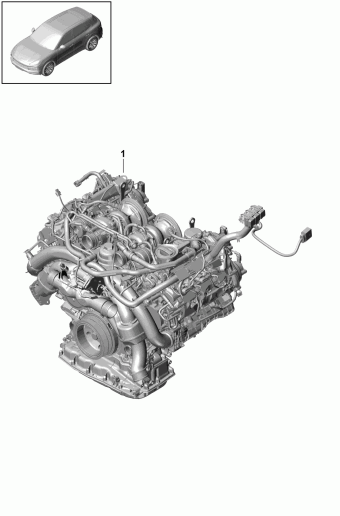

101-010: Replacement engine complete

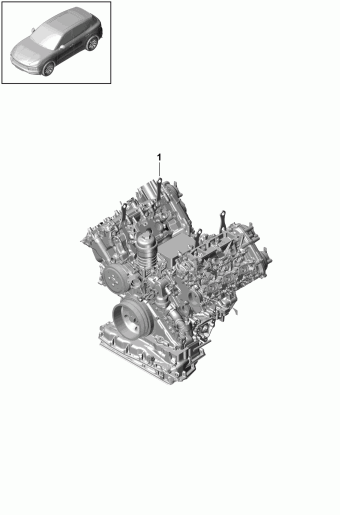

101-015: long block Not ready for installation

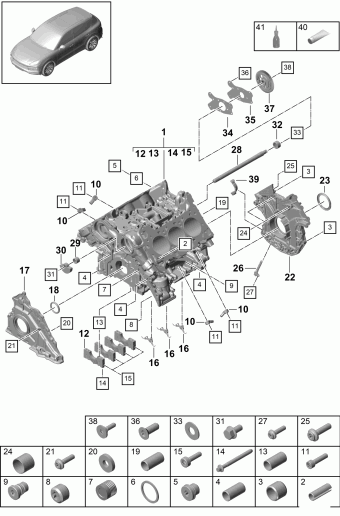

101-055: crankcase

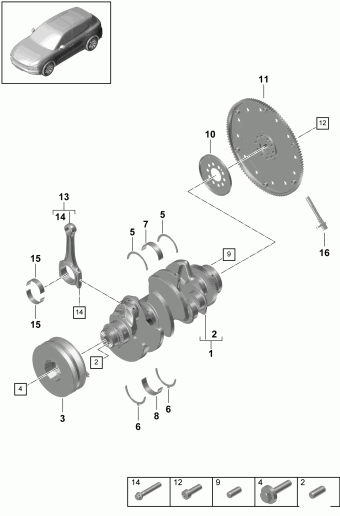

102-005: crankshaft connecting rod driving disk

102-030: piston complete piston ring Caution: No mixed installation of different manufacturers permitted. When replacing individual parts, only use the manufact. that is currently installed. A change in manufacturer is possible when replacing all fitted parts.

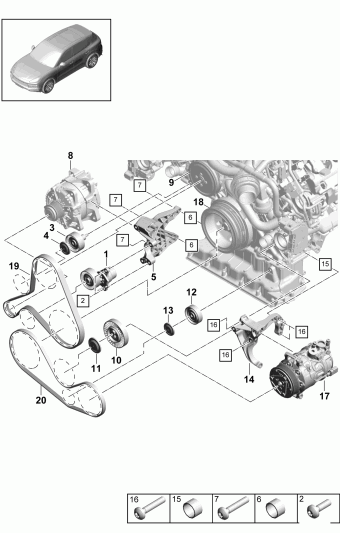

102-060: v-ribbed belt belt tensioning damper

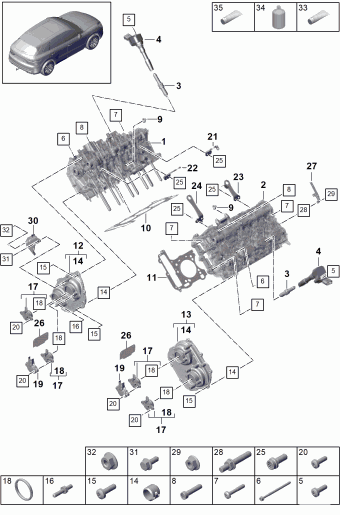

103-005: cylinder head

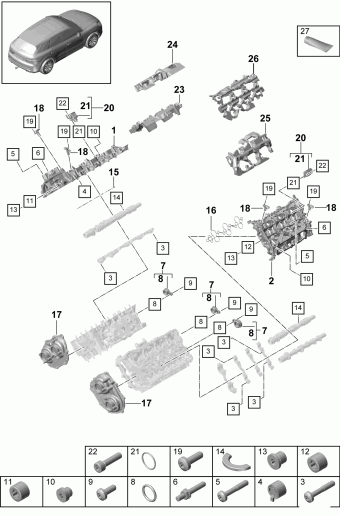

103-030: cylinder head cover Sound absorber Accessories

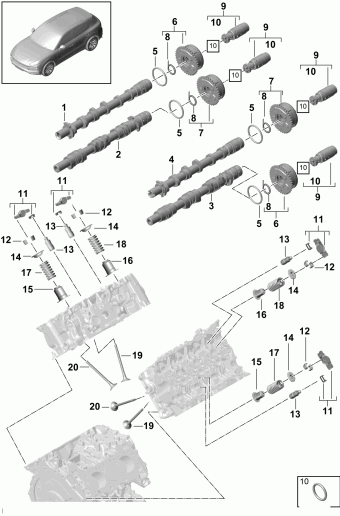

103-055: camshaft, valves camshaft adjuster unit

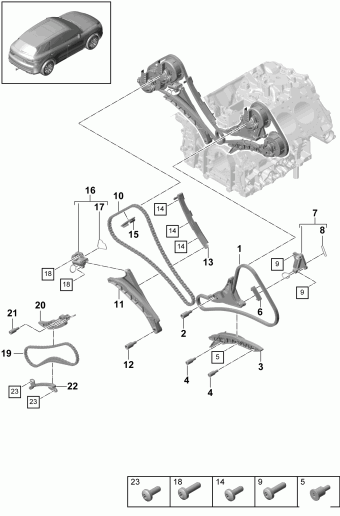

103-080: timing chain guide rail tensioner - chain

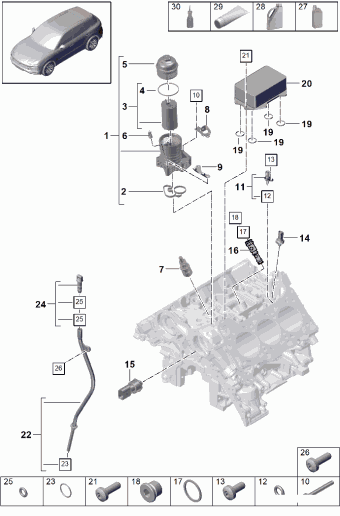

104-005: oil filter bracket oil cooler

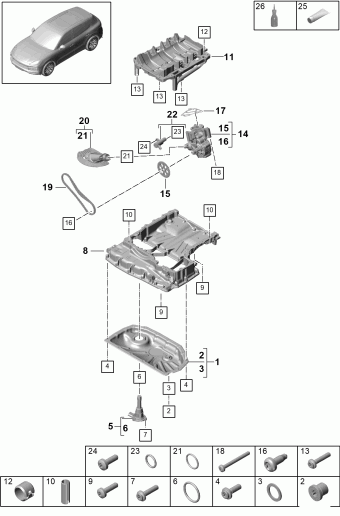

104-030: Oil-conducting housing oil pump oil pan

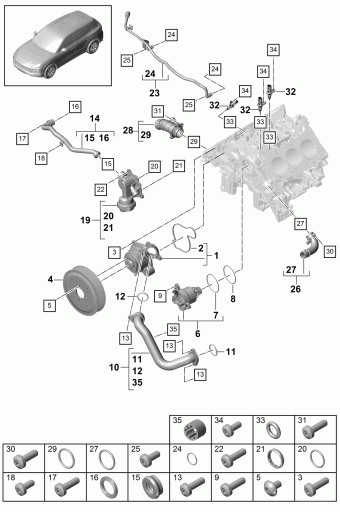

105-005: water pump thermostat housing water tube Breather line

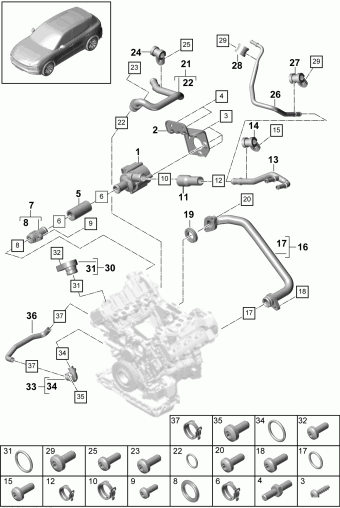

105-030: water cooling

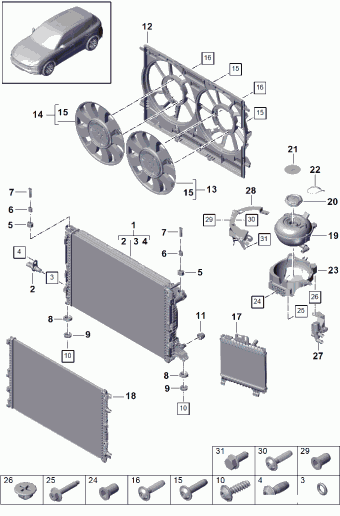

105-050: water cooling radiator additional radiator additional reservoir

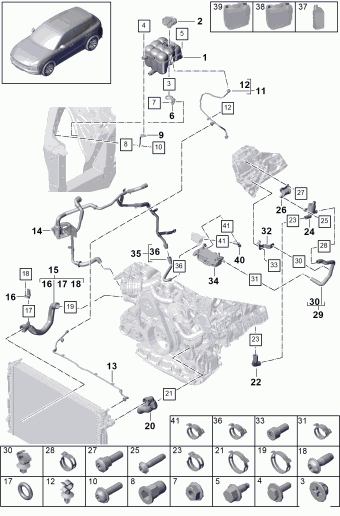

105-062: water cooling Coolant expansion tank Coolant pipe

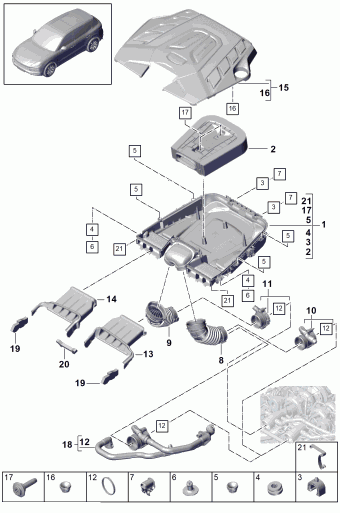

106-005: air cleaner with connecting parts

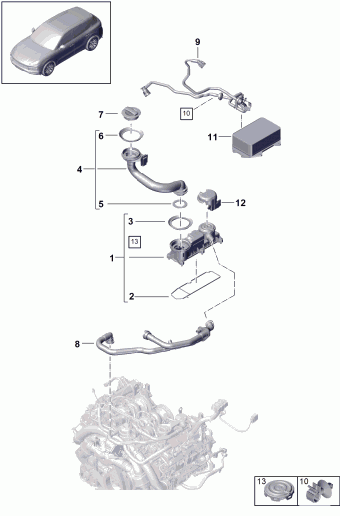

106-035: ventilation for cylinder block oil separator

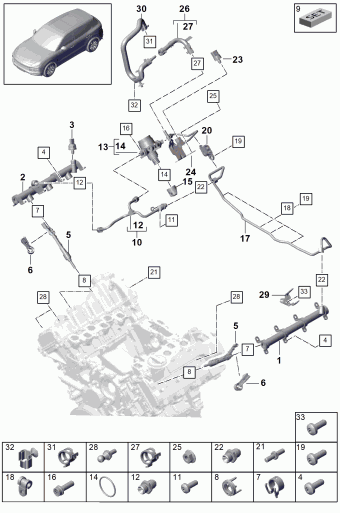

107-005: Fuel collection pipe high-pressure injector high pressure pump

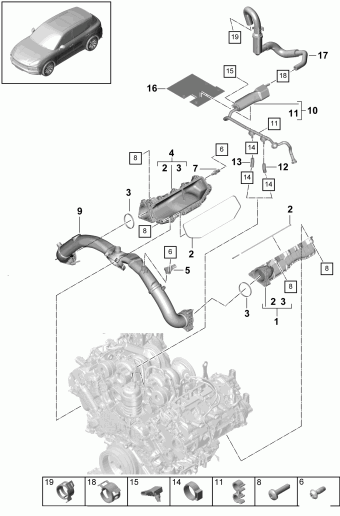

107-035: intake pipe ventilation for fuel tank

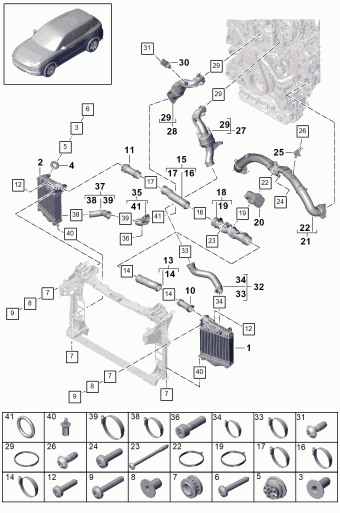

107-065: charge air cooler pressure pipe throttle body

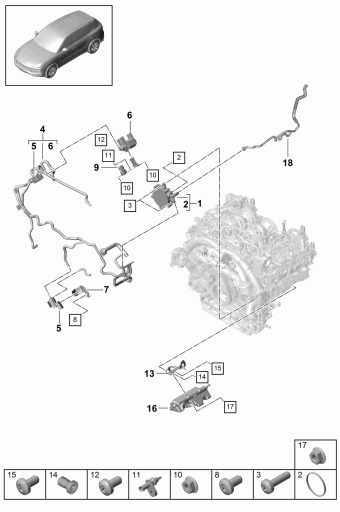

108-005: vacuum system vacuum pump

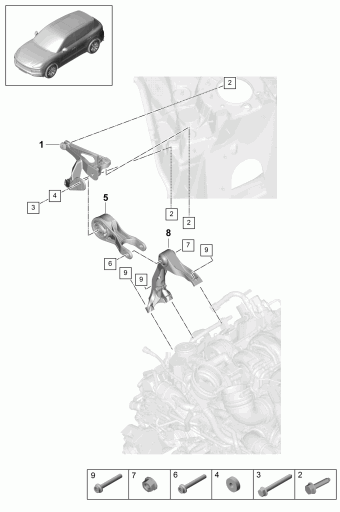

109-000: Engine lifting tackle Engine support

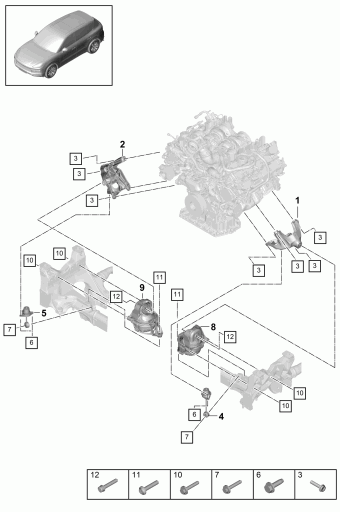

109-020: Engine lifting tackle Console for engine mounting Engine mounting
