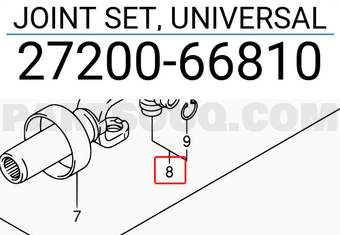

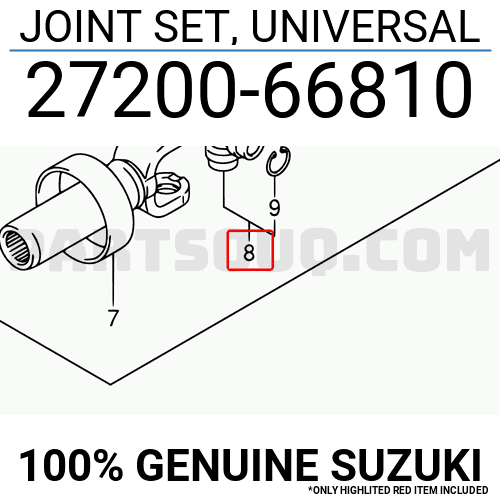

Universal Joint Assembly: Essential Component for Your Drive Shaft

The universal joint assembly, often referred to as a U-joint, is a critical component in the drivetrain of your vehicle. This part plays a vital role in transferring power from the transmission to the drive shaft, allowing for the efficient conversion of engine thrust into forward movement. Without the U-joint, your car’s drive shaft would be unable to rotate at the necessary angles when the vehicle is in motion.

Why is the Universal Joint Needed

The universal joint allows for the smooth and flexible connection between the transmission and drive shaft. This flexibility is crucial to accommodate the up-and-down movement of the rear axle due to road surface variations. The U-joint ensures that the drive shaft can effectively transmit torque even when the angles between the transmission and drive shaft change during vehicle operation.

How Does It Work

The universal joint operates through a cross-shaped pivot mechanism. This pivot allows for freedom of movement in multiple directions, making angular changes between the connected components seamless. The U-joint includes precision bearings that facilitate rotation while maintaining structural integrity.

Consequences of a Broken Universal Joint

If a universal joint fails, it can result in the loss of vehicle control, as the drive shaft may become detached or unable to rotate properly. Symptoms of a failing U-joint include unusual vibrations, clunking noises when shifting gears, and noticeable play or looseness in the drive shaft. Prompt replacement is crucial to prevent severe drivetrain damage and ensure vehicle safety.

Compatibility

This universal joint assembly is compatible with the following models:

• Grand Vitara
• Grand Vitara XL-7
• Escudo
