  • 8872660671 Toyota PIPE, COOLER REFRIGERANT LIQUID, A

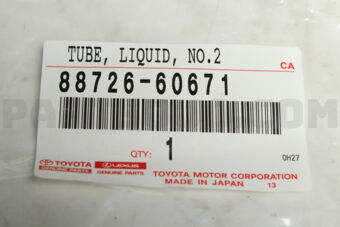

8872660671 Toyota PIPE, COOLER REFRIGERANT LIQUID, A, Price: 102.02$, Weight: 0.609kg

    • Make Number Name Availability Weight, kg Ship in, Days Price

    Toyota

    8872660671

    PIPE, COOLER REFRIGERANT LIQUID, A

    		 0

    0.609

    7-10

    102.02$
    Not Available

    Originals

    Make Number Name Availability Weight, kg Processing, days Price
    Toyota
    8872660671
    PIPE, COOLER REFRIGERANT LIQUID, A
    		4
    0.7
     Dispatch 24h
    128.70$

    Toyota
    8872660671
    PIPE, COOLER REFRIGERANT LIQUID, A
    		8
    0.7
    2-3
    107.25$


    Compatibility

    DescriptionModelOptionsProd PeriodDiagram
    HDJ101,UZJ100UZJ100W-GNPZKATM,MTM: AUTOMATIC TRANSMISSION; Grade: CYGNUS TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI01.1999 - 08.2002 View
    DescriptionModelOptionsProd PeriodDiagram
    FZJ10#,HDJ100,HZJ105,UZJ100UZJ100R-GNPEKQATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: VX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI; Destination: AUSTRALIA01.1998 - 08.2000 View

    A/C Liquid Refrigerant Line – OE 8872660671 for Toyota SUVs ❄️

    This high‑pressure refrigerant tube carries cooled liquid from the condenser/drier to the expansion valve and into the evaporator. Built from corrosion‑resistant alloy with precise bends, it keeps flow stable and seals tight with O‑rings. Proper routing and brackets reduce vibration, protect against chafe, and keep your Toyota Land Cruiser’s cabin air cold and consistent.

    Why you need it

    It maintains pressure, prevents leaks, and delivers sub‑cooled liquid to the valve. That means fast cool‑down, steady vent temps, and longer compressor life. A healthy line lowers load on the A/C system and saves fuel.

    How it works

    After the condenser removes heat, refrigerant becomes a high‑pressure liquid. This line moves it forward with the right internal diameter and smooth bends to avoid flash boiling. Quality O‑ring joints ensure a leak‑free seal under heat and vibration. 🛡️

    What if it fails

    Expect weak cooling, hissing, oily stains, UV dye traces, short‑cycling, and pressure faults. Continued use can overheat or seize the compressor, invite moisture, form acids, and contaminate the whole A/C loop.

    Install notes

    Replace O‑rings, lube with correct PAG oil, torque to spec, evacuate 30–45 min, nitrogen leak‑test, then recharge to factory charge (R134a on these models). Keep clamps and insulation in place. 🛠️

    Compatibility

    • Land Cruiser
    • Land Cruiser 100
