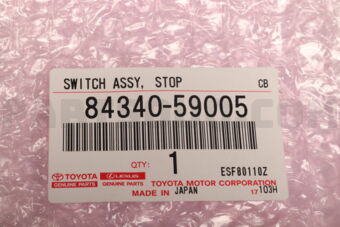

8434059005 Toyota SWITCH ASSY, STOP, Price: 47.58$, Weight: 0.028kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
8434059005 |
SWITCH ASSY, STOP |
4 |
0.028 |
|
47.58$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
SWITCH ASSY, STOP
|
12 |
0.032
|
2-3
|
39.65$
|
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
SWITCH ASSY, STOP LAMP
|
0 |
0.032
|
-
|
16.59$
|
Not Available |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KSP130,NCP131,NHP130,NSP13# | NSP135-AHXNK | ATM,MTM: CONTINUOUSLY VARIABLE TRANSMISSION; NO. Of Doors: 5-DOOR; Building Condition: COMPLETELY BUILT UNIT; Grade: F TYPE; Fuel Induction: HIGH EFFICIENCY TWIN CAM; Engine: (1NRFE) 1300CC 16-VALVE DOHC EFI | 12.2010 - 01.2020 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| NCP13# | NCP131R-AHPRKQ | ATM,MTM: AUTOMATIC TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1NZFE) 1500CC 16-VALVE DOHC EFI; Destination: AUSTRALIA | 08.2011 - 01.2020 | View |
Brake Pedal Stop-Light Switch Assembly
This small switch is a big safety part. It tells the car when you press the brake pedal, so the rear brake lamps turn on and other systems get the correct “brake applied” signal ✅. It is needed for safe driving, legal road use, and stable operation of modern electronics like cruise control and shift interlock.
How It Works
The unit mounts at the brake pedal bracket. When the pedal is released, the plunger is held in a set position. The moment you press the pedal, the plunger movement changes the internal contacts, sending power to the stop lamps and a signal to the ECU/ABS as required. Correct adjustment is critical for proper lamp timing and pedal free-play.
What Happens If It Fails
- Brake lights stay OFF (dangerous, high risk of rear-end impact) ⚠️
- Brake lights stay ON (battery drain, warning from other drivers)
- Cruise control won’t set or cancels randomly
- Automatic gear selector may not shift out of Park
- ABS/traction or check lights may appear on some trims
Why Replace It
Worn contacts, heat, vibration, or a cracked plunger can cause intermittent faults. Replacing the switch restores reliable brake lamp operation and correct pedal signal behavior.
Compatibility
- Vitz
- Yaris
