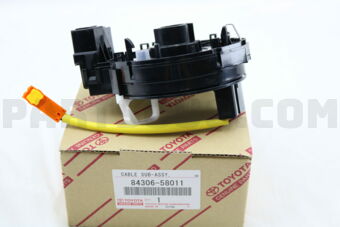

  • 8430658011 Toyota CABLE SUB-ASSY, SPIRAL

8430658011 Toyota CABLE SUB-ASSY, SPIRAL, Price: 161.24$, Weight: 0.435kg

    • Make Number Name Availability Weight, kg Ship in, Days Price

    Toyota

    8430658011

    CABLE SUB-ASSY, SPIRAL

    		 0

    0.435

    2-3

    161.24$
    Not Available

    Compatibility

    DescriptionModelOptionsProd PeriodDiagram
    MNH10MNH10R-PFPSKSeating Capacity: 7-SEATER; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: MS TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1MZFE) 3000CC 24-VALVE DOHC EFI; Destination: GENERAL COUNTRIES12.2003 - 04.2005 View
    DescriptionModelOptionsProd PeriodDiagram
    ANH1#,MNH1#MNH15W-PRPSKSeating Capacity: 8-SEATER; Grade: MS TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1MZFE) 3000CC 24-VALVE DOHC EFI05.2002 - 04.2005 View
    DescriptionModelOptionsProd PeriodDiagram
    ATH10ATH10W-PRXGBSeating Capacity: 8-SEATER; Engine: (2AZFXE) 2400CC 16-VALVE DOHC EFI07.2003 - 04.2008 View
    DescriptionModelOptionsProd PeriodDiagram
    AZT24#,ST246,ZZT241ZZT241W-DWPGKATM,MTM: AUTOMATIC TRANSMISSION; Body: WAGON; Grade: Z TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1ZZFE) 1800CC 16-VALVE DOHC EFI09.2002 - 06.2007 View
    DescriptionModelOptionsProd PeriodDiagram
    ACV30,31,MCV30MCV30R-JEPEKTATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: 3.0V TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1MZFE) 3000CC 24-VALVE DOHC EFI; Destination: FOR THAILAND05.2004 - 08.2006 View
    DescriptionModelOptionsProd PeriodDiagram
    NZE120,ZZE12#ZZE122R-GEPNKXATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: 1.8G TYPE; Engine: (1ZZFE) 1800CC 16-VALVE DOHC EFI; Destination: INDIA01.2003 - 08.2008 View
    DescriptionModelOptionsProd PeriodDiagram
    AHR10AHR10W-MREGBSeating Capacity: 8-SEATER; Engine: (2AZFXE) 2400CC 16-VALVE DOHC EFI05.2001 - 01.2006 View
    DescriptionModelOptionsProd PeriodDiagram
    ACR30,40,MCR30,40MCR40W-MRSSKSeating Capacity: 8-SEATER; Grade: AERAS TYPE; Engine: (1MZFE) 3000CC 24-VALVE DOHC EFI12.1999 - 01.2006 View
    DescriptionModelOptionsProd PeriodDiagram
    ACM2#ACM26W-ARSSKSeating Capacity: 7-SEATER; Grade: 240S TYPE; Engine: (2AZFE) 2400CC 16-VALVE DOHC EFI05.2001 - 12.2009 View
    DescriptionModelOptionsProd PeriodDiagram
    ACM20,CLM20CLM20R-ARMDYWATM,MTM: MANUAL TRANSMISSION; Seating Capacity: 7-SEATER; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Engine: (1CDFTV) 2000CC DIESEL TURBO; Destination: EUROPE05.2001 - 07.2005 View
    DescriptionModelOptionsProd PeriodDiagram
    ACR30,CLR30CLR30R-MRMDTWATM,MTM: MANUAL TRANSMISSION; Seating Capacity: 8-SEATER; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: DX TYPE; Engine: (1CDFTV) 2000CC DIESEL TURBO; Destination: EUROPE02.2001 - 04.2004 View

    Steering Wheel Spiral Cable Assembly (Clock Spring)

    This steering column spiral cable is a must-have link between the rotating steering wheel and the fixed vehicle wiring. It keeps key circuits working while you turn the wheel, so your safety and comfort systems stay connected at every angle .

    Why this part is needed

    Modern Toyota steering wheels carry wiring for the driver airbag, horn, and steering wheel buttons. Because the wheel spins, the harness must flex without breaking. This spiral cable stores the wiring in a flat coil, letting it wind and unwind smoothly.

    How it works

    Inside the housing, a ribbon-style conductor rolls like a tape measure. As you steer left or right, it shifts position while maintaining constant electrical contact. Correct centering is critical during installation to prevent over-rotation.

    What happens if it breaks

    A worn or snapped spiral cable can trigger an airbag warning light, disable the horn, cause steering-wheel controls to fail, or create intermittent faults when turning. In worst cases, the driver airbag circuit may be interrupted—don’t ignore the warning ⚠️.

    Compatible models

    • Alphard
    • Alphard G/V
    • Alphard Hv
    • Caldina
    • Camry
    • Corolla
    • Estima Hybrid
    • Estima T/L
    • Ipsum
    • Picnic/Avensis Verso
    • Previa/Tarago
