  • 4705060A50 Toyota CYLINDER ASSY, BRAKE

4705060A50 Toyota CYLINDER ASSY, BRAKE, Price: 2298.19$, Weight: 9.017kg

    • Make Number Name Availability Weight, kg Ship in, Days Price

    Toyota

    4705060A50

    CYLINDER ASSY, BRAKE

    		 0

    9.017

     Dispatch 24h

    2298.19$
    Not Available

    Originals

    Make Number Name Availability Weight, kg Processing, days Price
    Toyota
    4705060A50
    CYLINDER ASSY, BRAKE
    		0
    10.37
    -
    1915.16$
    		 Not Available

    Compatibility

    DescriptionModelOptionsProd PeriodDiagram
    FJA300,GRJ300,VJA300,VJH300VJA300L-GNUSZWATM,MTM: AUTOMATIC TRANSMISSION; Seating Capacity: 7-SEATER; Driver's Position: LEFT-HAND DRIVE VEHICLES; Fuel Induction: TURBO SYSTEM; Gear Shift Type: ATM, 10-SPEED FLOOR SHIFT; Engine: (V35AFTS) 3500CC 24-VALVE DOHC; Destination: EUROPE07.2021 - ... View

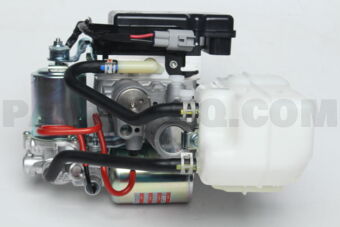

    Hydraulic Brake Master Cylinder Assembly

    This OE-spec unit is the heart of your SUV’s hydraulic brake system. It’s needed to turn pedal force into stable fluid pressure for all wheels, giving firm, predictable stops on-road and off-road. Built with precision-bored housing, nitrile seals, and a clean fluid reservoir, it delivers factory-level pedal feel and long service life.

    How it works

    Press the pedal and a pushrod moves twin pistons inside the bore. Seals trap brake fluid and build pressure in separate circuits, feeding the lines to calipers/wheel cylinders. Return springs reset the pistons when you release the pedal, pulling fluid back through ports to keep pressure balanced and the pedal height consistent.

    What happens if it’s faulty ❗

    Expect longer stopping distance, spongy or sinking pedal, uneven braking, and brake warning light. Internal bypass or external leaks drop system pressure, risking brake fade and pulling under load. Replace at the first signs of moisture around fittings, dark contaminated fluid, or inconsistent pedal travel.

    Tech Tips

    • Bench-bleed before install
    • Use fresh DOT-rated fluid
    • Bleed lines in proper sequence

    Compatibility

    • Land Cruiser
