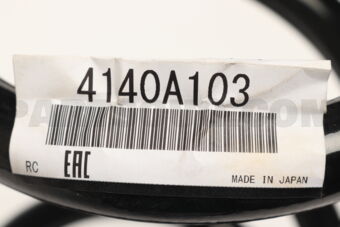

4140A103 Mitsubishi SPRING,RR SUSP COIL, Price: 152.33$, Weight: 5.88kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Mitsubishi |
4140A103 |
SPRING,RR SUSP COIL |
0 |
5.88 |
15-20 |
152.33$ |
| Not Available | ||||||
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Mitsubishi |
SPRING,RR SUSP COIL
|
2 |
6.762
|
2-3
|
152.33$
|
Compatibility
| Frame | Market | Model | Model Year From | Model Year To | Modification | Diagram |
|---|---|---|---|---|---|---|
| V97W | General (MEXICO) | V97W | 09.2007 | 10.2018 | 3800/LONG WAGON<07M-> - LIMITED(NSS4/7SEATER/EURO4),S5FA/T MEX | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| General (KOREA) | 11.2008 | 08.2013 | View |
| Frame | Market | Model | Model Year From | Model Year To | Modification | Diagram |
|---|---|---|---|---|---|---|
| V80,90# | Europe (EUROPE) | V97W | 09.2006 | 03.2021 | 3800/LONG WAGON<07M-> - GLS(NSS4/7SEATER/EURO2),S5FA/T LHD | View |
| Frame | Market | Model | Model Year From | Model Year To | Modification | Diagram |
|---|---|---|---|---|---|---|
| V90# | General (EXPORT) | V98V | 08.2006 | 06.2021 | 3200D-TURBO/LONG VAN<12M-> | View |
Rear Suspension Coil Spring for Mitsubishi SUV 4x4
Keep your off-roader level, safe, and comfortable. This rear coil spring restores correct ride height, supports payload, and stabilizes your 4x4 on-road and off-road. Made from high-tensile, heat-treated spring steel with anti-corrosion coating, it’s built to handle towing, camping gear, and rough tracks ️.
Why you need it
Over time, the rear end can sag, causing poor handling, uneven tire wear, headlight mis-aim, and quicker shock wear. Replacing the coil brings back factory stance, improves cornering, and keeps the rear from squatting under load.
How it works
The coil stores and releases energy with each bump. It carries vehicle weight and cargo, working with the shock absorber to control oscillation. Correct spring rate maintains geometry, traction, and ground clearance—vital for trail articulation and highway stability .
What happens if it’s broken
Expect clunks, harsh ride, rear-end bounce, and leaning to one side. Bottoming out, longer braking distances, axle hop, and instability over bumps can occur. Continued driving may damage shocks, mounts, and bushings.
Tech tips
Always replace coils in pairs, use a proper spring compressor, torque fasteners at ride height, and inspect insulators and bump stops.
Compatibility
- Pajero
- Montero
- Pajero/Montero
- Pajero/Montero<Long>
