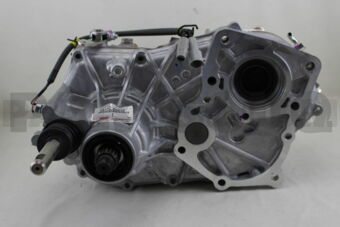

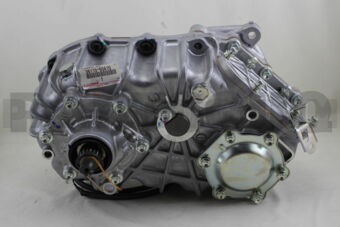

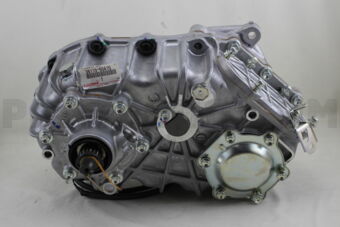

3611060A10 Toyota TRANSFER ASSY, Price: 1666.18$, Weight: 40.87kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
3611060A10 |
TRANSFER ASSY |
4 |
40.87 |
2-3 |
1666.18$ |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# | HZJ79L-TJMRS3 | ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: GENERAL COUNTRIES | 01.2007 - ... | View |
Toyota 4WD Transfer Case Assembly ⚙️
This heavy‑duty unit sits behind the gearbox and splits engine torque to front and rear axles. It gives you selectable 4H/4L, smooth power delivery, and dependable traction on road, trail, or tow duty. Built for tough use, it uses hardened gears/chain, precision bearings, and a sealed oil system to run cool and quiet.
Why you need it
For reliable off‑road grip, safe towing, and confident wet or snowy driving. A fresh, tight transfer case restores quiet operation, correct torque split, and proper center diff/lock function—key for a long‑life drivetrain.
How it works
Transmission output drives the case. A range mechanism selects High or Low. A center differential or dog clutch manages front/rear coupling; an electric actuator or lever moves forks. Internal pump/ATF bath lubes gears, chain, and bearings. Speed sensors report rotation to the 4WD ECU for smooth shifts.
If it fails ❗
Common signs: whining/grinding, clunks on take‑off, binding in turns, leaks, no 4WD, stuck in Neutral, or warning lights. Continued driving can overheat the drivetrain, twist shafts, damage U‑joints, or leave you without drive.
Install tips ️
Align splines carefully, torque flanges to spec, replace input/output seals, fill with correct ATF/gear oil, and calibrate the shift motor if equipped. Road‑test in 2H/4H/4L and check for leaks.
Compatibility
- Land Cruiser
