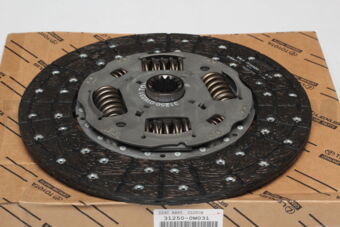

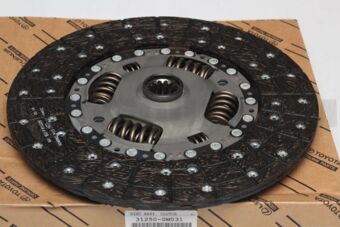

312500W031 DISC ASSY, CLUTCH
Images
6 Images
Compatibility
Toyota 312500W031
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,HDJ80,HZJ80,FZJ80 | FZJ80L-GNMRK | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: STANDARD TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1FZFE) 4500CC EFI; Destination: GENERAL COUNTRIES | 11.1997 - 12.2006 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ10#,HDJ100,HZJ105,UZJ100 | UZJ100R-GNMNKQ | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI; Destination: AUSTRALIA | 08.2002 - 05.2006 | View |
Information
Premium Clutch Friction Plate for Toyota SUVs ⚙️
This heavy‑duty clutch friction plate keeps engine power flowing to the gearbox with clean, controlled engagement. It is needed to prevent slip, reduce vibration, and deliver smooth launches, even under tow or off‑road use. Built with heat‑resistant facings and a spring‑damped hub, it maintains grip and comfort on long trips and steep climbs .
How It Works
The plate sits between flywheel and pressure plate. When you press the pedal, pressure lifts and the disc freewheels. Release the pedal and the facings bite the flywheel, transferring torque through the splined hub to the transmission input shaft. Torsion springs absorb shocks for quiet, smooth shifts.
What If It’s Worn or Broken
Expect clutch slip, higher revs with poor acceleration, burning smell, judder on take‑off, and hard gear changes. Severe wear can rivet‑kiss the flywheel, causing grooves and hot spots. Continued driving risks pressure plate damage and tow‑home failure.
Tech Highlights
Balanced core, riveted dual facings, rigid steel center, tuned damper springs, and chamfered edges for fast bedding. Install with a new release bearing and inspect flywheel and rear main seal for oil leaks.
Compatibility
- Land Cruiser
- Land Cruiser 100
