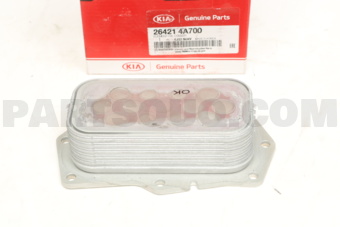

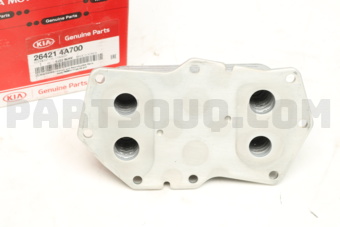

264214A700 Hyundai / KIA ELEMENT-OIL COOLER, Price: 67.69$, Weight: 0.67kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Hyundai / KIA |
264214A700 |
ELEMENT-OIL COOLER |
15 |
0.67 |
4-5 |
67.69$ |
Compatibility
| Market | Model Year From | Diagram |
|---|---|---|
| DOM | 2018 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| GEN | 2007 | 2015 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| CKD | 2010 | 2015 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| MES | 2015 | 2018 | View |
| Market | Model Year From | Diagram |
|---|---|---|
| CKD | 2018 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| MES | 2018 | 2021 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| CKD | 2015 | 2018 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| GEN | 2018 | 2021 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| CKD | 2010 | 2017 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| CKD | 2015 | 2016 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| MES | 2006 | 2016 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| GEN | 2016 | 2019 | View |
| Market | Model Year From | Diagram |
|---|---|---|
| CKD | 2017 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| MES | 2017 | 2019 | View |
| Market | Model Year From | Diagram |
|---|---|---|
| GEN | 2019 | View |
| Market | Model Year From | Diagram |
|---|---|---|
| CKD | 2020 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| EUR;CIS | 2014 | 2018 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| EUR;CIS | 2015 | 2015 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| DOM | 2016 | 2019 | View |
| Market | Model Year From | Diagram |
|---|---|---|
| DOM | 2019 | View |
| Market | Model Year From | Model Year To | Diagram |
|---|---|---|---|
| DOM | 2006 | 2016 | View |
| Market | Model Year From | Diagram |
|---|---|---|
| CKD | 2017 | View |
| Market | Model Year From | Diagram |
|---|---|---|
| DOM | 2016 | View |
Engine Oil Cooler Element for Hyundai/Kia LCVs
This genuine-spec oil cooler element (OEM ref: 26421-4A700) keeps engine oil at safe temperature under load. It’s vital for vans and light trucks that tow, idle long, or work in hot climates. Stable oil temperature means stable viscosity, clean lubrication film, and longer turbo and bearing life.
How it works ️
The element sits inside the oil cooler housing, where hot oil flows through thin channels. Coolant or air removes heat across the core’s plates/fins. By fast heat exchange, it prevents oil thinning and oxidation, keeping pressure and cleaning action correct, especially in diesel stop‑start delivery cycles.
Why you need it
Old or clogged cores reduce heat transfer. After a repair, leak, or sludge event, replacing the element restores cooling efficiency at once, avoiding full cooler replacement and saving downtime.
If it fails ⚠️
Symptoms: high oil temp, pressure warning at hot idle, burnt oil smell, darkened oil early, turbo whine, coolant-in-oil (if internal leak). Risks: bearing scuffing, turbo coking, head gasket stress. Act fast—overheating oil can destroy the engine.
Tech tips
Flush cooler lines, use new seals, torque housing evenly, fill correct spec oil/coolant, bleed air, and recheck for leaks after 50–100 km.
Compatibility
- H-1 07 (2007-2015)
- H-1 15 (2015-2018)
- H-1 18 (2018-2021)
- H-1/Grand Starex 15 (2015-2018)
- H-1/Grand Starex 18 (2018-2021)
- Grand Starex
- H-100 04 (2004-2016)
- H-100 17 (2016-2019)
- H-100 20 (2019-)
- Solati
- Solati 14 (2017-)
- Porter Ii
- Porter 2
- Porter 2 Features
- H350 (Bus/Van) 14 (2014-2018)
- H350 (Truck) 14 (2015)
