253854T000 Hyundai / KIA RESISTOR, Price: 29.84$, Weight: 0.03kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Hyundai / KIA |
253854T000 |
RESISTOR |
5 |
0.03 |
4-5 |
29.84$ |
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Hyundai / KIA |
RESISTOR
|
0 |
0.074
|
-
|
32.49$
|
Not Available |

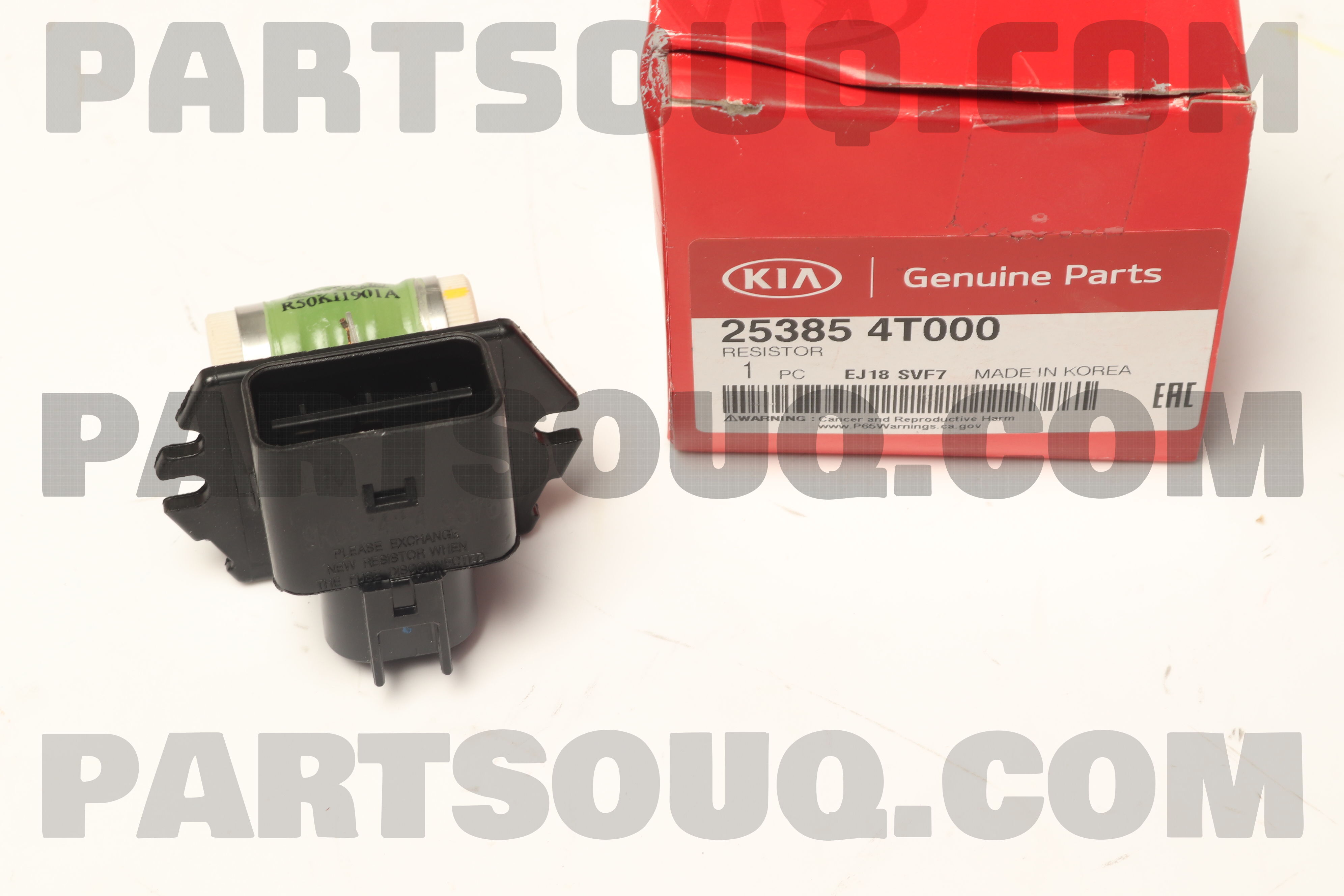

HVAC Blower Motor Resistor for Hyundai & Kia
This small electrical control part is essential for keeping your cabin fan working at the right speeds. It’s commonly used in Hyundai and Kia heating/air-conditioning systems to manage blower airflow so you can defog the windshield and stay comfortable in any weather
Why This Part Is Needed
Your climate control needs different fan speeds, not just ON/OFF. This component helps the system deliver low, medium, and high airflow smoothly, especially in stop-and-go driving or humid conditions ️
How It Works
It changes electrical resistance to reduce voltage going to the blower motor on lower settings. On the highest speed, most systems bypass resistance for full power. The unit mounts in the air duct so moving air cools it during operation
What Happens If It Fails
Typical symptoms include only high speed working, no fan on some settings, weak airflow, or an intermittent blower. In severe cases it can overheat, melt the connector, or cause a burning smell. A faulty unit can also strain the blower motor and fuse ⚠️
Technician Tip
If the plug looks heat-damaged, replace the connector pigtail too for a reliable repair.
