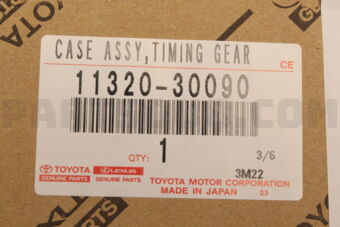

1132030090 Toyota CASE ASSY, TIMING, Price: 213.58$, Weight: 5.8kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
1132030090 |
CASE ASSY, TIMING |
0 |
5.8 |
2-3 |
213.58$ |
| Not Available | ||||||
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KDY22#,23#,25#,26#,LY2## | KDY261L-TBMGYW3 | Building Condition: INCOMPLETE VEHICLES (CAB & CHASSIS); Driver's Position: LEFT-HAND DRIVE VEHICLES; Rear Tire: DOUBLE TIRE; Engine: (1KDFTV) 3000CC DIESEL TURBO; Loading Capacity: 1.5 TONNE; Destination: EUROPE | 09.2006 - 02.2015 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KDY2##,LY2##,RZY2##,TRY2## | KDY281-TLPDY3 | ATM,MTM: AUTOMATIC TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CAB & CHASSIS); Deck,cab: JUST LOW, SUPER SINGLE JUST LOW; Rear Tire: SINGLE TIRE; Fuel Induction: DIESEL COMMON RAIL INJECTION SYSTEM; Engine: (1KDFTV) 3000CC DIESEL TURBO; Loading Capacity: 1.25TONS | 09.2007 - ... | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GDH2##,KDH2##,LH2##,TRH2## | KDH223R-LEPDYQ | Seating Capacity: 14-SEATER; NO. Of Doors: 4-DOOR; Roof: HIGH-ROOF; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: COMMUTER; Grade: STANDARD TYPE; Fuel Induction: DIESEL COMMON RAIL INJECTION SYSTEM; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1KDFTV) 3000CC DIESEL TURBO; Destination: AUSTRALIA | 12.2013 - ... | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KDH2##,TRH2## | KDH223B-LEPNY5 | Drive Train: 2 WHEEL DRIVE; Seating Capacity: 15-SEATER; NO. Of Doors: 4-DOOR; Building Condition: TECS SPECIAL PURPOSE VEHICLE; Roof: HIGH-ROOF; Body: COMMUTER; Grade: GL,GRAND CABIN TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1KDFTV) 3000CC DIESEL TURBO | 09.2007 - 12.2013 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GDJ15#,GRJ150,KDJ15# | KDJ155R-GJFEYW | ATM,MTM: MANUAL TRANSMISSION; NO. Of Doors: 3-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Gear Shift Type: MTM, 6-SPEED FLOOR SHIFT; Engine: (1KDFTV) 3000CC DIESEL TURBO | 08.2009 - 06.2015 | View |
Timing Case Assembly (Engine Front Cover) ?️
This engine timing case assembly is a strong front cover that seals and protects the timing drive area. It is needed to keep the timing components clean, correctly aligned, and safely lubricated, while holding key front-side seals and mounting points in the right position.
Why this part is needed ✅
The timing zone works under constant load, heat, and oil splash. This cover forms a rigid housing so the timing system stays stable, oil stays inside, and road dust stays out.
How it works ⚙️
Bolted to the engine block, it creates a sealed chamber for the timing chain/belt area. It supports oil sealing surfaces (like front crank seal), guides oil flow back to the sump, and keeps the timing drive running in a controlled environment.
What happens if it’s broken ?
Cracks, warping, or damaged sealing edges can cause oil leaks, low oil level, and contamination inside the timing area. In severe cases you may hear timing noise, see oil on the undertray, or risk accelerated wear of timing parts—leading to costly engine repair.
Compatible Models
- Outlander<Phev>
