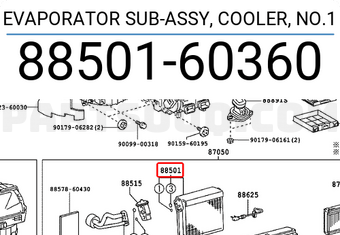

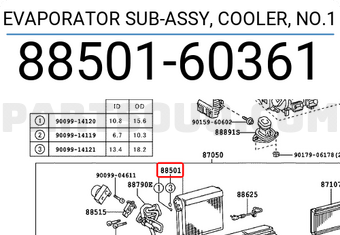

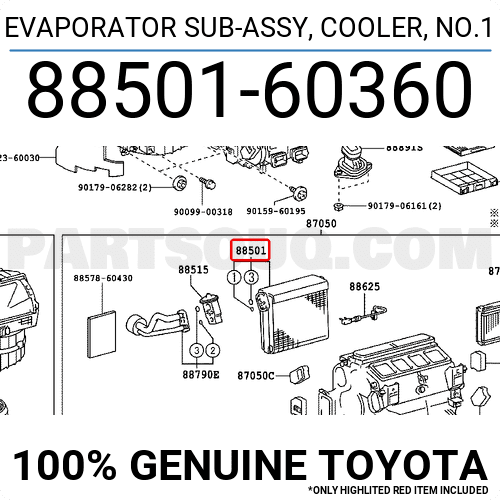

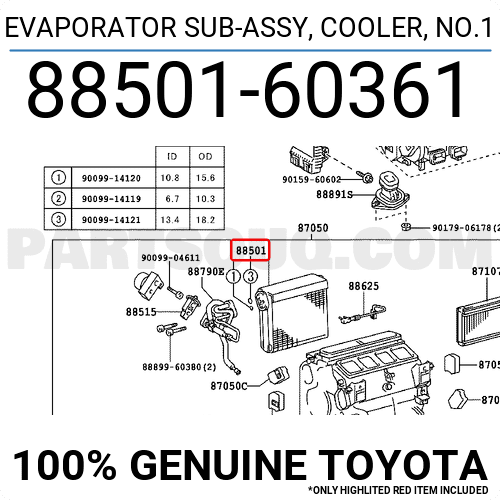

Cabin A/C Evaporator Core Assembly ❄️

This A/C evaporator core is the hidden cooling unit inside the HVAC box under the dash. It is needed to chill the air before it enters the cabin, keeping comfort high and windows clear in humid weather. When your air conditioner runs, the compressor sends refrigerant to this core; the refrigerant expands inside the thin aluminum passages, absorbing heat. A blower fan pushes air across the fins, creating cold, dry airflow while moisture condenses and drains outside .

How It Works

The core acts like a heat sponge: warm cabin air passes over the fin pack, heat transfers into the refrigerant, and the air temperature drops fast. The condensed water exits through the drain tube, helping reduce fogging and musty smells when the system is clean.

What Happens If It Fails

A leaking or clogged core can cause weak cooling, oily residue at the drain, foggy windows, and a sweet/musty odor. Refrigerant loss may force the compressor to cycle rapidly or shut down, risking costly A/C damage. Severe leaks can also leave damp carpets if the drain path is blocked ⚠️.

Compatible Models

• Land Cruiser
