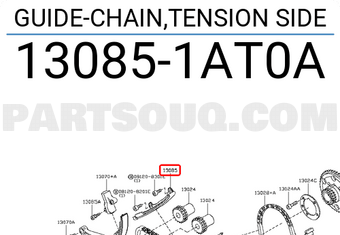

Timing Chain Guide – Tension Side ⛓️

This guide keeps the timing chain on the correct path, holds tension, and reduces noise. It works with the tensioner to stabilize chain movement so camshafts and crankshaft stay perfectly synchronized. Proper guidance protects valves, pistons, and ensures smooth starts and clean acceleration.

Why this part is needed ✅

During load changes and cold starts, the chain wants to whip and flutter. The guide gives the chain a low-friction surface and precise route, cutting vibration and wear. It also helps the tensioner maintain steady force for accurate valve timing and long chain life.

How it works ⚙️

A steel-backed arm with a hardened polymer pad sits on the tension side. The hydraulic/spring tensioner presses the chain against the pad. Engine oil forms a thin film, reducing friction and heat while damping oscillations at all RPM.

If the guide fails ⚠️

Expect cold-start rattle, metallic dust in oil, poor power, misfire, and warning lights. Severe wear or breakage can let the chain jump teeth, causing rough running, no-start, or even bent valves. Replace at the first signs of rattle; always inspect chain, tensioner, and fixed guide together.

Compatibility

• Np300 Navara
• Pathfinder
• Navara Np300
• Cabstar
• Nv350 Caravan
• Navara
• Np300 Frontier
• Frontier
• Nv350 Urvan
• Terra
