Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |

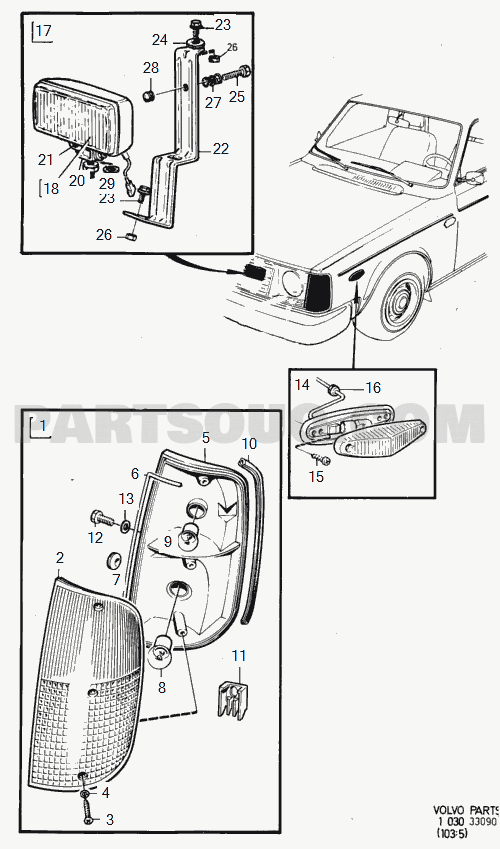

35 Lighting
flasher light marker lamps (CA),(US)
-1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986632 | Toothed washer | 24 | 6.00 | ||
| 656456 | Rubber cap | 28 | 2.00 | ||
| 986966 | Hexagon screw | 25 | 2.00 | (949441) | |
| 1235924 | Compression spring | 27 | 2.00 | OP | |
| 1235631 | Bracket | 22 | 2.00 | ||
| 986634 | Toothed washer | 29 | 2.00 | ||
| 1277106 | Front fog lamp | 18 | 2.00 | OP | (CA),(US) (1235384) |
| 989852 | Flange screw | 23 | 4.00 | ||
| 985919 | Flange nut | 26 | 2.00 | ||
| 1235853 | Direction indicator,right | 1 | 1.00 | OP | CIBIE 240 |
| 1235852 | Direction indicator, left | 1 | 1.00 | CIBIE 240 | |
| 1258932 | Direction indicator, left | 1 | 1.00 | OP | CIBIE 260 (1235116) |
| 1258933 | Direction indicator,right | 1 | 1.00 | OP | CIBIE 260 (1235117) |
| 1259738 | Direction indicator, left | 1 | 1.00 | OP | HELLA 240 (1235860) |
| 1259739 | Direction indicator,right | 1 | 1.00 | OP | HELLA 240 (1235861) |
| 1234146 | Sealing strip, left | 10 | 1.00 | HELLA | |
| 1215661 | Sealing strip, left | 10 | 1.00 | OP | CIBIE |
| 1234147 | Sealing strip, right | 10 | 1.00 | HELLA | |
| 1234385 | Sealing strip, right | 10 | 1.00 | CIBIE | |
| 1215660 | Gasket | 6 | 1.00 | CIBIE | |
| 986500 | Washer | 13 | 2.00 | HELLA (960139) | |
| 982757 | Flange screw | 12 | 2.00 | ||
| 989790 | Bulb yellow | 9 | 1.00 | 24/2.2 CP BAY 15d (949281). | |
| 989763 | Bulb | 9 | 1.00 | 4CP BA 15 s | |
| 1235325 | Lens, left | 2 | 1.00 | CIBIE 260 | |
| 1235326 | Lens, right | 2 | 1.00 | OP | CIBIE 260 |
| 1215712 | Lens, left | 2 | 1.00 | CIBIE 240 | |
| 1215713 | Lens, right | 2 | 1.00 | OP | CIBIE 240 |
| 1234139 | Lens, right | 2 | 1.00 | HELLA | |
| 1234138 | Lens, left | 2 | 1.00 | HELLA | |
| 941267 | Plug | 7 | 1.00 | HELLA (941263) | |
| 1215621 | Rubber bushing | 7 | 1.00 | CIBIE | |
| 1258476 | Spacer | 11 | 2.00 | CIBIE | |
| 989758 | Bulb | 8 | 1.00 | 32CP BA 15 s | |
| 989790 | Bulb yellow | 8 | 1.00 | 24/2.2 CP BAY 15d | |
| 1212692 | Washer | 4 | 3.00 | HELLA | |
| 1214128 | Washer | 4 | 3.00 | CIBIE | |
| 1212823 | Screw | 3 | 3.00 | CIBIE | |
| 987094 | Cross recessed screw | 3 | 3.00 | HELLA |
flasher light marker lamps
-1980 With day notice light.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986632 | Toothed washer | 24 | 6.00 | ||
| 656456 | Rubber cap | 28 | 2.00 | ||
| 986966 | Hexagon screw | 25 | 2.00 | (949441) | |
| 1235924 | Compression spring | 27 | 2.00 | OP | |
| 1235631 | Bracket | 22 | 2.00 | ||
| 986634 | Toothed washer | 29 | 2.00 | ||
| 1277105 | Front fog lamp | 18 | 2.00 | (SE) (1235269) | |
| 989852 | Flange screw | 23 | 4.00 | ||
| 985919 | Flange nut | 26 | 2.00 | ||
| 1235816 | Direction indicator,right | 1 | 1.00 | CIBIE | |
| 1235815 | Direction indicator, left | 1 | 1.00 | OP | CIBIE |
| 1259746 | Direction indicator, left | 1 | 1.00 | HELLA (1235819) | |
| 1259747 | Direction indicator,right | 1 | 1.00 | HELLA (1235820) | |
| 1234147 | Sealing strip, right | 10 | 1.00 | HELLA | |
| 1215661 | Sealing strip, left | 10 | 1.00 | OP | CIBIE |
| 1234146 | Sealing strip, left | 10 | 1.00 | HELLA | |
| 1234385 | Sealing strip, right | 10 | 1.00 | CIBIE | |
| 1215660 | Gasket | 6 | 1.00 | CIBIE | |
| 986500 | Washer | 13 | 2.00 | HELLA (960139) | |
| 982757 | Flange screw | 12 | 2.00 | ||
| 989788 | Bulb | 9 | 1.00 | 32/3CP BAY 15d | |
| 273557 | Bulb kit | 9 | 1.00 | OP | |
| 989762 | Bulb | 9 | 1.00 | 5W BA 15S | |
| 1234141 | Lens, right | 2 | 1.00 | HELLA (1234523) | |
| 1234140 | Lens, left | 2 | 1.00 | HELLA (1234522) | |
| 1215711 | Lens, right | 2 | 1.00 | CIBIE | |
| 1215710 | Lens, left | 2 | 1.00 | OP | CIBIE |
| 941267 | Plug | 7 | 1.00 | HELLA (941263) | |
| 1215621 | Rubber bushing | 7 | 1.00 | CIBIE | |
| 1258476 | Spacer | 11 | 2.00 | CIBIE | |
| 273556 | Bulb kit | 8 | 1.00 | ||
| 965826 | Bulb | 8 | 1.00 | 21W BA 15S | |
| 1214128 | Washer | 4 | 3.00 | CIBIE | |
| 1212692 | Washer | 4 | 3.00 | HELLA | |
| 987094 | Cross recessed screw | 3 | 3.00 | HELLA | |
| 1212823 | Screw | 3 | 3.00 | CIBIE |
