Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
84 Exterior trim, glass, weatherstrips

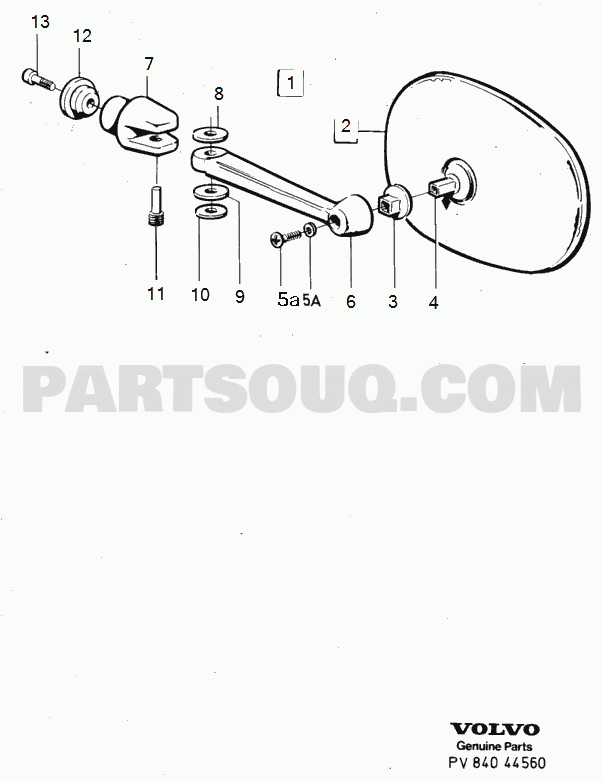

rear view mirror, manually operated
1979
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 959219 | Hex. socket screw | 13 | 1.00 | ||
| 1254444 | Washer | 12 | 1.00 | ||
| 273716 | Rear view mirror black flat glass | 1 | 2.00 | ALTER 1 (1254086) | |
| 273717 | Rear view mirror bright flat glass | 1 | 2.00 | ALTER 2 (1254897) | |
| 273718 | Rear view mirror black convex glass | 1 | 2.00 | ALTER 3. EXC (JP) (1254100) | |
| 273719 | Rear view mirror black convex glass | 1 | 2.00 | (JP) (1255125) | |
| 1254944 | Plastic washer | 8 | 1.00 | ||
| 1254194 | Rear view mirror black flat glass | 2 | 1.00 | OP | ALTER 1 |
| 1254193 | Rear view mirror black convex glass | 2 | 1.00 | ALTER 2. EXC (JP) | |
| 1255191 | Rear view mirror black convex glass | 2 | 1.00 | OP | (JP) |
| 1254307 | Guide pin | 11 | 1.00 | OP | |
| 1254945 | Washer | 10 | 1.00 | OP | |
| 1254943 | Plastic washer | 9 | 1.00 | OP | |
| 949198 | Screw black | 5 | 1.00 | ||
| 946710 | Screw bright | 5 | 1.00 | ||
| 1203272 | Ball seat | 3 | 1.00 |
sun visor,interior rear mirror 242, 244.
2DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 242, 244.
2DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 242, 244.
4DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 242, 244.
4DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 245, 265.
5DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1224136 | Attaching plate | 8 | 1.00 | ||
| 955174 | Cross recessed sunk screw | 9 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1372111 | Rear view mirror | 7 | 1.00 | OP | (1224135) |
| 986509 | Washer | 14 | 12.00 | ||
| 1360894 | Support, beige | 4 | 2.00 | (1244770) | |
| 3540668 | Sun visor, left | 1 | 1.00 | OP | (1360909) |
| 3540669 | Sun visor, right | 1 | 1.00 | OP | (1360910) |
| 1313082 | Sun visor, right, white | 1 | 1.00 | (1313327) | |
| 1313081 | Sun visor, left, white | 1 | 1.00 | (1313326) | |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986114 | Six point socket screw | 5 | 4.00 | (955138) | |
| 190665 | Hexagon screw | 2 | 6.00 |
sun visor,interior rear mirror 245, 265.
5DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1224136 | Attaching plate | 8 | 1.00 | ||
| 955174 | Cross recessed sunk screw | 9 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1372111 | Rear view mirror | 7 | 1.00 | OP | (1224135) |
| 986509 | Washer | 14 | 12.00 | ||
| 1360894 | Support, beige | 4 | 2.00 | (1244770) | |
| 3540668 | Sun visor, left | 1 | 1.00 | OP | (1360909) |
| 3540669 | Sun visor, right | 1 | 1.00 | OP | (1360910) |
| 1313082 | Sun visor, right, white | 1 | 1.00 | (1313327) | |
| 1313081 | Sun visor, left, white | 1 | 1.00 | (1313326) | |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986114 | Six point socket screw | 5 | 4.00 | (955138) | |
| 190665 | Hexagon screw | 2 | 6.00 |

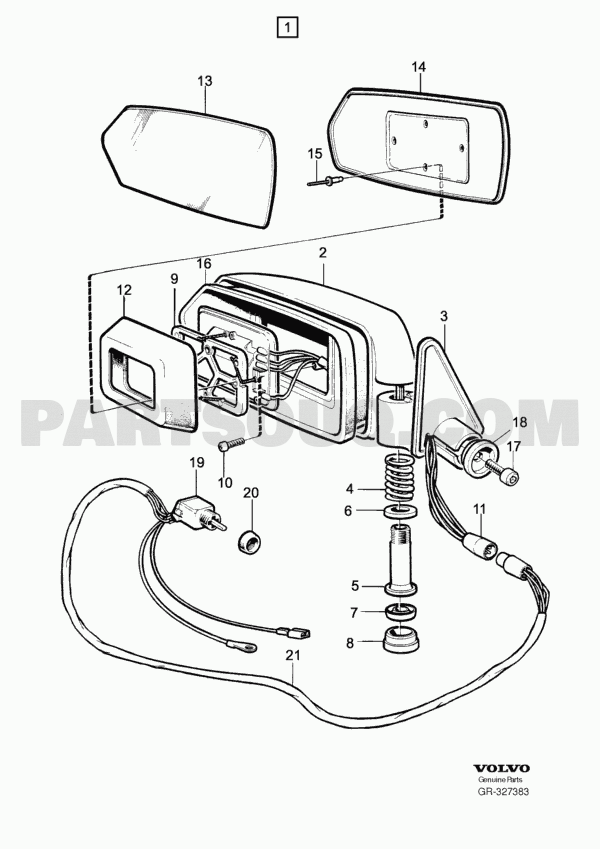

rear view mirror, electrically operated
1979
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1129250 | Rear view mirror left convex glass | 1 | 1.00 | L.H.D EXC (CA),(US) (283177) | |
| 1129253 | Rear view mirror right convex glass | 1 | 1.00 | R.H.D (283180) | |
| 1129252 | Rear view mirror left convex glass | 1 | 1.00 | OP | R.H.D (283179) |
| 1304120 | Rear view mirror right flat glass | 1 | 1.00 | 262C (CA),(US) (1254799) | |
| 1304118 | Rear view mirror right convex glass | 1 | 1.00 | OP | 262C. EXC (AU),(CA),(US) (1254723) |
| 1129255 | Rear view mirror right flat glass | 1 | 1.00 | (CA),(US) (283182) | |
| 1304112 | Rear view mirror right convex glass | 1 | 1.00 | (JP) (1255233) | |
| 1304126 | Rear view mirror right flat glass | 1 | 1.00 | (AU) (1255501) | |
| 1304130 | Rear view mirror right flat glass | 1 | 1.00 | OP | 262C (AU) |
| 1129251 | Rear view mirror right convex glass | 1 | 1.00 | OP | L.H.D EXC (CA),(US) (283178) |
| 1304119 | Rear view mirror, left flat glass | 1 | 1.00 | OP | 262C (CA),(US) (1254798) |
| 1304117 | Rear view mirror left convex glass | 1 | 1.00 | OP | 262C. EXC (AU),(CA),(US) (1254722) |
| 1129254 | Rear view mirror, left flat glass | 1 | 1.00 | (CA),(US) (283181) | |
| 1304111 | Rear view mirror left convex glass | 1 | 1.00 | (JP) (1255232) | |
| 1304129 | Rear view mirror, left flat glass | 1 | 1.00 | OP | 262C (AU) (1246556) |
| 1304125 | Rear view mirror, left flat glass | 1 | 1.00 | (AU) (1255500) | |
| 1254679 | Mirror disc, left | 14 | 1.00 | OP | |
| 1254716 | Mirror disc, right | 14 | 1.00 | OP | |
| 1255986 | Mirror glass, left convex glass | 13 | 1.00 | OP | (JP) (1255234) |
| 1255982 | Mirror glass, left convex glass | 13 | 1.00 | OP | (1254677) |
| 1255984 | Mirror glass, left flat glass | 13 | 1.00 | OP | (1254793) |
| 1255985 | Mirror glass, right flat glass | 13 | 1.00 | OP | (1254794) |
| 1255983 | Mirror glass, right convex glass | 13 | 1.00 | OP | (1254715) |
| 1255987 | Mirror glass, right convex glass | 13 | 1.00 | OP | (JP) (1255238) |
| 1254639 | Protecting casing, right | 16 | 1.00 | ||
| 1254638 | Protecting casing, left | 16 | 1.00 | ||
| 1304131 | Drive unit | 9 | 1.00 | OP | (1254714) |
| 1254005 | Rubber bellows | 12 | 1.00 | OP | |
| 1254635 | 3 | 1.00 | |||
| 1254634 | Mirror base, left | 3 | 1.00 | ||
| 1254444 | Washer | 18 | 2.00 | EXC 262C | |
| 959219 | Hex. socket screw | 17 | 2.00 | ||
| 986679 | Toothed washer | 17 | 2.00 | 262C | |
| 1235091 | Switch | 19 | 2.00 | OP | |
| 987047 | Cross recessed screw | 10 | 2.00 | ||
| 1321081 | Compression spring | 4 | 1.00 | (1254710) | |
| 1235101 | Nut | 20 | 2.00 | ||
| 945828 | Insulator | 11 | 1.00 | ||
| 1321080 | 6 | 1.00 | (1254711) | ||
| 1254709 | Sleeve | 5 | 1.00 | OP | |
| 1254712 | Sealing ring | 7 | 1.00 | OP | |
| 1254797 | Plastic plug | 8 | 1.00 | OP | |
| 1247995 | Wiring harness | 21 | 2.00 |
