Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
86 Bumpers and mudflaps

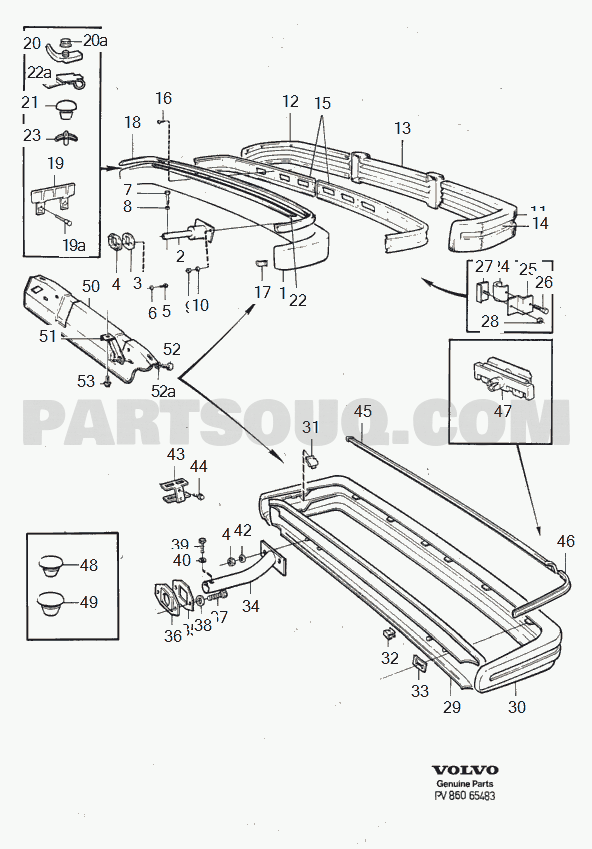

rear bumper
EXC (CA),(US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 985919 | Flange nut | 20a | 2.00 | 5DRS | |
| 1202070 | Retainer, left | 20 | 1.00 | 5DRS | |
| 1202071 | Retainer, right | 20 | 1.00 | 5DRS | |
| 1203156 | Clip | 22a | 3.00 | 5DRS | |
| 987104 | Cross recessed screw | 16 | 24.00 | ||
| 1246806 | Bumper moulding, right | 12 | 1.00 | ||
| 1247291 | Sealing plug | 21 | 2.00 | IK | |
| 1254065 | Retaining clip | 15 | 2.00 | ||
| 1246809 | Cover moulding | 18 | 1.00 | OP | 5DRS |
| 1246788 | Cover moulding | 18 | 1.00 | 2DRS 4DRS | |
| 1246807 | Bumper moulding, center | 13 | 1.00 | OP | |
| 1246791 | Clip | 23 | 2.00 | 2DRS 4DRS | |
| 1246790 | Retaining clip | 19 | 2.00 | 2DRS 4DRS | |
| 971003 | Hexagon screw | 7 | 2.00 | IK | (962911) |
| 18702 | Washer | 8 | 2.00 | IK | |
| 1246805 | Bumper moulding, left | 11 | 1.00 | OP | |
| 1128741 | Stripe | 14 | 1.00 | ALTER | |
| 949017 | Blind rivet | 19a | x | ||
| 1254067 | Absorber | 2 | 2.00 | OP | |
| 1202713 | Spacer plate | 24 | 2.00 | ||
| 1202712 | Attaching plate | 27 | 2.00 | IK | |
| 1202711 | Spacer rubber | 25 | 2.00 | ||
| 1247331 | Bumper rail black | 1 | 1.00 | ||
| 1304531 | Bumper rail bright | 1 | 1.00 | OP | (1246820) |
| 986985 | Hexagon screw | 26 | 2.00 | ||
| 3534538 | Guide washer | 3 | 2.00 | (1203195) | |
| 1247015 | Modesty panel | 50 | 1.00 | OP | -1980 |
| 3534538 | Guide washer | 4 | 2.00 | (1203196) | |
| 1246389 | Modesty panel | 50 | 1.00 | 1981- | |
| 1203680 | Clip | 17 | 4.00 | ||
| 1203085 | Support | 22 | 1.00 | 5DRS | |
| 986503 | Washer | 10 | 4.00 | ||
| 985878 | Hexagon nut | 9 | 4.00 | (955783) | |
| 985186 | Flange screw | 5 | 4.00 | ||
| 986481 | Washer | 6 | 4.00 | Only early versions of car. | |
| 985921 | Flange nut | 28 | 2.00 | ||
| 273671 | Mounting kit | 28 | 1.00 | -1980 | |
| 273916 | Mounting kit | 28 | 1.00 | 1981- | |
| 1255159 | Bracket, right | 51 | 1.00 | ||
| 1255157 | Bracket, left | 51 | 1.00 | ||
| 982755 | Flange screw | 52 | 2.00 | (947553) | |
| 982814 | Flange screw | 53 | 2.00 | ||
| 986500 | Washer | 52a | 2.00 | ||
| 1372113 | Anchorage | 47 | 16.00 | 2DRS 4DRS (1304967) | |
| 1372337 | Trim moulding, center black | 45 | 1.00 | 5DRS (1304711) | |
| 1372335 | Trim moulding, center black | 45 | 1.00 | 2DRS 4DRS (1304714) | |
| 1372336 | Trim moulding, center bright | 45 | 1.00 | 5DRS (1247258) | |
| 1372334 | Trim moulding, center bright | 45 | 1.00 | OP | 2DRS. 4DRS (1247248) |
| 1304203 | Clip | 31 | 8.00 | OP | |
| 1255525 | Bracket | 43 | 2.00 | OP | |
| 982757 | Flange screw | 44 | 6.00 | ||
| 986499 | Washer | 44 | 6.00 | ||
| 986503 | Washer | 42 | 4.00 | ||
| 985878 | Hexagon nut | 41 | 4.00 | (955783) | |
| 1372343 | Trim moulding, left black | 46 | 1.00 | OP | 5DRS (1304713) |
| 1372344 | Trim moulding, right bright | 46 | 1.00 | OP | 5DRS (1247262) |
| 1372341 | Trim moulding, right black | 46 | 1.00 | OP | 2DRS 4DRS (1304715) |
| 1372345 | Trim moulding, right black | 46 | 1.00 | OP | 5DRS (1304712) |
| 1372340 | Trim moulding, right bright | 46 | 1.00 | OP | 2DRS 4DRS (1247253) |
| 1372342 | Trim moulding, left bright | 46 | 1.00 | OP | 5DRS (1247261) |
| 1372339 | Trim moulding, left black | 46 | 1.00 | OP | 2DRS 4DRS (1304716) |
| 1372338 | Trim moulding, left bright | 46 | 1.00 | OP | 2DRS 4DRS (1247258) |
| 971003 | Hexagon screw | 39 | 2.00 | (962911) | |
| 18702 | Washer | 40 | 2.00 | ||
| 1247291 | Sealing plug | 48 | 2.00 | 2DRS 4DRS | |
| 658434 | Plug | 49 | 6.00 | 5DRS | |
| 1246040 | Bracket, left | 34 | 1.00 | OP | |
| 1246043 | Bracket, right | 34 | 1.00 | ||
| 982793 | Flange screw | 37 | 4.00 | ||
| 986481 | Washer | 38 | 4.00 | Only early versions of car. | |
| 3534538 | Guide washer | 36 | 2.00 | (1203196) | |
| 3534538 | Guide washer | 35 | 2.00 | (1203195) | |
| 1246377 | Anchorage | 32 | 7.00 | ||
| 999343 | Retainer | 33 | 6.00 | ||
| 1247237 | Cover | 30 | 1.00 | ||
| 1372131 | Bumper rail | 29 | 1.00 | (1247235) |

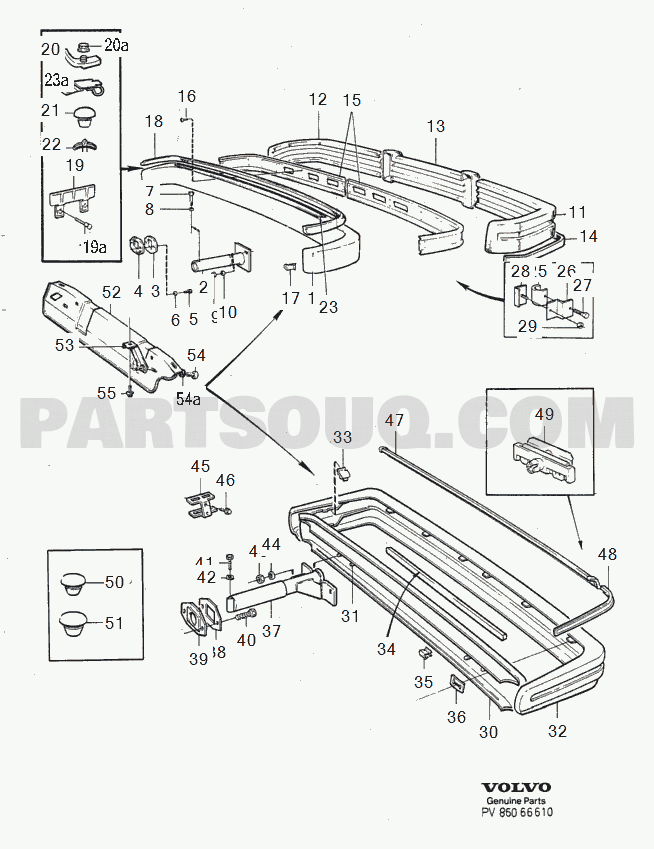

rear bumper
(CA),(US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1202071 | Retainer, right | 20a | 1.00 | 5DRS | |
| 985919 | Flange nut | 20a | 2.00 | 5DRS | |
| 1202070 | Retainer, left | 20 | 1.00 | 5DRS | |
| 1203156 | Clip | 23a | 3.00 | 5DRS | |
| 987104 | Cross recessed screw | 16 | 24.00 | ||
| 1246806 | Bumper moulding, right | 12 | 1.00 | ||
| 1254065 | Retaining clip | 15 | 2.00 | ||
| 1247291 | Sealing plug | 21 | 2.00 | IK | 1981- |
| 1246809 | Cover moulding | 18 | 1.00 | OP | 5DRS |
| 1246788 | Cover moulding | 18 | 1.00 | 2DRS 4DRS | |
| 1246807 | Bumper moulding, center | 13 | 1.00 | OP | |
| 1246791 | Clip | 22 | 2.00 | 2DRS 4DRS | |
| 1246790 | Retaining clip | 19 | 2.00 | 2DRS 4DRS | |
| 971003 | Hexagon screw | 7 | 2.00 | IK | (962911) |
| 18702 | Washer | 8 | 2.00 | IK | |
| 1246805 | Bumper moulding, left | 11 | 1.00 | OP | |
| 1128741 | Stripe | 14 | 1.00 | ALTER | |
| 949017 | Blind rivet | 19a | x | ||
| 1202713 | Spacer plate | 25 | 2.00 | ||
| 1202711 | Spacer rubber | 26 | 2.00 | ||
| 1202712 | Attaching plate | 28 | 2.00 | IK | |
| 986985 | Hexagon screw | 27 | 2.00 | ||
| 1255947 | Bumper rail black | 1 | 1.00 | ||
| 1304535 | Bumper rail bright | 1 | 1.00 | (1246812) | |
| 1254422 | Impact absorber | 2 | 2.00 | ||
| 3534538 | Guide washer | 3 | 2.00 | (1203195) | |
| 1247015 | Modesty panel | 52 | 1.00 | OP | -1980 |
| 1246389 | Modesty panel | 52 | 1.00 | 1981- | |
| 3534538 | Guide washer | 4 | 2.00 | (1203196) | |
| 1203680 | Clip | 17 | 4.00 | ||
| 1203085 | Support | 23 | 1.00 | 5DRS | |
| 986503 | Washer | 10 | 6.00 | ||
| 985878 | Hexagon nut | 9 | 6.00 | (955783) | |
| 985186 | Flange screw | 5 | 4.00 | ||
| 986481 | Washer | 6 | 4.00 | Only early versions of car. | |
| 985921 | Flange nut | 29 | 2.00 | ||
| 273671 | Mounting kit | 29 | 1.00 | ||
| 1255159 | Bracket, right | 53 | 1.00 | ||
| 1255157 | Bracket, left | 53 | 1.00 | ||
| 982755 | Flange screw | 54 | 2.00 | (947553) | |
| 982814 | Flange screw | 55 | 2.00 | ||
| 986500 | Washer | 54a | 2.00 | ||
| 1372113 | Anchorage | 49 | 16.00 | 2DRS 4DRS (1304967) | |
| 1372336 | Trim moulding, center bright | 47 | 1.00 | 5DRS (1247258) | |
| 1372337 | Trim moulding, center black | 47 | 1.00 | 5DRS | |
| 1372335 | Trim moulding, center black | 47 | 1.00 | 2DRS 4DRS (1304714) | |
| 1372334 | Trim moulding, center bright | 47 | 1.00 | OP | 2DRS 4DRS (1247248) |
| 1304203 | Clip | 33 | 8.00 | OP | |
| 1255525 | Bracket | 45 | 2.00 | OP | |
| 982757 | Flange screw | 46 | 6.00 | ||
| 986499 | Washer | 46 | 6.00 | ||
| 986503 | Washer | 44 | 4.00 | ||
| 985878 | Hexagon nut | 43 | 4.00 | (955783) | |
| 1372343 | Trim moulding, left black | 48 | 1.00 | OP | 5DRS (1304713) |
| 1372345 | Trim moulding, right black | 48 | 1.00 | OP | 5DRS (1304712) |
| 1372341 | Trim moulding, right black | 48 | 1.00 | OP | 2DRS 4DRS (1304715) |
| 1372344 | Trim moulding, right bright | 48 | 1.00 | OP | 5DRS |
| 1372340 | Trim moulding, right bright | 48 | 1.00 | OP | 2DRS 4DRS (1372340) |
| 1372342 | Trim moulding, left bright | 48 | 1.00 | OP | 5DRS (1247261) |
| 1372339 | Trim moulding, left black | 48 | 1.00 | OP | 2DRS 4DRS (1304716) |
| 1372338 | Trim moulding, left bright | 48 | 1.00 | OP | 2DRS 4DRS (1247252) |
| 971003 | Hexagon screw | 41 | 2.00 | (962911) | |
| 18702 | Washer | 42 | 2.00 | ||
| 1247291 | Sealing plug | 50 | 2.00 | 2DRS 4DRS | |
| 658434 | Plug | 51 | 6.00 | 5DRS | |
| 273916 | Mounting kit | 51 | 1.00 | ||
| 1312373 | Impact absorber, left | 37 | 1.00 | (11312274) | |
| 1312374 | Impact absorber, right | 37 | 1.00 | (1312275) | |
| 982793 | Flange screw | 40 | 4.00 | ||
| 1372182 | Reinforcing moulding | 34 | 1.00 | (1312317) | |
| 3534538 | Guide washer | 38 | 2.00 | (1203195) | |
| 3534538 | Guide washer | 39 | 2.00 | (1203196) | |
| 1246377 | Anchorage | 35 | 7.00 | ||
| 999343 | Retainer | 36 | 6.00 | ||
| 1247237 | Cover | 32 | 1.00 | ||
| 1312283 | Bumper rail | 30 | 1.00 |

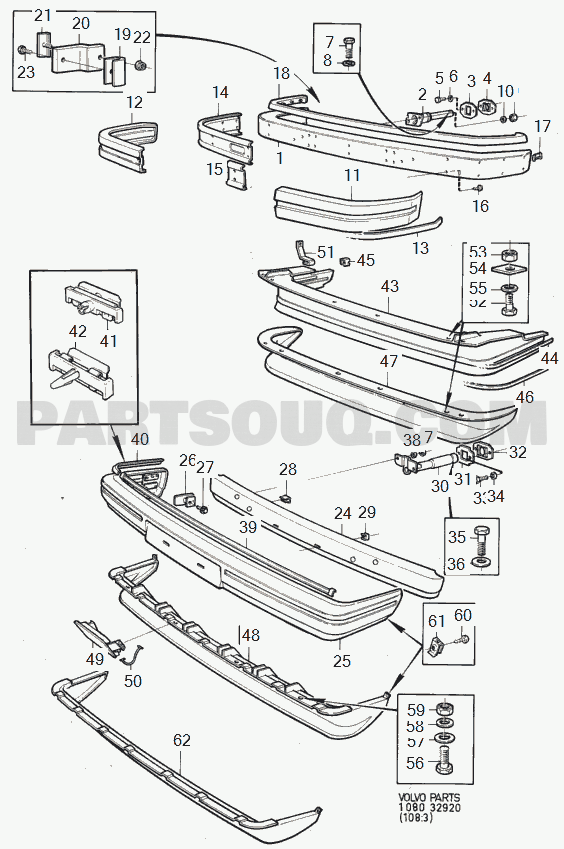

Front bumper, spoiler
EXC (CA),(US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1202712 | Attaching plate | 21 | 2.00 | IK | |
| 1202711 | Spacer rubber | 20 | 2.00 | ||
| 1202713 | Spacer plate | 19 | 2.00 | ||
| 985921 | Flange nut | 22 | 2.00 | ||
| 971003 | Hexagon screw | 7 | 2.00 | IK | (962911) |
| 986487 | Washer | 8 | 2.00 | ||
| 986985 | Hexagon screw | 23 | 2.00 | ||
| 273671 | Mounting kit | 23 | 1.00 | -1980 | |
| 1246801 | Cover moulding | 18 | 1.00 | ||
| 986481 | Washer | 6 | 4.00 | Only early versions of car. | |
| 985186 | Flange screw | 5 | 4.00 | ||
| 3534538 | Guide washer | 4 | 2.00 | (1203196) | |
| 986503 | Washer | 10 | 4.00 | ||
| 1254064 | Retainer, outer | 14 | 2.00 | ||
| 3534538 | Guide washer | 3 | 2.00 | (1203195) | |
| 985878 | Hexagon nut | 9 | 4.00 | (955783) | |
| 1254066 | Absorber | 2 | 2.00 | ||
| 1246798 | Bumper moulding, right | 12 | 1.00 | ||
| 1203680 | Clip | 17 | 4.00 | ||
| 1304529 | Bumper rail bright | 1 | 1.00 | OP | -1980 (1246822) |
| 1247330 | Bumper rail black | 1 | 1.00 | -1980 | |
| 1254074 | Retainer, center | 15 | 2.00 | ||
| 1246797 | Bumper moulding, left | 11 | 1.00 | OP | |
| 987104 | Cross recessed screw | 16 | 24.00 | ||
| 1128742 | Stripe | 13 | 1.00 | OP | |
| 1255303 | Bracket | 51 | 2.00 | -1979 | |
| 985887 | Lock nut | 53 | 6.00 | ||
| 1246842 | Clip | 45 | 2.00 | OP | |
| 940395 | Washer | 54 | 6.00 | ||
| 1128566 | Spoiler silver metallic | 43 | 1.00 | OP | |
| 947757 | Washer | 55 | 6.00 | ||
| 985188 | Flange screw | 52 | 6.00 | ||
| 273915 | Mounting kit | 42 | 1.00 | 1981- | |
| 1372113 | Anchorage | 42 | 7.00 | (1304967)(1304970) | |
| 1372113 | Anchorage | 41 | 8.00 | (1304967) | |
| 1255309 | Trim moulding | 44 | 1.00 | ||
| 1304101 | Spoiler black | 47 | 1.00 | 1980. Black version, to be painted if another color desired. | |
| 1128486 | Stripe silver metallic | 46 | 1.00 | OP | |
| 985878 | Hexagon nut | 37 | 4.00 | (955783) | |
| 1372333 | Trim moulding, right black | 40 | 1.00 | (1372089) | |
| 1372332 | Trim moulding, right bright | 40 | 1.00 | (1372091) | |
| 1372331 | Trim moulding, left black | 40 | 1.00 | (1372088) | |
| 1372330 | Trim moulding, left bright | 40 | 1.00 | (1372090) | |
| 986503 | Washer | 38 | 4.00 | ||
| 3534538 | Guide washer | 32 | 2.00 | (1203196) | |
| 1247216 | Bracket | 26 | 2.00 | ||
| 982757 | Flange screw | 27 | 2.00 | ||
| 986499 | Washer | 27 | 2.00 | ||
| 1246377 | Anchorage | 28 | 7.00 | ||
| 3534538 | Guide washer | 31 | 2.00 | (1203195) | |
| 3536978 | Impact absorber, right | 30 | 1.00 | OP | (1246660) |
| 3536977 | Impact absorber, left | 30 | 1.00 | OP | (1247214) |
| 986481 | Washer | 34 | 4.00 | Only early versions of car. | |
| 982793 | Flange screw | 33 | 4.00 | ||
| 1268920 | Cage nut | 29 | 2.00 | ||
| 1247210 | Bumper rail | 24 | 1.00 | OP | 1981- |
| 1372328 | Trim moulding, center bright | 39 | 1.00 | OP | (1312364) |
| 1372329 | Trim moulding, center black | 39 | 1.00 | OP | (1304740)(1312363) |
| 971003 | Hexagon screw | 35 | 2.00 | IK | (962911) |
| 986487 | Washer | 36 | 2.00 | ||
| 986107 | Six point socket screw | 60 | 2.00 | (965168) | |
| 1304770 | Spring nut | 61 | 2.00 | IK | |
| 3540617 | Spoiler | 48 | 1.00 | OP | 1981- (1372092)(1304635) Black version, to be painted if another color desired. |
| 1372093 | Lid | 49 | 1.00 | (1304628) Black version, to be painted if another color desired. | |
| 1246585 | Cover | 25 | 1.00 | ||
| 1304641 | Retainer | 50 | 2.00 | ||
| 1128825 | Mounting kit | 50 | 1.00 | OP | -1979 |
| 274074 | Mounting kit | 50 | 1.00 | 1980. | |
| 985876 | Hexagon nut | 59 | 4.00 | ||
| 986499 | Washer | 58 | 4.00 | ||
| 1304749 | Modesty panel | 62 | 1.00 | ALTER | |
| 947391 | Washer | 57 | 4.00 | IK | |
| 982758 | Flange screw | 56 | 4.00 |
Front bumper, spoiler
(CA),(US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1202712 | Attaching plate | 24 | 2.00 | IK | |
| 1202711 | Spacer rubber | 23 | 2.00 | ||
| 1202713 | Spacer plate | 22 | 2.00 | ||
| 985878 | Hexagon nut | 10 | 6.00 | (955783) | |
| 985921 | Flange nut | 25 | 2.00 | ||
| 986503 | Washer | 11 | 6.00 | ||
| 1254901 | Sleeve | 7 | 2.00 | OP | |
| 971003 | Hexagon screw | 8 | 2.00 | IK | (962911) |
| 986487 | Washer | 9 | 2.00 | ||
| 986985 | Hexagon screw | 26 | 2.00 | ||
| 273671 | Mounting kit | 26 | 1.00 | ||
| 1246801 | Cover moulding | 21 | 1.00 | ||
| 985186 | Flange screw | 5 | 4.00 | ||
| 3534538 | Guide washer | 4 | 2.00 | (1203196) | |
| 3534538 | Guide washer | 3 | 2.00 | (1203195) | |
| 986481 | Washer | 6 | 4.00 | Only early versions of car. | |
| 1254421 | Impact absorber | 2 | 2.00 | ||
| 1254064 | Retainer, outer | 17 | 2.00 | ||
| 1246798 | Bumper moulding, right | 13 | 1.00 | ||
| 1203680 | Clip | 20 | 4.00 | ||
| 1304533 | Bumper rail bright | 1 | 1.00 | OP | (1246810) |
| 1255946 | Bumper rail black | 1 | 1.00 | ||
| 1254074 | Retainer, center | 18 | 2.00 | ||
| 1246797 | Bumper moulding, left | 12 | 1.00 | OP | |
| 1246800 | Bumper moulding, right | 15 | 1.00 | ||
| 987104 | Cross recessed screw | 19 | 24.00 | ||
| 1246799 | Bumper moulding, left | 14 | 1.00 | OP | |
| 1128743 | Stripe | 16 | 1.00 | OP | |
| 1255303 | Bracket | 53 | 2.00 | -1979 | |
| 985887 | Lock nut | 55 | 6.00 | ||
| 1246842 | Clip | 47 | 2.00 | OP | |
| 940395 | Washer | 56 | 6.00 | ||
| 1128566 | Spoiler silver metallic | 45 | 1.00 | OP | -1979 |
| 947757 | Washer | 57 | 6.00 | ||
| 985188 | Flange screw | 54 | 6.00 | ||
| 273915 | Mounting kit | 44 | 1.00 | (US) 1983- | |
| 1372113 | Anchorage | 44 | x | (1304967)(1304970) | |
| 1372113 | Anchorage | 43 | 15.00 | (1304967) | |
| 1255309 | Trim moulding | 46 | 1.00 | ||
| 1304101 | Spoiler | 49 | 1.00 | (CA) 1980- (US) 1980-1982 | |
| 1128486 | Stripe silver metallic | 48 | 1.00 | OP | |
| 985878 | Hexagon nut | 39 | 4.00 | (955783) | |
| 1372332 | Trim moulding, right bright | 42 | 1.00 | (1372091) | |
| 1372333 | Trim moulding, right black | 42 | 1.00 | (1372089) | |
| 986503 | Washer | 40 | 4.00 | ||
| 1372330 | Trim moulding, left bright | 42 | 1.00 | (1372090) | |
| 1372331 | Trim moulding, left black | 42 | 1.00 | (1372088) | |
| 3534538 | Guide washer | 35 | 2.00 | (1203196) | |
| 1247216 | Bracket | 29 | 2.00 | IK | |
| 982757 | Flange screw | 30 | 2.00 | ||
| 986499 | Washer | 30 | 2.00 | ||
| 1246377 | Anchorage | 31 | 7.00 | ||
| 3534538 | Guide washer | 34 | 2.00 | (1203195) | |
| 1312273 | Impact absorber, right | 33 | 1.00 | ||
| 1312272 | Impact absorber, left | 33 | 1.00 | ||
| 982793 | Flange screw | 36 | 4.00 | ||
| 1247210 | Bumper rail | 27 | 1.00 | OP | |
| 1268920 | Cage nut | 32 | 2.00 | ||
| 1372329 | Trim moulding, center black | 41 | 1.00 | OP | (1312363) |
| 1372328 | Trim moulding, center bright | 41 | 1.00 | OP | (1312364) |
| 9154456 | License plate retainer | 65 | 1.00 | (1312365) | |
| 971003 | Hexagon screw | 37 | 2.00 | IK | (962911) |
| 986487 | Washer | 38 | 2.00 | ||
| 986964 | Hexagon screw | 66 | 2.00 | ||
| 986107 | Six point socket screw | 62 | 2.00 | (965168) | |
| 1304770 | Spring nut | 63 | 2.00 | IK | |
| 3540617 | Spoiler | 50 | 1.00 | OP | (US) 1983- (1372092) Black version, to be painted if another color desired. |
| 1372092 | Spoiler | 50 | 1.00 | (US) 1983- REPL 1PCS 3540617-2. (1304635) Black version, to be painted if another color desired. | |
| 1372093 | Lid | 51 | 1.00 | (1304628) Black version, to be painted if another color desired. | |
| 1246585 | Cover | 28 | 1.00 | ||
| 986499 | Washer | 68 | 4.00 | ||
| 1128825 | Mounting kit | 52 | 1.00 | OP | -1979 |
| 274074 | Mounting kit | 52 | 1.00 | 1980- | |
| 1304641 | Retainer | 52 | 2.00 | ||
| 948685 | Cap nut | 67 | 4.00 | ||
| 985876 | Hexagon nut | 61 | 4.00 | ||
| 986499 | Washer | 60 | 4.00 | ||
| 947391 | Washer | 59 | 4.00 | IK | |
| 1304749 | Modesty panel | 64 | 1.00 | ALTER | |
| 982758 | Flange screw | 58 | 4.00 |
