Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
86 Bumpers and mudflaps

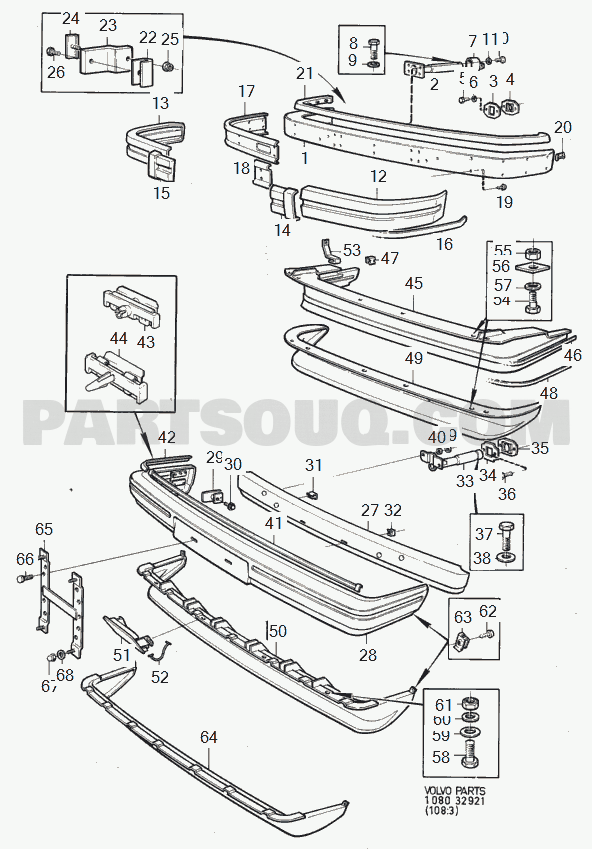

Front bumper, spoiler
(CA),(US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1202712 | Attaching plate | 24 | 2.00 | IK | |
| 1202711 | Spacer rubber | 23 | 2.00 | ||
| 1202713 | Spacer plate | 22 | 2.00 | ||
| 985878 | Hexagon nut | 10 | 6.00 | (955783) | |
| 985921 | Flange nut | 25 | 2.00 | ||
| 986503 | Washer | 11 | 6.00 | ||
| 1254901 | Sleeve | 7 | 2.00 | OP | |
| 971003 | Hexagon screw | 8 | 2.00 | IK | (962911) |
| 986487 | Washer | 9 | 2.00 | ||
| 986985 | Hexagon screw | 26 | 2.00 | ||
| 273671 | Mounting kit | 26 | 1.00 | ||
| 1246801 | Cover moulding | 21 | 1.00 | ||
| 985186 | Flange screw | 5 | 4.00 | ||
| 3534538 | Guide washer | 4 | 2.00 | (1203196) | |
| 3534538 | Guide washer | 3 | 2.00 | (1203195) | |
| 986481 | Washer | 6 | 4.00 | Only early versions of car. | |
| 1254421 | Impact absorber | 2 | 2.00 | ||
| 1254064 | Retainer, outer | 17 | 2.00 | ||
| 1246798 | Bumper moulding, right | 13 | 1.00 | ||
| 1203680 | Clip | 20 | 4.00 | ||
| 1304533 | Bumper rail bright | 1 | 1.00 | OP | (1246810) |
| 1255946 | Bumper rail black | 1 | 1.00 | ||
| 1254074 | Retainer, center | 18 | 2.00 | ||
| 1246797 | Bumper moulding, left | 12 | 1.00 | OP | |
| 1246800 | Bumper moulding, right | 15 | 1.00 | ||
| 987104 | Cross recessed screw | 19 | 24.00 | ||
| 1246799 | Bumper moulding, left | 14 | 1.00 | OP | |
| 1128743 | Stripe | 16 | 1.00 | OP | |
| 1255303 | Bracket | 53 | 2.00 | -1979 | |
| 985887 | Lock nut | 55 | 6.00 | ||
| 1246842 | Clip | 47 | 2.00 | OP | |
| 940395 | Washer | 56 | 6.00 | ||
| 1128566 | Spoiler silver metallic | 45 | 1.00 | OP | -1979 |
| 947757 | Washer | 57 | 6.00 | ||
| 985188 | Flange screw | 54 | 6.00 | ||
| 273915 | Mounting kit | 44 | 1.00 | (US) 1983- | |
| 1372113 | Anchorage | 44 | x | (1304967)(1304970) | |
| 1372113 | Anchorage | 43 | 15.00 | (1304967) | |
| 1255309 | Trim moulding | 46 | 1.00 | ||
| 1304101 | Spoiler | 49 | 1.00 | (CA) 1980- (US) 1980-1982 | |
| 1128486 | Stripe silver metallic | 48 | 1.00 | OP | |
| 985878 | Hexagon nut | 39 | 4.00 | (955783) | |
| 1372332 | Trim moulding, right bright | 42 | 1.00 | (1372091) | |
| 1372333 | Trim moulding, right black | 42 | 1.00 | (1372089) | |
| 986503 | Washer | 40 | 4.00 | ||
| 1372330 | Trim moulding, left bright | 42 | 1.00 | (1372090) | |
| 1372331 | Trim moulding, left black | 42 | 1.00 | (1372088) | |
| 3534538 | Guide washer | 35 | 2.00 | (1203196) | |
| 1247216 | Bracket | 29 | 2.00 | IK | |
| 982757 | Flange screw | 30 | 2.00 | ||
| 986499 | Washer | 30 | 2.00 | ||
| 1246377 | Anchorage | 31 | 7.00 | ||
| 3534538 | Guide washer | 34 | 2.00 | (1203195) | |
| 1312273 | Impact absorber, right | 33 | 1.00 | ||
| 1312272 | Impact absorber, left | 33 | 1.00 | ||
| 982793 | Flange screw | 36 | 4.00 | ||
| 1247210 | Bumper rail | 27 | 1.00 | OP | |
| 1268920 | Cage nut | 32 | 2.00 | ||
| 1372329 | Trim moulding, center black | 41 | 1.00 | OP | (1312363) |
| 1372328 | Trim moulding, center bright | 41 | 1.00 | OP | (1312364) |
| 9154456 | License plate retainer | 65 | 1.00 | (1312365) | |
| 971003 | Hexagon screw | 37 | 2.00 | IK | (962911) |
| 986487 | Washer | 38 | 2.00 | ||
| 986964 | Hexagon screw | 66 | 2.00 | ||
| 986107 | Six point socket screw | 62 | 2.00 | (965168) | |
| 1304770 | Spring nut | 63 | 2.00 | IK | |
| 3540617 | Spoiler | 50 | 1.00 | OP | (US) 1983- (1372092) Black version, to be painted if another color desired. |
| 1372092 | Spoiler | 50 | 1.00 | (US) 1983- REPL 1PCS 3540617-2. (1304635) Black version, to be painted if another color desired. | |
| 1372093 | Lid | 51 | 1.00 | (1304628) Black version, to be painted if another color desired. | |
| 1246585 | Cover | 28 | 1.00 | ||
| 986499 | Washer | 68 | 4.00 | ||
| 1128825 | Mounting kit | 52 | 1.00 | OP | -1979 |
| 274074 | Mounting kit | 52 | 1.00 | 1980- | |
| 1304641 | Retainer | 52 | 2.00 | ||
| 948685 | Cap nut | 67 | 4.00 | ||
| 985876 | Hexagon nut | 61 | 4.00 | ||
| 986499 | Washer | 60 | 4.00 | ||
| 947391 | Washer | 59 | 4.00 | IK | |
| 1304749 | Modesty panel | 64 | 1.00 | ALTER | |
| 982758 | Flange screw | 58 | 4.00 |

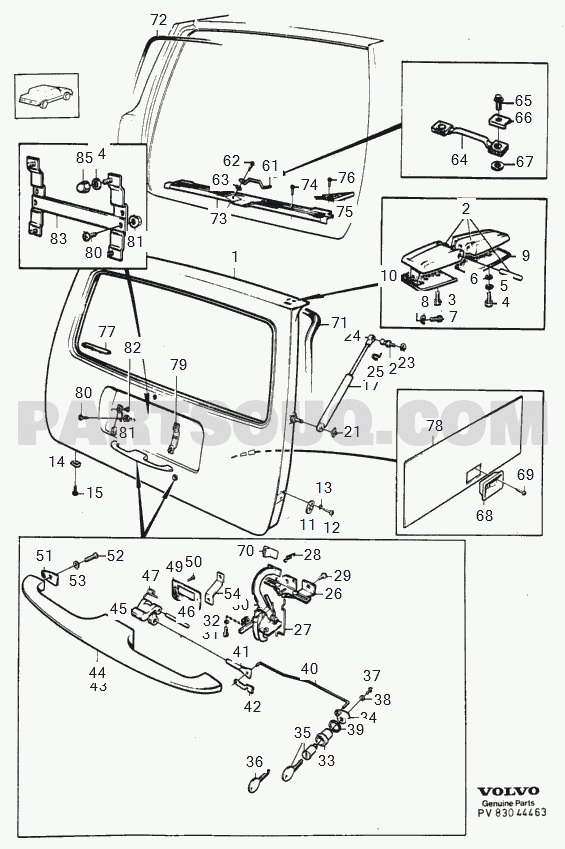

Tailgate components.
5DRS S.R5DRS -1979.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 699856 | Edge protection moulding black | 72 | x | LG 2700 mm (672172) Spare part version. | |
| 982758 | Flange screw | 65 | 2.00 | ||
| 1315033 | Spacer washer | 66 | 2.00 | ||
| 986499 | Washer | 84 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 85 | 4.00 | (CA),(US) | |
| 1315010 | Lock brace | 64 | 1.00 | ||
| 986215 | Six point socket screw | 62 | 2.00 | (956096) Only early versions of car. | |
| 986501 | Washer | 67 | 2.00 | ALTER. (960141) | |
| 986146 | Six point socket screw | 76 | 2.00 | (955154) | |
| 986500 | Washer | 63 | 2.00 | Only early versions of car. | |
| 986146 | Six point socket screw | 74 | 4.00 | (955154) | |
| 1315598 | Hinge, right | 2 | 1.00 | ||
| 1315597 | Hinge, left | 2 | 1.00 | ||
| 679146 | Cover plate, left | 75 | 1.00 | ||
| 679147 | Cover plate, right | 75 | 1.00 | ||
| 678236 | Sill plate | 73 | 1.00 | ||
| 1304187 | License plate retainer | 83 | 1.00 | (CA),(US) | |
| 1315847 | Base, left | 9 | 1.00 | ||
| 1315848 | Base, right | 9 | 1.00 | ||
| 1315836 | Base, left | 10 | 1.00 | ||
| 1315837 | Base, right | 10 | 1.00 | ||
| 986413 | Washer | 6 | 2.00 | ||
| 986501 | Washer | 5 | 4.00 | (960141) | |
| 982793 | Flange screw | 3 | 2.00 | ||
| 986985 | Hexagon screw | 4 | 4.00 | ||
| 986654 | Spring washer | 8 | 2.00 | ||
| 986235 | Six point socket screw | 7 | 2.00 | (956110) | |
| 1372058 | Sealing strip | 71 | 1.00 | ||
| 681206 | Plug | 77 | 2.00 | ||
| 959090 | Ball socket | 24 | 2.00 | ||
| 676911 | Rubber button | 82 | 2.00 | (CA),(US) | |
| 120096 | Washer | 23 | 2.00 | OP | |
| 679377 | License plate retainer | 79 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 942575 | Ball stud | 22 | 2.00 | ||
| 987185 | Safety brace | 25 | 2.00 | ||
| 1254916 | Gas spring | 17 | 2.00 | ||
| 986212 | Six point socket screw | 80 | 2.00 | (CA),(US) | |
| 989037 | Lock brace | 21 | 2.00 | ||
| 985919 | Flange nut | 81 | 2.00 | (CA),(US) | |
| 1203681 | Guide | 14 | 2.00 | OP | |
| 986160 | Six point socket screw | 69 | 2.00 | (969473)(955137) | |
| 986650 | Spring washer | 13 | 4.00 | ||
| 986114 | Six point socket screw | 15 | 2.00 | (955138) | |
| 678380 | Guide casing, black | 68 | 1.00 | ||
| 1246119 | Guide casing, brown | 68 | 1.00 | ||
| 1246120 | Guide casing, grey | 68 | 1.00 | OP | |
| 1246121 | Guide casing, beige | 68 | 1.00 | ||
| 1246122 | Guide casing, blue | 68 | 1.00 | ||
| 1315032 | Guide | 11 | 2.00 | (677805) | |
| 986198 | Six point socket screw | 12 | 4.00 | (956076) | |
| 678506 | Handle, black | 70 | 1.00 | ||
| 1246116 | Handle, beige | 70 | 1.00 | ||
| 1246115 | Handle, grey | 70 | 1.00 | ||
| 1246114 | Handle, brown | 70 | 1.00 | ||
| 1246117 | Handle, blue | 70 | 1.00 | ||
| 986214 | Six point socket screw | 52 | 4.00 | (956094) | |
| 1254512 | Gasket | 51 | 2.00 | ||
| 682365 | Spring | 28 | 1.00 | ||
| 956149 | Cross recessed sunk screw | 50 | 2.00 | ||
| 1254511 | Gasket | 49 | 1.00 | ||
| 675482 | Spring | 47 | 1.00 | ||
| 986114 | Six point socket screw | 29 | 2.00 | (955138) | |
| 955948 | Toothed washer | 53 | 4.00 | ||
| 687258 | Stay | 54 | 1.00 | ||
| 682362 | Anchorage | 26 | 1.00 | ||
| 1315024 | Lock | 30 | 1.00 | REPL 1PCS 1315916-5 1PCS 1315914-0 Replacement parts included part or whole in new design, not covered in this catalogue. Refer to other catalogu e via MAIN INDEX. | |
| 679862 | Push button | 45 | 1.00 | ||
| 675483 | Shaft | 46 | 1.00 | ||
| 986652 | Spring washer | 32 | 4.00 | ||
| 682364 | Link | 27 | 1.00 | ||
| 986211 | Six point socket screw | 31 | 4.00 | ||
| 1246561 | Dowel | 41 | 1.00 | OP | (678524) |
| 678525 | Link | 40 | 1.00 | ||
| 1202458 | Handle | 44 | 1.00 | ||
| 987047 | Cross recessed screw | 37 | 1.00 | ||
| 986674 | Toothed washer | 38 | 1.00 | ||
| 6848358 | Clamp | 42 | 1.00 | (1304766)(676995) | |
| 1213154 | Eccentric washer | 34 | 1.00 | ||
| 655532 | Rubber lip | 39 | 1.00 | ||
| 1213269 | Sleeve | 33 | 1.00 | ||
| 8666053 | Key | 36 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 36 | x |
Tailgate components.
5DRS W/O S.R5DRS -1979.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 699856 | Edge protection moulding black | 72 | x | LG 2700 mm (672172) Spare part version. | |
| 982758 | Flange screw | 65 | 2.00 | ||
| 1315033 | Spacer washer | 66 | 2.00 | ||
| 986499 | Washer | 84 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 85 | 4.00 | (CA),(US) | |
| 1315010 | Lock brace | 64 | 1.00 | ||
| 986215 | Six point socket screw | 62 | 2.00 | (956096) Only early versions of car. | |
| 986501 | Washer | 67 | 2.00 | ALTER. (960141) | |
| 986146 | Six point socket screw | 76 | 2.00 | (955154) | |
| 986500 | Washer | 63 | 2.00 | Only early versions of car. | |
| 986146 | Six point socket screw | 74 | 4.00 | (955154) | |
| 1315598 | Hinge, right | 2 | 1.00 | ||
| 1315597 | Hinge, left | 2 | 1.00 | ||
| 679146 | Cover plate, left | 75 | 1.00 | ||
| 679147 | Cover plate, right | 75 | 1.00 | ||
| 678236 | Sill plate | 73 | 1.00 | ||
| 1304187 | License plate retainer | 83 | 1.00 | (CA),(US) | |
| 1315847 | Base, left | 9 | 1.00 | ||
| 1315848 | Base, right | 9 | 1.00 | ||
| 1315836 | Base, left | 10 | 1.00 | ||
| 1315837 | Base, right | 10 | 1.00 | ||
| 986413 | Washer | 6 | 2.00 | ||
| 986501 | Washer | 5 | 4.00 | (960141) | |
| 982793 | Flange screw | 3 | 2.00 | ||
| 986985 | Hexagon screw | 4 | 4.00 | ||
| 986654 | Spring washer | 8 | 2.00 | ||
| 986235 | Six point socket screw | 7 | 2.00 | (956110) | |
| 1372058 | Sealing strip | 71 | 1.00 | ||
| 681206 | Plug | 77 | 2.00 | ||
| 959090 | Ball socket | 24 | 2.00 | ||
| 676911 | Rubber button | 82 | 2.00 | (CA),(US) | |
| 120096 | Washer | 23 | 2.00 | OP | |
| 679377 | License plate retainer | 79 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 942575 | Ball stud | 22 | 2.00 | ||
| 987185 | Safety brace | 25 | 2.00 | ||
| 1254916 | Gas spring | 17 | 2.00 | ||
| 986212 | Six point socket screw | 80 | 2.00 | (CA),(US) | |
| 989037 | Lock brace | 21 | 2.00 | ||
| 985919 | Flange nut | 81 | 2.00 | (CA),(US) | |
| 1203681 | Guide | 14 | 2.00 | OP | |
| 986160 | Six point socket screw | 69 | 2.00 | (969473)(955137) | |
| 986650 | Spring washer | 13 | 4.00 | ||
| 986114 | Six point socket screw | 15 | 2.00 | (955138) | |
| 678380 | Guide casing, black | 68 | 1.00 | ||
| 1246119 | Guide casing, brown | 68 | 1.00 | ||
| 1246120 | Guide casing, grey | 68 | 1.00 | OP | |
| 1246121 | Guide casing, beige | 68 | 1.00 | ||
| 1246122 | Guide casing, blue | 68 | 1.00 | ||
| 1315032 | Guide | 11 | 2.00 | (677805) | |
| 986198 | Six point socket screw | 12 | 4.00 | (956076) | |
| 678506 | Handle, black | 70 | 1.00 | ||
| 1246116 | Handle, beige | 70 | 1.00 | ||
| 1246115 | Handle, grey | 70 | 1.00 | ||
| 1246114 | Handle, brown | 70 | 1.00 | ||
| 1246117 | Handle, blue | 70 | 1.00 | ||
| 986214 | Six point socket screw | 52 | 4.00 | (956094) | |
| 1254512 | Gasket | 51 | 2.00 | ||
| 682365 | Spring | 28 | 1.00 | ||
| 956149 | Cross recessed sunk screw | 50 | 2.00 | ||
| 1254511 | Gasket | 49 | 1.00 | ||
| 675482 | Spring | 47 | 1.00 | ||
| 986114 | Six point socket screw | 29 | 2.00 | (955138) | |
| 955948 | Toothed washer | 53 | 4.00 | ||
| 687258 | Stay | 54 | 1.00 | ||
| 682362 | Anchorage | 26 | 1.00 | ||
| 1315024 | Lock | 30 | 1.00 | REPL 1PCS 1315916-5 1PCS 1315914-0 Replacement parts included part or whole in new design, not covered in this catalogue. Refer to other catalogu e via MAIN INDEX. | |
| 679862 | Push button | 45 | 1.00 | ||
| 675483 | Shaft | 46 | 1.00 | ||
| 986652 | Spring washer | 32 | 4.00 | ||
| 682364 | Link | 27 | 1.00 | ||
| 986211 | Six point socket screw | 31 | 4.00 | ||
| 1246561 | Dowel | 41 | 1.00 | OP | (678524) |
| 678525 | Link | 40 | 1.00 | ||
| 1202458 | Handle | 44 | 1.00 | ||
| 987047 | Cross recessed screw | 37 | 1.00 | ||
| 986674 | Toothed washer | 38 | 1.00 | ||
| 6848358 | Clamp | 42 | 1.00 | (1304766)(676995) | |
| 1213154 | Eccentric washer | 34 | 1.00 | ||
| 655532 | Rubber lip | 39 | 1.00 | ||
| 1213269 | Sleeve | 33 | 1.00 | ||
| 8666053 | Key | 36 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 36 | x |

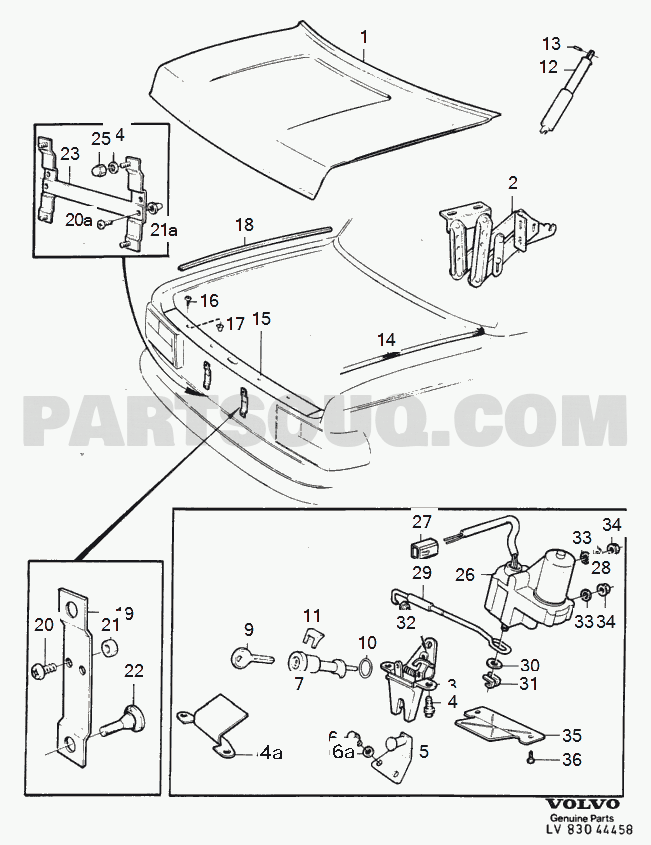

Trunk lid components
2DRS S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
Trunk lid components
2DRS W/O S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
Trunk lid components
4DRS S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
Trunk lid components
4DRS W/O S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
