Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
21 Engine

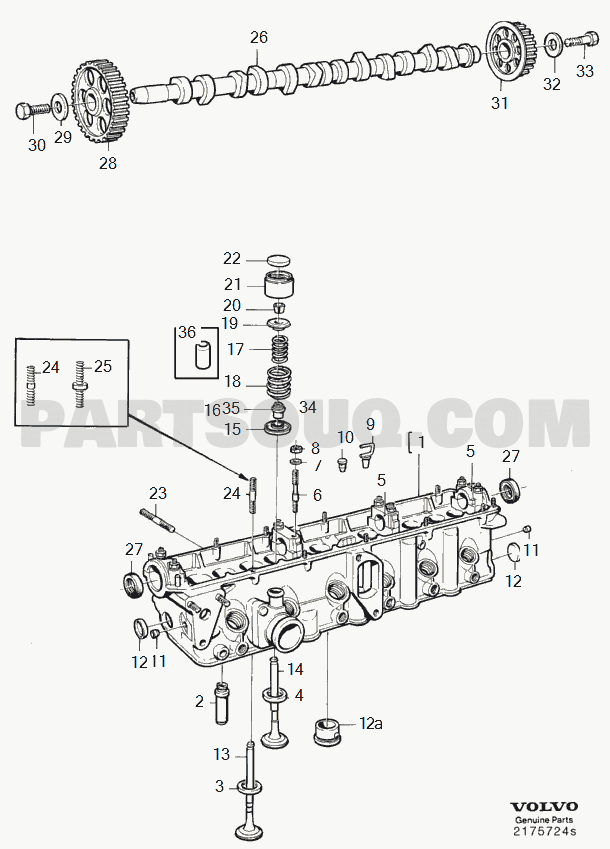

cylinder head D20
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1257509 | Camshaft | 26 | 1.00 | ||
| 3501778 | Screw | 33 | 1.00 | (1257606) | |
| 1257232 | Washer | 32 | 1.00 | OP | |
| 1257166 | Pulley | 31 | 1.00 | ||
| 1257232 | Washer | 29 | 1.00 | OP | |
| 9139519 | Screw | 30 | 1.00 | (1257605)(3501777) | |
| 1257231 | Pulley | 28 | 1.00 | ||
| 1257073 | Adjusting washer | 22 | x | IK | THK 3.90 mm |
| 1257066 | Adjusting washer | 22 | x | IK | THK 3.55 mm |
| 1257067 | Adjusting washer | 22 | x | IK | THK 3.60 mm |
| 1257068 | Adjusting washer | 22 | x | IK | THK 3.65 mm |
| 1257069 | Adjusting washer | 22 | x | IK | THK 3.70 mm |
| 1257070 | Adjusting washer | 22 | x | THK 3.75 mm | |
| 1257071 | Adjusting washer | 22 | x | IK | THK 3.80 mm |
| 1257072 | Adjusting washer | 22 | x | IK | THK 3.85 mm |
| 1257077 | Adjusting washer | 22 | x | THK 4.10 mm | |
| 1257074 | Adjusting washer | 22 | x | IK | THK 3.95 mm |
| 1257075 | Adjusting washer | 22 | x | THK 4 mm | |
| 1257076 | Adjusting washer | 22 | x | THK 4.05 mm | |
| 1257063 | Adjusting washer | 22 | x | OP | THK 3.40 mm |
| 1257078 | Adjusting washer | 22 | x | THK 4.15 mm | |
| 1257079 | Adjusting washer | 22 | x | THK 4.20 mm | |
| 1257080 | Adjusting washer | 22 | x | THK 4.25 mm | |
| 273871 | 22 | 1.00 | THK 3.30-3.95 mm | ||
| 1257065 | Adjusting washer | 22 | x | IK | THK 3.50 mm |
| 1257064 | Adjusting washer | 22 | x | IK | THK 3.45 mm |
| 1257062 | Adjusting washer | 22 | x | IK | THK 3.35 mm |
| 1257815 | Adjusting washer | 22 | x | THK 3.25 mm | |
| 1257814 | Adjusting washer | 22 | x | THK 3.20 mm | |
| 1257813 | Adjusting washer | 22 | x | THK 3.15 mm | |
| 1257812 | Adjusting washer | 22 | x | THK 3.10 mm | |
| 1257811 | Adjusting washer | 22 | x | THK 3.05 mm | |
| 1257810 | Adjusting washer | 22 | x | THK 3 mm | |
| 1257061 | Adjusting washer | 22 | x | IK | THK 3.30 mm |
| 1257059 | Valve tappet | 21 | 10.00 | OP | |
| 1257058 | Valve cotter | 20 | 20.00 | ENG -52435 | |
| 1257057 | Washer | 19 | 10.00 | ENG -52435 | |
| 1257055 | Valve spring | 17 | 10.00 | OP | |
| 1328034 | Stud | 25 | 12.00 | ALTER 2 | |
| 1257056 | Valve spring | 18 | 10.00 | ||
| 3501775 | Valve seal | 16 | 10.00 | IK | (1257052) |
| 1257599 | Nozzle | 9 | 1.00 | (1257493) | |
| 1257051 | Washer | 15 | 10.00 | ||
| 1257010 | Nozzle | 10 | 2.00 | ||
| 985877 | Hexagon nut | 8 | 8.00 | ||
| 986481 | Washer | 7 | 8.00 | ||
| 953032 | Stud | 24 | 12.00 | ALTER 1 | |
| 953048 | Stud | 23 | 10.00 | ||
| 1257005 | Stud | 6 | 8.00 | ||
| 1257221 | Sealing ring | 27 | 2.00 | ||
| 1257011 | Plug | 11 | 2.00 | ||
| 1257272 | Cap plug | 12 | 2.00 | ||
| 1328148 | Exhaust valve | 14 | 5.00 | (1328089) Use washer 1328090 and valve collets 419643 for this valve | |
| 1257628 | Valve seat | 4 | 5.00 | O.S | |
| 1257613 | Valve guide | 2 | 10.00 | O.S | |
| 1328147 | Inlet valve | 13 | 5.00 | (1328088) Use washer 1328090 and valve collets 419643 for this valve | |
| 1257627 | Valve seat | 3 | 5.00 | O.S |
crank mechanism D20
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 271356 | Piston ring kit | 5 | 5.00 | STD (275327) | |
| 271357 | Piston ring kit | 5 | 5.00 | O.S 0.25 mm (275328) | |
| 271358 | Piston ring kit | 5 | 5.00 | O.S 0.50 mm (275329) | |
| 271359 | Piston ring kit | 5 | 5.00 | O.S 1.00 mm (275330) | |
| 272072 | Piston kit | 1 | 5.00 | STD O.DIA 76.48 mm | |
| 272032 | Piston kit | 1 | 5.00 | OP | STD O.DIA 76.50 mm |
| 272033 | Piston kit | 1 | 5.00 | O.S 0.25 mm REPL 1PCS 272034. | |
| 272034 | Piston kit | 1 | 5.00 | O.S 0.50 mm | |
| 272035 | Piston kit | 1 | 5.00 | O.S 1.00 mm | |
| 1257297 | Snap ring | 4 | 5.00 | ||
| 271680 | Sealing kit | 25 | 1.00 | IK | (3547000) |
| 3531998 | Sealing flange | 24 | 1.00 | OP | (1257048) |
| 3507031 | Gasket | 26 | 1.00 | (1257050) | |
| 1257088 | Screw | 12 | 10.00 | ||
| 1257089 | Bearing bushing | 11 | 5.00 | ||
| 271078 | Connecting rod kit | 9 | 1.00 | OP | |
| 1257380 | Screw | 27 | 6.00 | M6x18 | |
| 986652 | Spring washer | 28 | 6.00 | ||
| 1257242 | Needle bearing | 16 | 1.00 | OP | |
| 270727 | Big-end bearing kit | 14 | 5.00 | OP | U.S 0.25 mm (270122) |
| 270726 | Big-end bearing kit | 14 | 5.00 | OP | STD (270121) |
| 3501791 | Big-end bearing | 14 | 5.00 | U.S 0.50 mm (270728) (270123) | |
| 1257511 | Crankshaft | 15 | 1.00 | ||
| 1257090 | Nut | 13 | 10.00 | IK | |
| 1257240 | Companion flange | 15A | 1.00 | ||
| 1257104 | Pulley | 19 | 1.00 | ||
| 1257516 | Pulley | 21 | 1.00 | ||
| 1257604 | Screw | 20 | 1.00 | ||
| 271227 | Main bearing kit | 18 | 1.00 | U.S 0.25 mm REPL 1PCS 270719, 1PCS 274345. | |
| 270719 | Main bearing kit | 18 | 1.00 | U.S 0.25 mm | |
| 271228 | Main bearing kit | 18 | 1.00 | U.S 0.50 mm | |
| 271229 | Main bearing kit | 18 | 1.00 | OP | U.S 0.75 mm |
| 271226 | Main bearing kit | 18 | 1.00 | STD | |
| 270721 | Main bearing kit | 17 | 1.00 | U.S 0.75 mm (271225) | |
| 270720 | Main bearing kit | 17 | 1.00 | U.S 0.50 mm (271224) | |
| 270719 | Main bearing kit | 17 | 1.00 | U.S 0.25 mm (271223) | |
| 270718 | Main bearing kit | 17 | 1.00 | STD (271222) | |
| 986654 | Spring washer | 23 | 4.00 | ||
| 959222 | Hex. socket screw | 22 | 4.00 | M8x25 | |
| 950544 | Pin | 31 | 3.00 | LG 16 mm (1257273) | |
| 1257816 | Screw | 36 | 8.00 | ||
| 1257378 | Support plate | 35 | 1.00 | AUTO.TRANS | |
| 1257377 | Spacer plate | 33 | 1.00 | AUTO.TRANS | |
| 950519 | Pin | 32 | 2.00 | LG 28 mm | |
| 1257513 | Flywheel | 29 | 1.00 | MAN.TRANS | |
| 1257100 | Gear ring | 30 | 1.00 |

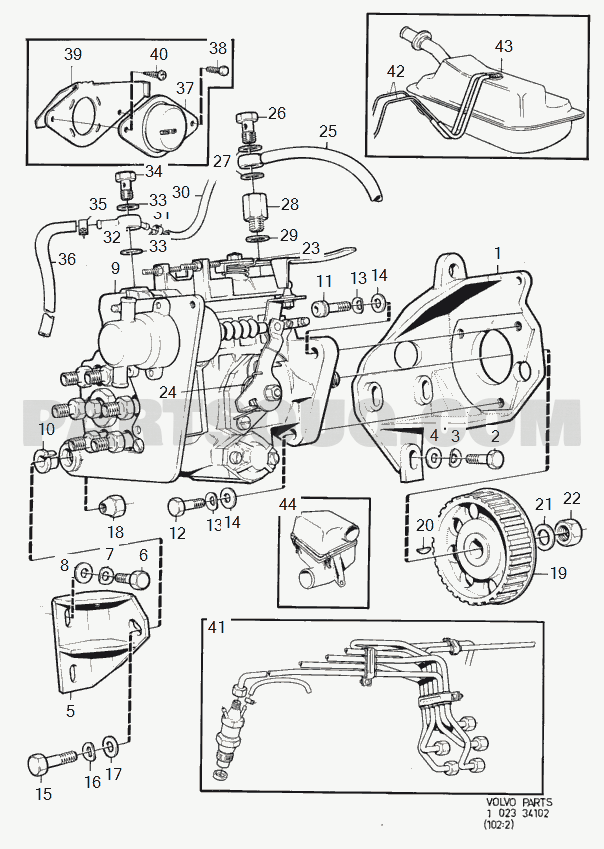

fuel system D20
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 973950 | Hollow screw | 26 | 1.00 | (968178) | |
| 1257388 | Fuel pipe | 25 | 1.00 | ||
| 11994 | Gasket | 27 | 2.00 | (947282) | |
| 844237 | Hollow screw | 34 | 1.00 | ||
| 1257639 | Hose | 30 | x | LG 130 mm | |
| 976574 | Hose clamp | 35 | 2.00 | (975269)(945650) | |
| 1257663 | Intermediate section | 28 | 1.00 | ||
| 980613 | Hose clamp | 31 | 1.00 | ||
| 11994 | Gasket | 29 | 1.00 | (947282) | |
| 1257390 | Nipple | 32 | 1.00 | ||
| 11994 | Gasket | 33 | 2.00 | ||
| 1257156 | Bracket | 1 | 1.00 | ||
| 1266870 | Hose | 36 | x | LG 620 mm | |
| 1257632 | Screw | 11 | 2.00 | ||
| 1257593 | Sleeve | 10 | 1.00 | OP | |
| 986483 | Washer | 4 | 3.00 | ||
| 986652 | Spring washer | 3 | 3.00 | ||
| 982818 | Flange screw | 2 | 3.00 | (970949) | |
| 985879 | Hexagon nut | 22 | 1.00 | (955784) | |
| 955923 | Spring washer | 21 | 1.00 | ||
| 986481 | Washer | 14 | 3.00 | ||
| 910113 | Woodruff key | 20 | 1.00 | ||
| 986654 | Spring washer | 13 | 3.00 | ||
| 1257592 | Nut | 18 | 1.00 | ||
| 1257633 | Screw | 12 | 1.00 | ||
| 986654 | Spring washer | 7 | 2.00 | ||
| 986985 | Hexagon screw | 6 | 2.00 | (955296) | |
| 1257634 | Washer | 8 | 2.00 | ||
| 1257166 | Pulley | 19 | 1.00 | ||
| 8250369 | Support | 5 | 1.00 | OP | (1257259) |
| 1257630 | Washer | 17 | 1.00 | ||
| 986654 | Spring washer | 16 | 1.00 | ||
| 986988 | Hexagon screw | 15 | 1.00 |
