Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
36 Other electrical equipment

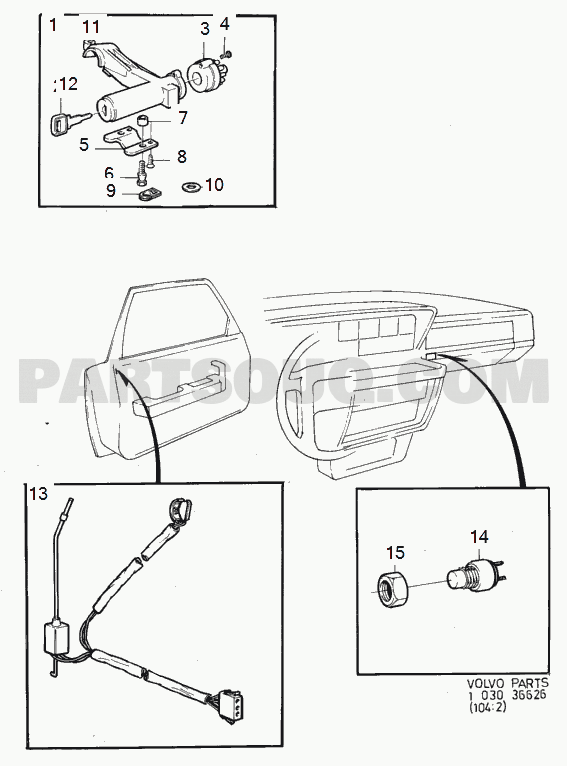

Column and starter lock switches central locking
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 987047 | Cross recessed screw | 4 | 2.00 | ||
| 9203247 | Starter switch | 3 | 1.00 | ||
| 1316957 | Key blank | 12 | x | (1229181) | |
| 1221406 | Spacer sleeve | 7 | 2.00 | OP | |
| 1273817 | Anchorage | 5 | 1.00 | ||
| 946147 | Screw | 8 | 2.00 | -1981 | |
| 986304 | Six point socket screw | 8 | 2.00 | 1982- (956224) | |
| 1205814 | Screw | 6 | 2.00 | ||
| 986501 | Washer | 10 | 1.00 | R.H.D (960141) | |
| 986433 | Washer | 10 | 1.00 | R.H.D | |
| 1221407 | Washer | 9 | 2.00 | ||
| 3540137 | Switch central locking | 13 | 1.00 | OP | L.H.D 242CH APP165570-185999. 244 CH 482505-571812 245 CH 264755-308266 262 CH APP 6450-8299. 264 CH 83055-101808 265 CH 21775-26629 |
| 3540135 | Switch central locking | 13 | 1.00 | L.H.D 242 CH APP 186000-, 244 CH 571813- 245 CH 308277- 262 CH APP 8300-, 264 CH 101809- 265 CH 26630- | |
| 3540138 | Switch central locking | 13 | 1.00 | R.H.D 244 CH 482505-571812 245 CH 264755-308266 262 CH APP 6450-8299. 264 CH 83055-101808 265 CH 21775-26629 | |
| 3540136 | Switch central locking | 13 | 1.00 | R.H.D 244 CH 571813- 245 CH 308277- 262 CH APP 8300-, 264 CH 101809- 265 CH 26630- | |
| 1258958 | Switch | 14 | 1.00 | 4DRS | |
| 1258960 | Nut | 15 | 1.00 | 4DRS |

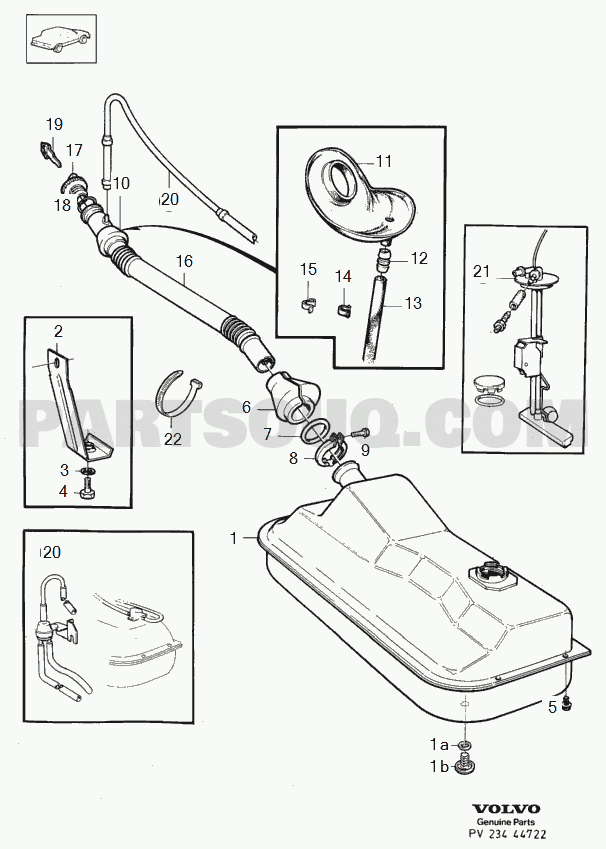

fuel tank and connecting parts DSL
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1304390 | Key blank | 19 | 1.00 | ||
| 9142606 | Fuel filler cap | 17 | 1.00 | (1129133) | |
| 9142541 | Fuel filler cap black non lockable | 17 | 1.00 | (1325002)(1246521) | |
| 1246522 | 11 | 1.00 | 242 APP CH 143878-223939, 244 APP CH 378781-812532, 245 APP CH 218442-434459, 264 APP CH 63992-131509, 265 APP CH 16273-33009 242 APP CH 223940-, 244 APP CH 812533-, 245 APP CH 434460-, 264 APP CH 131510-, 265 APP CH 33010- | ||
| 1254460 | Sealing | 10 | 1.00 | 242 APP CH-143877, 244 APP CH-378780, 245 APP CH-218442, 264 APP CH-63991, 265 APP CH-16272 | |
| 1304391 | O-ring | 18 | 1.00 | ||
| 1246524 | Nipple | 12 | 1.00 | 242 APP CH 143878-223939, 244 APP CH 378781-812532, 245 APP CH 218442-434459, 264 APP CH 63992-131509, 265 APP CH 16273-33009 | |
| 1254445 | Filler pipe | 16 | 1.00 | ||
| 9151452 | Retaining clip | 15 | 1.00 | (1312262) 242 APP CH 223940-, 244 APP CH 812533-, 245 APP CH 434460-, 264 APP CH 131510-, 265 APP CH 33010- | |
| 190405 | Retainer | 14 | 1.00 | 242 APP CH 143878-223939, 244 APP CH 378781-812532, 245 APP CH 218442-434459, 264 APP CH 63992-131509, 265 APP CH 16273-33009 | |
| 976736 | Hose | 13 | x | LG 575 mm 242 APP CH 143878-223939, 244 APP CH 378781-812532, 245 APP CH 218442-434459, 264 APP CH 63992-131509, 265 APP CH 16273-33009 (1306706) | |
| 946234 | Tube | 13 | x | LG 590 mm 242 APP CH 223940-, 244 APP CH 812533-, 245 APP CH 434460-, 264 APP CH 131510-, 265 APP CH 33010- | |
| 1255451 | Bracket | 2 | 1.00 | ||
| 1254461 | Rubber lip | 6 | 1.00 | OP | |
| 949282 | O-ring | 7 | 1.00 | ||
| 948211 | Cable tie | 22 | x | ||
| 986967 | Hexagon screw | 9 | 1.00 | ||
| 1254606 | Clamp | 8 | 1.00 | ||
| 986483 | Washer | 3 | 2.00 | ||
| 985191 | Flange screw | 4 | 1.00 | LG 25 mm | |
| 970943 | Hexagon screw | 4 | 1.00 | LG 14 mm (955314) | |
| 3517373 | Fuel tank | 1 | 1.00 | OP | (3501385) |
| 985191 | Flange screw | 5 | 5.00 | LG 25 mm | |
| 1304235 | Gasket | 1a | 1.00 | ||
| 1304236 | Screw | 1b | 1.00 | OP |
Tailgate components.
5DRS S.R5DRS -1979.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 699856 | Edge protection moulding black | 72 | x | LG 2700 mm (672172) Spare part version. | |
| 982758 | Flange screw | 65 | 2.00 | ||
| 1315033 | Spacer washer | 66 | 2.00 | ||
| 986499 | Washer | 84 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 85 | 4.00 | (CA),(US) | |
| 1315010 | Lock brace | 64 | 1.00 | ||
| 986215 | Six point socket screw | 62 | 2.00 | (956096) Only early versions of car. | |
| 986501 | Washer | 67 | 2.00 | ALTER. (960141) | |
| 986146 | Six point socket screw | 76 | 2.00 | (955154) | |
| 986500 | Washer | 63 | 2.00 | Only early versions of car. | |
| 986146 | Six point socket screw | 74 | 4.00 | (955154) | |
| 1315598 | Hinge, right | 2 | 1.00 | ||
| 1315597 | Hinge, left | 2 | 1.00 | ||
| 679146 | Cover plate, left | 75 | 1.00 | ||
| 679147 | Cover plate, right | 75 | 1.00 | ||
| 678236 | Sill plate | 73 | 1.00 | ||
| 1304187 | License plate retainer | 83 | 1.00 | (CA),(US) | |
| 1315847 | Base, left | 9 | 1.00 | ||
| 1315848 | Base, right | 9 | 1.00 | ||
| 1315836 | Base, left | 10 | 1.00 | ||
| 1315837 | Base, right | 10 | 1.00 | ||
| 986413 | Washer | 6 | 2.00 | ||
| 986501 | Washer | 5 | 4.00 | (960141) | |
| 982793 | Flange screw | 3 | 2.00 | ||
| 986985 | Hexagon screw | 4 | 4.00 | ||
| 986654 | Spring washer | 8 | 2.00 | ||
| 986235 | Six point socket screw | 7 | 2.00 | (956110) | |
| 1372058 | Sealing strip | 71 | 1.00 | ||
| 681206 | Plug | 77 | 2.00 | ||
| 959090 | Ball socket | 24 | 2.00 | ||
| 676911 | Rubber button | 82 | 2.00 | (CA),(US) | |
| 120096 | Washer | 23 | 2.00 | OP | |
| 679377 | License plate retainer | 79 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 942575 | Ball stud | 22 | 2.00 | ||
| 987185 | Safety brace | 25 | 2.00 | ||
| 1254916 | Gas spring | 17 | 2.00 | ||
| 986212 | Six point socket screw | 80 | 2.00 | (CA),(US) | |
| 989037 | Lock brace | 21 | 2.00 | ||
| 985919 | Flange nut | 81 | 2.00 | (CA),(US) | |
| 1203681 | Guide | 14 | 2.00 | OP | |
| 986160 | Six point socket screw | 69 | 2.00 | (969473)(955137) | |
| 986650 | Spring washer | 13 | 4.00 | ||
| 986114 | Six point socket screw | 15 | 2.00 | (955138) | |
| 678380 | Guide casing, black | 68 | 1.00 | ||
| 1246119 | Guide casing, brown | 68 | 1.00 | ||
| 1246120 | Guide casing, grey | 68 | 1.00 | OP | |
| 1246121 | Guide casing, beige | 68 | 1.00 | ||
| 1246122 | Guide casing, blue | 68 | 1.00 | ||
| 1315032 | Guide | 11 | 2.00 | (677805) | |
| 986198 | Six point socket screw | 12 | 4.00 | (956076) | |
| 678506 | Handle, black | 70 | 1.00 | ||
| 1246116 | Handle, beige | 70 | 1.00 | ||
| 1246115 | Handle, grey | 70 | 1.00 | ||
| 1246114 | Handle, brown | 70 | 1.00 | ||
| 1246117 | Handle, blue | 70 | 1.00 | ||
| 986214 | Six point socket screw | 52 | 4.00 | (956094) | |
| 1254512 | Gasket | 51 | 2.00 | ||
| 682365 | Spring | 28 | 1.00 | ||
| 956149 | Cross recessed sunk screw | 50 | 2.00 | ||
| 1254511 | Gasket | 49 | 1.00 | ||
| 675482 | Spring | 47 | 1.00 | ||
| 986114 | Six point socket screw | 29 | 2.00 | (955138) | |
| 955948 | Toothed washer | 53 | 4.00 | ||
| 687258 | Stay | 54 | 1.00 | ||
| 682362 | Anchorage | 26 | 1.00 | ||
| 1315024 | Lock | 30 | 1.00 | REPL 1PCS 1315916-5 1PCS 1315914-0 Replacement parts included part or whole in new design, not covered in this catalogue. Refer to other catalogu e via MAIN INDEX. | |
| 679862 | Push button | 45 | 1.00 | ||
| 675483 | Shaft | 46 | 1.00 | ||
| 986652 | Spring washer | 32 | 4.00 | ||
| 682364 | Link | 27 | 1.00 | ||
| 986211 | Six point socket screw | 31 | 4.00 | ||
| 1246561 | Dowel | 41 | 1.00 | OP | (678524) |
| 678525 | Link | 40 | 1.00 | ||
| 1202458 | Handle | 44 | 1.00 | ||
| 987047 | Cross recessed screw | 37 | 1.00 | ||
| 986674 | Toothed washer | 38 | 1.00 | ||
| 6848358 | Clamp | 42 | 1.00 | (1304766)(676995) | |
| 1213154 | Eccentric washer | 34 | 1.00 | ||
| 655532 | Rubber lip | 39 | 1.00 | ||
| 1213269 | Sleeve | 33 | 1.00 | ||
| 8666053 | Key | 36 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 36 | x |
Tailgate components.
5DRS W/O S.R5DRS -1979.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 699856 | Edge protection moulding black | 72 | x | LG 2700 mm (672172) Spare part version. | |
| 982758 | Flange screw | 65 | 2.00 | ||
| 1315033 | Spacer washer | 66 | 2.00 | ||
| 986499 | Washer | 84 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 85 | 4.00 | (CA),(US) | |
| 1315010 | Lock brace | 64 | 1.00 | ||
| 986215 | Six point socket screw | 62 | 2.00 | (956096) Only early versions of car. | |
| 986501 | Washer | 67 | 2.00 | ALTER. (960141) | |
| 986146 | Six point socket screw | 76 | 2.00 | (955154) | |
| 986500 | Washer | 63 | 2.00 | Only early versions of car. | |
| 986146 | Six point socket screw | 74 | 4.00 | (955154) | |
| 1315598 | Hinge, right | 2 | 1.00 | ||
| 1315597 | Hinge, left | 2 | 1.00 | ||
| 679146 | Cover plate, left | 75 | 1.00 | ||
| 679147 | Cover plate, right | 75 | 1.00 | ||
| 678236 | Sill plate | 73 | 1.00 | ||
| 1304187 | License plate retainer | 83 | 1.00 | (CA),(US) | |
| 1315847 | Base, left | 9 | 1.00 | ||
| 1315848 | Base, right | 9 | 1.00 | ||
| 1315836 | Base, left | 10 | 1.00 | ||
| 1315837 | Base, right | 10 | 1.00 | ||
| 986413 | Washer | 6 | 2.00 | ||
| 986501 | Washer | 5 | 4.00 | (960141) | |
| 982793 | Flange screw | 3 | 2.00 | ||
| 986985 | Hexagon screw | 4 | 4.00 | ||
| 986654 | Spring washer | 8 | 2.00 | ||
| 986235 | Six point socket screw | 7 | 2.00 | (956110) | |
| 1372058 | Sealing strip | 71 | 1.00 | ||
| 681206 | Plug | 77 | 2.00 | ||
| 959090 | Ball socket | 24 | 2.00 | ||
| 676911 | Rubber button | 82 | 2.00 | (CA),(US) | |
| 120096 | Washer | 23 | 2.00 | OP | |
| 679377 | License plate retainer | 79 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 942575 | Ball stud | 22 | 2.00 | ||
| 987185 | Safety brace | 25 | 2.00 | ||
| 1254916 | Gas spring | 17 | 2.00 | ||
| 986212 | Six point socket screw | 80 | 2.00 | (CA),(US) | |
| 989037 | Lock brace | 21 | 2.00 | ||
| 985919 | Flange nut | 81 | 2.00 | (CA),(US) | |
| 1203681 | Guide | 14 | 2.00 | OP | |
| 986160 | Six point socket screw | 69 | 2.00 | (969473)(955137) | |
| 986650 | Spring washer | 13 | 4.00 | ||
| 986114 | Six point socket screw | 15 | 2.00 | (955138) | |
| 678380 | Guide casing, black | 68 | 1.00 | ||
| 1246119 | Guide casing, brown | 68 | 1.00 | ||
| 1246120 | Guide casing, grey | 68 | 1.00 | OP | |
| 1246121 | Guide casing, beige | 68 | 1.00 | ||
| 1246122 | Guide casing, blue | 68 | 1.00 | ||
| 1315032 | Guide | 11 | 2.00 | (677805) | |
| 986198 | Six point socket screw | 12 | 4.00 | (956076) | |
| 678506 | Handle, black | 70 | 1.00 | ||
| 1246116 | Handle, beige | 70 | 1.00 | ||
| 1246115 | Handle, grey | 70 | 1.00 | ||
| 1246114 | Handle, brown | 70 | 1.00 | ||
| 1246117 | Handle, blue | 70 | 1.00 | ||
| 986214 | Six point socket screw | 52 | 4.00 | (956094) | |
| 1254512 | Gasket | 51 | 2.00 | ||
| 682365 | Spring | 28 | 1.00 | ||
| 956149 | Cross recessed sunk screw | 50 | 2.00 | ||
| 1254511 | Gasket | 49 | 1.00 | ||
| 675482 | Spring | 47 | 1.00 | ||
| 986114 | Six point socket screw | 29 | 2.00 | (955138) | |
| 955948 | Toothed washer | 53 | 4.00 | ||
| 687258 | Stay | 54 | 1.00 | ||
| 682362 | Anchorage | 26 | 1.00 | ||
| 1315024 | Lock | 30 | 1.00 | REPL 1PCS 1315916-5 1PCS 1315914-0 Replacement parts included part or whole in new design, not covered in this catalogue. Refer to other catalogu e via MAIN INDEX. | |
| 679862 | Push button | 45 | 1.00 | ||
| 675483 | Shaft | 46 | 1.00 | ||
| 986652 | Spring washer | 32 | 4.00 | ||
| 682364 | Link | 27 | 1.00 | ||
| 986211 | Six point socket screw | 31 | 4.00 | ||
| 1246561 | Dowel | 41 | 1.00 | OP | (678524) |
| 678525 | Link | 40 | 1.00 | ||
| 1202458 | Handle | 44 | 1.00 | ||
| 987047 | Cross recessed screw | 37 | 1.00 | ||
| 986674 | Toothed washer | 38 | 1.00 | ||
| 6848358 | Clamp | 42 | 1.00 | (1304766)(676995) | |
| 1213154 | Eccentric washer | 34 | 1.00 | ||
| 655532 | Rubber lip | 39 | 1.00 | ||
| 1213269 | Sleeve | 33 | 1.00 | ||
| 8666053 | Key | 36 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 36 | x |
Trunk lid components
2DRS S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
Trunk lid components
2DRS W/O S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
Trunk lid components
4DRS S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
Trunk lid components
4DRS W/O S.R2DRS, 4DRS
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 951986 | Spring pin | 13 | 2.00 | ||
| 1254057 | Spring | 12 | 2.00 | ||
| 986499 | Washer | 24 | 4.00 | (CA),(US) | |
| 948685 | Cap nut | 25 | 4.00 | (CA),(US) | |
| 1304187 | License plate retainer | 23 | 1.00 | (CA),(US) | |
| 965396 | Cross recessed sems screw | 20a | 4.00 | (CA),(US) REPL 1PCS 986115, 1PCS 986498. | |
| 679754 | Edge protection moulding | 18 | x | LG 1440 2x720 | |
| 986161 | Six point socket screw | 16 | 6.00 | (972279)(1246841) | |
| 1246750 | Sill moulding | 15 | 1.00 | ||
| 1304008 | Nut, black | 17 | 2.00 | (1246840) | |
| 1246650 | Sealing strip | 14 | 1.00 | ||
| 1212857 | Insulator | 27 | 1.00 | (947781) | |
| 956946 | Cable terminal | 28 | 1.00 | ||
| 1304776 | Link | 29 | 1.00 | Cars with central locking system. | |
| 1304440 | Motor | 26 | 1.00 | OP | Cars with central locking system. |
| 679377 | License plate retainer | 19 | 2.00 | (CA),(US) REPL 1PCS 1304187, 4PCS 986499, 4PCS 968458 | |
| 1254114 | Clip | 11 | 1.00 | REPL 1PCS 1315408-3 1PCS 1334865-1 1PCS 946451-2. | |
| 986675 | Toothed washer | 33 | 1.00 | Cars with central locking system. | |
| 985857 | Flange nut | 34 | 2.00 | Cars with central locking system. | |
| 985919 | Flange nut | 21 | 2.00 | (CA),(US) | |
| 1304875 | Bushing | 32 | 1.00 | Cars with central locking system. | |
| 986212 | Six point socket screw | 20 | 2.00 | (CA),(US) | |
| 8666053 | Key | 9 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1213202 | Key blank | 9 | 1.00 | ||
| 3536509 | Gasket | 10 | 1.00 | (1355535)(1254115) | |
| 945773 | Washer | 30 | 1.00 | OP | Cars with central locking system. |
| 676911 | Rubber button | 22 | 4.00 | (CA),(US) | |
| 94641 | Lock washer | 31 | 1.00 | Cars with central locking system. | |
| 1247492 | Lock | 3 | 1.00 | OP | (1246422) |
| 982755 | Flange screw | 4 | 3.00 | ||
| 1304775 | Protecting plate | 35 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 6 | 2.00 | ||
| 986479 | Washer | 6a | 2.00 | ||
| 1247491 | Protecting plate | 4a | 1.00 | OP | |
| 1246435 | Lock brace | 5 | 1.00 | ||
| 986160 | Six point socket screw | 36 | 2.00 | (969473) Cars with central locking system. |
door parts front door
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 685015 | Rivet | 20a | x | Not standard equipment, service alternative. | |
| 685836 | Trim moulding bright | 21 | 2.00 | OP | ALTER 1 |
| 685022 | Rivet | 20b | x | Not standard equipment, service alternative. | |
| 1254345 | Sealing strip | 22 | 2.00 | ALTER 2 | |
| 685888 | Sealing strip | 22 | 2.00 | ALTER 1 | |
| 985919 | Flange nut | 53 | 2.00 | ||
| 1315016 | Electrical motor, left | 50 | 1.00 | OP | (1254537) |
| 1315017 | Electrical motor, right | 50 | 1.00 | OP | (1254538) |
| 687838 | Dowel | 27 | 2.00 | ||
| 1202430 | Handle, L.H. | 20 | 1.00 | ||
| 1202431 | Handle, right | 20 | 1.00 | ||
| 982758 | Flange screw | 52a | 6.00 | ||
| 940155 | Toothed washer | 24 | 4.00 | ||
| 982758 | Flange screw | 52 | 6.00 | ||
| 986211 | Six point socket screw | 23 | 4.00 | ||
| 685007 | Spring | 26 | 2.00 | ||
| 1248836 | Stop lug | 51 | 2.00 | OP | 262C |
| 1213920 | Filler strip | 39 | x | LG 750 2x375 | |
| 1255175 | Window lift, left | 49 | 1.00 | OP | |
| 1255176 | Window lift, right | 49 | 1.00 | OP | |
| 94641 | Lock washer | 29 | 2.00 | ||
| 1254323 | Link | 25 | 2.00 | ||
| 945773 | Washer | 28 | 2.00 | OP | |
| 676365 | Hoop | 54 | 4.00 | ||
| 1334889 | Washer | 56 | 8.00 | (1213723) | |
| 6848221 | Clip | 55 | 6.00 | (1334448) | |
| 9131941 | Lift rail, right | 38 | 1.00 | (1203975) | |
| 9131940 | Lift rail, left | 38 | 1.00 | (1203974) | |
| 1255820 | Weatherstrip, left | 62 | 1.00 | OP | 244, 245, 264, 265. |
| 1255821 | Weatherstrip, right | 62 | 1.00 | 244, 245, 264, 265. | |
| 1255825 | Trim moulding, right | 63 | 1.00 | ||
| 1255824 | Trim moulding, left | 63 | 1.00 | ||
| 1304495 | Clip | 64 | 7.00 | ||
| 1247604 | Clip | 60 | 2.00 | (1255007) | |
| 3526387 | Guide moulding | 58 | 2.00 | 244, 245, 264, 265 (1255935) | |
| 1255934 | Guide moulding | 57 | 2.00 | OP | 242, 262. (1203968) |
| 986160 | Six point socket screw | 35a | 4.00 | (969473)(955137) | |
| 1315408 | Clip | 35 | 1.00 | (1315409) | |
| 1312469 | Sealing strip, right | 59 | 1.00 | 242 (1254986) | |
| 9131575 | Sealing strip, right | 59 | 1.00 | 244, 245, 264, 265 (1312465)(1254988) | |
| 1312468 | Sealing strip, left | 59 | 1.00 | OP | 242 (1254985) |
| 9131574 | Sealing strip, left | 59 | 1.00 | OP | 244, 245, 264, 265 (1312464)(1254987) |
| 1247340 | Sealing strip, left | 59 | 1.00 | 262C | |
| 1247341 | Sealing strip, right | 59 | 1.00 | OP | 262C |
| 1213116 | Weatherstrip, left bright | 61 | 1.00 | 242, 262. | |
| 1254962 | Weatherstrip, left black | 61 | 1.00 | OP | 242 |
| 1213114 | Weatherstrip, left bright | 61 | 1.00 | 244, 245, 264, 265. | |
| 1255991 | Weatherstrip, left black | 61 | 1.00 | 244, 245, 264, 265. | |
| 1213117 | Weatherstrip, right bright | 61 | 1.00 | 242, 262. | |
| 1254963 | Weatherstrip, right black | 61 | 1.00 | OP | 242. |
| 1213115 | Weatherstrip, right bright | 61 | 1.00 | 244, 245, 264, 265. | |
| 1255992 | Weatherstrip, right black | 61 | 1.00 | 244, 245, 264, 265. | |
| 1316957 | Key blank | 34 | 1.00 | (1229181) | |
| 8666055 | Key | 34 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1334865 | Lock washer | 35b | 2.00 | ||
| 1259485 | Rubber plug | 72 | 2.00 | 1980- | |
| 1203220 | Lock button bright | 32 | 2.00 | OP | ALTER 2 |
| 1203219 | Lock button, black | 32 | 2.00 | ALTER 1 | |
| 3536509 | Gasket | 36 | 2.00 | (1355535)(1254115) | |
| 1315007 | Lock protection, right | 73 | 1.00 | ||
| 1315006 | Lock protection, left | 73 | 1.00 | (1304773) | |
| 1304462 | Clip | 74 | 6.00 | ||
| 982754 | Flange screw | 41 | 8.00 | ||
| 1247386 | Cover ring, grey | 46 | 2.00 | ||
| 1247387 | Cover ring, brown | 46 | 2.00 | ||
| 1213711 | Cover ring, black | 46 | 2.00 | ||
| 1247385 | Cover ring, beige | 46 | 2.00 | ||
| 1247384 | Cover ring, blue | 46 | 2.00 | ||
| 1211576 | Window lift, left | 40 | 1.00 | OP | |
| 1211577 | Window lift, right | 40 | 1.00 | ||
| 986675 | Toothed washer | 48 | 2.00 | ||
| 986197 | Six point socket screw | 47 | 2.00 | (956075) | |
| 9131936 | Crank, blue | 42 | 2.00 | OP | (1247376) |
| 9131935 | Crank, black | 42 | 2.00 | OP | (1605245)(1254749) |
| 1247378 | Crank, gray | 42 | 2.00 | ||
| 1247379 | Crank, brown | 42 | 2.00 | ||
| 9131937 | Crank, beige | 42 | 2.00 | (1247377) | |
| 1213710 | Cover washer, bright | 43 | 2.00 | ||
| 1247383 | Cover washer, brown | 43 | 2.00 | ||
| 1247382 | Cover washer, grey | 43 | 2.00 | ||
| 1247381 | Cover washer, beige | 43 | 2.00 | ||
| 1247380 | Cover washer, blue | 43 | 2.00 | ||
| 1213709 | Cover washer, black | 43 | 2.00 | ||
| 1247367 | Handle, brown | 16 | 2.00 | OP | |
| 679800 | Handle, black | 16 | 2.00 | ||
| 1247364 | Handle, blue | 16 | 2.00 | OP | |
| 1247366 | Handle, grey | 16 | 2.00 | ||
| 1247365 | Handle, beige | 16 | 2.00 | ||
| 1246124 | Guide casing, r.h, brown | 17 | 1.00 | OP | |
| 1246126 | Guide casing, r.h, beige | 17 | 1.00 | ||
| 1246127 | Guide casing, r.h, blue | 17 | 1.00 | ||
| 680663 | Guide casing, r.h, black | 17 | 1.00 | ||
| 1246129 | Guide casing, l.h, brown | 17 | 1.00 | OP | |
| 1246130 | Guide casing, l.h, grey | 17 | 1.00 | OP | |
| 1246131 | Guide casing, l.h, beige | 17 | 1.00 | OP | |
| 1246132 | Guide casing, l.h, blue | 17 | 1.00 | ||
| 680662 | Guide casing, l.h, black | 17 | 1.00 | ||
| 1246125 | Guide casing, r.h, grey | 17 | 1.00 | OP | |
| 1315005 | Link, right | 69 | 1.00 | Cars with central locking system. | |
| 1315004 | Link, left | 69 | 1.00 | Cars with central locking system. | |
| 1255263 | Link | 30 | 2.00 | ||
| 6848358 | Clamp | 70 | 1.00 | (676995) Cars with central locking system. | |
| 9131828 | Sealing | 18 | 2.00 | (680660) | |
| 6848358 | Clamp | 31 | 2.00 | (676995) | |
| 1255996 | Lock, left | 4 | 1.00 | OP | |
| 1255997 | Lock, right | 4 | 1.00 | ||
| 1255989 | Spring nut | 13 | 1.00 | (946418) | |
| 1255444 | Spring, left | 3 | 1.00 | ||
| 1255445 | Spring, right | 3 | 1.00 | ||
| 1212857 | Insulator | 66 | 1.00 | (966155) | |
| 986304 | Six point socket screw | 8 | 4.00 | (949417) (1247348) | |
| 1315080 | Return spring | 19 | 2.00 | (685735) | |
| 1246465 | Lock, left | 1 | 1.00 | ||
| 1246466 | Lock, right | 1 | 1.00 | ||
| 985857 | Flange nut | 71 | 2.00 | Cars with central locking system. | |
| 1203658 | Clip | 15 | 2.00 | ||
| 1315177 | Electrical motor | 65 | 1.00 | REPL 1PCS 1380298-8, 1PCS 1255758-3 1PCS 968380-6, 1PCS 946640-0. Cars with central locking system. Replacement parts included part or whole in new design, not covered in this catalogue. Refer to other catalogu e via MAIN INDEX. | |
| 986200 | Six point socket screw | 67 | 2.00 | M5x16 (956078) | |
| 1255758 | Bracket | 68 | 1.00 | ||
| 1315076 | Door opener, left | 10 | 1.00 | 244, 245, 264, 265 (1247889) | |
| 1315077 | Door opener, right | 10 | 1.00 | 244, 245, 264, 265 (1247890) | |
| 1315086 | Door opener, right | 10 | 1.00 | 242, 262. (1247892) | |
| 1315085 | Door opener, left | 10 | 1.00 | 242, 262 (1247891) | |
| 1355226 | Screw | 5 | 4.00 | (944049) REPL 1 PCS 986306 | |
| 1304820 | Spring, right | 2 | 1.00 | (1254268) | |
| 1304819 | Spring, left | 2 | 1.00 | (1254267) | |
| 1203311 | Washer | 14 | 1.00 | ||
| 1247886 | Lock screw | 7 | 2.00 | ||
| 986123 | Six point socket screw | 12 | 1.00 | (958246) | |
| 1247885 | Lock brace | 6 | 2.00 | ||
| 1254275 | Shim | 9 | x |
dashboard R.H.D
R.H.D-1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 955132 | Cross recessed screw | 50 | 6.00 | ||
| 1235257 | Spring | 45 | 1.00 | ||
| 1213202 | Key blank | 44 | x | ||
| 1254155 | Lock kit | 43 | 1.00 | 245. 265 | |
| 1246460 | Lock kit | 43 | 1.00 | OP | 244. 264. |
| 1202224 | Lock kit | 43 | 1.00 | ||
| 1215523 | Spring | 42 | 1.00 | ||
| 1259337 | Mirror | 46 | 1.00 | (1234375) | |
| 1214882 | Glove compartment | 37 | 1.00 | ||
| 986106 | Six point socket screw | 48 | 2.00 | (972003)(945761) | |
| 1255613 | Nut | 43a | 1.00 | ||
| 1234376 | Spring | 47 | 2.00 | ||
| 3548337 | Plastic rivet, black | 78 | 2.00 | ||
| 1214887 | Stop arm | 41 | 2.00 | ||
| 1215143 | Strip retainer | 54 | 1.00 | OP | |
| 1234324 | Spring, right | 40 | 1.00 | ||
| 1234323 | Spring, left | 40 | 1.00 | ||
| 1235360 | Trim moulding, right upper | 32a | 1.00 | 260 | |
| 1248358 | Dashboard front | 21 | 1.00 | OP | 262C |
| 1215172 | Shaft | 39 | 2.00 | OP | |
| 1258446 | Crash pad, upper | 1 | 1.00 | ||
| 986106 | Six point socket screw | 55 | 4.00 | (955119) | |
| 1307095 | Loudspeaker grille, black | 24 | 1.00 | (1214061) | |
| 949384 | Plastic rivet | 32c | 8.00 | 260 (1307555) | |
| 1235364 | Trim moulding, right lower | 32b | 1.00 | OP | 260 |
| 3540032 | Plug | 22 | 3.00 | ||
| 1258418 | Web plate | 7 | 1.00 | OP | |
| 1202961 | Clip | 13a | 11.00 | (1202997) | |
| 1259802 | Sealing strip | 23 | 1.00 | (1214223) | |
| 1214284 | Member, right | 4 | 1.00 | OP | |
| 1258406 | Web plate | 8 | 1.00 | ||
| 1364396 | Radio box | 67 | 1.00 | (1215345) | |
| 956090 | Cross recessed screw | 14 | 5.00 | (956090) | |
| 1235361 | Trim moulding, center upper | 35a | 1.00 | OP | 260 |
| 986119 | Six point socket screw | 34 | 4.00 | (955144) | |
| 1235607 | 32 | 1.00 | 240 | ||
| 1235476 | 32 | 1.00 | 260 | ||
| 1215365 | Front plate | 56 | 1.00 | ||
| 986212 | Six point socket screw | 11 | 9.00 | M6x12 (956092) (969420) | |
| 955132 | Cross recessed screw | 27 | 2.00 | ||
| 1258415 | Web plate | 9 | 1.00 | OP | |
| 982793 | Flange screw | 17 | 4.00 | (949734)(955294) | |
| 1235944 | Moulding, left black | 51 | 1.00 | 242DL, 242GT, ALTER 1. 242GT (CA) 242GL. 244. 245. (1214974) | |
| 1235244 | Moulding, left | 51 | 1.00 | OP | 260 |
| 1258257 | Moulding, left red | 51 | 1.00 | 242GT ALTER 2. EXC (CA) | |
| 948571 | Spring nut | 28 | 2.00 | OP | |
| 986212 | Six point socket screw | 19 | 2.00 | M6x12 (956092) (969420) | |
| 987091 | Cross recessed screw | 68 | 4.00 | ||
| 986481 | Washer | 17a | 2.00 | ||
| 1235362 | Trim moulding, lower | 35b | 1.00 | OP | 260 |
| 986212 | Six point socket screw | 58 | 4.00 | M6x12 (956092) (969420) | |
| 685780 | Padding, lower | 2 | 1.00 | OP | |
| 949384 | Plastic rivet | 35c | 8.00 | (1307555) | |
| 1215237 | Member, left | 6 | 1.00 | OP | |
| 9131942 | Support, right | 57 | 1.00 | (1324782) | |
| 1364452 | Support, left | 57 | 1.00 | (1215245) | |
| 1258422 | Cover | 25 | 1.00 | ||
| 1215618 | Bracket, right | 16 | 1.00 | ||
| 986210 | Six point socket screw | 16 | 1.00 | ||
| 1234537 | Valve housing | 35 | 1.00 | 240 | |
| 1258393 | Retainer, center | 12 | 1.00 | ||
| 986212 | Six point socket screw | 18 | 4.00 | M6x12 (956092) (969420) | |
| 986212 | Six point socket screw | 60 | 4.00 | M6x12 (956092) (969420) | |
| 1215380 | Cover panel | 73 | 1.00 | F.I | |
| 988177 | Flange screw | 59 | 2.00 | ||
| 986650 | Spring washer | 30 | 2.00 | ||
| 1254475 | Panel, right | 74 | 1.00 | W/O COMBU | |
| 1246257 | Panel, left | 74 | 1.00 | COMBU | |
| 1254477 | Panel, right | 74 | 1.00 | COMBU | |
| 1246256 | Panel, left | 74 | 1.00 | W/O COMBU | |
| 1235923 | Cover | 26 | 1.00 | ||
| 986197 | Six point socket screw | 29 | 2.00 | (956075) | |
| 986119 | Six point socket screw | 36 | 2.00 | (955144) | |
| 1235068 | Lid | 38 | 1.00 | OP | |
| 986202 | Six point socket screw | 31 | 2.00 | (947245) | |
| 955132 | Cross recessed screw | 20 | 9.00 | ||
| 1258260 | Moulding | 52 | 1.00 | OP | 242GT ALTER 2. |
| 1235246 | Moulding, center | 52 | 1.00 | OP | 260 |
| 1235946 | Moulding | 52 | 1.00 | 242DL, 242GT, ALTER 1. | |
| 1210690 | Cap | 70 | x | ||
| 1307365 | Cap | 70 | x | ALTER 262C | |
| 986211 | Six point socket screw | 63 | 2.00 | (969581)(949565) | |
| 1235922 | Control panel | 62 | 1.00 | ||
| 1258395 | Retainer, outer | 13 | 2.00 | ||
| 1364210 | Ashtray | 69 | 1.00 | (1215251) | |
| 1235609 | 33 | 1.00 | 240 | ||
| 1215520 | Cover plate, right, black | 61 | 1.00 | COMBU W/O A.C R.H.D A.C. (1215513) | |
| 685858 | Cover plate, right, black | 61 | 1.00 | W/O COMBU | |
| 1215514 | Cover plate, left, black | 61 | 1.00 | R.H.D A.C. | |
| 1215512 | Cover plate, left, black | 61 | 1.00 | COMBU W/O A.C L.H.D A.C. | |
| 685857 | Cover plate, left, black | 61 | 1.00 | W/O COMBU | |
| 1254117 | O-ring | 74a | 2.00 | COMBU | |
| 947248 | Cross recessed screw | 64 | 2.00 | REPL 1PCS 987105 | |
| 1258259 | Moulding red | 53 | 1.00 | OP | 242GT ALTER 2 EXC (CA) |
| 1235947 | Moulding black | 53 | 1.00 | 242DL, 242GT ALTER 1 242GT (CA) 242GL. 244, 245. (1215049) | |
| 1235243 | Moulding | 53 | 1.00 | 260 | |
| 1234286 | Clip, black | 66 | 2.00 | ||
| 120401 | Spring nut | 65 | 2.00 | ||
| 946251 | Retainer | 61a | 1.00 | W/O COMBU | |
| 9133167 | Retainer | 61b | 1.00 | COMBU (943811) | |
| 1235945 | Moulding, right black | 51a | 1.00 | 242DL, 242GT ALTER 1. 242GT (CA) 242GL, 244. 245. (1214975) | |
| 1258258 | Moulding, right red | 51a | 1.00 | OP | 242GT ALTER 2. EXC (CA) |
| 1235245 | Moulding, right | 51a | 1.00 | 260 | |
| 1234796 | Padding, lower | 3 | 1.00 | OP | |
| 1247732 | Anchorage, right | 76 | 1.00 | OP | |
| 1247572 | Clip | 77 | 10.00 | (1203602) | |
| 1247730 | Anchorage, left | 75 | 1.00 | ||
| 948927 | Clamp | 15 | 2.00 | ||
| 1235359 | Trim moulding, left upper | 33a | 1.00 | 260 | |
| 949384 | Plastic rivet | 33c | 5.00 | (1307555) |
dashboard L.H.D
L.H.D-1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 955132 | Cross recessed screw | 50 | 6.00 | ||
| 1235257 | Spring | 45 | 1.00 | ||
| 1213202 | Key blank | 44 | x | ||
| 1246460 | Lock kit | 43 | 1.00 | OP | 244. 264. |
| 1254155 | Lock kit | 43 | 1.00 | 245. 265 | |
| 1202224 | Lock kit | 43 | 1.00 | ||
| 1215523 | Spring | 42 | 1.00 | ||
| 1259337 | Mirror | 46 | 1.00 | (1234375) | |
| 1214882 | Glove compartment | 37 | 1.00 | ||
| 986106 | Six point socket screw | 48 | 2.00 | (972003)(945761) | |
| 1255613 | Nut | 43a | 1.00 | ||
| 1234376 | Spring | 47 | 2.00 | ||
| 3548337 | Plastic rivet, black | 78 | 2.00 | ||
| 1214887 | Stop arm | 41 | 2.00 | ||
| 1215143 | Strip retainer | 54 | 1.00 | OP | |
| 1234323 | Spring, left | 40 | 1.00 | ||
| 1234324 | Spring, right | 40 | 1.00 | ||
| 1235359 | Trim moulding, left upper | 32a | 1.00 | 260 | |
| 1248358 | Dashboard front | 21 | 1.00 | OP | 262C |
| 1215172 | Shaft | 39 | 2.00 | OP | |
| 1258444 | Padding, upper | 1 | 1.00 | OP | |
| 986106 | Six point socket screw | 55 | 4.00 | (955119) | |
| 1307095 | Loudspeaker grille, black | 24 | 1.00 | (1214061) | |
| 949384 | Plastic rivet | 32c | 8.00 | 260 (1307555) | |
| 3540032 | Plug | 22 | 3.00 | ||
| 1258409 | Web plate | 7 | 1.00 | ||
| 1202961 | Clip | 13a | 11.00 | (1202997) | |
| 1259802 | Sealing strip | 23 | 1.00 | (1214223) | |
| 1214283 | Member, left | 4 | 1.00 | OP | |
| 1258406 | Web plate | 8 | 1.00 | ||
| 1364396 | Radio box | 67 | 1.00 | (1215345) | |
| 986210 | Six point socket screw | 14 | 5.00 | (956090) | |
| 1235361 | Trim moulding, center upper | 35a | 1.00 | OP | 260 |
| 1234711 | Intermediate member | 5 | 1.00 | V-ST/L.H.D REPL 1 PCS 3540687-5. H-ST/R.H.D REPL 1 PCS 3540688-3. | |
| 986119 | Six point socket screw | 34 | 4.00 | (955144) | |
| 1235475 | 32 | 1.00 | 260 | ||
| 1235600 | Valve housing, left | 32 | 1.00 | 240 | |
| 1215365 | Front plate | 56 | 1.00 | ||
| 986212 | Six point socket screw | 11 | 9.00 | M6x12 (956092) (969420) | |
| 955132 | Cross recessed screw | 27 | 2.00 | ||
| 1258412 | Web plate | 9 | 1.00 | ||
| 982793 | Flange screw | 17 | 4.00 | (949734)(955294) | |
| 1235244 | Moulding, left | 51 | 1.00 | OP | 260 |
| 1258257 | Moulding, left red | 51 | 1.00 | 242GT ALTER 2. EXC (CA) | |
| 1235944 | Moulding, left black | 51 | 1.00 | 242DL, 242GT, ALTER 1. 242GT (CA) 242GL. 244. 245. (1214974) | |
| 948571 | Spring nut | 28 | 2.00 | OP | |
| 986212 | Six point socket screw | 19 | 2.00 | M6x12 (956092) (969420) | |
| 987091 | Cross recessed screw | 68 | 4.00 | ||
| 986481 | Washer | 17a | 2.00 | ||
| 1235362 | Trim moulding, lower | 35b | 1.00 | OP | 260 |
| 986212 | Six point socket screw | 58 | 4.00 | M6x12 (956092) (969420) | |
| 949384 | Plastic rivet | 35c | 8.00 | (1307555) | |
| 1215239 | Member, right | 6 | 1.00 | OP | |
| 1364452 | Support, left | 57 | 1.00 | (1215245) | |
| 9131942 | Support, right | 57 | 1.00 | (1324782) | |
| 1258422 | Cover | 25 | 1.00 | ||
| 1215618 | Bracket, right | 16 | 1.00 | ||
| 1215617 | Bracket, left | 16 | 1.00 | OP | |
| 1234537 | Valve housing | 35 | 1.00 | 240 | |
| 1258393 | Retainer, center | 12 | 1.00 | ||
| 986212 | Six point socket screw | 18 | 4.00 | M6x12 (956092) (969420) | |
| 986212 | Six point socket screw | 60 | 4.00 | M6x12 (956092) (969420) | |
| 1215380 | Cover panel | 73 | 1.00 | F.I | |
| 988177 | Flange screw | 59 | 2.00 | ||
| 986650 | Spring washer | 30 | 2.00 | ||
| 1246952 | Panel, left | 74 | 1.00 | W/O COMBU (1246255) | |
| 1246953 | Panel, right | 74 | 1.00 | W/O COMBU (1254473) | |
| 1304197 | Panel, right | 74 | 1.00 | OP | COMBU (1254471) |
| 1304196 | Panel, left | 74 | 1.00 | OP | COMBU (1246254) |
| 1235923 | Cover | 26 | 1.00 | ||
| 986197 | Six point socket screw | 29 | 2.00 | (956075) | |
| 986119 | Six point socket screw | 36 | 2.00 | (955144) | |
| 1235068 | Lid | 38 | 1.00 | OP | |
| 986202 | Six point socket screw | 31 | 2.00 | (947245) | |
| 955132 | Cross recessed screw | 20 | 9.00 | ||
| 1235246 | Moulding, center | 52 | 1.00 | OP | 260 |
| 1258260 | Moulding | 52 | 1.00 | OP | 242GT ALTER 2. |
| 1235946 | Moulding | 52 | 1.00 | 242DL, 242GT, ALTER 1. | |
| 986211 | Six point socket screw | 63 | 2.00 | (969581)(949565) | |
| 1307365 | Cap | 70 | x | ALTER 262C | |
| 1210690 | Cap | 70 | x | ||
| 1235922 | Control panel | 62 | 1.00 | ||
| 1258395 | Retainer, outer | 13 | 2.00 | ||
| 1364210 | Ashtray | 69 | 1.00 | (1215251) | |
| 1235602 | Valve housing, right | 33 | 1.00 | 240 | |
| 1235477 | Valve housing, right | 33 | 1.00 | 260 | |
| 1215520 | Cover plate, right, black | 61 | 1.00 | COMBU W/O A.C R.H.D A.C. (1215513) | |
| 685857 | Cover plate, left, black | 61 | 1.00 | W/O COMBU | |
| 685858 | Cover plate, right, black | 61 | 1.00 | W/O COMBU | |
| 1215514 | Cover plate, left, black | 61 | 1.00 | R.H.D A.C. | |
| 1215512 | Cover plate, left, black | 61 | 1.00 | COMBU W/O A.C L.H.D A.C. | |
| 1254117 | O-ring | 74a | 2.00 | COMBU | |
| 947248 | Cross recessed screw | 64 | 2.00 | REPL 1PCS 987105 | |
| 1235243 | Moulding | 53 | 1.00 | 260 | |
| 1235947 | Moulding black | 53 | 1.00 | 242DL, 242GT ALTER 1 242GT (CA) 242GL. 244, 245. (1215049) | |
| 1258259 | Moulding red | 53 | 1.00 | OP | 242GT ALTER 2 EXC (CA) |
| 1234286 | Clip, black | 66 | 2.00 | ||
| 120401 | Spring nut | 65 | 2.00 | ||
| 946251 | Retainer | 61a | 1.00 | W/O COMBU | |
| 9133167 | Retainer | 61b | 1.00 | COMBU (943811) | |
| 1235945 | Moulding, right black | 51a | 1.00 | 242DL, 242GT ALTER 1. 242GT (CA) 242GL, 244. 245. (1214975) | |
| 1258258 | Moulding, right red | 51a | 1.00 | OP | 242GT ALTER 2. EXC (CA) |
| 1235245 | Moulding, right | 51a | 1.00 | 260 | |
| 1234795 | Padding, lower | 3 | 1.00 | ||
| 1247572 | Clip | 77 | 10.00 | (1203602) | |
| 1247731 | Anchorage, right | 75 | 1.00 | ||
| 948927 | Clamp | 15 | 2.00 | ||
| 1247730 | Anchorage, left | 75 | 1.00 | ||
| 1235360 | Trim moulding, right upper | 33a | 1.00 | 260 | |
| 1235364 | Trim moulding, right lower | 33b | 1.00 | OP | 260 |
| 949384 | Plastic rivet | 33c | 5.00 | (1307555) |
