Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |

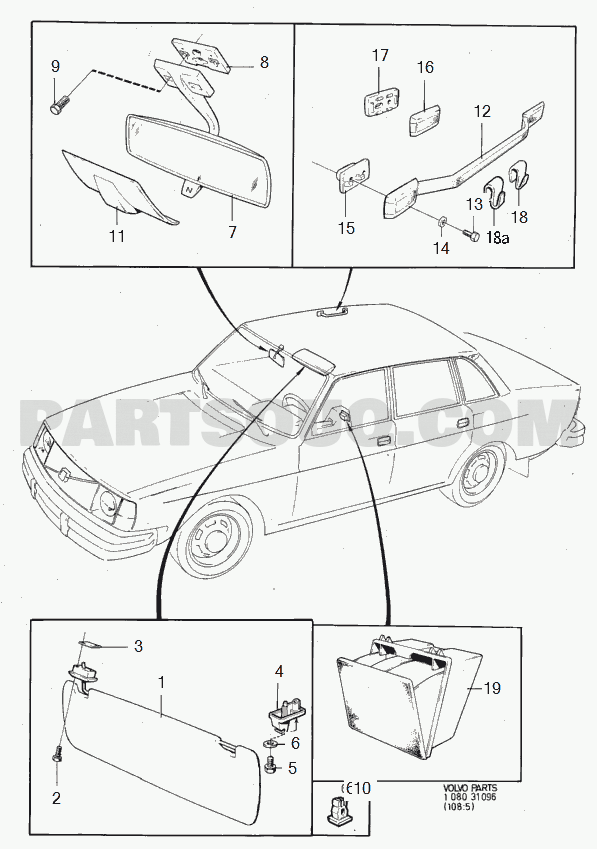

88 Interior equipment
sun visor,interior rear mirror 242, 244.
2DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 242, 244.
2DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 242, 244.
4DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 242, 244.
4DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1207711 | Spacer, white | 17 | 2.00 | ||
| 1264456 | Spacer, black | 17 | 2.00 | ||
| 1210423 | Attaching plate | 8 | 1.00 | ||
| 1264455 | Cover, black | 16 | 2.00 | ||
| 1207712 | Cover | 16 | 2.00 | ||
| 986114 | Six point socket screw | 9 | 3.00 | (955138) | |
| 1264450 | Courtesy handle, black | 12 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1264454 | Clothes hook, black | 18 | 2.00 | ||
| 1204598 | Spacer, white | 15 | 6.00 | ||
| 1264453 | Spacer, black | 15 | 6.00 | ||
| 1224134 | Rear view mirror | 7 | 1.00 | ||
| 1207726 | Mirror casing, white | 11 | 1.00 | OP | S.R |
| 1204629 | Mirror casing, white | 11 | 1.00 | W/O S.R | |
| 1294281 | Mirror casing, black | 11 | 1.00 | S.R | |
| 1264502 | Mirror casing, black | 11 | 1.00 | W/O S.R | |
| 1244235 | Clothes hook black | 18a | 2.00 | REPL 1 PCS 1264454-8 | |
| 1244237 | Clothes hook white | 18a | 2.00 | REPL 1 PCS 1210713-2 | |
| 1210713 | Clothes hanger, white beige | 18a | 2.00 | (1264797) | |
| 986509 | Washer | 14 | 12.00 | ||
| 1313186 | Cover washer, black | 3 | 2.00 | W/O S.R ALTER | |
| 1244917 | Cover washer, white | 3 | 2.00 | W/O S.R ALTER | |
| 1210435 | Spacer | 3 | 2.00 | S.R ALTER 1 | |
| 1264536 | Support, black | 4 | 2.00 | ||
| 1360896 | Support, beige | 4 | 2.00 | (1264651) | |
| 3540681 | Sun visor, left, white | 1 | 1.00 | OP | (1264874) |
| 1225937 | Sun visor, left, black | 1 | 1.00 | OP | |
| 1313622 | Sun visor, right, black | 1 | 1.00 | (1244279) | |
| 1313645 | Sun visor, right, white | 1 | 1.00 | (1224809) | |
| 1313621 | Sun visor, left, black | 1 | 1.00 | (1244278) | |
| 1313644 | Sun visor, left, white | 1 | 1.00 | (1224808) | |
| 1225940 | Sun visor, right, black | 1 | 1.00 | (1225938) | |
| 3540682 | Sun visor, right, white | 1 | 1.00 | OP | (1264875) |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986509 | Washer | 6 | 2.00 | ||
| 986119 | Six point socket screw | 5 | 2.00 | ||
| 986119 | Six point socket screw | 2 | 4.00 | S.R ALTER 1 | |
| 986118 | Six point socket screw | 2 | 4.00 | W/O S.R (960863) |
sun visor,interior rear mirror 245, 265.
5DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1224136 | Attaching plate | 8 | 1.00 | ||
| 955174 | Cross recessed sunk screw | 9 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1372111 | Rear view mirror | 7 | 1.00 | OP | (1224135) |
| 986509 | Washer | 14 | 12.00 | ||
| 1360894 | Support, beige | 4 | 2.00 | (1244770) | |
| 3540668 | Sun visor, left | 1 | 1.00 | OP | (1360909) |
| 3540669 | Sun visor, right | 1 | 1.00 | OP | (1360910) |
| 1313082 | Sun visor, right, white | 1 | 1.00 | (1313327) | |
| 1313081 | Sun visor, left, white | 1 | 1.00 | (1313326) | |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986114 | Six point socket screw | 5 | 4.00 | (955138) | |
| 190665 | Hexagon screw | 2 | 6.00 |
sun visor,interior rear mirror 245, 265.
5DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1224136 | Attaching plate | 8 | 1.00 | ||
| 955174 | Cross recessed sunk screw | 9 | 3.00 | ||
| 1204594 | Courtesy handle, white | 12 | 3.00 | REPL 1 PCS 1364021-4. | |
| 985742 | Flange screw | 13 | 12.00 | ||
| 1210713 | Clothes hanger, white | 18 | 2.00 | ||
| 1372111 | Rear view mirror | 7 | 1.00 | OP | (1224135) |
| 986509 | Washer | 14 | 12.00 | ||
| 1360894 | Support, beige | 4 | 2.00 | (1244770) | |
| 3540668 | Sun visor, left | 1 | 1.00 | OP | (1360909) |
| 3540669 | Sun visor, right | 1 | 1.00 | OP | (1360910) |
| 1313082 | Sun visor, right, white | 1 | 1.00 | (1313327) | |
| 1313081 | Sun visor, left, white | 1 | 1.00 | (1313326) | |
| 1224102 | Ashtray | 19 | 1.00 | ||
| 1294992 | Ashtray | 19 | 1.00 | ||
| 1294993 | Ashtray | 19 | 1.00 | ||
| 1294994 | Ashtray | 19 | 1.00 | ||
| 1294995 | Ashtray | 19 | 1.00 | OP | |
| 986114 | Six point socket screw | 5 | 4.00 | (955138) | |
| 190665 | Hexagon screw | 2 | 6.00 |
door parts front door
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 685015 | Rivet | 20a | x | Not standard equipment, service alternative. | |
| 685836 | Trim moulding bright | 21 | 2.00 | OP | ALTER 1 |
| 685022 | Rivet | 20b | x | Not standard equipment, service alternative. | |
| 1254345 | Sealing strip | 22 | 2.00 | ALTER 2 | |
| 685888 | Sealing strip | 22 | 2.00 | ALTER 1 | |
| 985919 | Flange nut | 53 | 2.00 | ||
| 1315016 | Electrical motor, left | 50 | 1.00 | OP | (1254537) |
| 1315017 | Electrical motor, right | 50 | 1.00 | OP | (1254538) |
| 687838 | Dowel | 27 | 2.00 | ||
| 1202430 | Handle, L.H. | 20 | 1.00 | ||
| 1202431 | Handle, right | 20 | 1.00 | ||
| 982758 | Flange screw | 52a | 6.00 | ||
| 940155 | Toothed washer | 24 | 4.00 | ||
| 982758 | Flange screw | 52 | 6.00 | ||
| 986211 | Six point socket screw | 23 | 4.00 | ||
| 685007 | Spring | 26 | 2.00 | ||
| 1248836 | Stop lug | 51 | 2.00 | OP | 262C |
| 1213920 | Filler strip | 39 | x | LG 750 2x375 | |
| 1255175 | Window lift, left | 49 | 1.00 | OP | |
| 1255176 | Window lift, right | 49 | 1.00 | OP | |
| 94641 | Lock washer | 29 | 2.00 | ||
| 1254323 | Link | 25 | 2.00 | ||
| 945773 | Washer | 28 | 2.00 | OP | |
| 676365 | Hoop | 54 | 4.00 | ||
| 1334889 | Washer | 56 | 8.00 | (1213723) | |
| 6848221 | Clip | 55 | 6.00 | (1334448) | |
| 9131941 | Lift rail, right | 38 | 1.00 | (1203975) | |
| 9131940 | Lift rail, left | 38 | 1.00 | (1203974) | |
| 1255820 | Weatherstrip, left | 62 | 1.00 | OP | 244, 245, 264, 265. |
| 1255821 | Weatherstrip, right | 62 | 1.00 | 244, 245, 264, 265. | |
| 1255825 | Trim moulding, right | 63 | 1.00 | ||
| 1255824 | Trim moulding, left | 63 | 1.00 | ||
| 1304495 | Clip | 64 | 7.00 | ||
| 1247604 | Clip | 60 | 2.00 | (1255007) | |
| 3526387 | Guide moulding | 58 | 2.00 | 244, 245, 264, 265 (1255935) | |
| 1255934 | Guide moulding | 57 | 2.00 | OP | 242, 262. (1203968) |
| 986160 | Six point socket screw | 35a | 4.00 | (969473)(955137) | |
| 1315408 | Clip | 35 | 1.00 | (1315409) | |
| 1312469 | Sealing strip, right | 59 | 1.00 | 242 (1254986) | |
| 9131575 | Sealing strip, right | 59 | 1.00 | 244, 245, 264, 265 (1312465)(1254988) | |
| 1312468 | Sealing strip, left | 59 | 1.00 | OP | 242 (1254985) |
| 9131574 | Sealing strip, left | 59 | 1.00 | OP | 244, 245, 264, 265 (1312464)(1254987) |
| 1247340 | Sealing strip, left | 59 | 1.00 | 262C | |
| 1247341 | Sealing strip, right | 59 | 1.00 | OP | 262C |
| 1213116 | Weatherstrip, left bright | 61 | 1.00 | 242, 262. | |
| 1254962 | Weatherstrip, left black | 61 | 1.00 | OP | 242 |
| 1213114 | Weatherstrip, left bright | 61 | 1.00 | 244, 245, 264, 265. | |
| 1255991 | Weatherstrip, left black | 61 | 1.00 | 244, 245, 264, 265. | |
| 1213117 | Weatherstrip, right bright | 61 | 1.00 | 242, 262. | |
| 1254963 | Weatherstrip, right black | 61 | 1.00 | OP | 242. |
| 1213115 | Weatherstrip, right bright | 61 | 1.00 | 244, 245, 264, 265. | |
| 1255992 | Weatherstrip, right black | 61 | 1.00 | 244, 245, 264, 265. | |
| 1316957 | Key blank | 34 | 1.00 | (1229181) | |
| 8666055 | Key | 34 | 1.00 | For this P/N, the key is supplied with the ordered combination. | |
| 1334865 | Lock washer | 35b | 2.00 | ||
| 1259485 | Rubber plug | 72 | 2.00 | 1980- | |
| 1203220 | Lock button bright | 32 | 2.00 | OP | ALTER 2 |
| 1203219 | Lock button, black | 32 | 2.00 | ALTER 1 | |
| 3536509 | Gasket | 36 | 2.00 | (1355535)(1254115) | |
| 1315007 | Lock protection, right | 73 | 1.00 | ||
| 1315006 | Lock protection, left | 73 | 1.00 | (1304773) | |
| 1304462 | Clip | 74 | 6.00 | ||
| 982754 | Flange screw | 41 | 8.00 | ||
| 1247386 | Cover ring, grey | 46 | 2.00 | ||
| 1247387 | Cover ring, brown | 46 | 2.00 | ||
| 1213711 | Cover ring, black | 46 | 2.00 | ||
| 1247385 | Cover ring, beige | 46 | 2.00 | ||
| 1247384 | Cover ring, blue | 46 | 2.00 | ||
| 1211576 | Window lift, left | 40 | 1.00 | OP | |
| 1211577 | Window lift, right | 40 | 1.00 | ||
| 986675 | Toothed washer | 48 | 2.00 | ||
| 986197 | Six point socket screw | 47 | 2.00 | (956075) | |
| 9131936 | Crank, blue | 42 | 2.00 | OP | (1247376) |
| 9131935 | Crank, black | 42 | 2.00 | OP | (1605245)(1254749) |
| 1247378 | Crank, gray | 42 | 2.00 | ||
| 1247379 | Crank, brown | 42 | 2.00 | ||
| 9131937 | Crank, beige | 42 | 2.00 | (1247377) | |
| 1213710 | Cover washer, bright | 43 | 2.00 | ||
| 1247383 | Cover washer, brown | 43 | 2.00 | ||
| 1247382 | Cover washer, grey | 43 | 2.00 | ||
| 1247381 | Cover washer, beige | 43 | 2.00 | ||
| 1247380 | Cover washer, blue | 43 | 2.00 | ||
| 1213709 | Cover washer, black | 43 | 2.00 | ||
| 1247367 | Handle, brown | 16 | 2.00 | OP | |
| 679800 | Handle, black | 16 | 2.00 | ||
| 1247364 | Handle, blue | 16 | 2.00 | OP | |
| 1247366 | Handle, grey | 16 | 2.00 | ||
| 1247365 | Handle, beige | 16 | 2.00 | ||
| 1246124 | Guide casing, r.h, brown | 17 | 1.00 | OP | |
| 1246126 | Guide casing, r.h, beige | 17 | 1.00 | ||
| 1246127 | Guide casing, r.h, blue | 17 | 1.00 | ||
| 680663 | Guide casing, r.h, black | 17 | 1.00 | ||
| 1246129 | Guide casing, l.h, brown | 17 | 1.00 | OP | |
| 1246130 | Guide casing, l.h, grey | 17 | 1.00 | OP | |
| 1246131 | Guide casing, l.h, beige | 17 | 1.00 | OP | |
| 1246132 | Guide casing, l.h, blue | 17 | 1.00 | ||
| 680662 | Guide casing, l.h, black | 17 | 1.00 | ||
| 1246125 | Guide casing, r.h, grey | 17 | 1.00 | OP | |
| 1315005 | Link, right | 69 | 1.00 | Cars with central locking system. | |
| 1315004 | Link, left | 69 | 1.00 | Cars with central locking system. | |
| 1255263 | Link | 30 | 2.00 | ||
| 6848358 | Clamp | 70 | 1.00 | (676995) Cars with central locking system. | |
| 9131828 | Sealing | 18 | 2.00 | (680660) | |
| 6848358 | Clamp | 31 | 2.00 | (676995) | |
| 1255996 | Lock, left | 4 | 1.00 | OP | |
| 1255997 | Lock, right | 4 | 1.00 | ||
| 1255989 | Spring nut | 13 | 1.00 | (946418) | |
| 1255444 | Spring, left | 3 | 1.00 | ||
| 1255445 | Spring, right | 3 | 1.00 | ||
| 1212857 | Insulator | 66 | 1.00 | (966155) | |
| 986304 | Six point socket screw | 8 | 4.00 | (949417) (1247348) | |
| 1315080 | Return spring | 19 | 2.00 | (685735) | |
| 1246465 | Lock, left | 1 | 1.00 | ||
| 1246466 | Lock, right | 1 | 1.00 | ||
| 985857 | Flange nut | 71 | 2.00 | Cars with central locking system. | |
| 1203658 | Clip | 15 | 2.00 | ||
| 1315177 | Electrical motor | 65 | 1.00 | REPL 1PCS 1380298-8, 1PCS 1255758-3 1PCS 968380-6, 1PCS 946640-0. Cars with central locking system. Replacement parts included part or whole in new design, not covered in this catalogue. Refer to other catalogu e via MAIN INDEX. | |
| 986200 | Six point socket screw | 67 | 2.00 | M5x16 (956078) | |
| 1255758 | Bracket | 68 | 1.00 | ||
| 1315076 | Door opener, left | 10 | 1.00 | 244, 245, 264, 265 (1247889) | |
| 1315077 | Door opener, right | 10 | 1.00 | 244, 245, 264, 265 (1247890) | |
| 1315086 | Door opener, right | 10 | 1.00 | 242, 262. (1247892) | |
| 1315085 | Door opener, left | 10 | 1.00 | 242, 262 (1247891) | |
| 1355226 | Screw | 5 | 4.00 | (944049) REPL 1 PCS 986306 | |
| 1304820 | Spring, right | 2 | 1.00 | (1254268) | |
| 1304819 | Spring, left | 2 | 1.00 | (1254267) | |
| 1203311 | Washer | 14 | 1.00 | ||
| 1247886 | Lock screw | 7 | 2.00 | ||
| 986123 | Six point socket screw | 12 | 1.00 | (958246) | |
| 1247885 | Lock brace | 6 | 2.00 | ||
| 1254275 | Shim | 9 | x |

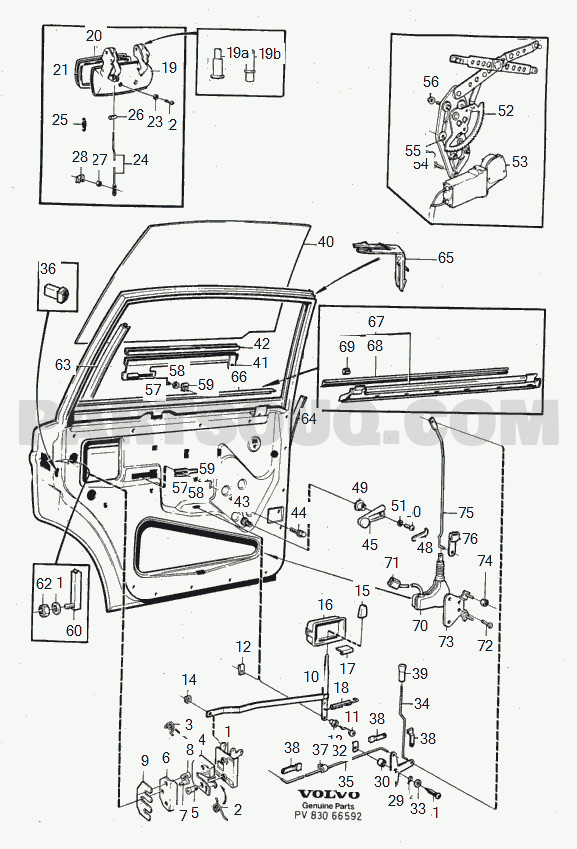

door parts rear door
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 685836 | Trim moulding bright | 20 | 2.00 | OP | ALTER 1 |
| 685015 | Rivet | 19a | x | Not standard equipment, service alternative. | |
| 685022 | Rivet | 19b | x | Not standard equipment, service alternative. | |
| 1202430 | Handle, L.H. | 19 | 1.00 | ||
| 1202431 | Handle, right | 19 | 1.00 | ||
| 1254345 | Sealing strip | 21 | 2.00 | ALTER 2 | |
| 685888 | Sealing strip | 21 | 2.00 | ALTER 1 | |
| 985919 | Flange nut | 56 | 2.00 | ||
| 687838 | Dowel | 26 | 2.00 | ||
| 685007 | Spring | 25 | 2.00 | ||
| 940155 | Toothed washer | 23 | 4.00 | ||
| 986211 | Six point socket screw | 22 | 4.00 | ||
| 982757 | Flange screw | 55 | 6.00 | ||
| 94641 | Lock washer | 28 | 2.00 | ||
| 945773 | Washer | 27 | 2.00 | OP | |
| 686891 | Link | 24 | 2.00 | ||
| 982758 | Flange screw | 54 | 6.00 | ||
| 1315018 | Electrical motor, left | 53 | 1.00 | OP | (1254537) |
| 1315019 | Electrical motor, right | 53 | 1.00 | OP | (1254538) |
| 1247604 | Clip | 65 | 2.00 | ||
| 986654 | Spring washer | 36 | 2.00 | ||
| 1255834 | Weatherstrip, right | 67 | 1.00 | ||
| 1255833 | Weatherstrip, left | 67 | 1.00 | ||
| 1255837 | Trim moulding | 68 | 1.00 | OP | (1255838) |
| 1304495 | Clip | 69 | 7.00 | ||
| 1213920 | Filler strip | 42 | x | LG 750 mm | |
| 1255936 | Guide moulding | 63 | 2.00 | OP | (1203940) |
| 9131938 | Lift rail, left | 41 | 1.00 | (1213802) | |
| 9131939 | Lift rail, right | 41 | 1.00 | (1213803) | |
| 1203448 | Weatherstrip, right bright | 66 | 1.00 | OP | |
| 1255968 | Weatherstrip, right black | 66 | 1.00 | OP | |
| 1213111 | Weatherstrip, left bright | 66 | 1.00 | ||
| 1255967 | Weatherstrip, left black | 66 | 1.00 | ||
| 3540132 | Sealing strip, right | 64 | 1.00 | OP | |
| 3540131 | Sealing strip, left | 64 | 1.00 | OP | |
| 6848221 | Clip | 59 | 6.00 | (1334448)(946594) | |
| 1213711 | Cover ring, black | 49 | 2.00 | ||
| 1247384 | Cover ring, blue | 49 | 2.00 | ||
| 1247385 | Cover ring, beige | 49 | 2.00 | ||
| 1247386 | Cover ring, grey | 49 | 2.00 | ||
| 676366 | Hoop | 57 | 4.00 | ||
| 1247387 | Cover ring, brown | 49 | 2.00 | ||
| 1334889 | Washer | 58 | 8.00 | (1213723) | |
| 986675 | Toothed washer | 51 | 2.00 | ||
| 986197 | Six point socket screw | 50 | 2.00 | (956075) | |
| 1255768 | Link, left | 75 | 1.00 | Cars with central locking system. | |
| 1255769 | Link, right | 75 | 1.00 | Cars with central locking system. | |
| 982754 | Flange screw | 44 | 8.00 | ||
| 6848358 | Clamp | 76 | 2.00 | (676995) | |
| 9131935 | Crank, black | 45 | 2.00 | OP | (1605245)(1254749) |
| 1247379 | Crank, brown | 45 | 2.00 | ||
| 1247378 | Crank, gray | 45 | 2.00 | ||
| 9131937 | Crank, beige | 45 | 2.00 | (1247377) | |
| 9131936 | Crank, blue | 45 | 2.00 | OP | (1247376) |
| 1213709 | Cover washer, black | 48 | 2.00 | ||
| 1213710 | Cover washer, bright | 48 | 2.00 | ||
| 1247383 | Cover washer, brown | 48 | 2.00 | ||
| 1247382 | Cover washer, grey | 48 | 2.00 | ||
| 1247381 | Cover washer, beige | 48 | 2.00 | ||
| 1247380 | Cover washer, blue | 48 | 2.00 | ||
| 985857 | Flange nut | 74 | 4.00 | Cars with central locking system. | |
| 1212857 | Insulator | 71 | 1.00 | (966155) | |
| 985921 | Flange nut | 62 | 2.00 | ||
| 986481 | Washer | 61 | 2.00 | ALTER | |
| 1247365 | Handle, beige | 15 | 2.00 | ||
| 679800 | Handle, black | 15 | 2.00 | ||
| 1247364 | Handle, blue | 15 | 2.00 | OP | |
| 1247367 | Handle, brown | 15 | 2.00 | OP | |
| 1247366 | Handle, grey | 15 | 2.00 | ||
| 1246132 | Guide casing, l.h, blue | 16 | 1.00 | ||
| 1246127 | Guide casing, r.h, blue | 16 | 1.00 | ||
| 680662 | Guide casing, l.h, black | 16 | 1.00 | ||
| 1246125 | Guide casing, r.h, grey | 16 | 1.00 | OP | |
| 1246126 | Guide casing, r.h, beige | 16 | 1.00 | ||
| 680663 | Guide casing, r.h, black | 16 | 1.00 | ||
| 1246129 | Guide casing, l.h, brown | 16 | 1.00 | OP | |
| 1246130 | Guide casing, l.h, grey | 16 | 1.00 | OP | |
| 1246131 | Guide casing, l.h, beige | 16 | 1.00 | OP | |
| 1246124 | Guide casing, r.h, brown | 16 | 1.00 | OP | |
| 1315177 | Electrical motor | 70 | 2.00 | REPL 1PCS 1380298-8 1PCS 1255758-3 1PCS 968380-6, 1PCS 946640-0. Cars with central locking system. Replacement parts included part or whole in new design, not covered in this catalogue. Refer to other catalogu e via MAIN INDEX. | |
| 1211976 | Guide rail | 60 | 2.00 | ||
| 1255758 | Bracket | 73 | 2.00 | ||
| 1255989 | Spring nut | 12 | 2.00 | (946418) | |
| 986200 | Six point socket screw | 72 | 4.00 | (956078) | |
| 9131828 | Sealing | 17 | 2.00 | (680660) | |
| 1203220 | Lock button bright | 39 | 2.00 | OP | ALTER 2 |
| 1203219 | Lock button, black | 39 | 2.00 | ALTER 1 | |
| 1315081 | Door opener, left | 10 | 1.00 | (1203313) | |
| 1315082 | Door opener, right | 10 | 1.00 | (1203314) | |
| 1203658 | Clip | 14 | 2.00 | ||
| 1315080 | Return spring | 18 | 2.00 | (685735) | |
| 676690 | Link | 34 | 2.00 | ||
| 986123 | Six point socket screw | 11 | 2.00 | (958246) | |
| 1304244 | Spring, right | 3 | 1.00 | (1254270) | |
| 1304243 | Spring, left | 3 | 1.00 | (1254269) | |
| 1304761 | Lock, left | 1 | 1.00 | (1255465) | |
| 1304762 | Lock, right | 1 | 1.00 | (1255466) | |
| 1255996 | Lock, left | 4 | 1.00 | OP | |
| 1255997 | Lock, right | 4 | 1.00 | ||
| 1203311 | Washer | 13 | 2.00 | ||
| 6848358 | Clamp | 38 | 6.00 | (676995) | |
| 1316220 | Guide | 37 | 2.00 | 1980- | |
| 657010 | Rubber cushion | 37 | 2.00 | -1979 | |
| 191391 | Spring nut | 32 | 2.00 | ||
| 986304 | Six point socket screw | 8 | 4.00 | (949417) (1247348) | |
| 1247885 | Lock brace | 6 | 2.00 | ||
| 1254275 | Shim | 9 | x | ||
| 1255179 | Spacer washer | 30 | 2.00 | ||
| 1315396 | Link | 35 | 2.00 | (676687) | |
| 1203111 | Intermediate lever | 29 | 2.00 | ||
| 986510 | Washer | 33 | 2.00 | ||
| 986116 | Six point socket screw | 31 | 2.00 | (955141) | |
| 1304820 | Spring, right | 2 | 1.00 | (1254268) | |
| 1304819 | Spring, left | 2 | 1.00 | (1254267) | |
| 1355226 | Screw | 5 | 4.00 | (944049) REPL 1 PCS 986306 | |
| 1247886 | Lock screw | 7 | 2.00 |

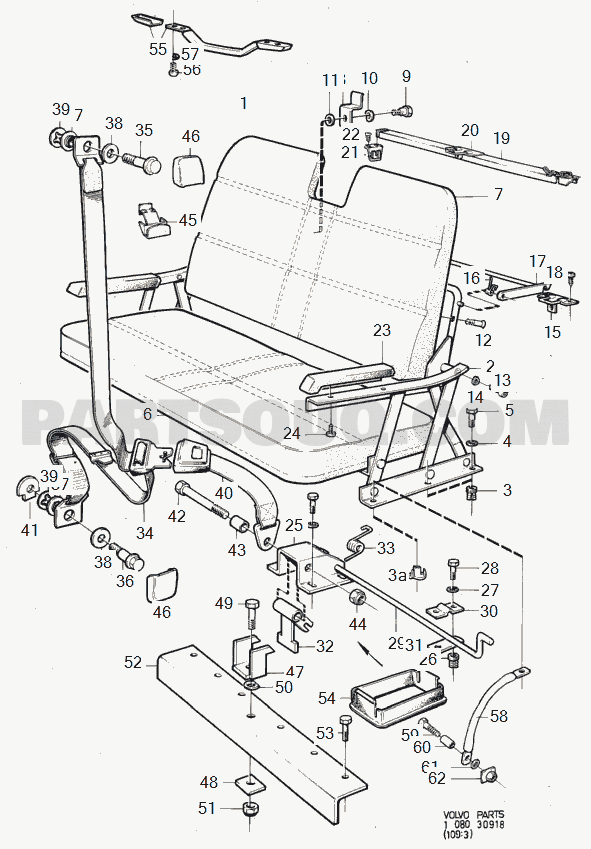

extra seat
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1364021 | Courtesy handle, white | 55 | 1.00 | (1204594) | |
| 986477 | Washer | 57 | 4.00 | ||
| 985739 | Flange screw | 56 | 4.00 | ||
| 1264880 | Shoulder screw | 9 | 1.00 | ||
| 986652 | Spring washer | 10 | 1.00 | ||
| 986499 | Washer | 11 | 1.00 | ||
| 1264987 | Lock | 8 | 1.00 | ||
| 3524817 | Extra seat, beige beige | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 1128800 | Extra seat black | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 3524818 | Extra seat, beige | 1 | 1.00 | REPL 1 PCS 6820225-8. | |
| 6820225 | Extra seat | 1 | 1.00 | ||
| 1128720 | Extra seat beige | 1 | 1.00 | (AU) REPL 1 PCS 3524818-6. | |
| 3524816 | Auxiliary seat, black black | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 1221304 | Screw | 35 | 2.00 | ||
| 1264576 | Attaching brace | 20 | 2.00 | ||
| 986114 | Six point socket screw | 22 | 8.00 | (955138) | |
| 1294048 | Backrest stay | 19 | 1.00 | OP | (AU) |
| 1264568 | Backrest cushion beige | 7 | 1.00 | REPL 1PCS 3529162-4. | |
| 1242876 | Backrest cushion black | 7 | 1.00 | REPL 1PCS 3529160-8. | |
| 1207743 | Retainer | 45 | 1.00 | ||
| 1264985 | Lock brace | 17 | 1.00 | OP | EXC (AU) |
| 986114 | Six point socket screw | 18 | 6.00 | EXC (AU) (955138) | |
| 1294191 | Spring, right | 16 | 1.00 | ||
| 1264986 | Spring, left | 16 | 1.00 | ||
| 1224992 | Arm rest | 23 | 1.00 | ||
| 1224993 | Arm rest | 23 | 1.00 | ||
| 1264576 | Attaching brace | 15 | 2.00 | EXC (AU) | |
| 986293 | Six point socket screw | 12 | 4.00 | (956317) | |
| 941761 | Hex. socket screw | 13 | 2.00 | M8x40 | |
| 959241 | Hex. socket screw | 13 | 2.00 | M10x40 Only early versions of car. | |
| 986656 | Spring washer | 14 | 2.00 | ||
| 982757 | Flange screw | 5 | 2.00 | ||
| 986213 | Six point socket screw | 5 | 4.00 | (956093) | |
| 986964 | Hexagon screw | 5 | 6.00 | (955270) Only early versions of car. | |
| 1242875 | Seat cushion black | 6 | 1.00 | REPL 1PCS 3529161-6. | |
| 1264578 | Seat cushion beige | 6 | 1.00 | REPL 1PCS 3529163-2. | |
| 986160 | Six point socket screw | 24 | 4.00 | (969473)(955137) | |
| 955948 | Toothed washer | 4 | 6.00 | ||
| 1221010 | Bushing | 37 | 4.00 | ||
| 1264563 | Bushing | 3 | 4.00 | OP | |
| 1264897 | Bracket | 25 | 1.00 | ||
| 679993 | Nut plate | 41 | 2.00 | ||
| 1381182 | Seat belt | 34 | 2.00 | (1244829) | |
| 1264900 | Spring | 33 | 1.00 | ||
| 672818 | Spacer sleeve | 43 | 2.00 | ||
| 986433 | Washer | 38 | 4.00 | ||
| 986964 | Hexagon screw | 28 | 6.00 | (955270) | |
| 943419 | Punch nut | 3a | 2.00 | ||
| 1204775 | Screw | 36 | 2.00 | ||
| 943395 | Hexagon screw | 49 | 1.00 | ||
| 955948 | Toothed washer | 27 | 6.00 | ||
| 1264877 | Clamp | 30 | 1.00 | ||
| 1207666 | Cover | 46 | 4.00 | ||
| 950385 | Nut | 44 | 1.00 | ||
| 1264898 | Intermediate lever | 29 | 1.00 | ||
| 1264878 | Plate | 31 | 1.00 | ||
| 1264899 | Lock plate | 32 | 1.00 | ||
| 1264563 | Bushing | 26 | 6.00 | OP | |
| 1224595 | Bracket | 52 | 1.00 | (CA),(US) | |
| 6820201 | Latch | 47 | 1.00 | OP | (1224592) |
| 986504 | Washer | 50 | 1.00 | ||
| 1264197 | Frame | 54 | 2.00 | ||
| 986997 | Hexagon screw | 53 | 6.00 | (CA),(US) (955315) | |
| 985186 | Flange screw | 59 | 2.00 | ||
| 986501 | Washer | 61 | 2.00 | (960141) | |
| 955849 | Hexagon nut | 51 | 1.00 | EXC (CA),(US) |
