Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
85 Interior
Rear seat
2DRS S.R2DRS, 4DRS.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1313165 | Upholstery clip | 19 | 1.00 | ||
| 1248539 | Panel | 10 | 1.00 | 262C | |
| 985875 | Hexagon nut | 11 | 2.00 | 262C | |
| 1204574 | Protecting moulding | 12 | 2.00 | OP | |
| 680538 | Nut | 18 | 2.00 | ||
| 1207626 | Bracket | 16 | 2.00 | ||
| 986114 | Six point socket screw | 17 | 4.00 | (955138) | |
| 1204420 | Padding | 6 | 1.00 | OP | -1980 |
| 1244228 | Padding | 6 | 1.00 | OP | 1981- |
| 982755 | Flange screw | 15 | 4.00 | (979780)(967552) | |
| 1224417 | Arm rest | 8 | 1.00 | -1980 | |
| 1244397 | Arm rest | 8 | 1.00 | 1981- | |
| 1248337 | Arm rest | 8 | 1.00 | 262C. REPL 1 PCS 1248450-7, 1 PCS 678311-2 1 PCS 678312-0, 4 PCS 946501-4. | |
| 1294606 | Padding | 14 | 1.00 | -1980. (691649) | |
| 1244911 | Padding | 14 | 1.00 | 1981- | |
| 1224418 | Padding | 13 | 1.00 | OP | -1980 Cars without leather upholstery. |
| 1244916 | Padding | 13 | 1.00 | 1981- Cars without leather upholstery. | |
| 1244912 | Padding | 13 | 1.00 | OP | 1981- Cars with leather upholstery. |
| 3525080 | Padding | 1 | 1.00 | EXC 262C (1264493) | |
| 1248831 | Padding | 1 | 1.00 | OP | 262C |
| 982793 | Flange screw | 5 | 2.00 | ||
| 1204535 | Spring | 2 | 8.00 | (1224409) | |
| 3525133 | Bracket | 4 | 1.00 | OP |
Rear seat
2DRS W/O S.R2DRS, 4DRS.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1313165 | Upholstery clip | 19 | 1.00 | ||
| 1248539 | Panel | 10 | 1.00 | 262C | |
| 985875 | Hexagon nut | 11 | 2.00 | 262C | |
| 1204574 | Protecting moulding | 12 | 2.00 | OP | |
| 680538 | Nut | 18 | 2.00 | ||
| 1207626 | Bracket | 16 | 2.00 | ||
| 986114 | Six point socket screw | 17 | 4.00 | (955138) | |
| 1204420 | Padding | 6 | 1.00 | OP | -1980 |
| 1244228 | Padding | 6 | 1.00 | OP | 1981- |
| 982755 | Flange screw | 15 | 4.00 | (979780)(967552) | |
| 1224417 | Arm rest | 8 | 1.00 | -1980 | |
| 1244397 | Arm rest | 8 | 1.00 | 1981- | |
| 1248337 | Arm rest | 8 | 1.00 | 262C. REPL 1 PCS 1248450-7, 1 PCS 678311-2 1 PCS 678312-0, 4 PCS 946501-4. | |
| 1294606 | Padding | 14 | 1.00 | -1980. (691649) | |
| 1244911 | Padding | 14 | 1.00 | 1981- | |
| 1224418 | Padding | 13 | 1.00 | OP | -1980 Cars without leather upholstery. |
| 1244916 | Padding | 13 | 1.00 | 1981- Cars without leather upholstery. | |
| 1244912 | Padding | 13 | 1.00 | OP | 1981- Cars with leather upholstery. |
| 3525080 | Padding | 1 | 1.00 | EXC 262C (1264493) | |
| 1248831 | Padding | 1 | 1.00 | OP | 262C |
| 982793 | Flange screw | 5 | 2.00 | ||
| 1204535 | Spring | 2 | 8.00 | (1224409) | |
| 3525133 | Bracket | 4 | 1.00 | OP |
Rear seat
4DRS S.R2DRS, 4DRS.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1313165 | Upholstery clip | 19 | 1.00 | ||
| 1248539 | Panel | 10 | 1.00 | 262C | |
| 985875 | Hexagon nut | 11 | 2.00 | 262C | |
| 1204574 | Protecting moulding | 12 | 2.00 | OP | |
| 680538 | Nut | 18 | 2.00 | ||
| 1207626 | Bracket | 16 | 2.00 | ||
| 986114 | Six point socket screw | 17 | 4.00 | (955138) | |
| 1204420 | Padding | 6 | 1.00 | OP | -1980 |
| 1244228 | Padding | 6 | 1.00 | OP | 1981- |
| 982755 | Flange screw | 15 | 4.00 | (979780)(967552) | |
| 1224417 | Arm rest | 8 | 1.00 | -1980 | |
| 1244397 | Arm rest | 8 | 1.00 | 1981- | |
| 1248337 | Arm rest | 8 | 1.00 | 262C. REPL 1 PCS 1248450-7, 1 PCS 678311-2 1 PCS 678312-0, 4 PCS 946501-4. | |
| 1294606 | Padding | 14 | 1.00 | -1980. (691649) | |
| 1244911 | Padding | 14 | 1.00 | 1981- | |
| 1224418 | Padding | 13 | 1.00 | OP | -1980 Cars without leather upholstery. |
| 1244916 | Padding | 13 | 1.00 | 1981- Cars without leather upholstery. | |
| 1244912 | Padding | 13 | 1.00 | OP | 1981- Cars with leather upholstery. |
| 3525080 | Padding | 1 | 1.00 | EXC 262C (1264493) | |
| 1248831 | Padding | 1 | 1.00 | OP | 262C |
| 982793 | Flange screw | 5 | 2.00 | ||
| 1204535 | Spring | 2 | 8.00 | (1224409) | |
| 3525133 | Bracket | 4 | 1.00 | OP |
Rear seat
4DRS W/O S.R2DRS, 4DRS.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1313165 | Upholstery clip | 19 | 1.00 | ||
| 1248539 | Panel | 10 | 1.00 | 262C | |
| 985875 | Hexagon nut | 11 | 2.00 | 262C | |
| 1204574 | Protecting moulding | 12 | 2.00 | OP | |
| 680538 | Nut | 18 | 2.00 | ||
| 1207626 | Bracket | 16 | 2.00 | ||
| 986114 | Six point socket screw | 17 | 4.00 | (955138) | |
| 1204420 | Padding | 6 | 1.00 | OP | -1980 |
| 1244228 | Padding | 6 | 1.00 | OP | 1981- |
| 982755 | Flange screw | 15 | 4.00 | (979780)(967552) | |
| 1224417 | Arm rest | 8 | 1.00 | -1980 | |
| 1244397 | Arm rest | 8 | 1.00 | 1981- | |
| 1248337 | Arm rest | 8 | 1.00 | 262C. REPL 1 PCS 1248450-7, 1 PCS 678311-2 1 PCS 678312-0, 4 PCS 946501-4. | |
| 1294606 | Padding | 14 | 1.00 | -1980. (691649) | |
| 1244911 | Padding | 14 | 1.00 | 1981- | |
| 1224418 | Padding | 13 | 1.00 | OP | -1980 Cars without leather upholstery. |
| 1244916 | Padding | 13 | 1.00 | 1981- Cars without leather upholstery. | |
| 1244912 | Padding | 13 | 1.00 | OP | 1981- Cars with leather upholstery. |
| 3525080 | Padding | 1 | 1.00 | EXC 262C (1264493) | |
| 1248831 | Padding | 1 | 1.00 | OP | 262C |
| 982793 | Flange screw | 5 | 2.00 | ||
| 1204535 | Spring | 2 | 8.00 | (1224409) | |
| 3525133 | Bracket | 4 | 1.00 | OP |

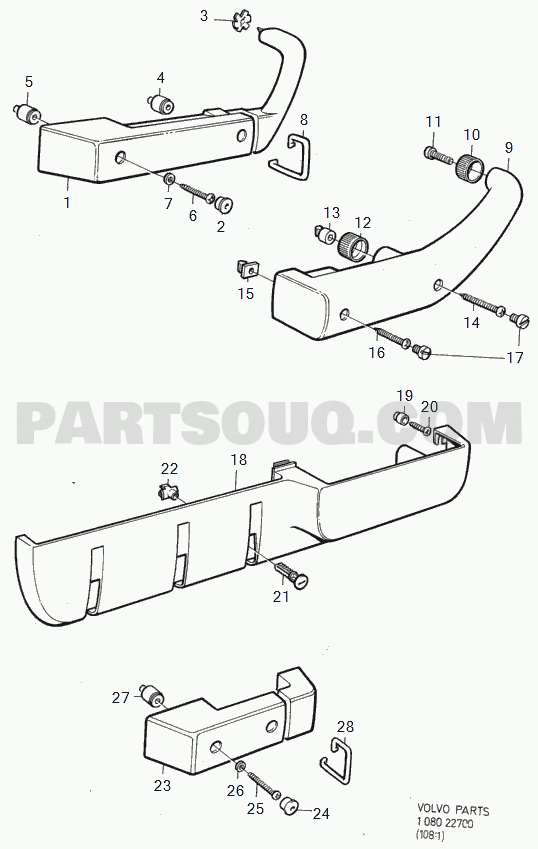

Armrest Door packet
1979
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 1225688 | Clip, right | 3 | 1.00 | |
| 3540672 | Clip, left | 3 | 1.00 | (1225687) |
| 1264872 | Nut | 4 | 2.00 | |
| 1264871 | Nut | 5 | 2.00 | |
| 1264415 | Screw | 11 | 2.00 | |
| 1264533 | Trim moulding | 8 | 2.00 | |
| 1221190 | Spacer sleeve | 10 | 2.00 | |
| 686262 | Arm rest | 9 | 1.00 | |
| 1248704 | Arm rest, right, beige | 9 | 1.00 | |
| 1248703 | Arm rest, left, beige | 9 | 1.00 | |
| 686261 | Arm rest, left, black | 9 | 1.00 | |
| 9131864 | Arm rest | 1 | 1.00 | (9131590) |
| 9131862 | Arm rest | 1 | 1.00 | (9131588) |
| 9131867 | Arm rest | 1 | 1.00 | (9131593) |
| 9131866 | Arm rest | 1 | 1.00 | (9131592)(1313703) |
| 9131865 | Arm rest | 1 | 1.00 | (9131591) |
| 9131863 | Arm rest | 1 | 1.00 | (9131589) |
| 986478 | Washer | 7 | 4.00 | |
| 1264871 | Nut | 13 | 2.00 | (1203068) |
| 987275 | Cross recessed screw | 6 | 4.00 | |
| 1221189 | Spacer sleeve black | 12 | 2.00 | |
| 1244813 | Plug, beige | 2 | 4.00 | (1225973) |
| 1244812 | Plug, blue | 2 | 4.00 | (1225972) |
| 1244811 | Plug, black | 2 | 4.00 | (1264497) |
| 1264991 | Nut | 15 | 2.00 | |
| 958242 | Cross recessed screw | 14 | 2.00 | |
| 987106 | Cross recessed screw | 16 | 2.00 | |
| 1244811 | Plug, black | 17 | 4.00 | (1264497) |
| 1244813 | Plug, beige | 17 | 4.00 | (1225973) |
| 1264598 | Retainer, black | 19 | 2.00 | 2DRS LG 21.5 |
| 1225950 | Retainer, beige | 19 | 2.00 | 2DRS LG 12.5 |
| 1225949 | Retainer, beige | 19 | 2.00 | 2DRS LG 21.5 |
| 1225948 | Retainer, blue | 19 | 2.00 | 2DRS LG 12.5 |
| 1225947 | 19 | 2.00 | 2DRS LG 21.5 | |
| 1264597 | Retainer, black | 19 | 2.00 | 2DRS LG 12.5 |
| 986126 | Six point socket screw | 20 | 4.00 | (965275) |
| 1264288 | 18 | 1.00 | ||
| 1225944 | Door pocket, right, beige | 18 | 1.00 | |
| 1225942 | Door pocket, right, blue | 18 | 1.00 | |
| 1264289 | 18 | 1.00 | ||
| 1225943 | 18 | 1.00 | ||
| 1225941 | 18 | 1.00 | ||
| 1225126 | Clip | 22 | 6.00 | |
| 1225234 | Clip, black | 21 | 6.00 | |
| 1225945 | Clip, blue | 21 | 6.00 | |
| 1225946 | Clip, beige | 21 | 6.00 | |
| 1264991 | Nut | 27 | 4.00 | |
| 1264287 | Trim moulding | 28 | 2.00 | |
| 9131596 | Arm rest | 23 | 1.00 | (1313709) |
| 9131595 | Arm rest | 23 | 1.00 | (1313708) |
| 9131597 | Arm rest | 23 | 1.00 | (1313710) |
| 9131599 | Arm rest | 23 | 1.00 | (1313714) |
| 9131594 | Arm rest | 23 | 1.00 | (1313707) |
| 9131598 | Arm rest | 23 | 1.00 | (1313713) |
| 986478 | Washer | 26 | 4.00 | |
| 987107 | Cross recessed screw | 25 | 4.00 | |
| 1244811 | Plug, black | 24 | 4.00 | (1264497) |
| 1244812 | Plug, blue | 24 | 4.00 | (1225972) |
| 1244813 | Plug, beige | 24 | 4.00 | (1225973) |
extra seat
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1364021 | Courtesy handle, white | 55 | 1.00 | (1204594) | |
| 986477 | Washer | 57 | 4.00 | ||
| 985739 | Flange screw | 56 | 4.00 | ||
| 1264880 | Shoulder screw | 9 | 1.00 | ||
| 986652 | Spring washer | 10 | 1.00 | ||
| 986499 | Washer | 11 | 1.00 | ||
| 1264987 | Lock | 8 | 1.00 | ||
| 3524817 | Extra seat, beige beige | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 1128800 | Extra seat black | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 3524818 | Extra seat, beige | 1 | 1.00 | REPL 1 PCS 6820225-8. | |
| 6820225 | Extra seat | 1 | 1.00 | ||
| 1128720 | Extra seat beige | 1 | 1.00 | (AU) REPL 1 PCS 3524818-6. | |
| 3524816 | Auxiliary seat, black black | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 1221304 | Screw | 35 | 2.00 | ||
| 1264576 | Attaching brace | 20 | 2.00 | ||
| 986114 | Six point socket screw | 22 | 8.00 | (955138) | |
| 1294048 | Backrest stay | 19 | 1.00 | OP | (AU) |
| 1264568 | Backrest cushion beige | 7 | 1.00 | REPL 1PCS 3529162-4. | |
| 1242876 | Backrest cushion black | 7 | 1.00 | REPL 1PCS 3529160-8. | |
| 1207743 | Retainer | 45 | 1.00 | ||
| 1264985 | Lock brace | 17 | 1.00 | OP | EXC (AU) |
| 986114 | Six point socket screw | 18 | 6.00 | EXC (AU) (955138) | |
| 1294191 | Spring, right | 16 | 1.00 | ||
| 1264986 | Spring, left | 16 | 1.00 | ||
| 1224992 | Arm rest | 23 | 1.00 | ||
| 1224993 | Arm rest | 23 | 1.00 | ||
| 1264576 | Attaching brace | 15 | 2.00 | EXC (AU) | |
| 986293 | Six point socket screw | 12 | 4.00 | (956317) | |
| 941761 | Hex. socket screw | 13 | 2.00 | M8x40 | |
| 959241 | Hex. socket screw | 13 | 2.00 | M10x40 Only early versions of car. | |
| 986656 | Spring washer | 14 | 2.00 | ||
| 982757 | Flange screw | 5 | 2.00 | ||
| 986213 | Six point socket screw | 5 | 4.00 | (956093) | |
| 986964 | Hexagon screw | 5 | 6.00 | (955270) Only early versions of car. | |
| 1242875 | Seat cushion black | 6 | 1.00 | REPL 1PCS 3529161-6. | |
| 1264578 | Seat cushion beige | 6 | 1.00 | REPL 1PCS 3529163-2. | |
| 986160 | Six point socket screw | 24 | 4.00 | (969473)(955137) | |
| 955948 | Toothed washer | 4 | 6.00 | ||
| 1221010 | Bushing | 37 | 4.00 | ||
| 1264563 | Bushing | 3 | 4.00 | OP | |
| 1264897 | Bracket | 25 | 1.00 | ||
| 679993 | Nut plate | 41 | 2.00 | ||
| 1381182 | Seat belt | 34 | 2.00 | (1244829) | |
| 1264900 | Spring | 33 | 1.00 | ||
| 672818 | Spacer sleeve | 43 | 2.00 | ||
| 986433 | Washer | 38 | 4.00 | ||
| 986964 | Hexagon screw | 28 | 6.00 | (955270) | |
| 943419 | Punch nut | 3a | 2.00 | ||
| 1204775 | Screw | 36 | 2.00 | ||
| 943395 | Hexagon screw | 49 | 1.00 | ||
| 955948 | Toothed washer | 27 | 6.00 | ||
| 1264877 | Clamp | 30 | 1.00 | ||
| 1207666 | Cover | 46 | 4.00 | ||
| 950385 | Nut | 44 | 1.00 | ||
| 1264898 | Intermediate lever | 29 | 1.00 | ||
| 1264878 | Plate | 31 | 1.00 | ||
| 1264899 | Lock plate | 32 | 1.00 | ||
| 1264563 | Bushing | 26 | 6.00 | OP | |
| 1224595 | Bracket | 52 | 1.00 | (CA),(US) | |
| 6820201 | Latch | 47 | 1.00 | OP | (1224592) |
| 986504 | Washer | 50 | 1.00 | ||
| 1264197 | Frame | 54 | 2.00 | ||
| 986997 | Hexagon screw | 53 | 6.00 | (CA),(US) (955315) | |
| 985186 | Flange screw | 59 | 2.00 | ||
| 986501 | Washer | 61 | 2.00 | (960141) | |
| 955849 | Hexagon nut | 51 | 1.00 | EXC (CA),(US) |
