Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
87 Climate units

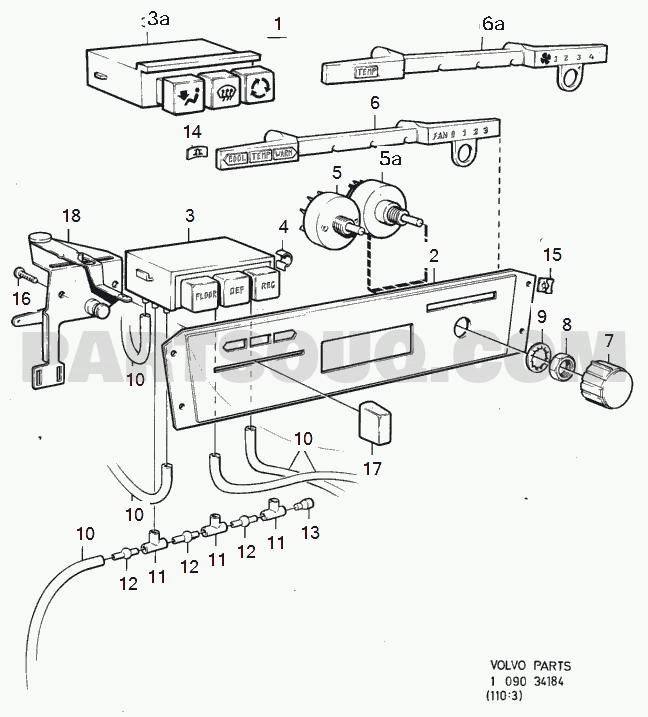

heater controls
COMBU 242 CH 189180-223939, 244 CH 592110-812609, 245 CH 371940-434459, 262 CH 8375-, 264 CH 107610-131509, 265 CH 28320-33009
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 1362002 | Light guide | 6a | 1.00 | |
| 192339 | Nut | 14 | 1.00 | |
| 1259912 | Switch | 5 | 1.00 | |
| 1234606 | Control | 18 | 1.00 | |
| 1307794 | Control panel | 3 | 1.00 | EXC (FR) REPL 1 PCS 1347690-8. |
| 948218 | Clip | 4 | 2.00 | |
| 941387 | Spring nut | 15 | 4.00 | |
| 1307865 | Bracket | 2 | 1.00 | |
| 987047 | Cross recessed screw | 16 | 2.00 | |
| 940109 | Toothed washer | 9 | 1.00 | |
| 1212859 | Nut | 8 | 1.00 | |
| 1259480 | Knob | 7 | 1.00 | |
| 1370187 | Knob | 17 | 1.00 | (1234765) |
| 1215164 | Plug | 13 | 1.00 | |
| 943999 | Hose | 10 | x | |
| 1210204 | T-pipe | 11 | 3.00 | |
| 1211596 | Nipple | 12 | 3.00 |
heater controls
COMBU 242 CH 223940-, 244 CH 812610-, 245 CH 434460-, 264 CH 131510-, 265 CH 33010-
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 1347690 | Control panel | 3a | 1.00 | (FR) |
| 1362002 | Light guide | 6a | 1.00 | |
| 1323849 | Switch | 5a | 1.00 | |
| 1234606 | Control | 18 | 1.00 | |
| 1307794 | Control panel | 3 | 1.00 | EXC (FR) REPL 1 PCS 1347690-8. |
| 941387 | Spring nut | 15 | 4.00 | |
| 1307865 | Bracket | 2 | 1.00 | |
| 987047 | Cross recessed screw | 16 | 2.00 | |
| 940109 | Toothed washer | 9 | 1.00 | |
| 1212859 | Nut | 8 | 1.00 | |
| 1259480 | Knob | 7 | 1.00 | |
| 1370187 | Knob | 17 | 1.00 | (1234765) |
| 1215164 | Plug | 13 | 1.00 | |
| 943999 | Hose | 10 | x | |
| 1210204 | T-pipe | 11 | 3.00 | |
| 1211596 | Nipple | 12 | 3.00 |
heater controls
W/O COMBU
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 3522308 | Heater control | 1 | 1.00 | |
| 1234348 | Heater control | 1 | 1.00 | REPL 1PCS 3522308-0. |
| 1211659 | Thumb wheel temperature | 3 | 1.00 | |
| 1608178 | Light guide | 13 | 1.00 | (1307856) |
| 1211661 | Thumb wheel defroster | 5 | 1.00 | |
| 1210190 | Switch | 15 | 1.00 | |
| 1307855 | Light guide | 14 | 1.00 | (1212534) |
| 1211599 | Lock spring | 12 | 4.00 | |
| 940109 | Toothed washer | 16 | 1.00 | |
| 1212859 | Nut | 17 | 1.00 | |
| 88783 | Outer casing | 8 | x | |
| 1605133 | Cable | 9 | x | (1566540) |
| 1259480 | Knob | 18 | 1.00 | (1215134) |
| 989053 | Retainer | 19 | 4.00 | |
| 1215989 | Crank | 10 | 3.00 | |
| 1211290 | 11 | 3.00 | ||
| 1211662 | Thumb wheel floor | 6 | 1.00 | |
| 676522 | Spring washer | 20 | 2.00 | |
| 989054 | Retaining clip | 21 | 2.00 | |
| 1211660 | Thumb wheel air mix | 4 | 1.00 | |
| 1211311 | Button | 7 | 4.00 | EXC (FR) |
Other electrical equipment
-1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1324263 | Clip | 20 | 2.00 | ||
| 1307150 | Switch | 31 | 2.00 | OP | |
| 1307150 | Switch | 36 | 1.00 | OP | |
| 1215169 | Light switch | 1 | 1.00 | OP | With day notice light. |
| 1215170 | Light switch | 1 | 1.00 | Without day notice lights. | |
| 1307150 | Switch | 22 | 4.00 | OP | |
| 1307150 | Switch | 18 | 2.00 | OP | |
| 1307152 | Switch | 32 | 1.00 | OP | |
| 1307151 | Switch | 23 | 1.00 | OP | |
| 1307155 | Frame | 33 | 1.00 | ||
| 1258442 | Switch | 30 | 1.00 | P.W 262C REPL 2 PCS 1307150-1 1 PCS 1307152-7, 1 PCS 1307155-0. | |
| 1307153 | Frame | 24 | 1.00 | OP | |
| 1258440 | Switch | 21 | 1.00 | P.W, EXC 262C REPL 4 PCS 1307150-1 1 PCS 1307151-9, 1 PCS 1307153-5. | |
| 1258520 | Switch | 35 | 1.00 | P.W. REPL 1 PCS 1307150-1 1 PCS 1307156-8. | |
| 1307157 | Frame | 28 | 1.00 | OP | |
| 1258441 | Switch | 17 | 1.00 | P.W REPL 1307154-3 2 PCS 1307150-1. | |
| 1307154 | Frame | 19 | 1.00 | OP | |
| 1307156 | Frame | 37 | 1.00 | ||
| 1324263 | Clip | 25 | 2.00 | ||
| 1258281 | Switch | 26 | 2.00 | P.W, EXC 262C REPL 1 PCS 1307150-1 1 PCS 1307157-6. | |
| 1307150 | Switch | 27 | 1.00 | OP | |
| 1324263 | Clip | 34 | 2.00 | ||
| 940109 | Toothed washer | 3 | 1.00 | ||
| 940140 | Hexagon nut | 4 | 1.00 | ||
| 1259480 | Knob | 2 | 1.00 | (1215134) | |
| 1324263 | Clip | 38 | 2.00 | ||
| 1324263 | Clip | 29 | 2.00 | ||
| 1212542 | Rheostat | 5 | 1.00 | ||
| 663095 | Lamp socket | 54 | 1.00 | ||
| 1212770 | Nut washer | 6 | 1.00 | ||
| 1258492 | Knob | 7 | 1.00 | (1212582) | |
| 989765 | Bulb | 55 | 1.00 | 2W BA 9S | |
| 1308056 | Control lamp | 52 | 1.00 | (1215283) | |
| 1308060 | Control lamp | 52 | 1.00 | (1234509) | |
| 3540243 | Switch | 39 | 1.00 | OP | 262C |
| 1235440 | Switch | 39 | 1.00 | OP | GT (SE),(US) |
| 1235441 | Switch | 39 | 1.00 | GT, EXC | |
| 1235623 | Switch | 39 | 1.00 | 262C | |
| 283659 | Switch | 39 | 1.00 | ||
| 1235034 | Lens | 53 | 1.00 | OP | |
| 1234081 | Switch | 39 | 1.00 | OP | EXC (DE) |
| 1258493 | Switch | 16 | 1.00 | OP | (1210134) |
| 1235092 | Switch | 16 | 1.00 | OP | |
| 1258494 | Switch hazard warning lights | 16 | 1.00 | OP | (1235340) |
| 1215138 | Switch power windows front | 16 | 1.00 | -1979 | |
| 1235075 | Main switch power windows rear | 16 | 1.00 | -1979 | |
| 9130519 | Sleeve | 9 | 1.00 | (1212593) | |
| 1362535 | Glove compartment lamp | 49 | 1.00 | (1234754) | |
| 662108 | Glow filament | 10 | 1.00 | ||
| 93554 | Washer | 12 | 1.00 | OP | 262C |
| 1215272 | Knob | 11 | 1.00 | EXC 262C | |
| 1212978 | Knob | 11 | 1.00 | 262C | |
| 989765 | Bulb | 51 | 1.00 | 2W BA 9S | |
| 1215318 | Lens | 50 | 1.00 | ||
| 654444 | Trim washer | 13 | 1.00 | OP | 262C |
| 987085 | Cross recessed screw | 48 | 1.00 | (955115) | |
| 1210068 | Spring clip | 64 | 3.00 | ||
| 687837 | Lamp socket | 62 | 3.00 | ||
| 989772 | Bulb | 63 | 3.00 | 2W BA 7S | |
| 1214741 | Switch | 47 | 1.00 | OP | |
| 987091 | Cross recessed screw | 44 | 1.00 | ||
| 3523143 | Lamp socket | 57 | 1.00 | ||
| 989772 | Bulb | 58 | 1.00 | 2W BA 7S | |
| 3523143 | Lamp socket | 60 | 2.00 | ||
| 1258467 | Switch | 43 | 1.00 | 245 CH 307562- | |
| 1215017 | Door switch | 43 | 1.00 | OP | 245 CH-307561 |
| 989800 | Bulb | 61 | 2.00 | 1.2W W2x4.6d | |
| 681850 | Boot | 45 | 1.00 | ||
| 1264606 | Switch | 46 | 1.00 | EXC (CA),(US) | |
| 1212530 | Light moulding | 56 | 1.00 | ||
| 945547 | Retainer | 59 | 1.00 | ||
| 1362769 | Door switch | 40 | 2.00 | Can be shut off. | |
| 9130008 | Door switch | 40 | 2.00 | OP | (1362770) Can not be shut off. |
| 986114 | Six point socket screw | 41 | 4.00 | (955138) | |
| 1235064 | Cover | 42 | 4.00 |

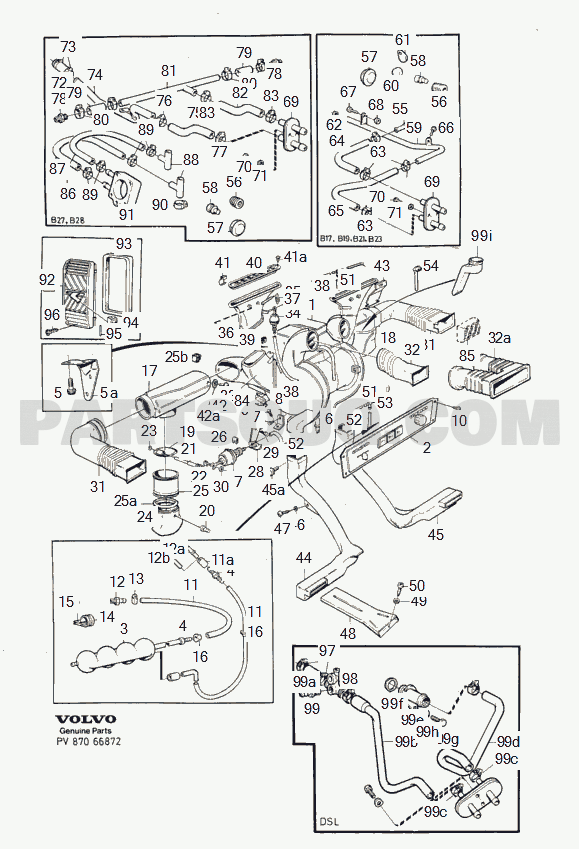

Heater unit
COMBU
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1307380 | Heater | 1 | 1.00 | 242 CH 189180-223939, 244 CH 592110-812609, 245 CH 371940-434459, 262 CH 8375-, 264 CH 107610-131509, 265 CH 28320-33009 | |
| 1215465 | Vacuum bellows | 7 | 1.00 | ||
| 1308027 | Spring | 54 | 2.00 | ALTER 2 | |
| 1323708 | Coil spring | 9a | 1.00 | ||
| 987173 | Retaining clip | 56 | 2.00 | ALTER 2 | |
| 987173 | Retaining clip | 55 | 2.00 | ||
| 685276 | Bracket, right | 22 | 1.00 | ||
| 1215425 | Link | 9 | 2.00 | ||
| 1370240 | Resistor | 47 | 1.00 | (1307846) | |
| 1308295 | Gasket | 61 | 1.00 | (1214495) | |
| 1215498 | Compression spring | 8 | 2.00 | ||
| 1215438 | Clip | 12 | 2.00 | ||
| 1215466 | Vacuum bellows | 11 | 2.00 | ||
| 1129158 | Casing, right | 6 | 1.00 | L.H.D 1 PCS 1373567-5. R.H.D REPL 1 PCS 1388079-4 1 PCS 1388082-8, 1 PCS 1373568-3. | |
| 941269 | Plug | 48 | 1.00 | ||
| 1214462 | Spring | 38 | 1.00 | ||
| 1215429 | Lid | 10 | 1.00 | ||
| 986114 | Six point socket screw | 45 | 14.00 | (955138) | |
| 945626 | Spring nut | 46 | 1.00 | ||
| 987173 | Retaining clip | 39 | 2.00 | ||
| 9131943 | Fan motor | 43 | 1.00 | (3537220) | |
| 3522198 | Fan wheel | 49 | 1.00 | (686542) | |
| 3522197 | Fan wheel | 49 | 1.00 | (686541) | |
| 684232 | Shutter | 57 | 2.00 | ||
| 948218 | Clip | 60 | 28.00 | ||
| 1323385 | Washer | 52 | 3.00 | REPL 1PCS 986498 | |
| 1308066 | Spring nut | 24 | 13.00 | ||
| 987267 | Cross recessed screw | 51 | 3.00 | ||
| 1215677 | Gasket | 27 | 2.00 | (1215678) | |
| 461405 | Spacer | 69 | 1.00 | ||
| 986116 | Six point socket screw | 23 | 4.00 | (955141) | |
| 1214970 | Bracket | 17 | 1.00 | OP | |
| 3540372 | Grommet | 68 | 1.00 | OP | (1234909) |
| 1211602 | Clip | 59 | 1.00 | ||
| 982201 | Hose | 67 | x | LG 565 | |
| 943472 | Hose clamp | 70 | 6.00 | ||
| 1215677 | Gasket | 26 | 5.00 | ||
| 1215682 | Hose | 66 | 1.00 | ||
| 1215673 | Heat exchanger | 28 | 1.00 | ||
| 982201 | Hose | 65 | x | LG 700 | |
| 1228272 | Check valve | 35 | 1.00 | ALTER | |
| 1258376 | Bracket | 32 | 1.00 | ||
| 1215679 | Clip | 25 | 4.00 | ||
| 9131818 | Vacuum tank | 34 | 1.00 | EXC (TH) (9131818) | |
| 1214059 | Clamp | 14 | 1.00 | ||
| 684970 | Bushing | 16 | 1.00 | ||
| 9131998 | Heat control valve | 13 | 1.00 | OP | (3540747) |
| 1234517 | Connection pipe | 33b | 1.00 | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 192248 | Retainer | 63 | 1.00 | ||
| 986160 | Six point socket screw | 31 | 4.00 | (969473)(955137) | |
| 1215591 | Connector | 33a | 1.00 | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 1215591 | Connector | 36 | 1.00 | ||
| 954312 | Tube | 37 | x | OP | |
| 1129157 | Casing, left | 5 | 1.00 | ||
| 987091 | Cross recessed screw | 18 | 2.00 | ||
| 1235069 | Control cable | 19 | 1.00 | ||
| 1211599 | Lock spring | 20 | 1.00 | ||
| 687342 | T-pipe | 64 | 1.00 | ||
| 943999 | Hose | 62 | x |
Heater unit
COMBU
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 1215465 | Vacuum bellows | 7 | 1.00 | |
| 1308027 | Spring | 54 | 2.00 | ALTER 2 |
| 989054 | Retaining clip | 56 | 2.00 | ALTER 1 |
| 987173 | Retaining clip | 56 | 2.00 | ALTER 2 |
| 987173 | Retaining clip | 55 | 2.00 | |
| 685276 | Bracket, right | 22 | 1.00 | |
| 1215425 | Link | 9 | 2.00 | |
| 1215498 | Compression spring | 8 | 2.00 | |
| 1308295 | Gasket | 61 | 1.00 | (1214495) |
| 1215438 | Clip | 12 | 2.00 | |
| 1215466 | Vacuum bellows | 11 | 2.00 | |
| 1129156 | Casing | 4 | 1.00 | (1215420) |
| 1129158 | Casing, right | 6 | 1.00 | L.H.D 1 PCS 1373567-5. R.H.D REPL 1 PCS 1388079-4 1 PCS 1388082-8, 1 PCS 1373568-3. |
| 1214462 | Spring | 38 | 1.00 | |
| 1215429 | Lid | 10 | 1.00 | |
| 941269 | Plug | 42 | 1.00 | (941265) |
| 987173 | Retaining clip | 39 | 2.00 | |
| 9131943 | Fan motor | 43 | 1.00 | (3537220) |
| 3522198 | Fan wheel | 49 | 1.00 | (686542) |
| 3522197 | Fan wheel | 49 | 1.00 | (686541) |
| 986117 | Six point socket screw | 58 | 6.00 | ST4, 8X22 (955142) (969477) |
| 684232 | Shutter | 57 | 2.00 | |
| 948218 | Clip | 60 | 28.00 | |
| 987267 | Cross recessed screw | 51 | 3.00 | |
| 1234816 | Carbon brush set | 41 | 1.00 | |
| 986116 | Six point socket screw | 23 | 4.00 | (955141) |
| 1214970 | Bracket | 17 | 1.00 | |
| 1211602 | Clip | 59 | 1.00 | |
| 1129156 | Casing | 3 | 1.00 | (1215419) |
| 1228272 | Check valve | 35 | 1.00 | ALTER |
| 1258376 | Bracket | 32 | 1.00 | |
| 1215679 | Clip | 25 | 4.00 | |
| 1272328 | Hose | 33 | x | 242 CH-183901, 244 CH-566895, 245 CH-306028, 262 CH- 8154, 264 CH-100639. |
| 9131818 | Vacuum tank | 34 | 1.00 | EXC (TH) (9131818) |
| 192248 | Retainer | 63 | 1.00 | |
| 986160 | Six point socket screw | 31 | 4.00 | (969473)(955137) |
| 1215591 | Connector | 36 | 1.00 | |
| 954312 | Tube | 37 | x | |
| 1129157 | Casing, left | 5 | 1.00 | (1215431) |
| 987091 | Cross recessed screw | 18 | 2.00 | |
| 3506992 | Thermostat | 71 | 1.00 | (1235198) |
| 1235196 | Bracket | 72 | 1.00 | |
| 1211599 | Lock spring | 20 | 1.00 | |
| 1235069 | Control cable | 19 | 1.00 | |
| 687342 | T-pipe | 64 | 1.00 | |
| 943999 | Hose | 62 | x |
Heater unit
COMBU
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1215465 | Vacuum bellows | 7 | 1.00 | ||
| 1308027 | Spring | 54 | 2.00 | ALTER 2 | |
| 989054 | Retaining clip | 56 | 2.00 | ALTER 1 | |
| 987173 | Retaining clip | 56 | 2.00 | ALTER 2 | |
| 987173 | Retaining clip | 55 | 2.00 | ||
| 1215425 | Link | 9 | 2.00 | ||
| 685276 | Bracket, right | 22 | 1.00 | ||
| 1215498 | Compression spring | 8 | 2.00 | ||
| 1308295 | Gasket | 61 | 1.00 | (1214495) | |
| 1215438 | Clip | 12 | 2.00 | ||
| 1215466 | Vacuum bellows | 11 | 2.00 | ||
| 1129156 | Casing | 4 | 1.00 | (1215420) | |
| 1129158 | Casing, right | 6 | 1.00 | L.H.D 1 PCS 1373567-5. R.H.D REPL 1 PCS 1388079-4 1 PCS 1388082-8, 1 PCS 1373568-3. | |
| 1214462 | Spring | 38 | 1.00 | ||
| 1215429 | Lid | 10 | 1.00 | ||
| 941269 | Plug | 42 | 1.00 | (941265) | |
| 987173 | Retaining clip | 39 | 2.00 | ||
| 9131943 | Fan motor | 43 | 1.00 | (3537220) | |
| 3522197 | Fan wheel | 49 | 1.00 | (686541) | |
| 3522198 | Fan wheel | 49 | 1.00 | (686542) | |
| 192404 | Washer | 44a | 3.00 | ||
| 986117 | Six point socket screw | 58 | 6.00 | ST4, 8X22 (955142) (969477) | |
| 684232 | Shutter | 57 | 2.00 | ||
| 684333 | Motor | 40 | 1.00 | REPL 1 PCS 273928-2 | |
| 948218 | Clip | 60 | 28.00 | ||
| 986120 | Six point socket screw | 44 | 3.00 | ||
| 987267 | Cross recessed screw | 51 | 3.00 | ||
| 1215677 | Gasket | 27 | 2.00 | (1215678) | |
| 1307391 | Spacer | 44b | 3.00 | ||
| 1234816 | Carbon brush set | 41 | 1.00 | ||
| 461405 | Spacer | 69 | 1.00 | ||
| 986116 | Six point socket screw | 23 | 4.00 | (955141) | |
| 1214970 | Bracket | 17 | 1.00 | OP | |
| 3540372 | Grommet | 68 | 1.00 | OP | (1234909) |
| 1211602 | Clip | 59 | 1.00 | ||
| 982201 | Hose | 67 | x | LG 565 | |
| 943472 | Hose clamp | 70 | 6.00 | ||
| 1215677 | Gasket | 26 | 5.00 | ||
| 1215682 | Hose | 66 | 1.00 | ||
| 1215673 | Heat exchanger | 28 | 1.00 | ||
| 982201 | Hose | 65 | x | LG 700 | |
| 1129156 | Casing | 3 | 1.00 | (1215419) | |
| 1228272 | Check valve | 35 | 1.00 | ALTER | |
| 1258376 | Bracket | 32 | 1.00 | ||
| 1215679 | Clip | 25 | 4.00 | ||
| 1272328 | Hose | 33 | x | 242 CH-183901, 244 CH-566895, 245 CH-306028, 262 CH- 8154, 264 CH-100639. | |
| 9131818 | Vacuum tank | 34 | 1.00 | EXC (TH) (9131818) | |
| 1214059 | Clamp | 14 | 1.00 | ||
| 684970 | Bushing | 16 | 1.00 | ||
| 9131998 | Heat control valve | 13 | 1.00 | OP | (3540747) |
| 1234517 | Connection pipe | 33b | 1.00 | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 192248 | Retainer | 63 | 1.00 | ||
| 986160 | Six point socket screw | 31 | 4.00 | (969473)(955137) | |
| 1215591 | Connector | 33a | 1.00 | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 1215591 | Connector | 36 | 1.00 | ||
| 954312 | Tube | 37 | x | OP | |
| 1129157 | Casing, left | 5 | 1.00 | (1215431) | |
| 987091 | Cross recessed screw | 18 | 2.00 | ||
| 1211599 | Lock spring | 20 | 1.00 | ||
| 1235069 | Control cable | 19 | 1.00 | ||
| 687342 | T-pipe | 64 | 1.00 | ||
| 943999 | Hose | 62 | x |
Heater unit
W/O COMBU
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 9131984 | Motor | 5 | 1.00 | ELEKTROLUX (1211081) | |
| 461405 | Spacer | 30 | 1.00 | ||
| 1234885 | Carbon brush set | 6 | 1.00 | ||
| 3540372 | Grommet | 29 | 1.00 | OP | (1234909) |
| 1211599 | Lock spring | 23a | 1.00 | ALTER 2 | |
| 1214060 | Screw | 24 | 1.00 | OP | ALTER 1 |
| 1212446 | Spacer | 11 | 7.00 | (1215113) | |
| 1214059 | Clamp | 23 | 1.00 | ALTER 1 | |
| 685277 | Rail | 10 | 1.00 | ||
| 9131997 | Heat control valve | 22 | 1.00 | (3540746) | |
| 1214755 | Hose | 27 | 1.00 | ||
| 1215516 | Heater unit | 1 | 1.00 | ||
| 1259325 | Fan motor | 9 | 1.00 | BOSCH REPL 1 PCS 9131984-3 1 PCS 1211153-0. | |
| 192557 | Spring nut | 37 | 2.00 | ||
| 1210210 | Lock plug | 10a | 3.00 | (680331) | |
| 685366 | Bracket, right | 33 | 1.00 | ||
| 1308295 | Gasket | 44 | 1.00 | (1214495) | |
| 950010 | Screw | 8 | 1.00 | ||
| 942888 | Cable terminal | 38 | 1.00 | ||
| 986115 | Six point socket screw | 35 | 2.00 | ST4.8x16 (969475) (955140) | |
| 987092 | Cross recessed screw | 36 | 2.00 | ||
| 955947 | Toothed washer | 39 | 1.00 | ||
| 1234223 | Shutter | 13 | 1.00 | ||
| 1214721 | Sealing ring | 18 | 2.00 | ||
| 685359 | Gasket | 17 | 1.00 | ||
| 986116 | Six point socket screw | 34 | 2.00 | (955141) | |
| 684807 | Clip | 3 | 4.00 | OP | |
| 1211599 | Lock spring | 45 | 3.00 | ALTER | |
| 1214023 | Capillary holder | 25 | 3.00 | OP | ALTER |
| 1211491 | Air distributor, right | 21 | 1.00 | OP | |
| 1211303 | Heat exchanger | 16 | 1.00 | OP | |
| 1215377 | Clamp, right | 43 | 1.00 | OP | |
| 1214756 | Hose | 26 | 1.00 | ||
| 948218 | Clip | 19 | 19.00 | ||
| 988024 | Hose clamp | 31 | 6.00 | (943472) | |
| 1129007 | 2 | 1.00 | |||
| 1234224 | Shutter | 14 | 1.00 | ||
| 1234222 | Shutter | 12 | 1.00 | ||
| 1214757 | Hose | 28 | 1.00 | ||
| 987174 | Lock washer | 15 | 3.00 | (191694) | |
| 1211490 | Air distributor, left | 20 | 1.00 | OP | |
| 986114 | Six point socket screw | 41 | 2.00 | (955138) | |
| 3522308 | Heater control | 40 | 1.00 | (1234348) |
Heater
COMBU
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1219915 | Lock washer | 61 | 1.00 | ALTER | |
| 988025 | Hose clamp | 73 | 2.00 | B27, B28 | |
| 982201 | Hose | 81 | x | LG 290 B27 (ID) (MY) | |
| 245410 | Coolant pipe | 81 | 1.00 | B27E, B28E | |
| 269421 | Coolant pipe | 81 | 1.00 | B27A, B27F, B28A, B28F | |
| 988024 | Hose clamp | 74 | 1.00 | B27 (ID) (MY) | |
| 943369 | Hose | 74 | x | LG 60 B27 (ID) (MY) | |
| 269470 | Return pipe | 74 | 1.00 | B27, B28 | |
| 943369 | Hose | 72 | x | LG 68 B27, B28 | |
| 418571 | Plug | 60 | 1.00 | ALTER | |
| 982201 | Hose | 79 | x | LG 100 B27E, B28E, 2x50 | |
| 986965 | Hexagon screw | 67 | 1.00 | B17, B19, B20, B21, B23 | |
| 1274337 | Radiator hose | 82 | 1.00 | B27, B28 (1274117) | |
| 946529 | Nipple | 78 | 2.00 | B27, B28 | |
| 988025 | Hose clamp | 76 | 1.00 | B27, B28 | |
| 985876 | Hexagon nut | 68 | 1.00 | B17, B19, B20, B21, B23 | |
| 986842 | Nipple | 55 | 1.00 | B17, B19, B21, B23 (961656) | |
| 464606 | Hose | 75 | 1.00 | B27, B28 262 CH-6449, 264 CH-83054, 265 CH-21774. | |
| 1274118 | Radiator hose | 75 | 1.00 | B27, B28 262 CH 6450-, 264 CH 83055-, 265 CH 21775- | |
| 988024 | Hose clamp | 83 | 2.00 | B27, B28 | |
| 988024 | Hose clamp | 80 | 4.00 | B27, B28 | |
| 1219654 | Return pipe | 59 | 1.00 | B17, B19, B21, B23 | |
| 469478 | Sealing ring | 62 | 1.00 | B17, B19, B21, B23 | |
| 1332613 | Return pipe | 59 | 1.00 | OP | B21 TURBO (1306162) |
| 988177 | Flange screw | 66 | 1.00 | B17, B19, B20, B21, B23 | |
| 1266637 | Hose | 64 | 1.00 | B21 TURBO | |
| 463524 | Radiator hose | 64 | 1.00 | B17, B19, B21, B23 | |
| 988024 | Hose clamp | 77 | 1.00 | B27, B28 | |
| 464959 | T-pipe | 88 | 2.00 | B27A ALTER | |
| 943367 | Hose | 87 | x | OP | LG 650 B27A ALTER |
| 986811 | Plug | 56 | 1.00 | ALTER | |
| 684844 | Lock plug | 58 | 2.00 | ALTER | |
| 943367 | Hose | 86 | x | OP | LG 650 B27A SPCL |
| 983724 | Hose clamp | 89 | 4.00 | B27A ALTER | |
| 986116 | Six point socket screw | 70 | 2.00 | (955141) | |
| 988024 | Hose clamp | 90 | 4.00 | B27A ALTER | |
| 460585 | Hose | 65 | 1.00 | OP | B17, B19, B20, B21, B23 |
| 986498 | Washer | 71 | 2.00 | ||
| 988024 | Hose clamp | 63 | 4.00 | (943472) | |
| 3508787 | Sealing plug | 57 | 2.00 | ALTER (686354) | |
| 1255256 | Sealing strip | 93 | 1.00 | ||
| 1308918 | Rivet blue | 41a | 4.00 | (1308468) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 1308917 | Rivet black | 41a | 4.00 | (1308325) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 1308921 | Rivet brown | 41a | 4.00 | (1308471) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 1308919 | Rivet beige | 41a | 4.00 | (1308469) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 1308920 | Rivet gray | 41a | 4.00 | (1308470) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 1307540 | Rim, brown | 40 | 2.00 | OP | 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- |
| 1307539 | Rim, grey | 40 | 2.00 | 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 686195 | Cover | 40 | 2.00 | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 | |
| 1259589 | Rim, black | 40 | 2.00 | OP | 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- |
| 1307538 | Frame, beige | 40 | 2.00 | OP | 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- |
| 1214820 | Clip | 41 | 4.00 | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 | |
| 1210213 | Bracket | 43 | 2.00 | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 | |
| 1259239 | Bracket | 43 | 2.00 | OP | 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- |
| 1255261 | Fresh air inlet | 92 | 2.00 | ALTER 1 | |
| 987173 | Retaining clip | 37 | 1.00 | ||
| 1348666 | Heater | 1 | 1.00 | REPL 1PCS 1370420-0. (ID),(MY),(TH) | |
| 1370420 | Heater | 1 | 1.00 | L.H.D 1PCS 1373567-5. R.H.D REPL 1PCS 1388692-4 1PCS 1373568-3. | |
| 1388692 | Heater unit | 1 | 1.00 | REPL 1PCS 3522375-9. | |
| 3522375 | Heater unit | 1 | 1.00 | ||
| 1324085 | Heater | 1 | 1.00 | REPL 1PCS 1348666-7. 242 CH 223940-, 244 CH 812610-, 245 CH 434460-, 264 CH 131510-, 265 CH 33010- | |
| 1307380 | Heater | 1 | 1.00 | REPL 1PCS 1324085-8. 242 CH 189180-223939, 244 CH 592110-812609, 245 CH 371940-434459, 262 CH 8375-, 264 CH 107610-131509, 265 CH 28320-33009 | |
| 1215466 | Vacuum bellows | 34 | 1.00 | ||
| 986114 | Six point socket screw | 96 | x | LG 13 mm (955138) | |
| 986115 | Six point socket screw | 96 | x | ST4.8x16 (969475) (955140) | |
| 1255257 | Button | 94 | 2.00 | ALTER 1 | |
| 1210210 | Lock plug | 36 | 2.00 | ||
| 907185 | Grooved pin | 95 | 2.00 | ALTER 1 | |
| 1373561 | Shutter housing, right | 18 | 1.00 | (1215442) | |
| 1373186 | Connector | 32a | 1.00 | L.H.D 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- (1259583) | |
| 1373187 | Connector | 32a | 1.00 | R.H.D 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- (1259584) | |
| 1373567 | Connector | 32a | 1.00 | L.H.D | |
| 1373568 | Connector | 32a | 1.00 | OP | R.H.D |
| 1215438 | Clip | 39 | 1.00 | ||
| 1215262 | 32 | 1.00 | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 | ||
| 1215261 | Connector, left | 32 | 1.00 | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 | |
| 1257372 | Clip | 25b | 2.00 | ||
| 1373560 | Shutter housing, left | 17 | 1.00 | (1215441) | |
| 943999 | Hose | 38 | x | LG 300 | |
| 687342 | T-pipe | 51 | 2.00 | ||
| 989852 | Flange screw | 5 | 4.00 | ||
| 1258374 | Bracket, right | 8 | 1.00 | ||
| 1258372 | Bracket, left | 8 | 1.00 | ||
| 943999 | Hose | 53 | x | LG 500 | |
| 986114 | Six point socket screw | 42 | 4.00 | (955138) | |
| 989852 | Flange screw | 9 | 2.00 | ||
| 986496 | Washer | 42a | 2.00 | ||
| 989852 | Flange screw | 7 | 2.00 | ||
| 986107 | Six point socket screw | 10 | 4.00 | (955120) | |
| 1258369 | Pipe | 6 | 1.00 | OP | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 |
| 3540033 | Draining pipe | 6 | 1.00 | (3522503) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 1373233 | 33 | 1.00 | OP | (1215468) | |
| 1373267 | Defroster outlet, left | 33 | 1.00 | (1215467) | |
| 987173 | Retaining clip | 23 | 1.00 | ||
| 1215438 | Clip | 26 | 2.00 | ||
| 943999 | Hose | 52 | x | LG 500 | |
| 989852 | Flange screw | 29 | 2.00 | L.H.D | |
| 956205 | Cross recessed sunk screw | 29 | 2.00 | R.H.D | |
| 9131859 | Bracket | 28 | 2.00 | OP | (1307652) |
| 1215466 | Vacuum bellows | 27 | 1.00 | ||
| 1215265 | Pipe | 31 | 2.00 | OP | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 |
| 987173 | Retaining clip | 30 | 2.00 | ||
| 1259581 | Connector | 31 | 2.00 | 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 972079 | Six point socket screw | 45a | 2.00 | (965395) REPL 1PCS 986114, 1PCS 986498 | |
| 1254117 | O-ring | 25a | 1.00 | ||
| 684844 | Lock plug | 20 | 2.00 | ||
| 686705 | Nozzle | 24 | 1.00 | ||
| 986498 | Washer | 46 | 2.00 | ||
| 986116 | Six point socket screw | 47 | 2.00 | (955141) | |
| 1323851 | Air duct, right | 45 | 1.00 | OP | (1307861) 242 CH 206791-, 244 CH 686100-, 245 CH 368310-, 264 CH 125110-, 265 CH 30680- |
| 1214492 | Air duct, right | 45 | 1.00 | (1215312) 242 CH -206790, 244 CH -686099, 245 CH -368309, 264 CH -125109, 265 CH -30679 | |
| 1234517 | Connection pipe | 12a | 1.00 | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 1214491 | Air duct, left | 44 | 1.00 | (1215311) 242 CH -206790, 244 CH -686099, 245 CH -368309, 264 CH -125109, 265 CH -30679 | |
| 1307860 | Air duct, left | 44 | 1.00 | OP | 242 CH 206791-, 244 CH 686100-, 245 CH 368310-, 264 CH 125110-, 265 CH 30680- |
| 1272328 | Hose | 11a | x | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 1272121 | Hose clamp | 13 | 1.00 | ||
| 986834 | Nipple | 12 | 1.00 | ALTER 2, LG 45 | |
| 463590 | Nipple | 12 | 1.00 | ALTER 1, LG 50 | |
| 987106 | Cross recessed screw | 50 | 2.00 | ||
| 986499 | Washer | 49 | 2.00 | ||
| 986114 | Six point socket screw | 15 | 1.00 | (955138) | |
| 944272 | Hose | 11 | x | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 1272328 | Hose | 11 | x | 242 CH-183901, 244 CH-566895, 245 CH-306028, 262 CH- 8154, 264 CH-100639. | |
| 952630 | Clamp | 14 | 1.00 | ||
| 1228272 | Check valve | 4 | 1.00 | ALTER 1 | |
| 1214727 | Air outlet | 48 | 2.00 | ||
| 943474 | Hose clamp | 97 | 4.00 | DSL | |
| 686355 | Rubber bushing | 16 | 1.00 | OP | (1234876) 242 CH-183901, 244 CH-566895, 245 CH-306028, 262 CH- 8154, 264 CH-100639. |
| 1234518 | Rubber bushing | 16 | 1.00 | 242 CH 183902-, 244 CH 566896-, 245 CH 306029-, 262 CH 8153-, 264 CH 100640- | |
| 1328458 | Connection pipe | 98 | 1.00 | OP | DSL (1257449) |
| 1257447 | Hose | 99a | 1.00 | ||
| 1257295 | O-ring | 99f | 1.00 | DSL | |
| 966723 | Drain | 99 | 1.00 | DSL 242 CH 237370-, 244 CH 939340-, 245 CH 506270-, 265 CH 34030- | |
| 1257041 | Nipple | 99e | 1.00 | DSL | |
| 986654 | Spring washer | 99h | 1.00 | DSL | |
| 955293 | Hexagon screw | 99g | 1.00 | DSL | |
| 1257445 | Hose | 99b | 1.00 | DSL | |
| 1257360 | Radiator hose | 99d | 1.00 | DSL | |
| 943472 | Hose clamp | 99c | 2.00 | DSL |
