Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
36 Other electrical equipment

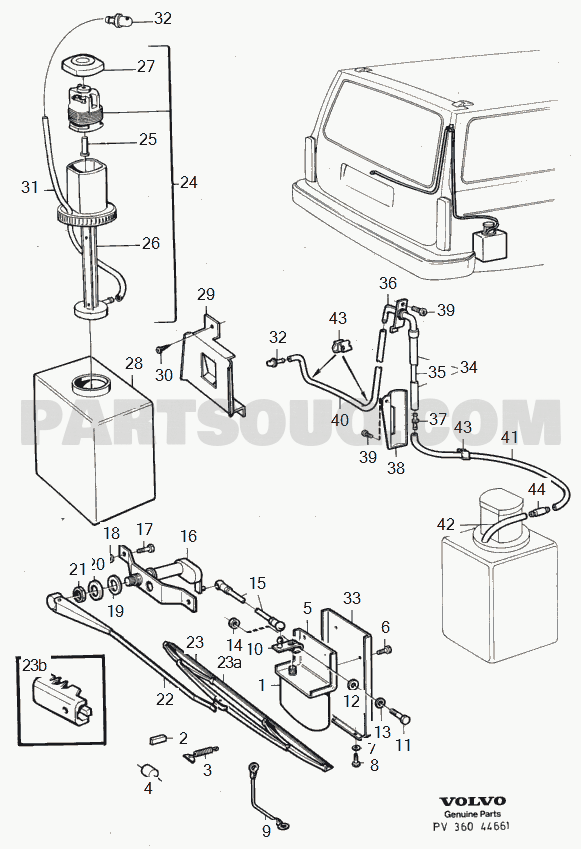

Rear window wiper
-1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 687252 | Companion flange | 25 | 1.00 | ||
| 688400 | Washer pump | 24 | 1.00 | ||
| 949931 | Hose | 31 | x | LG 1300 mm EXC (DE),O.DIA 7 (943727) | |
| 687251 | Pump | 26 | 1.00 | OP | |
| 1247588 | Hose coupling | 36 | 1.00 | OP | |
| 677033 | Bracket | 29 | 1.00 | ||
| 1307159 | Nozzle | 32 | 1.00 | OP | (684212) |
| 671723 | Water reservoir | 28 | 1.00 | ||
| 1247584 | Hose guide | 34 | 1.00 | (DE) | |
| 943722 | Hose | 35 | x | LG 405 mm | |
| 987104 | Cross recessed screw | 30 | 3.00 | ||
| 949931 | Hose | 40 | x | LG 1400 mm (DE),O.DIA 7 (943727) | |
| 948381 | Clip | 43 | 3.00 | OP | (DE) |
| 949931 | Hose | 41 | x | LG 875 mm (DE),O.DIA 7 (943727) | |
| 987091 | Cross recessed screw | 39 | 2.00 | (DE) (944704) | |
| 1247587 | Grommet | 38 | 1.00 | OP | (DE) |
| 1210139 | Check valve | 44 | 1.00 | (DE) | |
| 949931 | Hose | 42 | x | LG 275 mm (DE),O.DIA 7 (943727) | |
| 986964 | Hexagon screw | 17 | 2.00 | ||
| 955948 | Toothed washer | 18 | 2.00 | ||
| 678996 | Gear | 16 | 1.00 | ||
| 190735 | Washer | 20 | 1.00 | ||
| 190734 | Hexagon nut | 21 | 1.00 | ||
| 678361 | Link rod | 15 | 1.00 | ||
| 680896 | Reinforcement | 33 | 1.00 | ||
| 678997 | Rubber bushing | 19 | 1.00 | ||
| 1202584 | Bracket | 5 | 1.00 | ||
| 989852 | Flange screw | 6 | 4.00 | ||
| 274065 | Wiper blade kit | 23 | 1.00 | (1202648) | |
| 985876 | Hexagon nut | 14 | 1.00 | ||
| 678362 | Crank arm | 10 | 1.00 | ||
| 684999 | Wiper motor | 1 | 1.00 | ||
| 1202647 | Wiper arm | 22 | 1.00 | ||
| 986478 | Washer | 12 | 1.00 | ||
| 986652 | Spring washer | 13 | 1.00 | ||
| 986966 | Hexagon screw | 11 | 1.00 | ||
| 986499 | Washer | 7 | 2.00 | ||
| 986114 | Six point socket screw | 8 | 2.00 | (955138) | |
| 656290 | Spring | 3 | 1.00 | ||
| 6772374 | Diode | 4 | 1.00 | (1506069) |

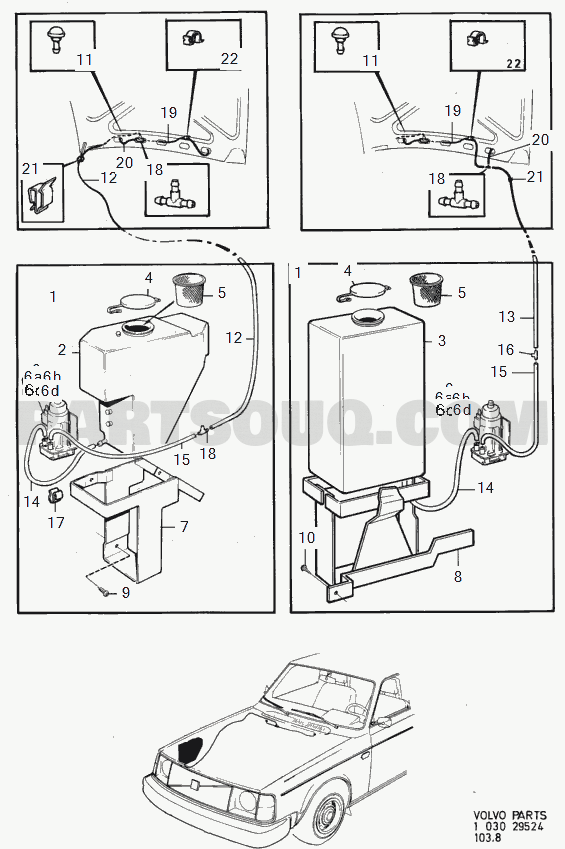

windshield washers
-1980
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 192248 | Retainer | 22 | 1.00 | |
| 1382494 | Washer nozzle | 11 | 2.00 | (1312886)(1255383) |
| 949931 | Hose | 19 | x | LG 565 mm |
| 949931 | Hose | 20 | x | LG 220 mm 4x1.7 |
| 9133167 | Retainer | 21 | 1.00 | (192248) |
| 1213943 | Cover | 4 | 1.00 | |
| 3538565 | Filter | 5 | 1.00 | (1325678) |
| 949931 | Hose | 13 | x | LG 1400 mm DSL |
| 949931 | Hose | 12 | x | LG 1550 mm EXC DSL |
| 1202379 | Water reservoir | 3 | 1.00 | DSL |
| 9151315 | T-pipe | 16 | 1.00 | (688658) |
| 1312018 | Water reservoir | 2 | 1.00 | EXC DSL (1255562) |
| 3523813 | Electric cable | 6a | 1.00 | |
| 1323247 | Electric cable | 6a | 1.00 | |
| 1254197 | Washer pump | 6 | 1.00 | REPL 1PCS 1304783-2 1 PCS 1307048-7, 2 PCS 3523813-8. |
| 1304783 | Pump | 6b | 1.00 | |
| 3523813 | Electric cable | 6d | 2.00 | |
| 9144275 | Socket housing | 6c | 1.00 | |
| 9151315 | T-pipe | 18 | 1.00 | (688658) |
| 949931 | Hose | 15 | x | LG 165 mm |
| 949931 | Hose | 14 | x | LG 220 mm 4x1.7 |
| 192248 | Retainer | 17 | 1.00 | EXC DSL |
| 1372472 | Cage | 7 | 1.00 | EXC DSL (1312021) |
| 986160 | Six point socket screw | 10 | 3.00 | DSL (969473)(955137) |
| 1312711 | Cage | 8 | 1.00 | DSL (1312042) |
| 987104 | Cross recessed screw | 9 | 3.00 | EXC DSL |
