Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
36 Other electrical equipment

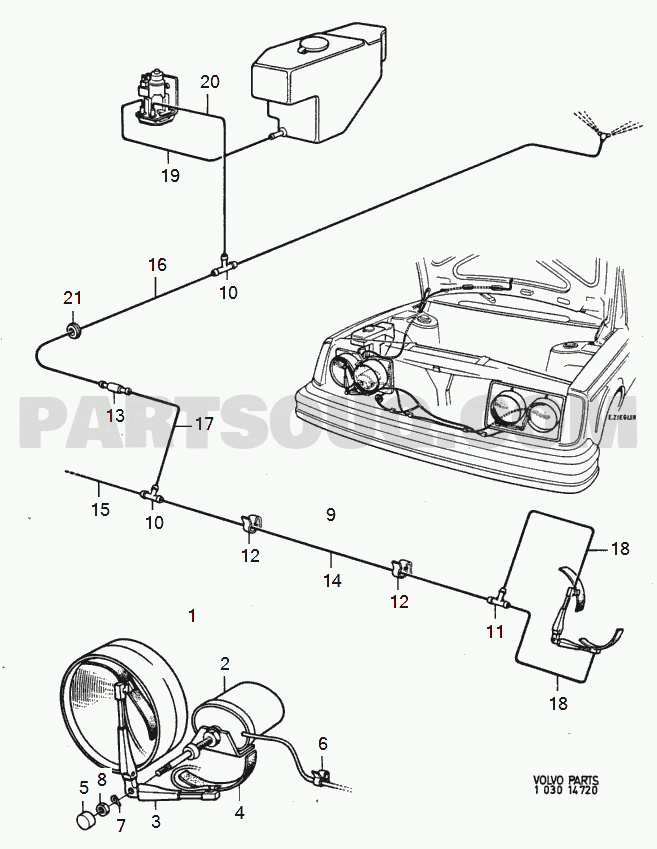

headlight wipers headlamp washers round
SEAL BEAM
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 949931 | Hose | 20 | x | LG 150 mm (943727) |
| 949931 | Hose | 19 | x | LG 220 mm (943727) |
| 949931 | Hose | 16 | x | LG 360 mm (943727) |
| 941268 | Plug | 21 | 1.00 | (941264) |
| 1210139 | Check valve | 13 | 1.00 | |
| 949931 | Hose | 17 | x | LG 65 mm (943727) |
| 943722 | Hose | 15 | x | LG 220 mm |
| 9151315 | T-pipe | 10 | 2.00 | (688658) |
| 943722 | Hose | 14 | x | LG 700 mm |
| 192248 | Retainer | 12 | 2.00 | |
| 659248 | T-pipe | 11 | 2.00 | |
| 943722 | Hose | 18 | x | LG 250 mm |
| 192248 | Retainer | 6 | 2.00 | |
| 985876 | Hexagon nut | 8 | 2.00 | |
| 1247686 | Protecting casing | 5 | 2.00 | |
| 1247685 | Wiper blade | 4 | 4.00 | |
| 1247653 | Wiper arm, right | 3 | 1.00 | |
| 1247652 | Wiper arm, left | 3 | 1.00 | |
| 986652 | Spring washer | 7 | 2.00 |
headlight wipers Headlights rectangular
-1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1246322 | Motor, left | 1 | 1.00 | OP | |
| 940109 | Toothed washer | 4 | 1.00 | ||
| 986483 | Washer | 5 | 1.00 | ||
| 973267 | Nut | 6 | 1.00 | (946874) | |
| 1255439 | Sleeve | 7 | 1.00 | ||
| 956930 | Cable terminal | 10 | 1.00 | (958223) | |
| 1246342 | Sealing | 8 | 1.00 | ||
| 1202756 | Wiper arm, left | 12 | 1.00 | IK | |
| 1202757 | Wiper arm, right | 12 | 1.00 | OP | |
| 986650 | Spring washer | 14 | 2.00 | 242 CH-207002 244 CH-688246, 245 CH-369082 | |
| 986675 | Toothed washer | 14 | 2.00 | 242 CH 207003- 244 CH 688247- 245 CH 369083- | |
| 985875 | Hexagon nut | 13 | 2.00 | ||
| 949474 | Cable terminal | 9 | 2.00 | (958204) | |
| 1247326 | Wiper blade | 15 | 2.00 | (1202755) | |
| 956930 | Cable terminal | 11 | 1.00 | (958223) | |
| 949931 | Hose | 20 | x | IK | ALTER 1. LG 65 mm (943727) |
| 9178896 | Delivery valve | 19 | 1.00 | ALTER 2 (1255973) | |
| 949931 | Hose | 24 | x | IK | LG 165 mm (943727) |
| 9151315 | T-pipe | 23 | 1.00 | IK | (688658) |
| 1246323 | Motor, right | 2 | 1.00 | IK | |
| 949931 | Hose | 22 | x | IK | ALTER 1. LG 360 mm (943727) |
| 943722 | Hose | 16 | x | IK | LG 300 mm |
| 1246094 | Strip clamp | 28 | 2.00 | OP | |
| 659248 | T-pipe | 18 | 1.00 | ALTER 1 | |
| 1210139 | Check valve | 21 | 1.00 | IK | ALTER 1 |
| 943722 | Hose | 17 | x | IK | LG 775 mm |
| 3508787 | Sealing plug | 27 | 1.00 | DSL (686354) | |
| 1247733 | Cover | 26 | 1.00 | IK | |
| 1234702 | Rubber bushing | 25 | 1.00 |
headlight wipers Headlights round
-1980
| Number | Name | Code | Quantity | PS Code |
|---|---|---|---|---|
| 1235088 | Wiring harness | 49 | 1.00 | OP |
| 943722 | Hose | 39 | x | |
| 9178896 | Delivery valve | 42a | 1.00 | |
| 659248 | T-pipe | 42 | 1.00 | |
| 949931 | Hose | 43 | x | |
| 9151315 | T-pipe | 40 | 1.00 | |
| 948616 | Cable tie | 48 | 1.00 | |
| 949931 | Hose | 45 | x | |
| 1210139 | Check valve | 41 | 1.00 | |
| 949931 | Hose | 44 | x | |
| 943722 | Hose | 46 | x | |
| 1277609 | Thermofuse | 2a | 1.00 | OP |
| 941268 | Plug | 47 | 1.00 | |
| 241607 | Sleeve | 14 | 1.00 | |
| 1254696 | Cover | 26 | 2.00 | OP |
| 1255241 | Headlamp wiper complete | 1 | 1.00 | OP |
| 1254582 | Motor | 2 | 1.00 | OP |
| 1202618 | Connecting rod | 24 | 1.00 | |
| 1255244 | Cable, R.H. | 19 | 2.00 | OP |
| 1202616 | Crank arm | 22 | 1.00 | OP |
| 190730 | Screw | 27 | 1.00 | |
| 1202620 | Protecting casing | 25 | 1.00 | OP |
| 986675 | Toothed washer | 28 | 1.00 | |
| 956061 | Cross recessed screw | 6 | 2.00 | |
| 940120 | Washer | 29 | 1.00 | |
| 1234702 | Rubber bushing | 11 | 1.00 | |
| 985875 | Hexagon nut | 30 | 3.00 | |
| 1254584 | Gear housing cover | 10 | 1.00 | OP |
| 986650 | Spring washer | 31 | 2.00 | |
| 1247659 | Cap | 9 | 1.00 | OP |
| 1254529 | Snap ring | 13 | 1.00 | OP |
| 1247848 | Crank arm | 23 | 1.00 | OP |
| 1202750 | Cover washer | 20 | 1.00 | |
| 955963 | Snap ring | 4 | 1.00 | OP |
| 1255243 | Cable, left | 18 | 2.00 | OP |
| 1202758 | Cable pulley | 3 | 1.00 | OP |
| 1255248 | Bearing | 12 | 2.00 | OP |
| 18634 | Washer | 17 | 1.00 | OP |
| 940143 | Toothed washer | 16 | 1.00 | |
| 150137 | Nut | 15 | 1.00 | OP |
| 1202621 | Bracket | 5 | 1.00 | OP |
| 986674 | Toothed washer | 7 | 2.00 | |
| 1254570 | Wiper arm | 32 | 2.00 | |
| 985874 | Hexagon nut | 8 | 2.00 | |
| 1202833 | Cover | 33 | 1.00 | OP |
| 1254572 | Wiper blade | 36 | 2.00 | |
| 1254571 | 36 | 2.00 | ||
| 1202834 | Retainer | 34 | 1.00 | |
| 1254575 | Hose retainer | 35 | 2.00 | OP |
| 986499 | Washer | 38 | 2.00 | |
| 985876 | Hexagon nut | 37 | 2.00 |

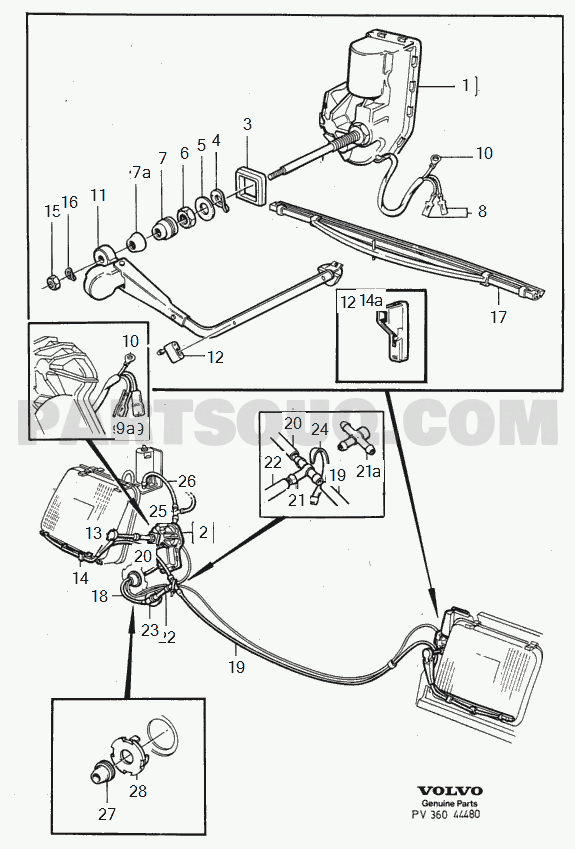

headlight wipers Headlights square
-1980
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 1246320 | Motor, left | 1 | 1.00 | |
| 940109 | Toothed washer | 4 | 1.00 | |
| 986483 | Washer | 5 | 1.00 | |
| 973267 | Nut | 6 | 1.00 | (946874) |
| 1255439 | Sleeve | 7 | 1.00 | |
| 1246342 | Sealing | 7a | 1.00 | |
| 1246324 | Wiper arm, left | 11 | 1.00 | |
| 986650 | Spring washer | 16 | 2.00 | |
| 985875 | Hexagon nut | 15 | 2.00 | |
| 949474 | Cable terminal | 8 | 2.00 | (958204) |
| 1372076 | Anchorage, right | 14a | 1.00 | |
| 1372075 | Anchorage, left | 12a | 1.00 | |
| 1246328 | Wiper blade | 17 | 2.00 | |
| 956930 | Cable terminal | 10 | 2.00 | (958223) |
| 1372305 | Washer jet, left | 12 | 1.00 | (1246330) |
| 973150 | Cable terminal | 9a | 2.00 | (949489) |
| 1246094 | Strip clamp | 24 | 1.00 | |
| 964195 | Insulator | 9 | 2.00 | (958207) |
| 9178896 | Delivery valve | 21a | 1.00 | ALTER 2. (1255973) |
| 949931 | Hose | 26 | x | LG 165 mm (943727) |
| 659248 | T-pipe | 21 | 1.00 | ALTER 1 |
| 9151315 | T-pipe | 25 | 1.00 | (688658) |
| 1246325 | Wiper arm, right | 13 | 1.00 | |
| 1246321 | Motor, right | 2 | 1.00 | |
| 943722 | Hose | 20 | x | LG 300 mm |
| 1372306 | 14 | 1.00 | (1246331) | |
| 949931 | Hose | 18 | x | ALTER 1. LG 220 mm (943727) |
| 1210139 | Check valve | 23 | 1.00 | ALTER 1 |
| 949931 | Hose | 22 | x | ALTER 1. LG 65 mm (943727) |
| 943722 | Hose | 19 | x | LG 950 mm |
| 1247733 | Cover | 28 | 1.00 | |
| 1234702 | Rubber bushing | 27 | 1.00 |
