Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
38 Instrumentation
temperature warning system
(JP)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 663095 | Lamp socket | 7 | 1.00 | ||
| 989765 | Bulb | 8 | 1.00 | BA9S 12V 2W | |
| 6772374 | Diode | 10 | 1.00 | (1506069) | |
| 686066 | Fuse box | 9 | 1.00 | ||
| 9128846 | Relay | 2 | 1.00 | (1219779) | |
| 1234599 | Clip | 11 | 1.00 | ||
| 1234822 | Control lamp | 6 | 1.00 | ||
| 1234599 | Clip | 3 | 1.00 | ||
| 1210690 | Cap | 17 | 1.00 | EXC (JP) | |
| 1212856 | Insulator | 16 | 1.00 | (947780) | |
| 1259279 | Wiring harness | 18 | 1.00 | OP | (1235435) |
| 951186 | Clamp | 4 | 3.00 | 1980- B28F | |
| 986160 | Six point socket screw | 4 | 3.00 | 1980- B28F (969473)(955137) | |
| 941748 | Nipple | 5 | 1.00 | ||
| 1274255 | Temperature sensor | 1 | 1.00 | 1980- B28F | |
| 1219780 | Sensor | 1 | 1.00 | -1979 | |
| 1234776 | Protecting plate | 13 | 1.00 | OP | -1979 |
| 986160 | Six point socket screw | 14 | 2.00 | -1979 (969473)(955137) | |
| 1234786 | Thermostat | 12 | 1.00 | OP | -1979 (1258263) |

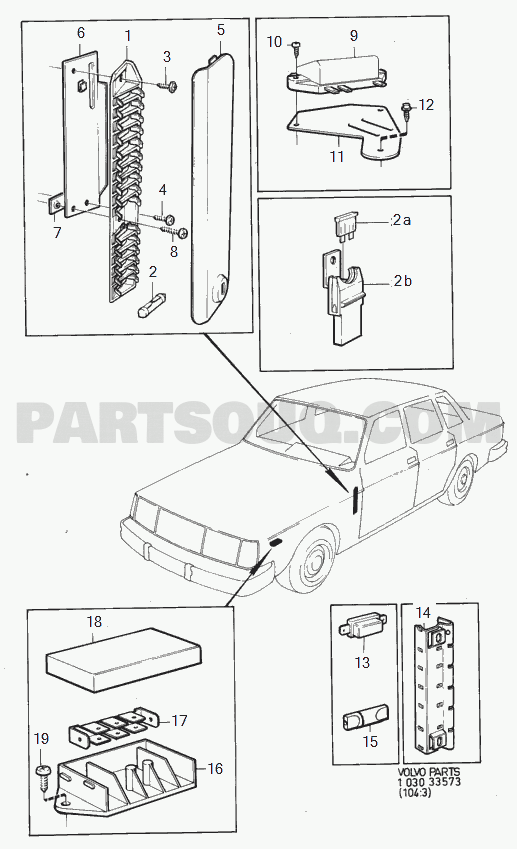

electrical distribution center , fusebox and fuses
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1304368 | Anchorage | 6 | 1.00 | 1980- | |
| 3515987 | Fuse box | 1 | 1.00 | OP | (1308142) |
| 1235419 | Fuse box main and dipped beams | 9 | 1.00 | (IT),244DLS | |
| 986109 | Six point socket screw | 10 | 2.00 | (955123) (IT),244DLS | |
| 987093 | Cross recessed screw | 3 | 1.00 | ||
| 986497 | Washer | 3 | 1.00 | ||
| 985738 | Flange screw | 12 | 1.00 | (IT),244DLS | |
| 1258953 | Bracket | 11 | 1.00 | (IT),244DLS | |
| 987093 | Cross recessed screw | 4 | 1.00 | ||
| 966329 | Fuse | 2a | 1.00 | 1983-. 15A LAMBDA SOND (969162) | |
| 966330 | Fuse | 2a | 1.00 | 1983-. 25A LAMBDA SOND (969163) | |
| 1304398 | Clip | 7 | 1.00 | 1980- | |
| 955131 | Cross recessed screw | 8 | 1.00 | 1980- | |
| 942545 | Fuse | 2 | 2.00 | IK | 5A |
| 11433 | Fuse | 2 | 4.00 | IK | 8A |
| 273598 | Fuse kit | 2 | 1.00 | OP | (273520) |
| 9438704 | Fuse | 2 | 2.00 | OP | 25A (11434) |
| 943905 | Fuse | 2 | 1.00 | IK | 25A |
| 942785 | Fuse | 2 | 1.00 | IK | 16A |
| 1323312 | Fuse holder | 2b | 1.00 | LAMBDA SOND | |
| 9162425 | Cover | 18 | 1.00 | ||
| 1263491 | Fuse box | 13 | 1.00 | OP | 264TE DDR |
| 1234263 | Terminal | 17 | 1.00 | OP | |
| 987092 | Cross recessed screw | 19 | 2.00 | ||
| 1503765 | Thermofuse | 15 | 1.00 | OP | -1979. 264TE |
| 9162083 | Junction box | 16 | 1.00 |
