Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
38 Instrumentation
instrumentation
240,260 GT.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1235016 | Wiring plate | 8 | 1.00 | OP | |
| 1234640 | Brace | 19 | 2.00 | ||
| 989800 | Bulb | 13 | 8.00 | ||
| 1234637 | Brace | 16 | 2.00 | OP | |
| 1234638 | Brace | 17 | 2.00 | OP | |
| 1234642 | Nut | 21 | 8.00 | OP | |
| 1210167 | Lamp socket | 12 | 8.00 | ||
| 1234971 | Voltage stabilizer | 11 | 1.00 | OP | |
| 1234643 | Nut | 9 | 4.00 | ||
| 1234644 | Spacer sleeve | 10 | 4.00 | OP | |
| 1234639 | Brace | 18 | 2.00 | OP | |
| 1234641 | Nut | 20 | 2.00 | OP | |
| 1234636 | Brace | 15 | 2.00 | ||
| 283591 | Oil pressure sensor | 23 | 1.00 | OP | |
| 464592 | Plug | 25 | 1.00 | OP | B27 |
| 16218 | Elbow nipple | 24 | 1.00 | B20 | |
| 809109 | Elbow nipple | 24 | 1.00 | B19, B21 | |
| 1234630 | Voltmeter | 4 | 1.00 | OP | |
| 989765 | Bulb | 14 | 7.00 | ||
| 1234632 | Instrument | 6 | 1.00 | ||
| 1234631 | Coolant thermometer | 5 | 1.00 | ||
| 1234628 | 3 | 1.00 | 260 | ||
| 1234629 | Tachometer | 3 | 1.00 | 240 | |
| 1234620 | Speedometer road revs | 2 | 1.00 | OP | MILES, 5DRS |
| 1234621 | Speedometer road revs | 2 | 1.00 | MILES, 2DRS, 4DRS | |
| 1234624 | Speedometer road revs | 2 | 1.00 | OP | KM, 2DRS, 4DRS |
| 1234623 | Speedometer road revs | 2 | 1.00 | OP | KM, 5DRS |
| 1234633 | Fuel gauge | 7 | 1.00 |
turbo boost gauge timer digital clock
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1324145 | Lamp socket | 4 | 1.00 | ||
| 989800 | Bulb | 5 | 1.00 | 1.2W | |
| 976734 | Hose by the meter | 6 | x | LG 1400 mm (1306703) | |
| 1307513 | Charge pressure meter complete | 1 | 1.00 | 4DRS CH -983072 5DRS CH -532438 | |
| 1323506 | Charge pressure meter complete | 1 | 1.00 | OP | 2DRS CH -244008 4DRS CH 983073-31965 5DRS CH 532439-563847 |
| 1347821 | Charge pressure meter complete | 1 | 1.00 | 2DRS CH 244009- 4DRS CH 31966- 5DRS CH 563848- | |
| 1234642 | Nut | 3 | 2.00 | OP | |
| 1307958 | Brace | 2 | 1.00 | OP | |
| 1308688 | Wiring harness | 8 | 1.00 | ||
| 1347001 | Digital timer | 7 | 1.00 | REPL 1PCS 1362230-3 1PCS 1343959-1. | |
| 3712175 | Wiring harness | 9 | 1.00 | OP | |
| 1333619 | Mounting kit | 14 | 1.00 | OP | ALTER |
| 1214764 | Relay | 11 | 1.00 | ||
| 1259737 | Retaining clip | 13 | 3.00 | ||
| 1259926 | Relay | 18 | 1.00 | (1504952) | |
| 1214764 | Relay | 18 | 1.00 | ||
| 1277898 | Clip | 19 | 1.00 | OP | |
| 1259737 | Retaining clip | 20 | 3.00 | ||
| 1212957 | Clip | 12 | 1.00 | ||
| 964167 | Receptacle housing | 21 | 1.00 | ||
| 1343959 | Mounting kit | 23 | 1.00 | OP | |
| 3544082 | Digital timer | 22 | 1.00 | OP | (1362230) |
| 1259737 | Retaining clip | 24 | 3.00 | ||
| 1362229 | Retainer | 25 | 1.00 | ||
| 1343435 | Wiring harness | 26 | 1.00 | OP | |
| 1188269 | Clock | 27 | 1.00 | OP | |
| 1234642 | Nut | 30 | 2.00 | OP | |
| 1307516 | Brace | 29 | 1.00 | ||
| 989800 | Bulb | 32 | 1.00 | 1.2W | |
| 1324145 | Lamp socket | 31 | 1.00 | ||
| 1259737 | Retaining clip | 34 | 3.00 |
oil temperature gauge Oil pressure gauge
240, 260
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1343324 | Oil temperature gauge | 1 | 1.00 | OP | 1981- %C |
| 941269 | Plug | 11 | 1.00 | ||
| 973150 | Cable terminal | 12 | 1.00 | (949201) | |
| 1234642 | Nut | 4 | 2.00 | OP | |
| 1234640 | Brace | 3 | 1.00 | ||
| 948702 | Cable tie | 9 | 5.00 | ||
| 1324144 | Lamp socket | 5 | 1.00 | OP | |
| 989802 | Bulb | 6 | 1.00 | 2W (968546). | |
| 11998 | Gasket | 14 | 1.00 | DSL | |
| 1259737 | Retaining clip | 10 | 3.00 | ||
| 1586597 | Splice | 8 | 1.00 | ||
| 271436 | Adapter oil.temp.gauge | 13 | 1.00 | DSL (1333965) | |
| 1307535 | Temperature sensor | 13 | 1.00 | OP | 4CYL |
| 1324625 | Temperature sensor | 13 | 1.00 | OP | DSL |
| 1324624 | Temperature sensor | 13 | 1.00 | OP | 6CYL |
| 947628 | Gasket | 16 | 1.00 | DSL (1257382) | |
| 1333929 | Oil pressure gauge kit | 17 | 1.00 | OP | 1981- |
| 1348644 | Wiring harness | 30 | 1.00 | ||
| 813615 | Nipple | 32 | 1.00 | ||
| 941269 | Plug | 27 | 1.00 | ||
| 1234640 | Brace | 19 | 1.00 | ||
| 1234642 | Nut | 20 | 2.00 | OP | |
| 1348991 | Elbow nipple | 33 | 1.00 | ||
| 809109 | Elbow nipple | 31 | 1.00 | ||
| 18671 | Gasket | 34 | 1.00 | ||
| 947281 | Gasket | 34 | 1.00 | 6CYL, DSL | |
| 1259737 | Retaining clip | 26 | 3.00 | ||
| 1333930 | Oil pressure sensor | 29 | 1.00 | 1983-, 4CYL | |
| 1323797 | Oil pressure sensor | 29 | 1.00 | 1983-, 4CYL | |
| 948702 | Cable tie | 25 | 5.00 | ||
| 1324144 | Lamp socket | 21 | 1.00 | OP | |
| 989802 | Bulb | 22 | 1.00 | 2W (968546). | |
| 1586597 | Splice | 24 | 1.00 | ||
| 1308298 | Oil pressure sensor | 28 | 1.00 | OP | -1982, 4CYL |
| 1347361 | Oil pressure sensor | 28 | 1.00 | 6CYL, DSL |
instrumentation DSL
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 3544691 | Stop light switch | 10 | 1.00 | ||
| 18665 | Gasket | 6 | 1.00 | ||
| 3517501 | Temperature sensor collant | 5 | 1.00 | OP | |
| 1328397 | Temperature sensor collant | 5 | 1.00 | Service alternative. | |
| 947281 | Gasket | 9 | 1.00 | (946532) | |
| 1257137 | Oil pressure sensor | 7 | 1.00 | ||
| 9128766 | Decal | 34 | 1.00 | (US) | |
| 948524 | Clamp | 16 | 1.00 | (SE) | |
| 1215546 | Speedometer cable white marking | 12 | 1.00 | LG 2000 mm. M41, M46. VDO. ALTER 1 | |
| 1234490 | Speedometer cable red marking | 12 | 1.00 | LG 1875 mm AUTO.TRANS M47. VDO. ALTER 1 | |
| 1235804 | Speedometer cable | 12 | 1.00 | LG 1270 mm M45, M46 | |
| 1235805 | Speedometer cable | 12 | 1.00 | LG 1510 mm. M46 | |
| 1235803 | Speedometer cable | 12 | 1.00 | LG 1400 mm. AUTO.TRANS | |
| 986114 | Six point socket screw | 19 | 1.00 | (955138) | |
| 952629 | Clamp | 17 | 1.00 | I.DIA 15.9 mm | |
| 952626 | Clamp | 17 | 1.00 | I.DIA 11.1 mm | |
| 952624 | Clamp | 17 | 1.00 | I.DIA 7.9 mm | |
| 986122 | Six point socket screw | 20 | 1.00 | (958244) | |
| 950007 | Screw | 33 | 1.00 | AUTO.TRANS | |
| 6843107 | Bracket | 32 | 1.00 | OP | (381722) AUTO.TRANS |
| 1234773 | Bracket | 18 | 1.00 | BW55 4CYL BW55 DSL EXC (SE) | |
| 1255865 | Decal | 3 | 1.00 | (CA) | |
| 9430325 | Decal | 3 | 1.00 | (US) (3536442)(1367677) | |
| 3523143 | Lamp socket | 31 | 1.00 | AUTO.TRANS | |
| 989800 | Bulb | 30 | 1.00 | (277747) AUTO.TRANS W2.1x9.5D 1.2W | |
| 985738 | Flange screw | 21 | 1.00 | ||
| 1308309 | Speedometer cable | 23 | 1.00 | OP | |
| 1234948 | Lamp socket | 26 | 2.00 | OP | |
| 989800 | Bulb | 27 | 2.00 | (277747) W2.1x9.5D 1.2W | |
| 985874 | Hexagon nut | 28 | 2.00 | ||
| 1214918 | Clock | 25 | 1.00 | EXC 262C |

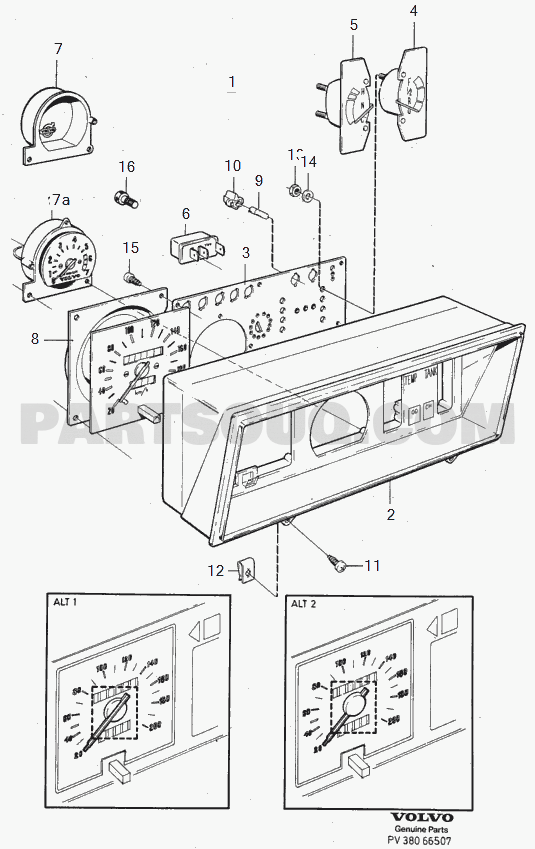

combined instrument YAZAKI
1979
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1215413 | Fuel gauge | 4 | 1.00 | ||
| 1215414 | Coolant thermometer | 5 | 1.00 | OP | |
| 1214667 | Cap | 7 | 1.00 | Without rev. counter. | |
| 955844 | Hexagon nut | 13 | 4.00 | ||
| 986477 | Washer | 14 | 4.00 | ||
| 1347526 | Lamp socket | 10 | x | (1214665) | |
| 989794 | Bulb | 9 | x | 3W | |
| 283260 | Tachometer | 7a | 1.00 | OP | 240 EXC 244, 245 (JP) |
| 1215405 | 7a | 1.00 | 244, 245 (JP) | ||
| 1215406 | Tachometer | 7a | 1.00 | 260 | |
| 987085 | Cross recessed screw | 15 | 9.00 | (955115) | |
| 1234999 | Circuit board | 3 | 1.00 | ||
| 1235111 | Speedometer | 8 | 1.00 | OP | Km 242, 244 (JP) |
| 1235577 | Speedometer | 8 | 1.00 | OP | Km 245 (JP) |
| 1215408 | Speedometer | 8 | 1.00 | Km 242, 244 EXC (JP) | |
| 1215411 | Housing | 2 | 1.00 | OP | EXC 262C (JP) |
| 945683 | Cross recessed screw | 11 | 2.00 | ||
| 192557 | Spring nut | 12 | 2.00 |
combined instrument VDO
1979
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1215304 | Fuel gauge | 4 | 1.00 | ||
| 1215305 | Coolant thermometer | 5 | 1.00 | ||
| 1212529 | Cap | 7 | 1.00 | Without rev. counter. | |
| 955844 | Hexagon nut | 13 | 4.00 | ||
| 986477 | Washer | 14 | 4.00 | ||
| 1210167 | Lamp socket | 10 | x | ||
| 1234823 | Screw | 16 | 1.00 | ||
| 989800 | Bulb | 9 | x | 1.2W | |
| 283546 | Tachometer | 7a | 1.00 | 240 | |
| 283547 | Tachometer | 7a | 1.00 | OP | 260 |
| 1234971 | Voltage stabilizer | 6 | 1.00 | OP | |
| 987085 | Cross recessed screw | 15 | 9.00 | (955115) | |
| 1234991 | Circuit board | 3 | 1.00 | OP | EXC DSL |
| 1258336 | Circuit board | 3 | 1.00 | DSL | |
| 1258988 | Speedometer | 8 | 1.00 | 85 MILES/KM | |
| 1212521 | Speedometer | 8 | 1.00 | OP | KM B21A |
| 1259311 | Speedometer | 8 | 1.00 | 120 MILES/KM | |
| 1258989 | Speedometer | 8 | 1.00 | OP | 85 MILES/KM |
| 1259312 | Speedometer | 8 | 1.00 | 120 MILES/KM | |
| 1258984 | Speedometer | 8 | 1.00 | OP | Km 245, 265, EXC (JP) |
| 1258985 | Speedometer | 8 | 1.00 | OP | Km 242, 244 EXC (JP) |
| 1258335 | Housing | 2 | 1.00 | DSL | |
| 1234984 | Housing | 2 | 1.00 | EXC DSL, 262C | |
| 945683 | Cross recessed screw | 11 | 2.00 | ||
| 192557 | Spring nut | 12 | 2.00 |
