Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
38 Instrumentation
instrumentation
240,260 GT.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1235016 | Wiring plate | 8 | 1.00 | OP | |
| 1234640 | Brace | 19 | 2.00 | ||
| 989800 | Bulb | 13 | 8.00 | ||
| 1234637 | Brace | 16 | 2.00 | OP | |
| 1234638 | Brace | 17 | 2.00 | OP | |
| 1234642 | Nut | 21 | 8.00 | OP | |
| 1210167 | Lamp socket | 12 | 8.00 | ||
| 1234971 | Voltage stabilizer | 11 | 1.00 | OP | |
| 1234643 | Nut | 9 | 4.00 | ||
| 1234644 | Spacer sleeve | 10 | 4.00 | OP | |
| 1234639 | Brace | 18 | 2.00 | OP | |
| 1234641 | Nut | 20 | 2.00 | OP | |
| 1234636 | Brace | 15 | 2.00 | ||
| 283591 | Oil pressure sensor | 23 | 1.00 | OP | |
| 464592 | Plug | 25 | 1.00 | OP | B27 |
| 16218 | Elbow nipple | 24 | 1.00 | B20 | |
| 809109 | Elbow nipple | 24 | 1.00 | B19, B21 | |
| 1234630 | Voltmeter | 4 | 1.00 | OP | |
| 989765 | Bulb | 14 | 7.00 | ||
| 1234632 | Instrument | 6 | 1.00 | ||
| 1234631 | Coolant thermometer | 5 | 1.00 | ||
| 1234628 | 3 | 1.00 | 260 | ||
| 1234629 | Tachometer | 3 | 1.00 | 240 | |
| 1234620 | Speedometer road revs | 2 | 1.00 | OP | MILES, 5DRS |
| 1234621 | Speedometer road revs | 2 | 1.00 | MILES, 2DRS, 4DRS | |
| 1234624 | Speedometer road revs | 2 | 1.00 | OP | KM, 2DRS, 4DRS |
| 1234623 | Speedometer road revs | 2 | 1.00 | OP | KM, 5DRS |
| 1234633 | Fuel gauge | 7 | 1.00 |
turbo boost gauge timer digital clock
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1324145 | Lamp socket | 4 | 1.00 | ||
| 989800 | Bulb | 5 | 1.00 | 1.2W | |
| 976734 | Hose by the meter | 6 | x | LG 1400 mm (1306703) | |
| 1307513 | Charge pressure meter complete | 1 | 1.00 | 4DRS CH -983072 5DRS CH -532438 | |
| 1323506 | Charge pressure meter complete | 1 | 1.00 | OP | 2DRS CH -244008 4DRS CH 983073-31965 5DRS CH 532439-563847 |
| 1347821 | Charge pressure meter complete | 1 | 1.00 | 2DRS CH 244009- 4DRS CH 31966- 5DRS CH 563848- | |
| 1234642 | Nut | 3 | 2.00 | OP | |
| 1307958 | Brace | 2 | 1.00 | OP | |
| 1308688 | Wiring harness | 8 | 1.00 | ||
| 1347001 | Digital timer | 7 | 1.00 | REPL 1PCS 1362230-3 1PCS 1343959-1. | |
| 3712175 | Wiring harness | 9 | 1.00 | OP | |
| 1333619 | Mounting kit | 14 | 1.00 | OP | ALTER |
| 1214764 | Relay | 11 | 1.00 | ||
| 1259737 | Retaining clip | 13 | 3.00 | ||
| 1259926 | Relay | 18 | 1.00 | (1504952) | |
| 1214764 | Relay | 18 | 1.00 | ||
| 1277898 | Clip | 19 | 1.00 | OP | |
| 1259737 | Retaining clip | 20 | 3.00 | ||
| 1212957 | Clip | 12 | 1.00 | ||
| 964167 | Receptacle housing | 21 | 1.00 | ||
| 1343959 | Mounting kit | 23 | 1.00 | OP | |
| 3544082 | Digital timer | 22 | 1.00 | OP | (1362230) |
| 1259737 | Retaining clip | 24 | 3.00 | ||
| 1362229 | Retainer | 25 | 1.00 | ||
| 1343435 | Wiring harness | 26 | 1.00 | OP | |
| 1188269 | Clock | 27 | 1.00 | OP | |
| 1234642 | Nut | 30 | 2.00 | OP | |
| 1307516 | Brace | 29 | 1.00 | ||
| 989800 | Bulb | 32 | 1.00 | 1.2W | |
| 1324145 | Lamp socket | 31 | 1.00 | ||
| 1259737 | Retaining clip | 34 | 3.00 |
temperature warning system
(JP)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 663095 | Lamp socket | 7 | 1.00 | ||
| 989765 | Bulb | 8 | 1.00 | BA9S 12V 2W | |
| 6772374 | Diode | 10 | 1.00 | (1506069) | |
| 686066 | Fuse box | 9 | 1.00 | ||
| 9128846 | Relay | 2 | 1.00 | (1219779) | |
| 1234599 | Clip | 11 | 1.00 | ||
| 1234822 | Control lamp | 6 | 1.00 | ||
| 1234599 | Clip | 3 | 1.00 | ||
| 1210690 | Cap | 17 | 1.00 | EXC (JP) | |
| 1212856 | Insulator | 16 | 1.00 | (947780) | |
| 1259279 | Wiring harness | 18 | 1.00 | OP | (1235435) |
| 951186 | Clamp | 4 | 3.00 | 1980- B28F | |
| 986160 | Six point socket screw | 4 | 3.00 | 1980- B28F (969473)(955137) | |
| 941748 | Nipple | 5 | 1.00 | ||
| 1274255 | Temperature sensor | 1 | 1.00 | 1980- B28F | |
| 1219780 | Sensor | 1 | 1.00 | -1979 | |
| 1234776 | Protecting plate | 13 | 1.00 | OP | -1979 |
| 986160 | Six point socket screw | 14 | 2.00 | -1979 (969473)(955137) | |
| 1234786 | Thermostat | 12 | 1.00 | OP | -1979 (1258263) |
interior light sign lighting
2DRS S.R242, 244
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 989774 | Bulb | 11 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 989773 | Bulb | 2 | 1.00 | 10W SV 8.5 | |
| 986477 | Washer | 13 | 1.00 | ||
| 6846630 | Interior lamp | 1 | 1.00 | ||
| 986160 | Six point socket screw | 12 | 1.00 | (969473) | |
| 1234764 | Engine compartment lamp | 10 | 1.00 | ||
| 3518672 | License plate lamp complete | 7 | 2.00 | ||
| 989767 | Bulb | 9 | 1.00 | 4W | |
| 1215509 | Ashtray lamp | 17 | 1.00 | OP | |
| 986160 | Six point socket screw | 16 | 1.00 | (969473)(955137) | |
| 1235354 | Trunk lamp | 14 | 1.00 | OP | |
| 989773 | Bulb | 15 | 1.00 | 10W SV 8.5 (277715) |
interior light sign lighting
2DRS W/O S.R242, 244
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 989774 | Bulb | 11 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 989773 | Bulb | 2 | 1.00 | 10W SV 8.5 | |
| 986477 | Washer | 13 | 1.00 | ||
| 6846630 | Interior lamp | 1 | 1.00 | ||
| 986160 | Six point socket screw | 12 | 1.00 | (969473) | |
| 1234764 | Engine compartment lamp | 10 | 1.00 | ||
| 3518672 | License plate lamp complete | 7 | 2.00 | ||
| 989767 | Bulb | 9 | 1.00 | 4W | |
| 1215509 | Ashtray lamp | 17 | 1.00 | OP | |
| 986160 | Six point socket screw | 16 | 1.00 | (969473)(955137) | |
| 1235354 | Trunk lamp | 14 | 1.00 | OP | |
| 989773 | Bulb | 15 | 1.00 | 10W SV 8.5 (277715) |
interior light sign lighting
4DRS S.R242, 244
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 989774 | Bulb | 11 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 989773 | Bulb | 2 | 1.00 | 10W SV 8.5 | |
| 986477 | Washer | 13 | 1.00 | ||
| 6846630 | Interior lamp | 1 | 1.00 | ||
| 986160 | Six point socket screw | 12 | 1.00 | (969473) | |
| 1234764 | Engine compartment lamp | 10 | 1.00 | ||
| 3518672 | License plate lamp complete | 7 | 2.00 | ||
| 989767 | Bulb | 9 | 1.00 | 4W | |
| 1215509 | Ashtray lamp | 17 | 1.00 | OP | |
| 986160 | Six point socket screw | 16 | 1.00 | (969473)(955137) | |
| 1235354 | Trunk lamp | 14 | 1.00 | OP | |
| 989773 | Bulb | 15 | 1.00 | 10W SV 8.5 (277715) |
interior light sign lighting
4DRS W/O S.R242, 244
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 989774 | Bulb | 11 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 989773 | Bulb | 2 | 1.00 | 10W SV 8.5 | |
| 986477 | Washer | 13 | 1.00 | ||
| 6846630 | Interior lamp | 1 | 1.00 | ||
| 986160 | Six point socket screw | 12 | 1.00 | (969473) | |
| 1234764 | Engine compartment lamp | 10 | 1.00 | ||
| 3518672 | License plate lamp complete | 7 | 2.00 | ||
| 989767 | Bulb | 9 | 1.00 | 4W | |
| 1215509 | Ashtray lamp | 17 | 1.00 | OP | |
| 986160 | Six point socket screw | 16 | 1.00 | (969473)(955137) | |
| 1235354 | Trunk lamp | 14 | 1.00 | OP | |
| 989773 | Bulb | 15 | 1.00 | 10W SV 8.5 (277715) |
instrumentation DSL
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 3544691 | Stop light switch | 10 | 1.00 | ||
| 18665 | Gasket | 6 | 1.00 | ||
| 3517501 | Temperature sensor collant | 5 | 1.00 | OP | |
| 1328397 | Temperature sensor collant | 5 | 1.00 | Service alternative. | |
| 947281 | Gasket | 9 | 1.00 | (946532) | |
| 1257137 | Oil pressure sensor | 7 | 1.00 | ||
| 9128766 | Decal | 34 | 1.00 | (US) | |
| 948524 | Clamp | 16 | 1.00 | (SE) | |
| 1215546 | Speedometer cable white marking | 12 | 1.00 | LG 2000 mm. M41, M46. VDO. ALTER 1 | |
| 1234490 | Speedometer cable red marking | 12 | 1.00 | LG 1875 mm AUTO.TRANS M47. VDO. ALTER 1 | |
| 1235804 | Speedometer cable | 12 | 1.00 | LG 1270 mm M45, M46 | |
| 1235805 | Speedometer cable | 12 | 1.00 | LG 1510 mm. M46 | |
| 1235803 | Speedometer cable | 12 | 1.00 | LG 1400 mm. AUTO.TRANS | |
| 986114 | Six point socket screw | 19 | 1.00 | (955138) | |
| 952629 | Clamp | 17 | 1.00 | I.DIA 15.9 mm | |
| 952626 | Clamp | 17 | 1.00 | I.DIA 11.1 mm | |
| 952624 | Clamp | 17 | 1.00 | I.DIA 7.9 mm | |
| 986122 | Six point socket screw | 20 | 1.00 | (958244) | |
| 950007 | Screw | 33 | 1.00 | AUTO.TRANS | |
| 6843107 | Bracket | 32 | 1.00 | OP | (381722) AUTO.TRANS |
| 1234773 | Bracket | 18 | 1.00 | BW55 4CYL BW55 DSL EXC (SE) | |
| 1255865 | Decal | 3 | 1.00 | (CA) | |
| 9430325 | Decal | 3 | 1.00 | (US) (3536442)(1367677) | |
| 3523143 | Lamp socket | 31 | 1.00 | AUTO.TRANS | |
| 989800 | Bulb | 30 | 1.00 | (277747) AUTO.TRANS W2.1x9.5D 1.2W | |
| 985738 | Flange screw | 21 | 1.00 | ||
| 1308309 | Speedometer cable | 23 | 1.00 | OP | |
| 1234948 | Lamp socket | 26 | 2.00 | OP | |
| 989800 | Bulb | 27 | 2.00 | (277747) W2.1x9.5D 1.2W | |
| 985874 | Hexagon nut | 28 | 2.00 | ||
| 1214918 | Clock | 25 | 1.00 | EXC 262C |
Other electrical equipment
-1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1324263 | Clip | 20 | 2.00 | ||
| 1307150 | Switch | 31 | 2.00 | OP | |
| 1307150 | Switch | 36 | 1.00 | OP | |
| 1215169 | Light switch | 1 | 1.00 | OP | With day notice light. |
| 1215170 | Light switch | 1 | 1.00 | Without day notice lights. | |
| 1307150 | Switch | 22 | 4.00 | OP | |
| 1307150 | Switch | 18 | 2.00 | OP | |
| 1307152 | Switch | 32 | 1.00 | OP | |
| 1307151 | Switch | 23 | 1.00 | OP | |
| 1307155 | Frame | 33 | 1.00 | ||
| 1258442 | Switch | 30 | 1.00 | P.W 262C REPL 2 PCS 1307150-1 1 PCS 1307152-7, 1 PCS 1307155-0. | |
| 1307153 | Frame | 24 | 1.00 | OP | |
| 1258440 | Switch | 21 | 1.00 | P.W, EXC 262C REPL 4 PCS 1307150-1 1 PCS 1307151-9, 1 PCS 1307153-5. | |
| 1258520 | Switch | 35 | 1.00 | P.W. REPL 1 PCS 1307150-1 1 PCS 1307156-8. | |
| 1307157 | Frame | 28 | 1.00 | OP | |
| 1258441 | Switch | 17 | 1.00 | P.W REPL 1307154-3 2 PCS 1307150-1. | |
| 1307154 | Frame | 19 | 1.00 | OP | |
| 1307156 | Frame | 37 | 1.00 | ||
| 1324263 | Clip | 25 | 2.00 | ||
| 1258281 | Switch | 26 | 2.00 | P.W, EXC 262C REPL 1 PCS 1307150-1 1 PCS 1307157-6. | |
| 1307150 | Switch | 27 | 1.00 | OP | |
| 1324263 | Clip | 34 | 2.00 | ||
| 940109 | Toothed washer | 3 | 1.00 | ||
| 940140 | Hexagon nut | 4 | 1.00 | ||
| 1259480 | Knob | 2 | 1.00 | (1215134) | |
| 1324263 | Clip | 38 | 2.00 | ||
| 1324263 | Clip | 29 | 2.00 | ||
| 1212542 | Rheostat | 5 | 1.00 | ||
| 663095 | Lamp socket | 54 | 1.00 | ||
| 1212770 | Nut washer | 6 | 1.00 | ||
| 1258492 | Knob | 7 | 1.00 | (1212582) | |
| 989765 | Bulb | 55 | 1.00 | 2W BA 9S | |
| 1308056 | Control lamp | 52 | 1.00 | (1215283) | |
| 1308060 | Control lamp | 52 | 1.00 | (1234509) | |
| 3540243 | Switch | 39 | 1.00 | OP | 262C |
| 1235440 | Switch | 39 | 1.00 | OP | GT (SE),(US) |
| 1235441 | Switch | 39 | 1.00 | GT, EXC | |
| 1235623 | Switch | 39 | 1.00 | 262C | |
| 283659 | Switch | 39 | 1.00 | ||
| 1235034 | Lens | 53 | 1.00 | OP | |
| 1234081 | Switch | 39 | 1.00 | OP | EXC (DE) |
| 1258493 | Switch | 16 | 1.00 | OP | (1210134) |
| 1235092 | Switch | 16 | 1.00 | OP | |
| 1258494 | Switch hazard warning lights | 16 | 1.00 | OP | (1235340) |
| 1215138 | Switch power windows front | 16 | 1.00 | -1979 | |
| 1235075 | Main switch power windows rear | 16 | 1.00 | -1979 | |
| 9130519 | Sleeve | 9 | 1.00 | (1212593) | |
| 1362535 | Glove compartment lamp | 49 | 1.00 | (1234754) | |
| 662108 | Glow filament | 10 | 1.00 | ||
| 93554 | Washer | 12 | 1.00 | OP | 262C |
| 1215272 | Knob | 11 | 1.00 | EXC 262C | |
| 1212978 | Knob | 11 | 1.00 | 262C | |
| 989765 | Bulb | 51 | 1.00 | 2W BA 9S | |
| 1215318 | Lens | 50 | 1.00 | ||
| 654444 | Trim washer | 13 | 1.00 | OP | 262C |
| 987085 | Cross recessed screw | 48 | 1.00 | (955115) | |
| 1210068 | Spring clip | 64 | 3.00 | ||
| 687837 | Lamp socket | 62 | 3.00 | ||
| 989772 | Bulb | 63 | 3.00 | 2W BA 7S | |
| 1214741 | Switch | 47 | 1.00 | OP | |
| 987091 | Cross recessed screw | 44 | 1.00 | ||
| 3523143 | Lamp socket | 57 | 1.00 | ||
| 989772 | Bulb | 58 | 1.00 | 2W BA 7S | |
| 3523143 | Lamp socket | 60 | 2.00 | ||
| 1258467 | Switch | 43 | 1.00 | 245 CH 307562- | |
| 1215017 | Door switch | 43 | 1.00 | OP | 245 CH-307561 |
| 989800 | Bulb | 61 | 2.00 | 1.2W W2x4.6d | |
| 681850 | Boot | 45 | 1.00 | ||
| 1264606 | Switch | 46 | 1.00 | EXC (CA),(US) | |
| 1212530 | Light moulding | 56 | 1.00 | ||
| 945547 | Retainer | 59 | 1.00 | ||
| 1362769 | Door switch | 40 | 2.00 | Can be shut off. | |
| 9130008 | Door switch | 40 | 2.00 | OP | (1362770) Can not be shut off. |
| 986114 | Six point socket screw | 41 | 4.00 | (955138) | |
| 1235064 | Cover | 42 | 4.00 |
combined instrument YAZAKI
1979
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1215413 | Fuel gauge | 4 | 1.00 | ||
| 1215414 | Coolant thermometer | 5 | 1.00 | OP | |
| 1214667 | Cap | 7 | 1.00 | Without rev. counter. | |
| 955844 | Hexagon nut | 13 | 4.00 | ||
| 986477 | Washer | 14 | 4.00 | ||
| 1347526 | Lamp socket | 10 | x | (1214665) | |
| 989794 | Bulb | 9 | x | 3W | |
| 283260 | Tachometer | 7a | 1.00 | OP | 240 EXC 244, 245 (JP) |
| 1215405 | 7a | 1.00 | 244, 245 (JP) | ||
| 1215406 | Tachometer | 7a | 1.00 | 260 | |
| 987085 | Cross recessed screw | 15 | 9.00 | (955115) | |
| 1234999 | Circuit board | 3 | 1.00 | ||
| 1235111 | Speedometer | 8 | 1.00 | OP | Km 242, 244 (JP) |
| 1235577 | Speedometer | 8 | 1.00 | OP | Km 245 (JP) |
| 1215408 | Speedometer | 8 | 1.00 | Km 242, 244 EXC (JP) | |
| 1215411 | Housing | 2 | 1.00 | OP | EXC 262C (JP) |
| 945683 | Cross recessed screw | 11 | 2.00 | ||
| 192557 | Spring nut | 12 | 2.00 |
combined instrument VDO
1979
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1215304 | Fuel gauge | 4 | 1.00 | ||
| 1215305 | Coolant thermometer | 5 | 1.00 | ||
| 1212529 | Cap | 7 | 1.00 | Without rev. counter. | |
| 955844 | Hexagon nut | 13 | 4.00 | ||
| 986477 | Washer | 14 | 4.00 | ||
| 1210167 | Lamp socket | 10 | x | ||
| 1234823 | Screw | 16 | 1.00 | ||
| 989800 | Bulb | 9 | x | 1.2W | |
| 283546 | Tachometer | 7a | 1.00 | 240 | |
| 283547 | Tachometer | 7a | 1.00 | OP | 260 |
| 1234971 | Voltage stabilizer | 6 | 1.00 | OP | |
| 987085 | Cross recessed screw | 15 | 9.00 | (955115) | |
| 1234991 | Circuit board | 3 | 1.00 | OP | EXC DSL |
| 1258336 | Circuit board | 3 | 1.00 | DSL | |
| 1258988 | Speedometer | 8 | 1.00 | 85 MILES/KM | |
| 1212521 | Speedometer | 8 | 1.00 | OP | KM B21A |
| 1259311 | Speedometer | 8 | 1.00 | 120 MILES/KM | |
| 1258989 | Speedometer | 8 | 1.00 | OP | 85 MILES/KM |
| 1259312 | Speedometer | 8 | 1.00 | 120 MILES/KM | |
| 1258984 | Speedometer | 8 | 1.00 | OP | Km 245, 265, EXC (JP) |
| 1258985 | Speedometer | 8 | 1.00 | OP | Km 242, 244 EXC (JP) |
| 1258335 | Housing | 2 | 1.00 | DSL | |
| 1234984 | Housing | 2 | 1.00 | EXC DSL, 262C | |
| 945683 | Cross recessed screw | 11 | 2.00 | ||
| 192557 | Spring nut | 12 | 2.00 |

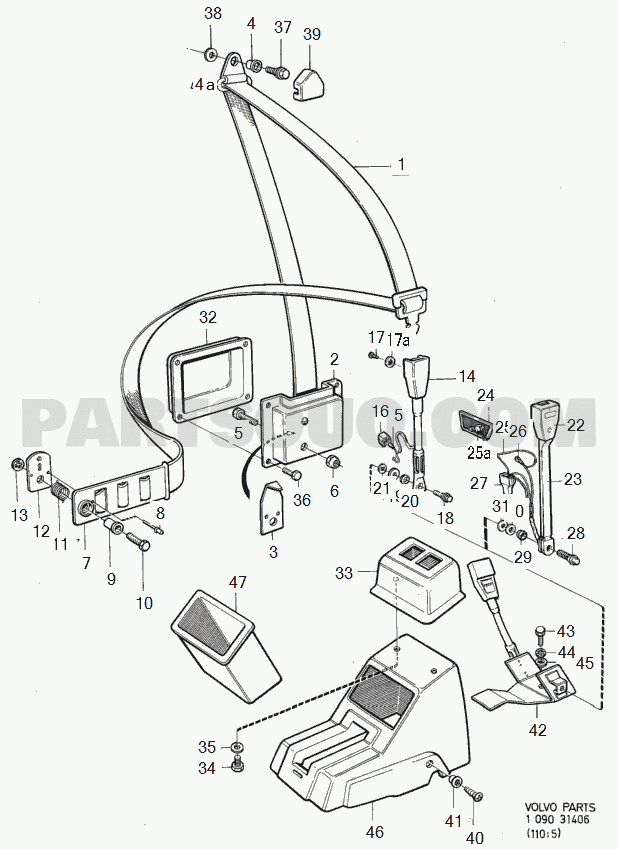

seat belt Front
2DRS S.R242 EXC (AT),(AU),(BE),(CH),(DE),(DK),(FI),(FR),(GB),(IT),(NL)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 18 | 2.00 | |
| 1221010 | Bushing | 4 | 1.00 | |
| 1221304 | Screw | 17 | 2.00 | |
| 1244009 | Cover, brown | 16 | 2.00 | |
| 1244008 | Cover, grey | 16 | 2.00 | |
| 1244007 | Cover, beige | 16 | 2.00 | |
| 1244006 | Cover, blue | 16 | 2.00 | |
| 681533 | Cover, black | 16 | 2.00 | |
| 1313425 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) 1982- REPL 1 PCS 3506052-4 |
| 1294000 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313425-9 |
| 1294001 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313426-7 |
| 1313426 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) REPL 1 PCS 3506051-6 1982- |
| 1294002 | Seat belt, left | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 1294003 | Seat belt, right | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 3506051 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 3506052 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 9131847 | Seat belt, front | 1 | 2.00 | For component parts, see other catalog using MASTER INDEX. |
| 1210999 | Cover | 14 | 2.00 | |
| 1360788 | Cover | 2 | 1.00 | FOR 3506051, 3506052 |
| 1210572 | Cover | 2 | 1.00 | FOR 1294000, 1313425 1294001, 1313426, 1294002 1294003. |
| 955692 | Hexagon screw | 5 | 1.00 | |
| 1215509 | Ashtray lamp | 19b | 1.00 | |
| 989800 | Bulb | 19c | 1.00 | |
| 982793 | Flange screw | 15 | 8.00 | (949734)(955294) |
| 950385 | Nut | 6 | 1.00 | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) |
| 1264381 | Cover | 27 | 1.00 | |
| 1264171 | Locating plate | 12 | 1.00 | |
| 1264169 | Spring, right | 11 | 1.00 | |
| 1264168 | Spring, left | 11 | 1.00 | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) |
| 1224704 | Locating plate | 3 | 1.00 | ALTER |
| 1264170 | Sleeve | 7 | 1.00 | |
| 1264167 | Spacer sleeve | 9 | 1.00 | |
| 1350276 | Cover | 23a | 1.00 | |
| 943530 | Hexagon screw | 10 | 1.00 | ALTER |
| 1244703 | Cover, beige | 26 | 1.00 | |
| 1224588 | Cover, black | 26 | 1.00 | |
| 955691 | Hexagon screw | 20 | 1.00 | |
| 940147 | Toothed washer | 21 | 1.00 | |
| 986433 | Washer | 22 | 1.00 | |
| 986498 | Washer | 29 | 2.00 | |
| 987105 | Cross recessed screw | 28 | 2.00 | |
| 1210473 | Bushing, black | 25 | 2.00 | |
| 1244013 | Bushing, brown | 25 | 2.00 | |
| 1244012 | Bushing, grey | 25 | 2.00 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1264726 | Parking brake cover,black | 23 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
| 1244254 | Parking brake cover,blue | 23 | 1.00 | REPL 1 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. |
| 1207923 | Parking brake cover,black | 23 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. |
| 1244016 | Parking brake cover,grey | 23 | 1.00 | |
| 1244256 | Parking brake cover,grey | 23 | 1.00 | REPL 1PCS 1244016-0 1PCS 1350276-0 |
| 1350970 | Parking brake cover,beige | 23 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. |
| 1244255 | Parking brake cover,beige | 23 | 1.00 | REPL 1 PCS 1373617-8, 1 PCS 1350942-7, 1 PCS 1350276-0. |
| 1350968 | Parking brake cover,blue | 23 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. |
| 1313123 | Lock | 19 | 1.00 | REPL 1 PCS 1360367-5 1 PCS 949490-7, 1 PCS 958212-3. |
| 1350971 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6. |
| 1244257 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. |
| 986115 | Six point socket screw | 24 | 2.00 | (947251) |
seat belt Front
2DRS W/O S.R242 EXC (AT),(AU),(BE),(CH),(DE),(DK),(FI),(FR),(GB),(IT),(NL)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 18 | 2.00 | |
| 1221010 | Bushing | 4 | 1.00 | |
| 1221304 | Screw | 17 | 2.00 | |
| 1244009 | Cover, brown | 16 | 2.00 | |
| 1244008 | Cover, grey | 16 | 2.00 | |
| 1244007 | Cover, beige | 16 | 2.00 | |
| 1244006 | Cover, blue | 16 | 2.00 | |
| 681533 | Cover, black | 16 | 2.00 | |
| 1313425 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) 1982- REPL 1 PCS 3506052-4 |
| 1294000 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313425-9 |
| 1294001 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313426-7 |
| 1313426 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) REPL 1 PCS 3506051-6 1982- |
| 1294002 | Seat belt, left | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 1294003 | Seat belt, right | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 3506051 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 3506052 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 9131847 | Seat belt, front | 1 | 2.00 | For component parts, see other catalog using MASTER INDEX. |
| 1210999 | Cover | 14 | 2.00 | |
| 1360788 | Cover | 2 | 1.00 | FOR 3506051, 3506052 |
| 1210572 | Cover | 2 | 1.00 | FOR 1294000, 1313425 1294001, 1313426, 1294002 1294003. |
| 955692 | Hexagon screw | 5 | 1.00 | |
| 1215509 | Ashtray lamp | 19b | 1.00 | |
| 989800 | Bulb | 19c | 1.00 | |
| 982793 | Flange screw | 15 | 8.00 | (949734)(955294) |
| 950385 | Nut | 6 | 1.00 | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) |
| 1264381 | Cover | 27 | 1.00 | |
| 1264171 | Locating plate | 12 | 1.00 | |
| 1264169 | Spring, right | 11 | 1.00 | |
| 1264168 | Spring, left | 11 | 1.00 | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) |
| 1224704 | Locating plate | 3 | 1.00 | ALTER |
| 1264170 | Sleeve | 7 | 1.00 | |
| 1264167 | Spacer sleeve | 9 | 1.00 | |
| 1350276 | Cover | 23a | 1.00 | |
| 943530 | Hexagon screw | 10 | 1.00 | ALTER |
| 1244703 | Cover, beige | 26 | 1.00 | |
| 1224588 | Cover, black | 26 | 1.00 | |
| 955691 | Hexagon screw | 20 | 1.00 | |
| 940147 | Toothed washer | 21 | 1.00 | |
| 986433 | Washer | 22 | 1.00 | |
| 986498 | Washer | 29 | 2.00 | |
| 987105 | Cross recessed screw | 28 | 2.00 | |
| 1210473 | Bushing, black | 25 | 2.00 | |
| 1244013 | Bushing, brown | 25 | 2.00 | |
| 1244012 | Bushing, grey | 25 | 2.00 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1264726 | Parking brake cover,black | 23 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
| 1244254 | Parking brake cover,blue | 23 | 1.00 | REPL 1 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. |
| 1207923 | Parking brake cover,black | 23 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. |
| 1244016 | Parking brake cover,grey | 23 | 1.00 | |
| 1244256 | Parking brake cover,grey | 23 | 1.00 | REPL 1PCS 1244016-0 1PCS 1350276-0 |
| 1350970 | Parking brake cover,beige | 23 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. |
| 1244255 | Parking brake cover,beige | 23 | 1.00 | REPL 1 PCS 1373617-8, 1 PCS 1350942-7, 1 PCS 1350276-0. |
| 1350968 | Parking brake cover,blue | 23 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. |
| 1313123 | Lock | 19 | 1.00 | REPL 1 PCS 1360367-5 1 PCS 949490-7, 1 PCS 958212-3. |
| 1350971 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6. |
| 1244257 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. |
| 986115 | Six point socket screw | 24 | 2.00 | (947251) |
lighting Rear inner EXC (CA),(US)
5DRS S.R5DRS -1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 965826 | Bulb | 33 | 1.00 | 21W BA 15S | |
| 273556 | Bulb kit | 33 | 1.00 | ||
| 964195 | Insulator | 39 | 1.00 | (958207) | |
| 989774 | Bulb | 29 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 986675 | Toothed washer | 34 | 2.00 | ||
| 1235021 | Rear fog lamp | 32 | 1.00 | ||
| 941266 | Plug | 37 | 1.00 | ||
| 986106 | Six point socket screw | 4 | 4.00 | (955118) | |
| 985875 | Hexagon nut | 36 | 2.00 | ||
| 989773 | Bulb | 3 | 2.00 | 10W SV 8.5 | |
| 681099 | Spacer washer | 35 | 2.00 | ||
| 986477 | Washer | 31 | 1.00 | ||
| 677430 | Glass | 2 | 1.00 | ||
| 949490 | Cable terminal | 38 | 1.00 | ||
| 986160 | Six point socket screw | 30 | 1.00 | (969473)(955137) | |
| 1312942 | Interior lamp | 1 | 2.00 | (1214960) | |
| 989767 | Bulb | 28 | 2.00 | (965830) ALTER 2CP BA 9 s | |
| 1234764 | Engine compartment lamp | 28 | 1.00 | ||
| 683521 | Lens, right | 9 | 1.00 | OP | |
| 3540331 | License plate lamp complete | 17 | 2.00 | ||
| 1258197 | Gasket | 23 | 1.00 | ||
| 680485 | Bulb socket, left | 12 | 1.00 | ||
| 680486 | Bulb socket, right | 12 | 1.00 | ||
| 678529 | Sealing | 19 | 1.00 | ||
| 1258349 | Lamp socket | 22 | 2.00 | ||
| 683520 | Lens, left | 8 | 1.00 | ||
| 965826 | Bulb | 14 | 6.00 | 21W BA 15S | |
| 273556 | Bulb kit | 14 | 1.00 | ||
| 989777 | Bulb | 20 | 2.00 | 5W | |
| 273554 | Bulb kit | 20 | 1.00 | OP | |
| 1234243 | Glass | 21 | 2.00 | (SE) | |
| 1234244 | Glass | 21 | 2.00 | (GB) | |
| 1212903 | Rim | 24 | 2.00 | ||
| 192091 | Bulb | 27 | 2.00 | OP | ALTER 6W BA 9S |
| 987053 | Cross recessed screw | 10 | 2.00 | M4x25 (969518)(956066) | |
| 677617 | Screw | 10 | 1.00 | LG 52 mm | |
| 1212692 | Washer | 26 | 4.00 | ||
| 986109 | Six point socket screw | 25 | 4.00 | (955123) | |
| 677616 | Washer | 11 | 3.00 | OP | |
| 680488 | Sealing | 13 | 2.00 | OP | |
| 986114 | Six point socket screw | 16 | 8.00 | (955138) | |
| 989762 | Bulb | 15 | 2.00 | 5W BA 15S | |
| 273555 | Bulb kit | 15 | 1.00 | OP |
lighting Rear inner EXC (CA),(US)
5DRS W/O S.R5DRS -1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 965826 | Bulb | 33 | 1.00 | 21W BA 15S | |
| 273556 | Bulb kit | 33 | 1.00 | ||
| 964195 | Insulator | 39 | 1.00 | (958207) | |
| 989774 | Bulb | 29 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 986675 | Toothed washer | 34 | 2.00 | ||
| 1235021 | Rear fog lamp | 32 | 1.00 | ||
| 941266 | Plug | 37 | 1.00 | ||
| 986106 | Six point socket screw | 4 | 4.00 | (955118) | |
| 985875 | Hexagon nut | 36 | 2.00 | ||
| 989773 | Bulb | 3 | 2.00 | 10W SV 8.5 | |
| 681099 | Spacer washer | 35 | 2.00 | ||
| 986477 | Washer | 31 | 1.00 | ||
| 677430 | Glass | 2 | 1.00 | ||
| 949490 | Cable terminal | 38 | 1.00 | ||
| 986160 | Six point socket screw | 30 | 1.00 | (969473)(955137) | |
| 1312942 | Interior lamp | 1 | 2.00 | (1214960) | |
| 989767 | Bulb | 28 | 2.00 | (965830) ALTER 2CP BA 9 s | |
| 1234764 | Engine compartment lamp | 28 | 1.00 | ||
| 683521 | Lens, right | 9 | 1.00 | OP | |
| 3540331 | License plate lamp complete | 17 | 2.00 | ||
| 1258197 | Gasket | 23 | 1.00 | ||
| 680485 | Bulb socket, left | 12 | 1.00 | ||
| 680486 | Bulb socket, right | 12 | 1.00 | ||
| 678529 | Sealing | 19 | 1.00 | ||
| 1258349 | Lamp socket | 22 | 2.00 | ||
| 683520 | Lens, left | 8 | 1.00 | ||
| 965826 | Bulb | 14 | 6.00 | 21W BA 15S | |
| 273556 | Bulb kit | 14 | 1.00 | ||
| 989777 | Bulb | 20 | 2.00 | 5W | |
| 273554 | Bulb kit | 20 | 1.00 | OP | |
| 1234243 | Glass | 21 | 2.00 | (SE) | |
| 1234244 | Glass | 21 | 2.00 | (GB) | |
| 1212903 | Rim | 24 | 2.00 | ||
| 192091 | Bulb | 27 | 2.00 | OP | ALTER 6W BA 9S |
| 987053 | Cross recessed screw | 10 | 2.00 | M4x25 (969518)(956066) | |
| 677617 | Screw | 10 | 1.00 | LG 52 mm | |
| 1212692 | Washer | 26 | 4.00 | ||
| 986109 | Six point socket screw | 25 | 4.00 | (955123) | |
| 677616 | Washer | 11 | 3.00 | OP | |
| 680488 | Sealing | 13 | 2.00 | OP | |
| 986114 | Six point socket screw | 16 | 8.00 | (955138) | |
| 989762 | Bulb | 15 | 2.00 | 5W BA 15S | |
| 273555 | Bulb kit | 15 | 1.00 | OP |
lighting Rear inner (CA),(US)
5DRS S.R5DRS -1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 965826 | Bulb | 33 | 1.00 | 21W BA 15S | |
| 273556 | Bulb kit | 33 | 1.00 | ||
| 964195 | Insulator | 39 | 1.00 | (958207) | |
| 989774 | Bulb | 29 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 986675 | Toothed washer | 34 | 2.00 | ||
| 1235021 | Rear fog lamp | 32 | 1.00 | ||
| 941266 | Plug | 37 | 1.00 | ||
| 986106 | Six point socket screw | 4 | 4.00 | (955118) | |
| 985875 | Hexagon nut | 36 | 2.00 | ||
| 989773 | Bulb | 3 | 2.00 | 10W SV 8.5 | |
| 681099 | Spacer washer | 35 | 2.00 | ||
| 986477 | Washer | 31 | 1.00 | ||
| 677430 | Glass | 2 | 1.00 | ||
| 949490 | Cable terminal | 38 | 1.00 | ||
| 986160 | Six point socket screw | 30 | 1.00 | (969473)(955137) | |
| 1312942 | Interior lamp | 1 | 2.00 | (1214960) | |
| 989767 | Bulb | 28 | 2.00 | (965830) ALTER 2CP BA 9 s | |
| 1234764 | Engine compartment lamp | 28 | 1.00 | ||
| 1212754 | Lens, right | 9 | 1.00 | OP | |
| 3540331 | License plate lamp complete | 17 | 2.00 | ||
| 1258197 | Gasket | 23 | 1.00 | ||
| 1212751 | Bulb socket, left | 12 | 1.00 | ||
| 1212760 | Bulb socket, right | 12 | 1.00 | OP | |
| 678529 | Sealing | 19 | 1.00 | ||
| 1258349 | Lamp socket | 22 | 2.00 | ||
| 1212745 | Lens, left | 8 | 1.00 | ||
| 273556 | Bulb kit | 14 | 1.00 | ||
| 965826 | Bulb | 14 | 6.00 | 21W BA 15S | |
| 989777 | Bulb | 20 | 2.00 | 5W | |
| 273554 | Bulb kit | 20 | 1.00 | OP | |
| 1234244 | Glass | 21 | 2.00 | (GB) | |
| 1212903 | Rim | 24 | 2.00 | ||
| 192091 | Bulb | 27 | 2.00 | OP | ALTER 6W BA 9S |
| 987053 | Cross recessed screw | 10 | 2.00 | M4x25 (969518)(956066) | |
| 677617 | Screw | 10 | 1.00 | LG 52 mm | |
| 1212692 | Washer | 26 | 4.00 | ||
| 986109 | Six point socket screw | 25 | 4.00 | (955123) | |
| 677616 | Washer | 11 | 3.00 | OP | |
| 680488 | Sealing | 13 | 2.00 | OP | |
| 986114 | Six point socket screw | 16 | 8.00 | (955138) | |
| 989762 | Bulb | 15 | 2.00 | 5W BA 15S | |
| 273555 | Bulb kit | 15 | 1.00 | OP |
lighting Rear inner (CA),(US)
5DRS W/O S.R5DRS -1980
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 965826 | Bulb | 33 | 1.00 | 21W BA 15S | |
| 273556 | Bulb kit | 33 | 1.00 | ||
| 964195 | Insulator | 39 | 1.00 | (958207) | |
| 989774 | Bulb | 29 | 1.00 | OP | 15W SV 8.5 (182045). (277716) |
| 986675 | Toothed washer | 34 | 2.00 | ||
| 1235021 | Rear fog lamp | 32 | 1.00 | ||
| 941266 | Plug | 37 | 1.00 | ||
| 986106 | Six point socket screw | 4 | 4.00 | (955118) | |
| 985875 | Hexagon nut | 36 | 2.00 | ||
| 989773 | Bulb | 3 | 2.00 | 10W SV 8.5 | |
| 681099 | Spacer washer | 35 | 2.00 | ||
| 986477 | Washer | 31 | 1.00 | ||
| 677430 | Glass | 2 | 1.00 | ||
| 949490 | Cable terminal | 38 | 1.00 | ||
| 986160 | Six point socket screw | 30 | 1.00 | (969473)(955137) | |
| 1312942 | Interior lamp | 1 | 2.00 | (1214960) | |
| 989767 | Bulb | 28 | 2.00 | (965830) ALTER 2CP BA 9 s | |
| 1234764 | Engine compartment lamp | 28 | 1.00 | ||
| 1212754 | Lens, right | 9 | 1.00 | OP | |
| 3540331 | License plate lamp complete | 17 | 2.00 | ||
| 1258197 | Gasket | 23 | 1.00 | ||
| 1212751 | Bulb socket, left | 12 | 1.00 | ||
| 1212760 | Bulb socket, right | 12 | 1.00 | OP | |
| 678529 | Sealing | 19 | 1.00 | ||
| 1258349 | Lamp socket | 22 | 2.00 | ||
| 1212745 | Lens, left | 8 | 1.00 | ||
| 273556 | Bulb kit | 14 | 1.00 | ||
| 965826 | Bulb | 14 | 6.00 | 21W BA 15S | |
| 989777 | Bulb | 20 | 2.00 | 5W | |
| 273554 | Bulb kit | 20 | 1.00 | OP | |
| 1234244 | Glass | 21 | 2.00 | (GB) | |
| 1212903 | Rim | 24 | 2.00 | ||
| 192091 | Bulb | 27 | 2.00 | OP | ALTER 6W BA 9S |
| 987053 | Cross recessed screw | 10 | 2.00 | M4x25 (969518)(956066) | |
| 677617 | Screw | 10 | 1.00 | LG 52 mm | |
| 1212692 | Washer | 26 | 4.00 | ||
| 986109 | Six point socket screw | 25 | 4.00 | (955123) | |
| 677616 | Washer | 11 | 3.00 | OP | |
| 680488 | Sealing | 13 | 2.00 | OP | |
| 986114 | Six point socket screw | 16 | 8.00 | (955138) | |
| 989762 | Bulb | 15 | 2.00 | 5W BA 15S | |
| 273555 | Bulb kit | 15 | 1.00 | OP |
seat belt Front
2DRS S.R242 (BE),(DE),(FR),(GB),(IT),(NL) (DK),(NO),(SE) CH 181070-181099, 189180-
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 38 | 2.00 | ||
| 1221010 | Bushing | 4 | 1.00 | ||
| 1221304 | Screw | 37 | 2.00 | ||
| 1244009 | Cover, brown | 39 | 2.00 | 1980- | |
| 681533 | Cover, black | 39 | 2.00 | 1979 | |
| 1244006 | Cover, blue | 39 | 2.00 | 1980- | |
| 1244007 | Cover, beige | 39 | 2.00 | 1980- | |
| 1244008 | Cover, grey | 39 | 2.00 | 1980- | |
| 681493 | Fitting | 4a | 1.00 | ||
| 1244266 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506054-0 1 PCS 1370060-4. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244265 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506053-2 1 PCS 1370057-0. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244417 | Seat belt, left | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244422-0 | |
| 9131838 | Seat belt | 1 | 1.00 | ||
| 3506054 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 3506053 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 1244418 | Seat belt, right | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244423-8 | |
| 1244422 | Seat belt, left | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506053-2. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244423 | Seat belt, right | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506054-0 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 32 | 2.00 | ||
| 986113 | Six point socket screw | 17 | 1.00 | ||
| 986675 | Toothed washer | 17a | 1.00 | ||
| 1360788 | Cover | 2 | 1.00 | FOR 3506053, 3506054 | |
| 1244771 | Cover | 2 | 1.00 | OP | FOR 1244422, 1244423 |
| 1210572 | Cover | 2 | 1.00 | FOR 1244265, 1244266 1244417,1244418. | |
| 1215509 | Ashtray lamp | 24 | 1.00 | OP | |
| 948855 | Insulator | 16 | 1.00 | (958212) | |
| 949490 | Cable terminal | 15 | 3.00 | (958203) | |
| 1313546 | Wiring harness | 25 | 1.00 | ||
| 956946 | Cable terminal | 26 | 1.00 | ||
| 955692 | Hexagon screw | 5 | 1.00 | ||
| 955689 | Hexagon screw | 5 | 1.00 | ||
| 989800 | Bulb | 25a | 1.00 | ||
| 1244344 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370057-0 3PCS 949490-7, 1PCS 958212-3 | |
| 1244345 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370060-4 3PCS 949490-7, 1PCS 958212-3 | |
| 948855 | Insulator | 27 | 1.00 | (958212) | |
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 36 | 8.00 | (949734)(955294) | |
| 1254346 | Grommet | 20 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 986433 | Washer | 30 | 2.00 | ||
| 986433 | Washer | 19 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) CH 189180-237369 (1264542) | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) | |
| 1204775 | Screw | 18 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1264171 | Locating plate | 12 | 1.00 | OP | |
| 1204775 | Screw | 28 | 2.00 | ||
| 1264168 | Spring, left | 11 | 1.00 | OP | |
| 1264169 | Spring, right | 11 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ||
| 1221010 | Bushing | 29 | 2.00 | ||
| 1264170 | Sleeve | 7 | 1.00 | ||
| 1264381 | Cover | 33 | 1.00 | ||
| 1244483 | Tunnel tray, brown | 47 | 1.00 | 1980- | |
| 1244481 | Tunnel tray, beige | 47 | 1.00 | 1980- | |
| 1244480 | Tunnel tray, blue | 47 | 1.00 | OP | 1980- |
| 1244479 | Tunnel tray, black | 47 | 1.00 | 1979 | |
| 1244482 | Tunnel tray, grey | 47 | 1.00 | 1980- | |
| 1264167 | Spacer sleeve | 9 | 1.00 | OP | |
| 943530 | Hexagon screw | 10 | 1.00 | ||
| 955691 | Hexagon screw | 43 | 1.00 | 1979 | |
| 955689 | Hexagon screw | 43 | 1.00 | 1980- | |
| 940147 | Toothed washer | 44 | 1.00 | ||
| 986433 | Washer | 45 | 1.00 | 1979 | |
| 9131857 | Bracket | 42 | 1.00 | 1979 (1244404)(1264747) | |
| 986498 | Washer | 35 | 2.00 | ||
| 987105 | Cross recessed screw | 34 | 2.00 | ||
| 1210473 | Bushing, black | 41 | 2.00 | 1979 | |
| 1244011 | Bushing, beige | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 41 | 2.00 | 1980- | |
| 1244010 | Bushing, blue | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 986115 | Six point socket screw | 40 | 2.00 | (947251) | |
| 1350968 | Parking brake cover,blue | 46 | 1.00 | 1980- REPL 2PCS 1350944-3 1PCS 1373616-0. | |
| 1350970 | Parking brake cover,beige | 46 | 1.00 | 1980- REPL 2PCS 1350942-7, 1PCS 1373617-8. | |
| 1350971 | Parking brake cover,brown | 46 | 1.00 | 1980- REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 46 | 1.00 | 1980- 242 CH 165570- | |
| 1373615 | Parking brake cover,black | 46 | 1.00 | 1979 REPL 2PCS 1210690-2 1PCS 1373615-2. | |
| 1264726 | Parking brake cover,black | 46 | 1.00 | 1980- REPL 2PCS 1210690-2 1PCS 1373615-2. |
seat belt Front
2DRS W/O S.R242 (BE),(DE),(FR),(GB),(IT),(NL) (DK),(NO),(SE) CH 181070-181099, 189180-
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 38 | 2.00 | ||
| 1221010 | Bushing | 4 | 1.00 | ||
| 1221304 | Screw | 37 | 2.00 | ||
| 1244009 | Cover, brown | 39 | 2.00 | 1980- | |
| 681533 | Cover, black | 39 | 2.00 | 1979 | |
| 1244006 | Cover, blue | 39 | 2.00 | 1980- | |
| 1244007 | Cover, beige | 39 | 2.00 | 1980- | |
| 1244008 | Cover, grey | 39 | 2.00 | 1980- | |
| 681493 | Fitting | 4a | 1.00 | ||
| 1244266 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506054-0 1 PCS 1370060-4. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244265 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506053-2 1 PCS 1370057-0. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244417 | Seat belt, left | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244422-0 | |
| 9131838 | Seat belt | 1 | 1.00 | ||
| 3506054 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 3506053 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 1244418 | Seat belt, right | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244423-8 | |
| 1244422 | Seat belt, left | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506053-2. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244423 | Seat belt, right | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506054-0 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 32 | 2.00 | ||
| 986113 | Six point socket screw | 17 | 1.00 | ||
| 986675 | Toothed washer | 17a | 1.00 | ||
| 1360788 | Cover | 2 | 1.00 | FOR 3506053, 3506054 | |
| 1244771 | Cover | 2 | 1.00 | OP | FOR 1244422, 1244423 |
| 1210572 | Cover | 2 | 1.00 | FOR 1244265, 1244266 1244417,1244418. | |
| 1215509 | Ashtray lamp | 24 | 1.00 | OP | |
| 948855 | Insulator | 16 | 1.00 | (958212) | |
| 949490 | Cable terminal | 15 | 3.00 | (958203) | |
| 1313546 | Wiring harness | 25 | 1.00 | ||
| 956946 | Cable terminal | 26 | 1.00 | ||
| 955692 | Hexagon screw | 5 | 1.00 | ||
| 955689 | Hexagon screw | 5 | 1.00 | ||
| 989800 | Bulb | 25a | 1.00 | ||
| 1244344 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370057-0 3PCS 949490-7, 1PCS 958212-3 | |
| 1244345 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370060-4 3PCS 949490-7, 1PCS 958212-3 | |
| 948855 | Insulator | 27 | 1.00 | (958212) | |
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 36 | 8.00 | (949734)(955294) | |
| 1254346 | Grommet | 20 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 986433 | Washer | 30 | 2.00 | ||
| 986433 | Washer | 19 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) CH 189180-237369 (1264542) | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) | |
| 1204775 | Screw | 18 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1264171 | Locating plate | 12 | 1.00 | OP | |
| 1204775 | Screw | 28 | 2.00 | ||
| 1264168 | Spring, left | 11 | 1.00 | OP | |
| 1264169 | Spring, right | 11 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ||
| 1221010 | Bushing | 29 | 2.00 | ||
| 1264170 | Sleeve | 7 | 1.00 | ||
| 1264381 | Cover | 33 | 1.00 | ||
| 1244483 | Tunnel tray, brown | 47 | 1.00 | 1980- | |
| 1244481 | Tunnel tray, beige | 47 | 1.00 | 1980- | |
| 1244480 | Tunnel tray, blue | 47 | 1.00 | OP | 1980- |
| 1244479 | Tunnel tray, black | 47 | 1.00 | 1979 | |
| 1244482 | Tunnel tray, grey | 47 | 1.00 | 1980- | |
| 1264167 | Spacer sleeve | 9 | 1.00 | OP | |
| 943530 | Hexagon screw | 10 | 1.00 | ||
| 955691 | Hexagon screw | 43 | 1.00 | 1979 | |
| 955689 | Hexagon screw | 43 | 1.00 | 1980- | |
| 940147 | Toothed washer | 44 | 1.00 | ||
| 986433 | Washer | 45 | 1.00 | 1979 | |
| 9131857 | Bracket | 42 | 1.00 | 1979 (1244404)(1264747) | |
| 986498 | Washer | 35 | 2.00 | ||
| 987105 | Cross recessed screw | 34 | 2.00 | ||
| 1210473 | Bushing, black | 41 | 2.00 | 1979 | |
| 1244011 | Bushing, beige | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 41 | 2.00 | 1980- | |
| 1244010 | Bushing, blue | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 986115 | Six point socket screw | 40 | 2.00 | (947251) | |
| 1350968 | Parking brake cover,blue | 46 | 1.00 | 1980- REPL 2PCS 1350944-3 1PCS 1373616-0. | |
| 1350970 | Parking brake cover,beige | 46 | 1.00 | 1980- REPL 2PCS 1350942-7, 1PCS 1373617-8. | |
| 1350971 | Parking brake cover,brown | 46 | 1.00 | 1980- REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 46 | 1.00 | 1980- 242 CH 165570- | |
| 1373615 | Parking brake cover,black | 46 | 1.00 | 1979 REPL 2PCS 1210690-2 1PCS 1373615-2. | |
| 1264726 | Parking brake cover,black | 46 | 1.00 | 1980- REPL 2PCS 1210690-2 1PCS 1373615-2. |
seat belt front (JP) 242.
2DRS S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1221304 | Screw | 15 | 2.00 | LG 26,5 | |
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 1294077 | Seat belt | 1 | 2.00 | (FI) REPL 1 PCS 1225898-4 | |
| 1225898 | Seat belt | 1 | 2.00 | -1983 (AT),(CH) ALTER | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955692 | Hexagon screw | 5 | 1.00 | LG 32 | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 986433 | Washer | 11 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1204775 | Screw | 10 | 2.00 | LG 32 | |
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 242.
2DRS W/O S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1221304 | Screw | 15 | 2.00 | LG 26,5 | |
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 1294077 | Seat belt | 1 | 2.00 | (FI) REPL 1 PCS 1225898-4 | |
| 1225898 | Seat belt | 1 | 2.00 | -1983 (AT),(CH) ALTER | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955692 | Hexagon screw | 5 | 1.00 | LG 32 | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 986433 | Washer | 11 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1204775 | Screw | 10 | 2.00 | LG 32 | |
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt Front 245, 265.
5DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt Front 245, 265.
5DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt Front 244, 264.
4DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt Front 244, 264.
4DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt front (JP) 245, 265.
5DRS S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 245, 265.
5DRS W/O S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 244, 264.
4DRS S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 244, 264.
4DRS W/O S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
