Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
35 Lighting

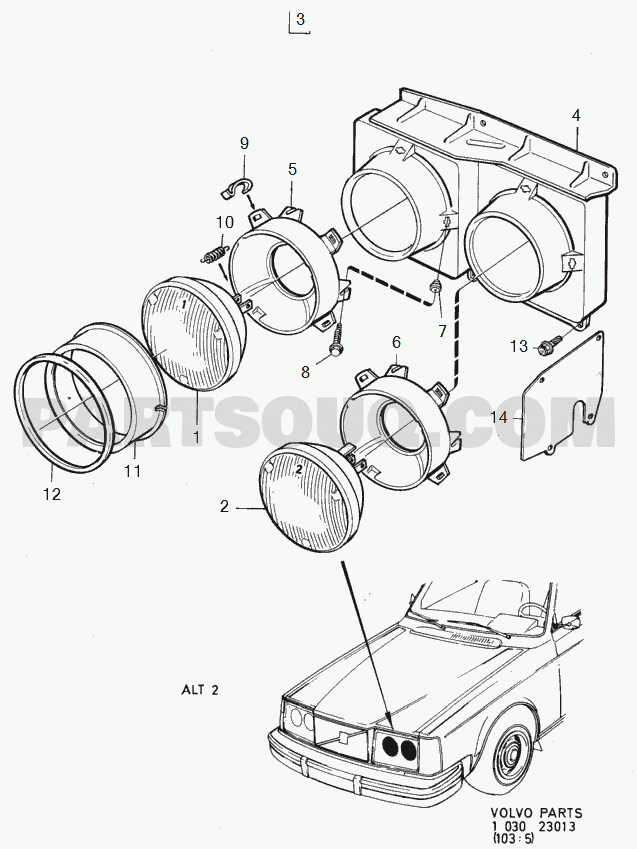

Headlights round
-1980 (CA),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 1215146 | Plate, left | 4 | 1.00 | |
| 1215147 | Plate, right | 4 | 1.00 | |
| 1234811 | Spring | 9 | 8.00 | (1234073) |
| 1234091 | Headlamp housing, left | 5 | 1.00 | |
| 1214843 | Headlamp housing, right | 5 | 1.00 | |
| 676109 | Spring | 10 | 2.00 | |
| 1234071 | Nut | 7 | 4.00 | |
| 1234093 | Headlamp housing, left | 6 | 1.00 | |
| 1214844 | Headlamp housing, right | 6 | 1.00 | |
| 982755 | Flange screw | 13 | 8.00 | (949416) |
| 1234070 | Adjusting screw | 8 | 4.00 | |
| 1234766 | Cover plate | 14 | 2.00 | |
| 1215995 | Headlamp insert inner | 1 | 2.00 | |
| 1214850 | Rim | 11 | 2.00 | |
| 1234072 | Ring | 12 | 2.00 | |
| 1215996 | Headlamp insert outer | 2 | 2.00 |

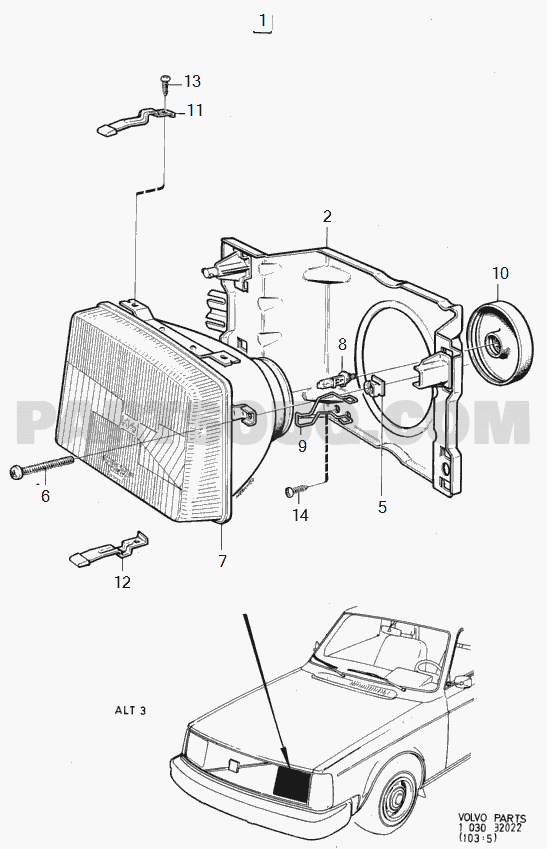

Headlights square
-1980
| Number | Name | Code | Quantity | PS Code |
|---|---|---|---|---|
| 987092 | Cross recessed screw | 13 | 4.00 | |
| 1235039 | 2 | 1.00 | ||
| 1235040 | Headlamp housing, right | 2 | 1.00 | OP |
| 1235684 | Adjuster kit | 2 | 2.00 | OP |
| 1235673 | Protecting casing | 10 | 2.00 | |
| 1235683 | Stop kit | 10 | 2.00 | |
| 989816 | Bulb | 8 | 1.00 | |
| 1235671 | Spring brace | 9 | 2.00 | |
| 982755 | Flange screw | 14 | 8.00 | |
| 1235679 | Headlamp insert | 7 | 1.00 | |
| 1235680 | Headlamp insert | 7 | 1.00 | |
| 1235677 | Headlamp insert | 7 | 1.00 | |
| 1235678 | Headlamp insert | 7 | 1.00 |
Headlights round
-1980.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1235911 | Spacer ring | 7 | 2.00 | L.H.T | |
| 1215363 | Screw | 19 | 4.00 | IK | |
| 1215362 | Nut | 20 | 4.00 | IK | |
| 679273 | Spacer ring | 8 | 2.00 | L.H.T | |
| 273576 | Repair kit | 23 | 1.00 | OP | EXC (CA),(US) |
| 985183 | Flange screw | 23 | 8.00 | EXC (CA),(US) | |
| 982754 | Flange screw | 21 | 8.00 | ||
| 1214839 | Retaining plate | 14 | 2.00 | (CA),(US) | |
| 1214829 | Retaining plate | 14 | 2.00 | IK | EXC (CA),(US) |
| 1235596 | Headlamp housing, left | 12 | 2.00 | IK | EXC (CA),(US) |
| 6857449 | Headlamp housing | 12 | 2.00 | OP | (CA),(US) (1214838) |
| 1215745 | Clamp | 13 | 8.00 | IK | |
| 989816 | Bulb | 3 | 2.00 | H4 60/55W (273581) | |
| 989752 | Bulb | 9 | 2.00 | OP | P45T 12V 40/45W (192455). |
| 1214833 | Anchorage | 15 | 2.00 | IK | |
| 1234903 | Headlamp insert | 10 | 2.00 | OP | (661890) 60/50W |
| 1234239 | Headlamp insert | 1 | 2.00 | R.H.T, VENV | |
| 240518 | Headlamp insert | 4 | 2.00 | L.H.T REPL 1 PCS 1212962-3. | |
| 1215282 | Headlamp insert | 1 | 2.00 | L.H.T | |
| 1215281 | Headlamp insert | 1 | 2.00 | R.H.T, EXC VENV | |
| 1235081 | Spacer | 22 | 2.00 | EXC (CA),(US) | |
| 1235209 | Spacer | 22 | 2.00 | (CA),(US) | |
| 1214835 | Rim | 17 | 2.00 | IK | EXC (CA),(US) |
| 1214841 | Rim | 17 | 2.00 | OP | (CA),(US) |
| 1212744 | Boot | 6 | 2.00 | OP | L.H.T (240148) |
| 1212744 | Boot | 2 | 2.00 | OP | (240148) |
| 1214834 | Tension spring | 16 | 2.00 | IK | |
| 240147 | Spring brace | 5 | 1.00 |
