Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |

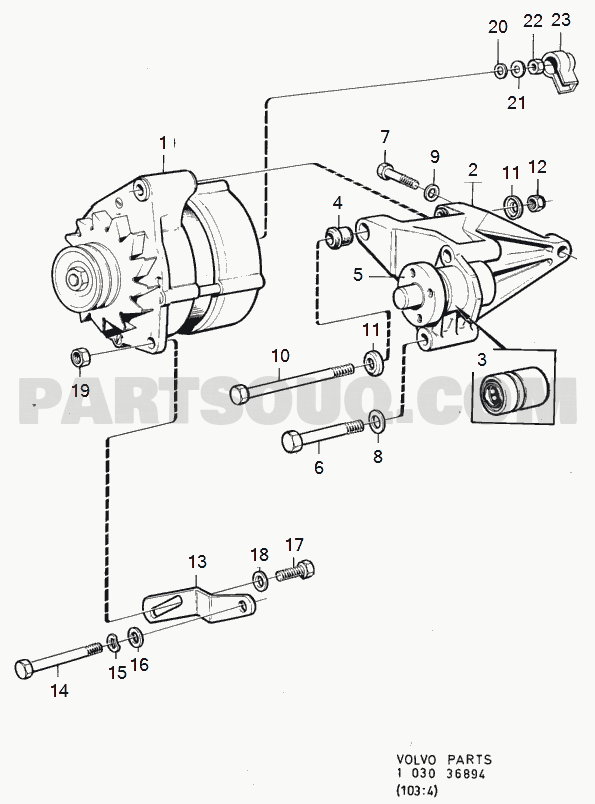

32 Alternator and regulator
generator (ac) with mounting parts
D20DSL
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1234326 | Protecting casing | 23 | 1.00 | ||
| 985876 | Hexagon nut | 22 | 1.00 | ||
| 986478 | Washer | 20 | 1.00 | ||
| 986499 | Washer | 21 | 1.00 | ||
| 948069 | Hexagon screw | 7 | 1.00 | (955298) | |
| 3544652 | Alternator | 1 | 1.00 | (1324957) 55A, BOSCH:0 120 489 296 | |
| 5001866 | Alternator, exch | 1 | 1.00 | EU | |
| 1257294 | Alternator | 1 | 1.00 | 55A, BOSCH:0 120 420 938 REPL 1 PCS 1323488-5 1 PCS 1324620-2 1 PCS 1259580-7. | |
| 1323488 | Alternator | 1 | 1.00 | 55A, BOSCH:0 120 489 069 REPL 1 PCS 1324957-8 | |
| 1308719 | Alternator | 1 | 1.00 | 55A, BOSCH:0 120 489 070 REPL 1PCS 1324957-8, REPL 1PCS 1259580-7. | |
| 1258994 | Alternator | 1 | 1.00 | 55A, BOSCH:0 120 420 939 REPL 1 PCS 1323488-5 1 PCS 1324620-2 1 PCS 1259580-7. | |
| 1308766 | Alternator | 1 | 1.00 | 55A, BOSCH:0 120 400 942 REPL 1 PCS 1323488-5 1 PCS 1324620-2 1 PCS 1259580-7. | |
| 5002048 | Alternator, exch | 1 | 1.00 | EU | (5001960) |
| 1323230 | Alternator | 1 | 1.00 | 55A, BOSCH:0 120 400 941 REPL 1 PCS 1323488-5 | |
| 986654 | Spring washer | 9 | 1.00 | ||
| 985877 | Hexagon nut | 12 | 1.00 | ||
| 1257214 | Bracket | 2 | 1.00 | ||
| 1328850 | Bushing | 4 | 2.00 | (1257379) | |
| 463429 | Hub | 5 | 1.00 | ||
| 1257558 | Washer | 11 | 2.00 | OP | |
| 982809 | Flange screw | 10 | 1.00 | (955309) | |
| 1257795 | Bearing | 3 | 1.00 | (1257219) | |
| 985877 | Hexagon nut | 19 | 1.00 | ||
| 986657 | Spring washer | 8 | 1.00 | ||
| 973246 | Hexagon screw | 6 | 2.00 | (949366) | |
| 949466 | Square neck screw | 17 | 1.00 | OP | |
| 986481 | Washer | 18 | 1.00 | ||
| 1257339 | Tensioning arm | 13 | 1.00 | ||
| 986501 | Washer | 16 | 1.00 | (960141) | |
| 986654 | Spring washer | 15 | 1.00 | ||
| 955303 | Hexagon screw | 14 | 1.00 |
