Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
33 Starting system

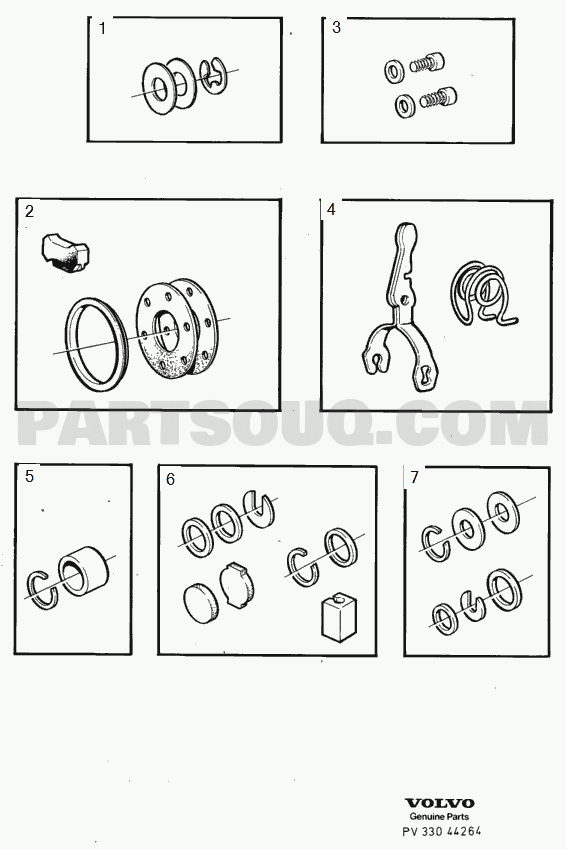

Starter motor repair kits DSL
D20
| Number | Name | Code | Quantity |
|---|---|---|---|
| 1257691 | Repair kit | 7 | 1.00 |
Starter motor 1257325
D20DSL
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1257325 | Starter motor | 1 | 1.00 | BOSCH: 0 001 362 069 REPL 1 PCS 1328391-6, 1 PCS 941935-9. | |
| 1328391 | Starter motor | 1 | 1.00 | For component parts, see other catalog using MASTER INDEX. | |
| 5003708 | Starter motor, exch | 1 | 1.00 | EU | |
| 956058 | Cross recessed screw | 31 | 1.00 | ||
| 1328138 | Actuator solenoid | 27 | 1.00 | (1257688) | |
| 858689 | Lock plate | 30 | 1.00 | OP | (241601) |
| 985878 | Hexagon nut | 29 | 1.00 | (955791) (971080) | |
| 986642 | Spring washer | 28 | 1.00 | ||
| 1257689 | Housing | 24 | 1.00 | OP | |
| 1257690 | Rotor | 2 | 1.00 | OP | |
| 6210773 | Screw | 21 | 1.00 | OP | |
| 6645020 | Engagement lever | 20 | 1.00 | ||
| 1257680 | Driving wheel | 4 | 1.00 | ||
| 1257681 | Bushing | 5 | 2.00 | ||
| 6645031 | Screw | 26 | 3.00 | ||
| 829708 | Bushing | 19 | 1.00 | ||
| 829694 | Bearing | 18 | 1.00 | OP | |
| 985877 | Hexagon nut | 23 | 1.00 | (244110) | |
| 986640 | Spring washer | 22 | 1.00 | ||
| 238813 | Bushing | 25 | 1.00 | ||
| 986199 | Six point socket screw | 9 | 2.00 | (233173) | |
| 829705 | Cover | 8 | 1.00 | OP | |
| 1257684 | Bearing shield | 6 | 1.00 | OP | |
| 6210777 | Bushing | 7 | 1.00 | ||
| 1257691 | Repair kit | 3 | 1.00 | ||
| 1257687 | Brush retainer | 13 | 1.00 | ||
| 985876 | Hexagon nut | 12 | 2.00 | ||
| 986478 | Washer | 11 | 2.00 | ||
| 829703 | Spring | 14 | 4.00 | OP | |
| 1257686 | Carbon brush set | 15 | 1.00 | ||
| 970943 | Hexagon screw | 16 | 4.00 | (969537)(956130) | |
| 1161326 | Grease | 33 | 1.00 | (1161133) | |
| 1257683 | Field winding | 17 | 1.00 | OP |
Starter motor 1257938
D20DSL
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1257938 | Starter motor | 1 | 1.00 | BOSCH: 0 001 362 077 REPL 1 PCS 1328391-6, 1 PCS 941935-9. | |
| 1328391 | Starter motor | 1 | 1.00 | For component parts, see other catalog using MASTER INDEX. | |
| 5003708 | Starter motor, exch | 1 | 1.00 | EU | |
| 956058 | Cross recessed screw | 31 | 1.00 | ||
| 1328138 | Actuator solenoid | 27 | 1.00 | (1326183) | |
| 858689 | Lock plate | 30 | 1.00 | OP | (241601) |
| 985878 | Hexagon nut | 29 | 1.00 | (955791) (971080) | |
| 986642 | Spring washer | 28 | 1.00 | ||
| 1257689 | Housing | 24 | 1.00 | OP | |
| 1257690 | Rotor | 2 | 1.00 | OP | |
| 6210773 | Screw | 21 | 1.00 | OP | |
| 6645020 | Engagement lever | 20 | 1.00 | ||
| 1257680 | Driving wheel | 4 | 1.00 | ||
| 1257681 | Bushing | 5 | 2.00 | ||
| 6645031 | Screw | 26 | 3.00 | ||
| 829708 | Bushing | 19 | 1.00 | ||
| 829694 | Bearing | 18 | 1.00 | OP | |
| 985877 | Hexagon nut | 23 | 1.00 | (244110) | |
| 986640 | Spring washer | 22 | 1.00 | ||
| 238813 | Bushing | 25 | 1.00 | ||
| 986199 | Six point socket screw | 9 | 2.00 | (233173) | |
| 829705 | Cover | 8 | 1.00 | OP | |
| 1257684 | Bearing shield | 6 | 1.00 | OP | |
| 6210777 | Bushing | 7 | 1.00 | ||
| 1257691 | Repair kit | 3 | 1.00 | ||
| 1257687 | Brush retainer | 13 | 1.00 | ||
| 985876 | Hexagon nut | 12 | 2.00 | ||
| 986478 | Washer | 11 | 2.00 | ||
| 829703 | Spring | 14 | 4.00 | OP | |
| 1257686 | Carbon brush set | 15 | 1.00 | ||
| 970943 | Hexagon screw | 16 | 4.00 | (969537)(956130) | |
| 1161326 | Grease | 33 | 1.00 | (1161133) | |
| 1257683 | Field winding | 17 | 1.00 | OP |
Starter motor 1257939
D20DSL
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1257939 | Starter motor | 1 | 1.00 | BOSCH: 0 001 362 083 REPL 1 PCS 1328391-6, 1 PCS 941935-9. | |
| 5003708 | Starter motor, exch | 1 | 1.00 | EU | |
| 1328391 | Starter motor | 1 | 1.00 | For component parts, see other catalog using MASTER INDEX. | |
| 956058 | Cross recessed screw | 31 | 1.00 | ||
| 1328138 | Actuator solenoid | 27 | 1.00 | ||
| 858689 | Lock plate | 30 | 1.00 | OP | (241601) |
| 985878 | Hexagon nut | 29 | 1.00 | (955783) | |
| 986642 | Spring washer | 28 | 1.00 | (1328134) | |
| 1328142 | Bearing shield | 24 | 1.00 | OP | |
| 1257690 | Rotor | 2 | 1.00 | OP | |
| 6210773 | Screw | 21 | 1.00 | OP | |
| 6645020 | Engagement lever | 20 | 1.00 | ||
| 1257680 | Driving wheel | 4 | 1.00 | ||
| 1257681 | Bushing | 5 | 2.00 | (1228130) | |
| 1328131 | Screw | 26 | 3.00 | OP | |
| 6644949 | Bushing | 19 | 1.00 | ||
| 6210770 | Bearing | 18 | 1.00 | OP | |
| 985877 | Hexagon nut | 23 | 1.00 | (244110) | |
| 986640 | Spring washer | 22 | 1.00 | ||
| 238813 | Bushing | 25 | 1.00 | ||
| 986199 | Six point socket screw | 9 | 2.00 | (233173) | |
| 829705 | Cover | 8 | 1.00 | OP | |
| 1257684 | Bearing shield | 6 | 1.00 | OP | |
| 6210777 | Bushing | 7 | 1.00 | ||
| 1257691 | Repair kit | 3 | 1.00 | ||
| 1257687 | Brush retainer | 13 | 1.00 | ||
| 985876 | Hexagon nut | 12 | 2.00 | ||
| 986478 | Washer | 11 | 2.00 | ||
| 829703 | Spring | 14 | 4.00 | OP | |
| 1328136 | Carbon brush set | 15 | 1.00 | ||
| 6211936 | Screw | 16 | 4.00 | OP | |
| 1161326 | Grease | 33 | 1.00 | (1161133) |
