Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |

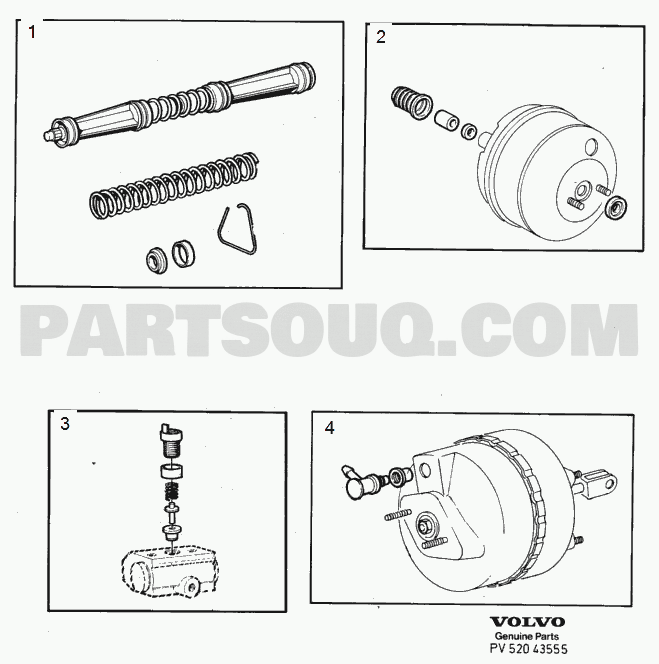

52 Hydraulic/Vacuum-hydraulic brakes
master cylinder servo cylinder Vacuum pump 240 5DRS
5DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1221757 | Bracket | 16 | 1.00 | OP | |
| 1229684 | Bracket | 13 | 1.00 | ||
| 1229148 | Reducing valve | 15 | 2.00 | OP | EXC TURBO |
| 1228738 | Reducing valve | 15 | 2.00 | DSL, TURBO | |
| 985887 | Lock nut | 17 | 2.00 | ||
| 985024 | Flange screw | 14 | 1.00 | ||
| 982791 | Flange screw | 19 | 2.00 | (940199) | |
| 1330797 | O-ring | 5 | 1.00 | ||
| 986654 | Spring washer | 18 | 2.00 | ||
| 985746 | Flange screw | 11 | 1.00 | (941110) | |
| 1273052 | Warning valve | 4 | 1.00 | (1272196) | |
| 986500 | Washer | 12 | 1.00 | ||
| 978390 | Hose clamp | 28 | 1.00 | ||
| 3530985 | Sealing ring | 2a | 1.00 | (1272078) | |
| 985875 | Hexagon nut | 30 | 1.00 | L.H.D | |
| 1272328 | Hose | 26 | x | ||
| 1272159 | Power cylinder | 1 | 1.00 | ALTER 1. REPL 1 PCS 3516654-5 4X10" DBA. Distinguishing marks: hot-dip galvanised (grey). | |
| 1229928 | Power cylinder | 1 | 1.00 | ALTER 1. 4X10" Girling, Distinguishing marks black point or yellow anodised. | |
| 955244 | Hexagon screw | 32 | 1.00 | (955243) L.H.D REPL 1 PCS 986198 | |
| 985868 | Flange lock nut | 2 | 4.00 | ||
| 952630 | Clamp | 29 | 1.00 | L.H.D | |
| 987891 | Flange lock nut | 33 | 2.00 | (971089) (985869)(971098) | |
| 978390 | Hose clamp | 27 | 1.00 | ||
| 1229336 | Power cylinder | 1a | 1.00 | ALTER 2 6x8 inch DBA, characteristic: unpainted | |
| 1229493 | Power cylinder | 1b | 1.00 | ALTER 3 6x8" GIRLING, Distinguishing marks: Black painted. | |
| 1228334 | Retaining clip | 31 | 1.00 | OP | L.H.D |
| 8111005 | Brake cylinder exch (outlet"a" on L.H. side) | 3 | 1.00 | EU | ALTER 2 (1330799)(1205893) |
| 8111006 | Brake cylinder exch (outlet"a" on R.H. side) | 3 | 1.00 | EU | ALTER 1 (1330800)(1205894) |
| 948211 | Cable tie | 42 | x | (948210) | |
| 986654 | Spring washer | 46 | 2.00 | DSL | |
| 953043 | Stud | 45 | 2.00 | DSL | |
| 1257207 | Push rod | 48 | 1.00 | DSL | |
| 272723 | Repair kit replacement of valves | 48 | 1.00 | DSL | |
| 272722 | Repair kit replacement of seals | 48 | 1.00 | DSL | |
| 272702 | Switch kit | 48 | 1.00 | ||
| 1328593 | Sealing ring | 47 | 1.00 | DSL | |
| 9135895 | Vacuum booster | 44 | 1.00 | OP | (1257206) DSL |
master cylinder servo cylinder Vacuum pump 240 5DRS
5DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1221757 | Bracket | 16 | 1.00 | OP | |
| 1229684 | Bracket | 13 | 1.00 | ||
| 1229148 | Reducing valve | 15 | 2.00 | OP | EXC TURBO |
| 1228738 | Reducing valve | 15 | 2.00 | DSL, TURBO | |
| 985887 | Lock nut | 17 | 2.00 | ||
| 985024 | Flange screw | 14 | 1.00 | ||
| 982791 | Flange screw | 19 | 2.00 | (940199) | |
| 1330797 | O-ring | 5 | 1.00 | ||
| 986654 | Spring washer | 18 | 2.00 | ||
| 985746 | Flange screw | 11 | 1.00 | (941110) | |
| 1273052 | Warning valve | 4 | 1.00 | (1272196) | |
| 986500 | Washer | 12 | 1.00 | ||
| 978390 | Hose clamp | 28 | 1.00 | ||
| 3530985 | Sealing ring | 2a | 1.00 | (1272078) | |
| 985875 | Hexagon nut | 30 | 1.00 | L.H.D | |
| 1272328 | Hose | 26 | x | ||
| 1272159 | Power cylinder | 1 | 1.00 | ALTER 1. REPL 1 PCS 3516654-5 4X10" DBA. Distinguishing marks: hot-dip galvanised (grey). | |
| 1229928 | Power cylinder | 1 | 1.00 | ALTER 1. 4X10" Girling, Distinguishing marks black point or yellow anodised. | |
| 955244 | Hexagon screw | 32 | 1.00 | (955243) L.H.D REPL 1 PCS 986198 | |
| 985868 | Flange lock nut | 2 | 4.00 | ||
| 952630 | Clamp | 29 | 1.00 | L.H.D | |
| 987891 | Flange lock nut | 33 | 2.00 | (971089) (985869)(971098) | |
| 978390 | Hose clamp | 27 | 1.00 | ||
| 1229336 | Power cylinder | 1a | 1.00 | ALTER 2 6x8 inch DBA, characteristic: unpainted | |
| 1229493 | Power cylinder | 1b | 1.00 | ALTER 3 6x8" GIRLING, Distinguishing marks: Black painted. | |
| 1228334 | Retaining clip | 31 | 1.00 | OP | L.H.D |
| 8111005 | Brake cylinder exch (outlet"a" on L.H. side) | 3 | 1.00 | EU | ALTER 2 (1330799)(1205893) |
| 8111006 | Brake cylinder exch (outlet"a" on R.H. side) | 3 | 1.00 | EU | ALTER 1 (1330800)(1205894) |
| 948211 | Cable tie | 42 | x | (948210) | |
| 986654 | Spring washer | 46 | 2.00 | DSL | |
| 953043 | Stud | 45 | 2.00 | DSL | |
| 1257207 | Push rod | 48 | 1.00 | DSL | |
| 272723 | Repair kit replacement of valves | 48 | 1.00 | DSL | |
| 272722 | Repair kit replacement of seals | 48 | 1.00 | DSL | |
| 272702 | Switch kit | 48 | 1.00 | ||
| 1328593 | Sealing ring | 47 | 1.00 | DSL | |
| 9135895 | Vacuum booster | 44 | 1.00 | OP | (1257206) DSL |
master cylinder servo cylinder Vacuum pump 240 2DRS, 4DRS
2DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1221757 | Bracket | 16 | 1.00 | OP | |
| 1229684 | Bracket | 13 | 1.00 | ||
| 1228688 | Reducing valve | 15 | 2.00 | DSL | |
| 1228738 | Reducing valve | 15 | 2.00 | ||
| 985887 | Lock nut | 17 | 2.00 | ||
| 985024 | Flange screw | 14 | 1.00 | ||
| 982791 | Flange screw | 19 | 2.00 | (940199) | |
| 1330797 | O-ring | 5 | 1.00 | ||
| 986654 | Spring washer | 18 | 2.00 | ||
| 985746 | Flange screw | 11 | 1.00 | (941110) | |
| 1273052 | Warning valve | 4 | 1.00 | (1272196) | |
| 986500 | Washer | 12 | 1.00 | ||
| 978390 | Hose clamp | 28 | 1.00 | ||
| 3530985 | Sealing ring | 2a | 1.00 | (1272078) | |
| 985875 | Hexagon nut | 30 | 1.00 | L.H.D | |
| 1272328 | Hose | 26 | x | ||
| 1272159 | Power cylinder | 1 | 1.00 | ALTER 1. REPL 1 PCS 3516654-5 4X10" DBA. Distinguishing marks: hot-dip galvanised (grey). | |
| 1229928 | Power cylinder | 1 | 1.00 | ALTER 1. 4X10" Girling, Distinguishing marks black point or yellow anodised. | |
| 955244 | Hexagon screw | 32 | 1.00 | (955243) L.H.D REPL 1 PCS 986198 | |
| 985868 | Flange lock nut | 2 | 4.00 | ||
| 952630 | Clamp | 29 | 1.00 | L.H.D | |
| 987891 | Flange lock nut | 33 | 2.00 | (971089) (985869)(971098) | |
| 978390 | Hose clamp | 27 | 1.00 | ||
| 1229336 | Power cylinder | 1a | 1.00 | ALTER 2 6x8 inch DBA, characteristic: unpainted | |
| 1229493 | Power cylinder | 1b | 1.00 | ALTER 3 6x8" GIRLING, Distinguishing marks: Black painted. | |
| 1228334 | Retaining clip | 31 | 1.00 | OP | L.H.D |
| 8111005 | Brake cylinder exch (outlet"a" on L.H. side) | 3 | 1.00 | EU | ALTER 2 (1330799)(1205893) |
| 8111006 | Brake cylinder exch (outlet"a" on R.H. side) | 3 | 1.00 | EU | ALTER 1 (1330800)(1205894) |
| 948211 | Cable tie | 42 | x | (948210) | |
| 986654 | Spring washer | 46 | 2.00 | DSL | |
| 953043 | Stud | 45 | 2.00 | DSL | |
| 1257207 | Push rod | 48 | 1.00 | DSL | |
| 272723 | Repair kit replacement of valves | 48 | 1.00 | DSL | |
| 272722 | Repair kit replacement of seals | 48 | 1.00 | DSL | |
| 272702 | Switch kit | 48 | 1.00 | ||
| 1328593 | Sealing ring | 47 | 1.00 | DSL | |
| 9135895 | Vacuum booster | 44 | 1.00 | OP | (1257206) DSL |
master cylinder servo cylinder Vacuum pump 240 2DRS, 4DRS
2DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1221757 | Bracket | 16 | 1.00 | OP | |
| 1229684 | Bracket | 13 | 1.00 | ||
| 1228688 | Reducing valve | 15 | 2.00 | DSL | |
| 1228738 | Reducing valve | 15 | 2.00 | ||
| 985887 | Lock nut | 17 | 2.00 | ||
| 985024 | Flange screw | 14 | 1.00 | ||
| 982791 | Flange screw | 19 | 2.00 | (940199) | |
| 1330797 | O-ring | 5 | 1.00 | ||
| 986654 | Spring washer | 18 | 2.00 | ||
| 985746 | Flange screw | 11 | 1.00 | (941110) | |
| 1273052 | Warning valve | 4 | 1.00 | (1272196) | |
| 986500 | Washer | 12 | 1.00 | ||
| 978390 | Hose clamp | 28 | 1.00 | ||
| 3530985 | Sealing ring | 2a | 1.00 | (1272078) | |
| 985875 | Hexagon nut | 30 | 1.00 | L.H.D | |
| 1272328 | Hose | 26 | x | ||
| 1272159 | Power cylinder | 1 | 1.00 | ALTER 1. REPL 1 PCS 3516654-5 4X10" DBA. Distinguishing marks: hot-dip galvanised (grey). | |
| 1229928 | Power cylinder | 1 | 1.00 | ALTER 1. 4X10" Girling, Distinguishing marks black point or yellow anodised. | |
| 955244 | Hexagon screw | 32 | 1.00 | (955243) L.H.D REPL 1 PCS 986198 | |
| 985868 | Flange lock nut | 2 | 4.00 | ||
| 952630 | Clamp | 29 | 1.00 | L.H.D | |
| 987891 | Flange lock nut | 33 | 2.00 | (971089) (985869)(971098) | |
| 978390 | Hose clamp | 27 | 1.00 | ||
| 1229336 | Power cylinder | 1a | 1.00 | ALTER 2 6x8 inch DBA, characteristic: unpainted | |
| 1229493 | Power cylinder | 1b | 1.00 | ALTER 3 6x8" GIRLING, Distinguishing marks: Black painted. | |
| 1228334 | Retaining clip | 31 | 1.00 | OP | L.H.D |
| 8111005 | Brake cylinder exch (outlet"a" on L.H. side) | 3 | 1.00 | EU | ALTER 2 (1330799)(1205893) |
| 8111006 | Brake cylinder exch (outlet"a" on R.H. side) | 3 | 1.00 | EU | ALTER 1 (1330800)(1205894) |
| 948211 | Cable tie | 42 | x | (948210) | |
| 986654 | Spring washer | 46 | 2.00 | DSL | |
| 953043 | Stud | 45 | 2.00 | DSL | |
| 1257207 | Push rod | 48 | 1.00 | DSL | |
| 272723 | Repair kit replacement of valves | 48 | 1.00 | DSL | |
| 272722 | Repair kit replacement of seals | 48 | 1.00 | DSL | |
| 272702 | Switch kit | 48 | 1.00 | ||
| 1328593 | Sealing ring | 47 | 1.00 | DSL | |
| 9135895 | Vacuum booster | 44 | 1.00 | OP | (1257206) DSL |
master cylinder servo cylinder Vacuum pump 240 2DRS, 4DRS
4DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1221757 | Bracket | 16 | 1.00 | OP | |
| 1229684 | Bracket | 13 | 1.00 | ||
| 1228688 | Reducing valve | 15 | 2.00 | DSL | |
| 1228738 | Reducing valve | 15 | 2.00 | ||
| 985887 | Lock nut | 17 | 2.00 | ||
| 985024 | Flange screw | 14 | 1.00 | ||
| 982791 | Flange screw | 19 | 2.00 | (940199) | |
| 1330797 | O-ring | 5 | 1.00 | ||
| 986654 | Spring washer | 18 | 2.00 | ||
| 985746 | Flange screw | 11 | 1.00 | (941110) | |
| 1273052 | Warning valve | 4 | 1.00 | (1272196) | |
| 986500 | Washer | 12 | 1.00 | ||
| 978390 | Hose clamp | 28 | 1.00 | ||
| 3530985 | Sealing ring | 2a | 1.00 | (1272078) | |
| 985875 | Hexagon nut | 30 | 1.00 | L.H.D | |
| 1272328 | Hose | 26 | x | ||
| 1272159 | Power cylinder | 1 | 1.00 | ALTER 1. REPL 1 PCS 3516654-5 4X10" DBA. Distinguishing marks: hot-dip galvanised (grey). | |
| 1229928 | Power cylinder | 1 | 1.00 | ALTER 1. 4X10" Girling, Distinguishing marks black point or yellow anodised. | |
| 955244 | Hexagon screw | 32 | 1.00 | (955243) L.H.D REPL 1 PCS 986198 | |
| 985868 | Flange lock nut | 2 | 4.00 | ||
| 952630 | Clamp | 29 | 1.00 | L.H.D | |
| 987891 | Flange lock nut | 33 | 2.00 | (971089) (985869)(971098) | |
| 978390 | Hose clamp | 27 | 1.00 | ||
| 1229336 | Power cylinder | 1a | 1.00 | ALTER 2 6x8 inch DBA, characteristic: unpainted | |
| 1229493 | Power cylinder | 1b | 1.00 | ALTER 3 6x8" GIRLING, Distinguishing marks: Black painted. | |
| 1228334 | Retaining clip | 31 | 1.00 | OP | L.H.D |
| 8111005 | Brake cylinder exch (outlet"a" on L.H. side) | 3 | 1.00 | EU | ALTER 2 (1330799)(1205893) |
| 8111006 | Brake cylinder exch (outlet"a" on R.H. side) | 3 | 1.00 | EU | ALTER 1 (1330800)(1205894) |
| 948211 | Cable tie | 42 | x | (948210) | |
| 986654 | Spring washer | 46 | 2.00 | DSL | |
| 953043 | Stud | 45 | 2.00 | DSL | |
| 1257207 | Push rod | 48 | 1.00 | DSL | |
| 272723 | Repair kit replacement of valves | 48 | 1.00 | DSL | |
| 272722 | Repair kit replacement of seals | 48 | 1.00 | DSL | |
| 272702 | Switch kit | 48 | 1.00 | ||
| 1328593 | Sealing ring | 47 | 1.00 | DSL | |
| 9135895 | Vacuum booster | 44 | 1.00 | OP | (1257206) DSL |
master cylinder servo cylinder Vacuum pump 240 2DRS, 4DRS
4DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1221757 | Bracket | 16 | 1.00 | OP | |
| 1229684 | Bracket | 13 | 1.00 | ||
| 1228688 | Reducing valve | 15 | 2.00 | DSL | |
| 1228738 | Reducing valve | 15 | 2.00 | ||
| 985887 | Lock nut | 17 | 2.00 | ||
| 985024 | Flange screw | 14 | 1.00 | ||
| 982791 | Flange screw | 19 | 2.00 | (940199) | |
| 1330797 | O-ring | 5 | 1.00 | ||
| 986654 | Spring washer | 18 | 2.00 | ||
| 985746 | Flange screw | 11 | 1.00 | (941110) | |
| 1273052 | Warning valve | 4 | 1.00 | (1272196) | |
| 986500 | Washer | 12 | 1.00 | ||
| 978390 | Hose clamp | 28 | 1.00 | ||
| 3530985 | Sealing ring | 2a | 1.00 | (1272078) | |
| 985875 | Hexagon nut | 30 | 1.00 | L.H.D | |
| 1272328 | Hose | 26 | x | ||
| 1272159 | Power cylinder | 1 | 1.00 | ALTER 1. REPL 1 PCS 3516654-5 4X10" DBA. Distinguishing marks: hot-dip galvanised (grey). | |
| 1229928 | Power cylinder | 1 | 1.00 | ALTER 1. 4X10" Girling, Distinguishing marks black point or yellow anodised. | |
| 955244 | Hexagon screw | 32 | 1.00 | (955243) L.H.D REPL 1 PCS 986198 | |
| 985868 | Flange lock nut | 2 | 4.00 | ||
| 952630 | Clamp | 29 | 1.00 | L.H.D | |
| 987891 | Flange lock nut | 33 | 2.00 | (971089) (985869)(971098) | |
| 978390 | Hose clamp | 27 | 1.00 | ||
| 1229336 | Power cylinder | 1a | 1.00 | ALTER 2 6x8 inch DBA, characteristic: unpainted | |
| 1229493 | Power cylinder | 1b | 1.00 | ALTER 3 6x8" GIRLING, Distinguishing marks: Black painted. | |
| 1228334 | Retaining clip | 31 | 1.00 | OP | L.H.D |
| 8111005 | Brake cylinder exch (outlet"a" on L.H. side) | 3 | 1.00 | EU | ALTER 2 (1330799)(1205893) |
| 8111006 | Brake cylinder exch (outlet"a" on R.H. side) | 3 | 1.00 | EU | ALTER 1 (1330800)(1205894) |
| 948211 | Cable tie | 42 | x | (948210) | |
| 986654 | Spring washer | 46 | 2.00 | DSL | |
| 953043 | Stud | 45 | 2.00 | DSL | |
| 1257207 | Push rod | 48 | 1.00 | DSL | |
| 272723 | Repair kit replacement of valves | 48 | 1.00 | DSL | |
| 272722 | Repair kit replacement of seals | 48 | 1.00 | DSL | |
| 272702 | Switch kit | 48 | 1.00 | ||
| 1328593 | Sealing ring | 47 | 1.00 | DSL | |
| 9135895 | Vacuum booster | 44 | 1.00 | OP | (1257206) DSL |
