Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |

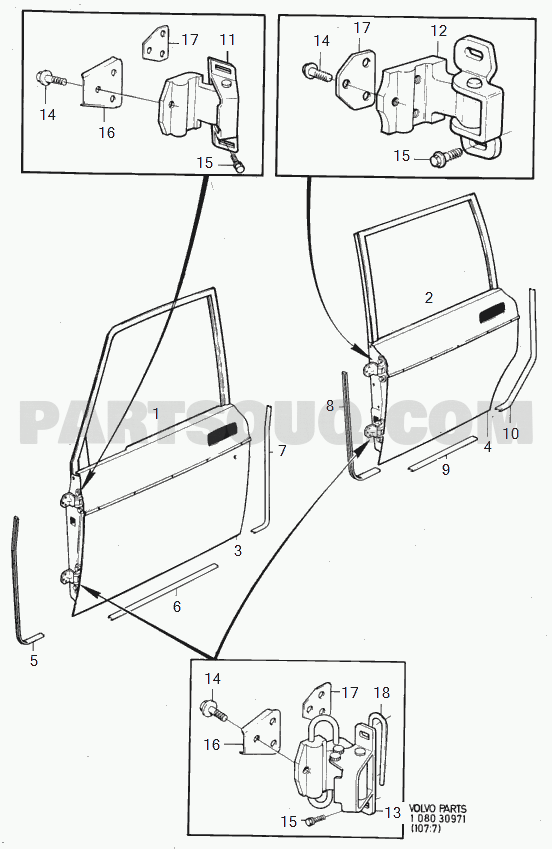

83 Doors and lids
body frame door 4DRS, 5DRS
4DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1315657 | Hinge, right | 12 | 1.00 | (1315099) | |
| 1315656 | Hinge, left | 12 | 1.00 | (1315098) | |
| 1315655 | Hinge, right | 11 | 1.00 | (1203531) | |
| 1315654 | Hinge, left | 11 | 1.00 | OP | (1203530) |
| 9131706 | Rear door, left | 2 | 1.00 | (1315679)(1255470) | |
| 9131707 | Rear door, right | 2 | 1.00 | (1315680)(1255471) | |
| 676082 | Retainer | 8 | x | LG 660 mm | |
| 1315683 | Front door, left | 1 | 1.00 | 1980- (1304167) | |
| 1255468 | Front door, left | 1 | 1.00 | -1979, REPL 1PCS 1315683-1 1PCS 1259485-9. Replacement parts included part or whole in new design, referred to in another section of this catalogue. | |
| 1315684 | Front door, right | 1 | 1.00 | 1980- (1304168) | |
| 1255469 | Front door, right | 1 | 1.00 | -1979, REPL 1PCS 1315684-9, 1PCS 1259485-9. Replacement parts included part or whole in new design, referred to in another section of this catalogue. | |
| 676082 | Retainer | 10 | x | LG 680 mm | |
| 1315665 | Gusset panel, right | 4 | 1.00 | (1213516) | |
| 1315664 | Gusset panel, left | 4 | 1.00 | (1213515) | |
| 676082 | Retainer | 7 | x | LG 650 mm | |
| 676082 | Retainer | 9 | x | LG 280 mm | |
| 1315668 | Gusset panel, left | 3 | 1.00 | (1254122) | |
| 1315669 | Gusset panel, right | 3 | 1.00 | (1315669) | |
| 676082 | Retainer | 6 | x | LG 480 mm | |
| 676082 | Retainer | 5 | x | LG 660 mm | |
| 982793 | Flange screw | 14 | 24.00 | ||
| 1203994 | Washer, rear | 17 | 4.00 | OP | |
| 684738 | Shim | 18 | x | ||
| 1355200 | Hinge, left | 13 | 2.00 | (1203528) | |
| 1355201 | Hinge, right | 13 | 2.00 | (1203529) | |
| 985186 | Flange screw | 15 | 16.00 |
body frame door 4DRS, 5DRS
4DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1315657 | Hinge, right | 12 | 1.00 | (1315099) | |
| 1315656 | Hinge, left | 12 | 1.00 | (1315098) | |
| 1315655 | Hinge, right | 11 | 1.00 | (1203531) | |
| 1315654 | Hinge, left | 11 | 1.00 | OP | (1203530) |
| 9131706 | Rear door, left | 2 | 1.00 | (1315679)(1255470) | |
| 9131707 | Rear door, right | 2 | 1.00 | (1315680)(1255471) | |
| 676082 | Retainer | 8 | x | LG 660 mm | |
| 1315683 | Front door, left | 1 | 1.00 | 1980- (1304167) | |
| 1255468 | Front door, left | 1 | 1.00 | -1979, REPL 1PCS 1315683-1 1PCS 1259485-9. Replacement parts included part or whole in new design, referred to in another section of this catalogue. | |
| 1315684 | Front door, right | 1 | 1.00 | 1980- (1304168) | |
| 1255469 | Front door, right | 1 | 1.00 | -1979, REPL 1PCS 1315684-9, 1PCS 1259485-9. Replacement parts included part or whole in new design, referred to in another section of this catalogue. | |
| 676082 | Retainer | 10 | x | LG 680 mm | |
| 1315665 | Gusset panel, right | 4 | 1.00 | (1213516) | |
| 1315664 | Gusset panel, left | 4 | 1.00 | (1213515) | |
| 676082 | Retainer | 7 | x | LG 650 mm | |
| 676082 | Retainer | 9 | x | LG 280 mm | |
| 1315668 | Gusset panel, left | 3 | 1.00 | (1254122) | |
| 1315669 | Gusset panel, right | 3 | 1.00 | (1315669) | |
| 676082 | Retainer | 6 | x | LG 480 mm | |
| 676082 | Retainer | 5 | x | LG 660 mm | |
| 982793 | Flange screw | 14 | 24.00 | ||
| 1203994 | Washer, rear | 17 | 4.00 | OP | |
| 684738 | Shim | 18 | x | ||
| 1355200 | Hinge, left | 13 | 2.00 | (1203528) | |
| 1355201 | Hinge, right | 13 | 2.00 | (1203529) | |
| 985186 | Flange screw | 15 | 16.00 |
body frame door 4DRS, 5DRS
5DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1315657 | Hinge, right | 12 | 1.00 | (1315099) | |
| 1315656 | Hinge, left | 12 | 1.00 | (1315098) | |
| 1315655 | Hinge, right | 11 | 1.00 | (1203531) | |
| 1315654 | Hinge, left | 11 | 1.00 | OP | (1203530) |
| 9131706 | Rear door, left | 2 | 1.00 | (1315679)(1255470) | |
| 9131707 | Rear door, right | 2 | 1.00 | (1315680)(1255471) | |
| 676082 | Retainer | 8 | x | LG 660 mm | |
| 1315683 | Front door, left | 1 | 1.00 | 1980- (1304167) | |
| 1255468 | Front door, left | 1 | 1.00 | -1979, REPL 1PCS 1315683-1 1PCS 1259485-9. Replacement parts included part or whole in new design, referred to in another section of this catalogue. | |
| 1315684 | Front door, right | 1 | 1.00 | 1980- (1304168) | |
| 1255469 | Front door, right | 1 | 1.00 | -1979, REPL 1PCS 1315684-9, 1PCS 1259485-9. Replacement parts included part or whole in new design, referred to in another section of this catalogue. | |
| 676082 | Retainer | 10 | x | LG 680 mm | |
| 1315665 | Gusset panel, right | 4 | 1.00 | (1213516) | |
| 1315664 | Gusset panel, left | 4 | 1.00 | (1213515) | |
| 676082 | Retainer | 7 | x | LG 650 mm | |
| 676082 | Retainer | 9 | x | LG 280 mm | |
| 1315668 | Gusset panel, left | 3 | 1.00 | (1254122) | |
| 1315669 | Gusset panel, right | 3 | 1.00 | (1315669) | |
| 676082 | Retainer | 6 | x | LG 480 mm | |
| 676082 | Retainer | 5 | x | LG 660 mm | |
| 982793 | Flange screw | 14 | 24.00 | ||
| 1203994 | Washer, rear | 17 | 4.00 | OP | |
| 684738 | Shim | 18 | x | ||
| 1355200 | Hinge, left | 13 | 2.00 | (1203528) | |
| 1355201 | Hinge, right | 13 | 2.00 | (1203529) | |
| 985186 | Flange screw | 15 | 16.00 |
