Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
51 Wheel brake
Rear wheel brake
GIRLING
| Number | Name | Code | Quantity | PS Code |
|---|---|---|---|---|
| 1205785 | Protecting plate, left | 16 | 1.00 | |
| 656456 | Rubber cap | 15 | 1.00 | IK |
| 678155 | Bleeder screw | 6 | 1.00 | OP |
| 678145 | Pin | 11 | 2.00 | IK |
| 664822 | Split pin | 12 | 2.00 | IK |
| 985421 | Flange screw | 17 | 2.00 | |
| 1330308 | Brake caliper left asbestos-free linings | 1 | 1.00 | |
| 5002006 | Brake caliper, exch | 1 | 1.00 | EU |
| 1228803 | Boot | 10 | 2.00 | |
| 685332 | Spacer | 9 | 2.00 | |
| 685331 | Piston | 8 | 2.00 | |
| 664816 | Sealing ring | 7 | 2.00 | IK |
| 31261184 | Brake pad kit asbestos-free linings | 14 | 1.00 | |
| 1273104 | Spring | 13 | 1.00 | |
| 273114 | Repair kit | 19 | 1.00 | |
| 986964 | Hexagon screw | 19 | 2.00 | |
| 272641 | Mounting kit | 19 | 1.00 | |
| 1205782 | Brake disc | 18 | 1.00 |
Rear wheel brake
GIRLING
| Number | Name | Code | Quantity | PS Code |
|---|---|---|---|---|
| 1205786 | Protecting plate, right | 16 | 1.00 | |
| 656456 | Rubber cap | 15 | 1.00 | IK |
| 678155 | Bleeder screw | 6 | 1.00 | OP |
| 678145 | Pin | 11 | 2.00 | IK |
| 664822 | Split pin | 12 | 2.00 | IK |
| 985421 | Flange screw | 17 | 2.00 | |
| 1330309 | Brake caliper right asbestos-free linings | 1 | 1.00 | |
| 5002007 | Brake caliper, exch | 1 | 1.00 | EU |
| 1228803 | Boot | 10 | 2.00 | |
| 685332 | Spacer | 9 | 2.00 | |
| 685331 | Piston | 8 | 2.00 | |
| 664816 | Sealing ring | 7 | 2.00 | IK |
| 31261184 | Brake pad kit asbestos-free linings | 14 | 1.00 | |
| 1273104 | Spring | 13 | 1.00 | |
| 273114 | Repair kit | 19 | 1.00 | |
| 986964 | Hexagon screw | 19 | 2.00 | |
| 272641 | Mounting kit | 19 | 1.00 | |
| 1205782 | Brake disc | 18 | 1.00 |
Front wheel brake, non-ventilated disc L.H.
GIRLING
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1272102 | Protector plate | 17 | 1.00 | ||
| 664822 | Split pin | 11 | 2.00 | IK | |
| 1228810 | Pin | 10 | 2.00 | (664821) | |
| 1272469 | Protecting plate | 16 | 1.00 | (1272207) | |
| 985034 | Flange screw | 18 | 3.00 | M8x10 | |
| 947328 | Hexagon screw | 15 | 2.00 | M12x31 | |
| 5002026 | Brake caliper, exch | 1 | 1.00 | EU | |
| 1330303 | Brake caliper, left | 1 | 1.00 | (1221957) EXC (DK),(FI),(NO),(SE) | |
| 670567 | Damping spring | 12 | 2.00 | IK | |
| 1272612 | Clamp | 23 | 2.00 | Service version. | |
| 31261180 | Brake pad kit asbestos-free linings | 13 | 1.00 | (270163) | |
| 1272611 | Sealing plate | 22 | 2.00 | IK | Service version. |
| 273786 | Mounting kit | 24 | 1.00 | ||
| 272691 | Mounting kit | 24 | 1.00 | (272637) | |
| 272648 | Repair kit | 24 | 1.00 | ||
| 190665 | Hexagon screw | 24 | 2.00 | Service version. | |
| 9131755 | Spacer | 21 | 4.00 | (1359198) Service version. | |
| 680532 | Snap ring | 9a | 4.00 | ||
| 1228803 | Boot | 9 | 4.00 | IK | |
| 1229048 | Piston | 8 | 4.00 | ||
| 664816 | Sealing ring | 7 | 4.00 | IK | |
| 678155 | Bleeder screw | 6 | 3.00 | ||
| 656456 | Rubber cap | 14 | 3.00 | ||
| 1228942 | Brake disc non-ventilated | 19 | 1.00 | REPL 1 PCS 270737-0 | |
| 986964 | Hexagon screw | 20 | 2.00 | (955270) |
Front wheel brake, non-ventilated disc R.H.
GIRLING
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1272102 | Protector plate | 17 | 1.00 | ||
| 664822 | Split pin | 11 | 2.00 | IK | |
| 1228810 | Pin | 10 | 2.00 | (664821) | |
| 1272469 | Protecting plate | 16 | 1.00 | (1272207) | |
| 985034 | Flange screw | 18 | 3.00 | M8x10 | |
| 947328 | Hexagon screw | 15 | 2.00 | M12x31 | |
| 5002027 | Brake caliper, exch | 1 | 1.00 | EU | |
| 1330304 | Brake caliper, right | 1 | 1.00 | (1221958) EXC (DK),(FI),(NO),(SE) | |
| 670567 | Damping spring | 12 | 2.00 | IK | |
| 1272612 | Clamp | 23 | 2.00 | Service version. | |
| 31261180 | Brake pad kit asbestos-free linings | 13 | 1.00 | (270163) | |
| 1272611 | Sealing plate | 22 | 2.00 | IK | Service version. |
| 273786 | Mounting kit | 24 | 1.00 | ||
| 272691 | Mounting kit | 24 | 1.00 | (272637) | |
| 272648 | Repair kit | 24 | 1.00 | ||
| 190665 | Hexagon screw | 24 | 2.00 | Service version. | |
| 9131755 | Spacer | 21 | 4.00 | (1359198) Service version. | |
| 680532 | Snap ring | 9a | 4.00 | ||
| 1228803 | Boot | 9 | 4.00 | IK | |
| 1229048 | Piston | 8 | 4.00 | ||
| 664816 | Sealing ring | 7 | 4.00 | IK | |
| 678155 | Bleeder screw | 6 | 3.00 | ||
| 656456 | Rubber cap | 14 | 3.00 | ||
| 1228942 | Brake disc non-ventilated | 19 | 1.00 | REPL 1 PCS 270737-0 | |
| 986964 | Hexagon screw | 20 | 2.00 | (955270) |
Front wheel brake, ventilated disc
GIRLING
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1272102 | Protector plate | 17 | 2.00 | ||
| 664822 | Split pin | 11 | 4.00 | IK | |
| 1228810 | Pin | 10 | 4.00 | ||
| 1272469 | Protecting plate | 16 | 2.00 | ||
| 947328 | Hexagon screw | 15 | 4.00 | M12x31 | |
| 985034 | Flange screw | 18 | 6.00 | M8x10 | |
| 1330306 | Brake caliper left asbestos-free linings | 1 | 1.00 | (1273430) EXC (DK),(FI),(NO),(SE) | |
| 1330307 | Brake caliper, right | 1 | 1.00 | (1273431) EXC (DK),(FI),(NO),(SE) | |
| 5002029 | Brake caliper, exch | 1 | 1.00 | EU | |
| 5002028 | Brake caliper, exch | 1 | 1.00 | EU | |
| 1272612 | Clamp | 23 | 4.00 | Service version. | |
| 670567 | Damping spring | 12 | 4.00 | IK | |
| 1272611 | Sealing plate | 22 | 4.00 | IK | Service version. |
| 272691 | Mounting kit | 24 | 2.00 | ||
| 272648 | Repair kit | 24 | 2.00 | ||
| 190665 | Hexagon screw | 24 | 4.00 | Service version. | |
| 273786 | Mounting kit | 24 | 1.00 | ||
| 31261180 | Brake pad kit asbestos-free linings | 13 | 1.00 | (270163) | |
| 680532 | Snap ring | 9a | 8.00 | ||
| 9131755 | Spacer | 21 | 2.00 | (1359198) Service version. | |
| 1228803 | Boot | 9 | 8.00 | IK | |
| 1229048 | Piston | 8 | 8.00 | ||
| 664816 | Sealing ring | 7 | 8.00 | IK | |
| 678155 | Bleeder screw | 6 | 6.00 | ||
| 656456 | Rubber cap | 14 | 6.00 | ||
| 1359131 | Brake disc | 19 | 2.00 | REPL 1 PCS 270739-6 | |
| 986964 | Hexagon screw | 20 | 4.00 | (955270) |
Rear wheel brake
ATE EXC (US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1205785 | Protecting plate, left | 15 | 1.00 | ||
| 1205786 | Protecting plate, right | 15 | 1.00 | ||
| 1228352 | Pin | 11 | 4.00 | IK | |
| 656456 | Rubber cap | 14 | 2.00 | ||
| 686234 | Bleeder screw | 6 | 2.00 | ||
| 985421 | Flange screw | 16 | 4.00 | (947327) M10x30 | |
| 5002010 | Brake caliper, exch | 1 | 1.00 | EU | (1359229)(1229551) |
| 5002011 | Brake caliper, exch | 1 | 1.00 | EU | (1359230)(1229552) |
| 1359772 | Spacer | 19 | 2.00 | (1228590) Service version. | |
| 272604 | Repair kit | 19 | 2.00 | ||
| 272643 | Mounting kit | 19 | 2.00 | ||
| 1228351 | Spring | 12 | 2.00 | IK | |
| 688739 | Piston | 8 | 4.00 | ||
| 271702 | Brake pad kit asbestos-free linings | 13 | 1.00 | (270166) | |
| 986964 | Hexagon screw | 18 | 4.00 | (955270) M6x14 | |
| 1205782 | Brake disc | 17 | 2.00 | REPL 1 PCS 270736-2 |

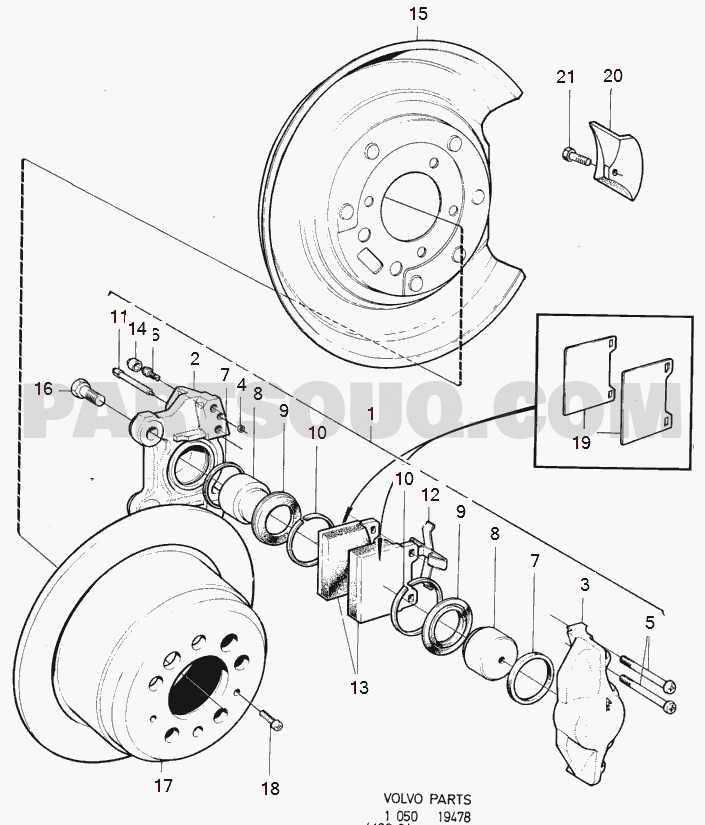

Rear wheel brake L.H.
ATE (US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1205785 | Protecting plate, left | 15 | 1.00 | ||
| 1229456 | Buffer | 20 | 2.00 | (1229000) | |
| 975238 | Flange screw | 21 | 2.00 | (948821) | |
| 272604 | Repair kit | 21 | 1.00 | ||
| 1228352 | Pin | 11 | 2.00 | IK | |
| 656456 | Rubber cap | 14 | 1.00 | ||
| 686234 | Bleeder screw | 6 | 1.00 | ||
| 985421 | Flange screw | 16 | 2.00 | (947327) M10x30 | |
| 5002010 | Brake caliper, exch | 1 | 1.00 | EU | (1359229)(1229551) |
| 1359772 | Spacer | 19 | 2.00 | (1228590) | |
| 1228351 | Spring | 12 | 1.00 | ||
| 688739 | Piston | 8 | 2.00 | ||
| 271702 | Brake pad kit asbestos-free linings | 13 | 1.00 | (270166) | |
| 1205782 | Brake disc | 17 | 1.00 | REPL 1 PCS 270736-2 | |
| 986964 | Hexagon screw | 18 | 2.00 | (955270) M6x14 |
Rear wheel brake R.H.
ATE (US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1205786 | Protecting plate, right | 15 | 1.00 | ||
| 1229456 | Buffer | 20 | 2.00 | (1229000) | |
| 975238 | Flange screw | 21 | 2.00 | (948821) | |
| 272604 | Repair kit | 21 | 1.00 | ||
| 1228352 | Pin | 11 | 2.00 | IK | |
| 656456 | Rubber cap | 14 | 1.00 | ||
| 686234 | Bleeder screw | 6 | 1.00 | ||
| 985421 | Flange screw | 16 | 2.00 | (947327) M10x30 | |
| 5002011 | Brake caliper, exch | 1 | 1.00 | EU | (1359230)(1229552) |
| 1359772 | Spacer | 19 | 2.00 | (1228590) | |
| 1228351 | Spring | 12 | 1.00 | ||
| 688739 | Piston | 8 | 2.00 | ||
| 271702 | Brake pad kit asbestos-free linings | 13 | 1.00 | (270166) | |
| 1205782 | Brake disc | 17 | 1.00 | REPL 1 PCS 270736-2 | |
| 986964 | Hexagon screw | 18 | 2.00 | (955270) M6x14 |
