Volvo Parts Catalogs 240

Brand	Name	Engine	Manufactured	Market	Profile Description	Gearbox
VOLVO	240	D20	1979	International Misc (INT)	240, 1979, D20, AW55	AW55

46 Rear axle, drive shafts

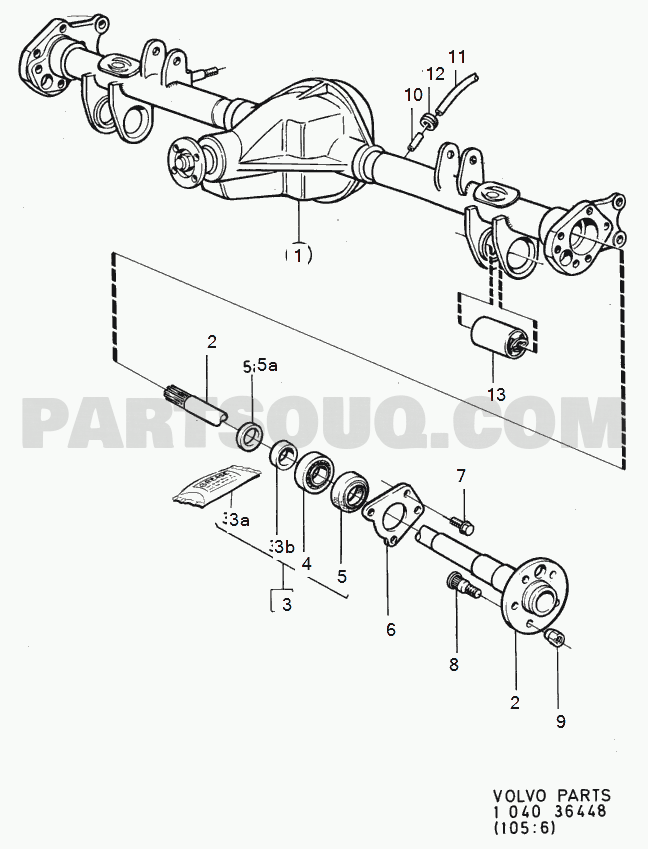

rear axle

Number	Name	Code	Quantity	Note
946763	Hose	11	x	LG 470 mm
96443	Rubber bushing	12	1.00
662014	Nipple	10	1.00
1216123	Rear axle reinforced	1	1.00	EXC D20, D24.
1216095	Rear axle reinforced	1	1.00	B19, D24.
1216162	Rear axle	1	1.00	B21FT AW71
1216104	Rear axle	1	1.00	B17, B19, B21, B23, D20
1216160	Rear axle	1	1.00	B23F M46 For cars with gear shift indicator.
1216343	Rear axle	1	1.00	B21, D20, D24 For component parts, see other catalog using MASTER INDEX.
1216118	Rear axle reinforced	1	1.00	B21, D20, D24.
1216159	Rear axle	1	1.00	B21A M45
1216097	Rear axle	1	1.00	4CYL TURBO, B23, B27, B28
1216098	Rear axle	1	1.00	B23, B27, B28, D24.
1216129	Rear axle	1	1.00	M46. B28, B23F, D24.
1216127	Rear axle	1	1.00	B21, D20, D24.
1216105	Rear axle	1	1.00	B19, B21, B23, D20, D24
1216094	Rear axle	1	1.00	B17, B19, B21, B23.
1216136	Rear axle reinforced	1	1.00	D24. REPL 1 PCS 1216341-6.
1216111	Rear axle reinforced	1	1.00	B23, B28, D24.
1216096	Rear axle	1	1.00	B19, B21, B23.
1216106	Rear axle	1	1.00	B19, B21.
1216108	Rear axle	1	1.00	B19, B21.
383222	Sealing ring	5a	1.00
1161241	Wheel bearing grease	3a	1.00	(1161232)
383168	Spacer ring	3b	1.00
384728	Roller bearing	4	1.00
384710	Sealing ring	5	1.00
273872	Repair kit	3	2.00
1229808	Wheel stud	8	10.00	(676338)
6843376	Drive shaft	2	2.00	(383094)

Wheel equipment

Number	Name	Code	Quantity	PS Code	Note
1206879	Wheel cap	3	4.00		240L,240GL
1229778	Wheel	1	5.00	OP	5x14"
1229792	Wheel	1	5.00	OP	(1229791) 5.5x14"
1229024	Anchorage	5	25.00
1272299	Wheel ring	9	4.00		(3699751) 5.5x14"
1206318	Wheel ring	9	4.00		(3699750) 5x14"
1229734	Wheel	2	5.00	OP	5x14"
1359670	Wheel	2	5.00	OP	(1229735) 5.5x14"
1272205	Spring anchorage	8	12.00
1272790	Hub cap	7a	4.00
1206278	Hub cap	4	4.00
1272211	Wheel cap	6	4.00		240L,240GL
1229365	Spare wheel	24	1.00		GT,262C
283075	Wheel	10	4.00	OP	5.5x14"
9434374	Spare wheel	22	1.00		(3530963)(1209938) EXC GT, 262C
9434374	Spare wheel	23	1.00		(3530963)(1229494) 4.5x14"
1128493	Wheel	11	4.00		5.5x14" GT
283092	Hub cap	7	4.00
1229737	Compressor	25	1.00	OP
1333684	Lug nut set	26	1.00	OP	ACC
1128867	Wheel	12	4.00	OP	6x15"
1272604	Hub cap	13	4.00
87699	Nut	19	20.00		ALTER 1
1273332	Wheel nut	20	20.00		(688984) ALTER 2
1129273	Lug nut set	20	2.00	OP
1272648	Nut	21	20.00	IK	ALTER 3
1228939	Plug	17	25.00
1129021	Hub cap	16	4.00	OP
1128730	Wheel	14	4.00	OP	5.5x14"
1272643	Wheel cap	16b	4.00
1129031	Hub cap	15	4.00
1342290	Hub cap	16c	4.00
1342925	Mounting kit	16a	1.00
1272205	Spring anchorage	16d	20.00
1272625	Spring	15b	4.00	OP

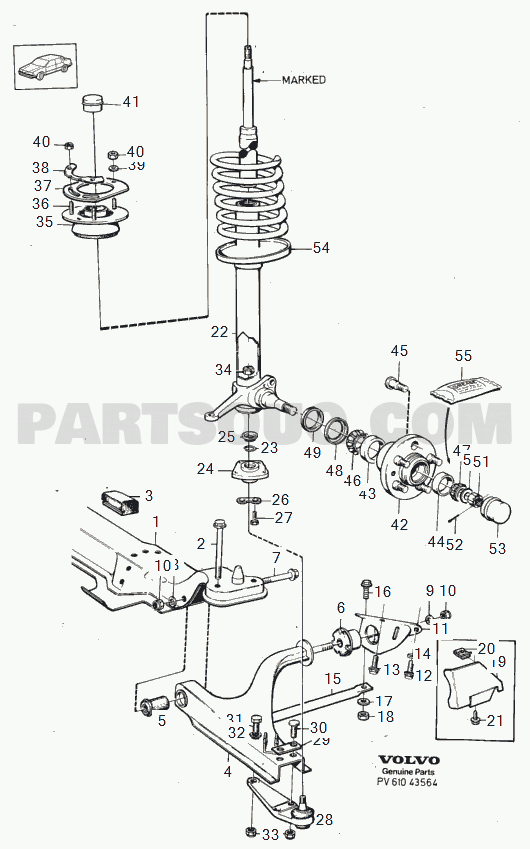

Front axle spring support

Number	Name	Code	Quantity	PS Code	Note
1205982	Protecting cap	41	2.00	OP
985868	Flange lock nut	40	6.00		(946036)
986481	Washer	39	2.00
1228577	Cover plate	38	2.00
1247816	Support plate	37	2.00
1272455	Shock absorber anchorage	35	2.00
1330551	Spring seat	54	2.00
1359630	Spring strut, right	22	1.00		(1229918) M16 REPL 1 PCS 1330739-2, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000
1330738	Spring strut, left	22	1.00	OP	(1273439) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-.
1359629	Spring strut, left	22	1.00		(1229917) M16 REPL 1 PCS 1330738-4, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000
1330739	Spring strut, right	22	1.00		(1273440) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-.
1229808	Wheel stud front	45	10.00
274100	Repair kit	55	2.00
1161241	Wheel bearing grease	55	1.00		(1161232)
274119	Ball joint kit	55	1.00		R.H. P.S
274118	Ball joint kit	55	1.00		L.H. P.S
274117	Ball joint kit	55	1.00		L.H. STD W/O P.S
271391	Front wheel bearing kit	55	2.00		(273824)
273161	Front wheel bearing kit	55	2.00
948068	Nut	34	2.00
1229423	Seat	25	2.00
949147	Snap ring	23	2.00
184071	Cone	47	2.00		ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9.
181585	Cone	47	2.00	IK	ALTER 1
944185	Sealing ring	49	2.00
986656	Spring washer	50	2.00		18 mm
1272918	Nut	51	2.00		ALTER 2. M18
1273045	Nut	51	2.00		(948518) ALTER 1. M16
1229425	Anchorage	24	2.00	OP
1229075	Sealing washer	48	2.00		242 CH APP 191001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-.
1273517	Sealing washer	48	2.00		ALTER 2. I.DIA 43 mm
684731	Sealing washer	48	2.00		ALTER 1. I.DIA 46 mm
183576	Cone	46	2.00		ALTER 2
181588	Cone	46	2.00		ALTER 1
181587	Cup	43	2.00	IK	ALTER 1
183577	Cup	43	2.00		ALTER 2
1206478	Rubber cushion	3	1.00		4 CYL EXC DSL (CA),(US)
1229417	Lock washer	26	4.00
985039	Flange screw	27	8.00
1205674	Front member	1	1.00
1229073	Front wheel hub	42	2.00		ALTER 2. M18
1228941	Front wheel hub	42	2.00		ALTER 1. M16
181584	Cup	44	2.00	IK	ALTER 1
184070	Cup	44	2.00		ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9.
907862	Split pin	52	2.00	OP
946474	Flange screw	2	4.00
1359149	Grease cup	53	2.00		(1273046)
982849	Flange screw	7	2.00
986485	Washer	8	2.00
985870	Flange lock nut	10	4.00		(971084)(946034)
986504	Washer	9	2.00
988182	Flange screw	16	4.00
1359812	Bushing, left left rear	6	1.00		(1273711)
1273778	Bushing right rear	6	1.00		(1273711)
1272494	Bracket, right reinforced	11	1.00	OP
1205819	Bracket, left	11	1.00
1273792	Bracket, left reinforced	11	1.00		REPL 1 PCS 1272493-6, 1 PCS 1273711-0
1205822	Bracket, right	11	1.00
1273793	Bracket, right reinforced	11	1.00		REPL 1 PCS 1272494-4 1 PCS 1273711-0
1272493	Bracket, left reinforced	11	1.00
946418	Spring nut	20	1.00		(1255989)
986483	Washer	14	2.00
1273398	Heat shield	19	1.00		(1304237) B21 TURBO, B28F
985191	Flange screw	13	2.00		M10x25
985191	Flange screw	12	4.00		M10x25
1229483	Stay	15	2.00
986483	Washer	17	4.00
987891	Flange lock nut	18	4.00		(971083) (985869)(971098)
985393	Flange screw	31	2.00		(963265) (970898)
946485	Sems screw	21	1.00		REPL 1PCS 985744, 1PCS 986500
1205825	Bushing, front	5	2.00
986485	Washer	32	2.00
1221549	Screw plate	29	2.00
1229925	Control arm, right reinforced	4	1.00		EXC (CA),(US)
1205686	Control arm, right	4	1.00
1229923	Control arm, left reinforced	4	1.00		EXC (CA),(US)
1205680	Control arm, left	4	1.00
969317	Flange lock nut	33	6.00		(946810)
