Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
46 Rear axle, drive shafts

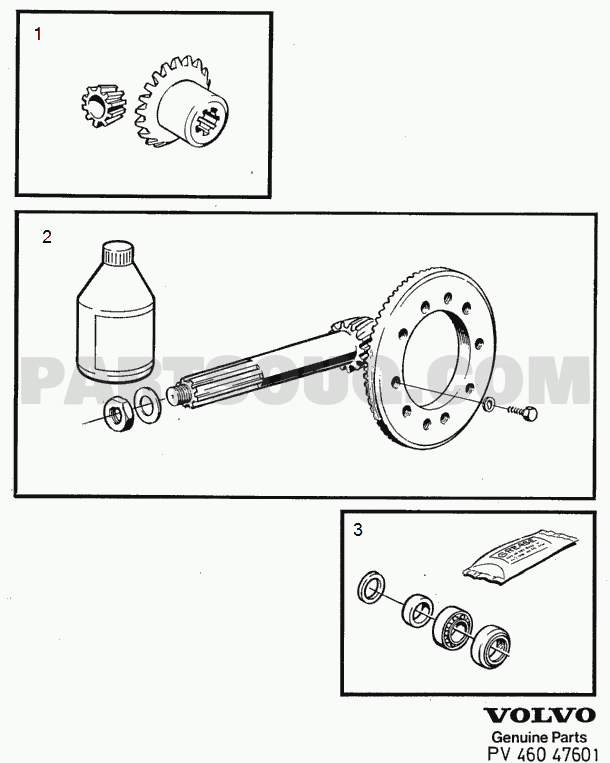

repair kits rear axle
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 271914 | Differential pinion set | 1 | 1.00 | ||
| 273924 | Drive gear set | 2 | 1.00 | OP | R.AX RATIO 3.15/1 R.AX MARKED 1216159 |
| 271650 | Drive gear set | 2 | 1.00 | R.AX RATIO 3.31/1 R.AX MARKED 1216129 1216130 (271254)(273139) | |
| 274194 | Drive gear set | 2 | 1.00 | R.AX RATIO 3.54/1 R.AX MARKED 1216098 1216102, 1216111 1216112 (271255)(273410) | |
| 273800 | Drive gear set | 2 | 1.00 | R.AX RATIO 3.54/1 R.AX MARKED 1216119 1216127, 1216128, 1216136, 1216137 | |
| 271335 | Drive gear set | 2 | 1.00 | (273409) R.AX MARKED 1216097 1216101, 1216120 1216123 (271256) | |
| 273472 | Drive gear set | 2 | 1.00 | R.AX RATIO 3.73/1 R.AX MARKED 1216096 1216100, 1216106 1216105, 1216108 1216118 | |
| 273408 | Drive gear set | 2 | 1.00 | R.AX RATIO 3.91/1 R.AX MARKED 1216094 1216095, 1216099 1216104, 1216117 1216131 | |
| 271257 | Drive gear set | 2 | 1.00 | R.AX RATIO 3.91/1 R.AX MARKED 1216162 (273980) | |
| 274208 | Drive gear set | 2 | 1.00 | OP | R.AX RATIO 4.56/1 R.AX MARKED 1216103 (273798) |
| 273872 | Repair kit rearwheel bearing | 3 | 1.00 |

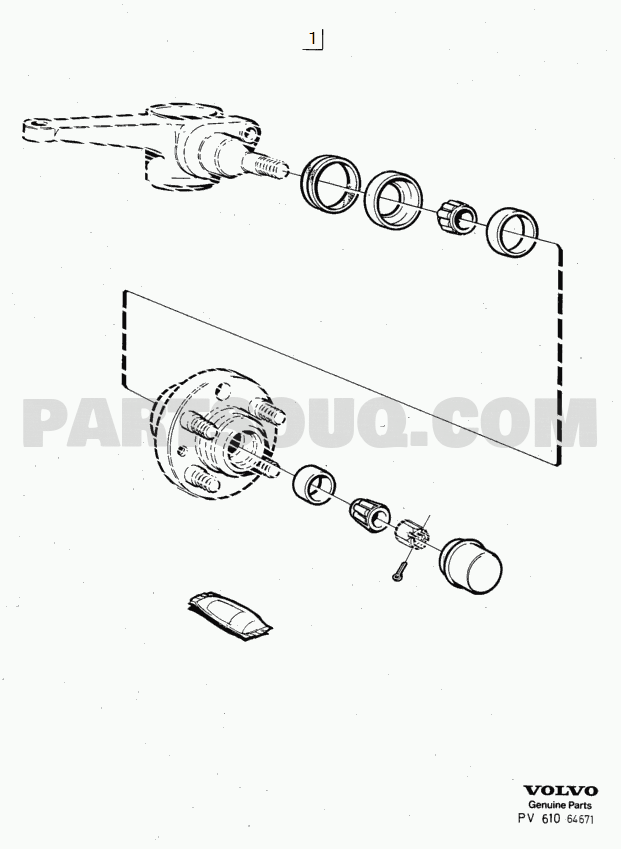

repair kits Front wheel bearing
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 273161 | Front wheel bearing kit | 1 | 2.00 | 242 CH -APP 191000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000 |
| 271391 | Front wheel bearing kit | 1 | 2.00 | (273824) 242 CH APP 191001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. |
rear axle
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 946763 | Hose | 11 | x | LG 470 mm |
| 96443 | Rubber bushing | 12 | 1.00 | |
| 662014 | Nipple | 10 | 1.00 | |
| 1216123 | Rear axle reinforced | 1 | 1.00 | EXC D20, D24. |
| 1216095 | Rear axle reinforced | 1 | 1.00 | B19, D24. |
| 1216162 | Rear axle | 1 | 1.00 | B21FT AW71 |
| 1216104 | Rear axle | 1 | 1.00 | B17, B19, B21, B23, D20 |
| 1216160 | Rear axle | 1 | 1.00 | B23F M46 For cars with gear shift indicator. |
| 1216343 | Rear axle | 1 | 1.00 | B21, D20, D24 For component parts, see other catalog using MASTER INDEX. |
| 1216118 | Rear axle reinforced | 1 | 1.00 | B21, D20, D24. |
| 1216159 | Rear axle | 1 | 1.00 | B21A M45 |
| 1216097 | Rear axle | 1 | 1.00 | 4CYL TURBO, B23, B27, B28 |
| 1216098 | Rear axle | 1 | 1.00 | B23, B27, B28, D24. |
| 1216129 | Rear axle | 1 | 1.00 | M46. B28, B23F, D24. |
| 1216127 | Rear axle | 1 | 1.00 | B21, D20, D24. |
| 1216105 | Rear axle | 1 | 1.00 | B19, B21, B23, D20, D24 |
| 1216094 | Rear axle | 1 | 1.00 | B17, B19, B21, B23. |
| 1216136 | Rear axle reinforced | 1 | 1.00 | D24. REPL 1 PCS 1216341-6. |
| 1216111 | Rear axle reinforced | 1 | 1.00 | B23, B28, D24. |
| 1216096 | Rear axle | 1 | 1.00 | B19, B21, B23. |
| 1216106 | Rear axle | 1 | 1.00 | B19, B21. |
| 1216108 | Rear axle | 1 | 1.00 | B19, B21. |
| 383222 | Sealing ring | 5a | 1.00 | |
| 1161241 | Wheel bearing grease | 3a | 1.00 | (1161232) |
| 383168 | Spacer ring | 3b | 1.00 | |
| 384728 | Roller bearing | 4 | 1.00 | |
| 384710 | Sealing ring | 5 | 1.00 | |
| 273872 | Repair kit | 3 | 2.00 | |
| 1229808 | Wheel stud | 8 | 10.00 | (676338) |
| 6843376 | Drive shaft | 2 | 2.00 | (383094) |

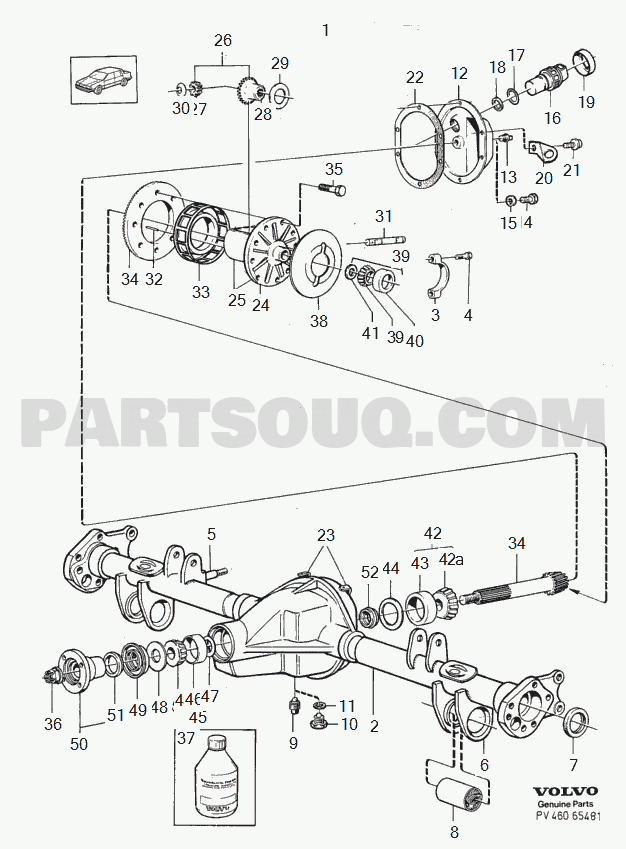

rear axle MARKED 1030
EXC ANTI-SPIN
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1216095 | Rear axle | 1 | 1.00 | ||
| 1216136 | Rear axle | 1 | 1.00 | ||
| 1216118 | Rear axle | 1 | 1.00 | ||
| 271914 | Differential pinion set | 26 | 1.00 | ||
| 1232436 | Thrust washer | 29 | 2.00 | ||
| 89671 | Inspection cover | 12 | 1.00 | ||
| 1377332 | Gasket asbestos-free | 22 | 1.00 | (89254) | |
| 384209 | Thrust washer | 30 | 2.00 | ||
| 979650 | Flange screw | 35 | 10.00 | (1217099) | |
| 988177 | Flange screw | 21 | 1.00 | ALTER 2. LG 14 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 982791 | Flange screw | 21 | 9.00 | ALTER 2. LG 12 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 942624 | Flange screw | 21 | 10.00 | ALTER 1. LG 13 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 REPL 1PCS 940113, 1PCS 986481 | |
| 952359 | Plug | 13 | 1.00 | ||
| 384201 | Spindle | 31 | 1.00 | ||
| 986817 | Plug | 14 | 1.00 | ||
| 957181 | Gasket | 15 | 1.00 | ||
| 183842 | Roller bearing | 39 | 2.00 | (181305),(181662) | |
| 191838 | Spring pin | 32 | 1.00 | ||
| 1232722 | Differential housing | 25 | 1.00 | OP | (383258) |
| 274322 | Differential | 24 | 1.00 | EXC R.AX MARKED 1216160 (1232771)(1217079) | |
| 985387 | Flange screw | 4 | 4.00 | M10x55 (963248) (970881) (969446) | |
| 955551 | Hexagon screw | 4 | 4.00 | ALTER 1. LG 57 mm | |
| 383253 | Lock plate | 38 | 1.00 | ||
| 81377 | Shim | 41 | x | THK 0.75 mm | |
| 81375 | Shim | 41 | x | THK 0.13 mm | |
| 81374 | Shim | 41 | x | THK 0.08 mm | |
| 183840 | Roller bearing | 42 | 1.00 | (181303),(181304) | |
| 1221660 | Anchorage | 23 | 1.00 | ||
| 273408 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.91/1 | |
| 273800 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.54/1 | |
| 273472 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.73/1 | |
| 191841 | Shim | 44 | x | THK 0.25 mm | |
| 87655 | Shim | 44 | x | THK 0.08 mm | |
| 191840 | Shim | 44 | x | THK 0.13 mm | |
| 1340791 | Pretensioning sleeve | 52 | 1.00 | Pinions marked VOLVO-1232254, -1232258, -1220940, -1220962, -1220934. | |
| 1220982 | Shim | 47 | x | THK 0.08 mm | |
| 1220981 | Shim | 47 | x | THK 0.13 mm | |
| 1220980 | Shim | 47 | x | THK 0.25 mm | |
| 384371 | Shim | 47 | x | OP | THK 0.72 mm |
| 957181 | Gasket | 11 | 1.00 | ||
| 80506 | Shim | 48 | 1.00 | ||
| 9143317 | Sealing ring | 49 | 1.00 | (3520682) | |
| 81388 | Dust cover | 51 | 1.00 | ||
| 183839 | Roller bearing | 45 | 1.00 | (181301),(181302) | |
| 947855 | Flange lock nut | 36 | 1.00 | IK | |
| 1381498 | Magnetic plug | 10 | 1.00 | (1209293)(1377334) | |
| 1232421 | Rear axle casing | 2 | 1.00 | R.AX MARKED 1216095 1216118. REPL 1 PCS 1209357-1 10 PCS 947107-9. | |
| 1209357 | Rear axle casing | 2 | 1.00 | OP | R.AX MARKED 1216136. |
| 982791 | Flange screw | 2 | 10.00 | M8x12 | |
| 1161329 | Rear axle oil | 37 | 3.00 | (1161276),0.5 l | |
| 384720 | Companion flange | 50 | 1.00 | ||
| 951901 | Plug | 9 | 1.00 | ||
| 383222 | Sealing ring | 7 | 2.00 | ||
| 1229165 | Bushing | 8 | 2.00 | (1229628) Both bushings must be replaced at the same time. |
rear axle MARKED 1030
EXC ANTI-SPIN
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1216094 | Rear axle | 1 | 1.00 | ||
| 1216104 | Rear axle | 1 | 1.00 | ||
| 1216105 | Rear axle | 1 | 1.00 | ||
| 1216106 | Rear axle | 1 | 1.00 | ||
| 1216108 | Rear axle | 1 | 1.00 | ||
| 1216127 | Rear axle | 1 | 1.00 | ||
| 1216096 | Rear axle | 1 | 1.00 | ||
| 271914 | Differential pinion set | 26 | 1.00 | ||
| 1232436 | Thrust washer | 29 | 2.00 | ||
| 89671 | Inspection cover | 12 | 1.00 | ||
| 1377332 | Gasket asbestos-free | 22 | 1.00 | (89254) | |
| 384209 | Thrust washer | 30 | 2.00 | ||
| 979650 | Flange screw | 35 | 10.00 | (1217099) | |
| 988177 | Flange screw | 21 | 1.00 | ALTER 2. LG 14 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 982791 | Flange screw | 21 | 9.00 | ALTER 2. LG 12 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 942624 | Flange screw | 21 | 10.00 | ALTER 1. LG 13 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 REPL 1PCS 940113, 1PCS 986481 | |
| 952359 | Plug | 13 | 1.00 | ||
| 384201 | Spindle | 31 | 1.00 | ||
| 986817 | Plug | 14 | 1.00 | ||
| 957181 | Gasket | 15 | 1.00 | ||
| 183842 | Roller bearing | 39 | 2.00 | (181305),(181662) | |
| 191838 | Spring pin | 32 | 1.00 | ||
| 1232722 | Differential housing | 25 | 1.00 | OP | (383258) |
| 274322 | Differential | 24 | 1.00 | EXC R.AX MARKED 1216160 (1232771)(1217079) | |
| 955551 | Hexagon screw | 4 | 4.00 | ALTER 1. LG 57 mm | |
| 985387 | Flange screw | 4 | 4.00 | M10x55 (963248) (970881) (969446) | |
| 383253 | Lock plate | 38 | 1.00 | ||
| 81377 | Shim | 41 | x | THK 0.75 mm | |
| 81375 | Shim | 41 | x | THK 0.13 mm | |
| 81374 | Shim | 41 | x | THK 0.08 mm | |
| 183840 | Roller bearing | 42 | 1.00 | (181303),(181304) | |
| 1221660 | Anchorage | 23 | 1.00 | ||
| 274208 | Drive gear set | 34 | 1.00 | OP | R.AX RATIO 4.56/1 (273798) |
| 273408 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.91/1 | |
| 273472 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.73/1 | |
| 273800 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.54/1 | |
| 191841 | Shim | 44 | x | THK 0.25 mm | |
| 87655 | Shim | 44 | x | THK 0.08 mm | |
| 191840 | Shim | 44 | x | THK 0.13 mm | |
| 1340791 | Pretensioning sleeve | 52 | 1.00 | Pinions marked VOLVO-1232254, -1232258, -1220940, -1220962, -1220934. | |
| 1220981 | Shim | 47 | x | THK 0.13 mm | |
| 384371 | Shim | 47 | x | OP | THK 0.72 mm |
| 1220980 | Shim | 47 | x | THK 0.25 mm | |
| 1220982 | Shim | 47 | x | THK 0.08 mm | |
| 957181 | Gasket | 11 | 1.00 | ||
| 80506 | Shim | 48 | 1.00 | ||
| 9143317 | Sealing ring | 49 | 1.00 | (3520682) | |
| 81388 | Dust cover | 51 | 1.00 | ||
| 183839 | Roller bearing | 45 | 1.00 | (181301),(181302) | |
| 947855 | Flange lock nut | 36 | 1.00 | IK | |
| 1381498 | Magnetic plug | 10 | 1.00 | (1209293)(1377334) | |
| 982791 | Flange screw | 2 | 10.00 | M8x12 | |
| 1209357 | Rear axle casing | 2 | 1.00 | OP | |
| 1232609 | Rear axle casing | 2 | 1.00 | REPL 1 PCS 1209357, 10 PCS 982791. | |
| 1161329 | Rear axle oil | 37 | 3.00 | (1161276),0.5 l | |
| 384720 | Companion flange | 50 | 1.00 | ||
| 951901 | Plug | 9 | 1.00 | ||
| 383222 | Sealing ring | 7 | 2.00 | ||
| 1229165 | Bushing | 8 | 2.00 | (1229628) Both bushings must be replaced at the same time. |
rear axle MARKED 1031
EXC ANTI-SPIN
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1216111 | Rear axle | 1 | 1.00 | ||
| 1216123 | Rear axle | 1 | 1.00 | ||
| 271914 | Differential pinion set | 26 | 1.00 | ||
| 1232436 | Thrust washer | 29 | 2.00 | ||
| 89671 | Inspection cover | 12 | 1.00 | ||
| 1377332 | Gasket asbestos-free | 22 | 1.00 | (89254) | |
| 384209 | Thrust washer | 30 | 2.00 | ||
| 979650 | Flange screw | 35 | 10.00 | (1217099) | |
| 942624 | Flange screw | 21 | 10.00 | ALTER 1. LG 13 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 REPL 1PCS 940113, 1PCS 986481 | |
| 988177 | Flange screw | 21 | 1.00 | ALTER 2. LG 14 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 982791 | Flange screw | 21 | 9.00 | ALTER 2. LG 12 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 952359 | Plug | 13 | 1.00 | ||
| 384201 | Spindle | 31 | 1.00 | ||
| 986817 | Plug | 14 | 1.00 | ||
| 957181 | Gasket | 15 | 1.00 | ||
| 183842 | Roller bearing | 39 | 2.00 | (181305),(181662) | |
| 191838 | Spring pin | 32 | 1.00 | ||
| 1232722 | Differential housing | 25 | 1.00 | OP | (383258) |
| 274322 | Differential | 24 | 1.00 | EXC R.AX MARKED 1216160 (1232771)(1217079) | |
| 955551 | Hexagon screw | 4 | 4.00 | ALTER 1. LG 57 mm | |
| 985387 | Flange screw | 4 | 4.00 | M10x55 (963248) (970881) (969446) | |
| 383253 | Lock plate | 38 | 1.00 | ||
| 81374 | Shim | 41 | x | THK 0.08 mm | |
| 81375 | Shim | 41 | x | THK 0.13 mm | |
| 81377 | Shim | 41 | x | THK 0.75 mm | |
| 183841 | Roller bearing | 42 | 1.00 | (183327),(183328) | |
| 1221660 | Anchorage | 23 | 1.00 | ||
| 271335 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.73/1 (271256) | |
| 274194 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.54/1 (271255)(273410) | |
| 81383 | Shim | 44 | x | THK 0.08 mm | |
| 81384 | Shim | 44 | x | THK 0.13 mm | |
| 120623 | Shim | 44 | x | THK 0.25 mm | |
| 384871 | Shim | 47 | x | THK 1.20 mm | |
| 1220983 | Shim | 47 | x | THK 0.25 mm | |
| 1220984 | Shim | 47 | x | THK 0.13 mm | |
| 1220985 | Shim | 47 | x | THK 0.08 mm | |
| 957181 | Gasket | 11 | 1.00 | ||
| 80506 | Shim | 48 | 1.00 | ||
| 9143317 | Sealing ring | 49 | 1.00 | (3520682) | |
| 81388 | Dust cover | 51 | 1.00 | ||
| 183839 | Roller bearing | 45 | 1.00 | (181301),(181302) | |
| 947855 | Flange lock nut | 36 | 1.00 | IK | |
| 1381498 | Magnetic plug | 10 | 1.00 | (1209293)(1377334) | |
| 1232677 | Rear axle casing | 2 | 1.00 | REPL 1 PCS 1209359, 10 PCS 947107. | |
| 982791 | Flange screw | 2 | 10.00 | M8x12 | |
| 6814453 | Rear axle casing | 2 | 1.00 | (1209359) | |
| 1209359 | Rear axle casing | 2 | 1.00 | REPL 1 PCS 6814453, 10 PCS 982791. | |
| 1161329 | Rear axle oil | 37 | 3.00 | (1161276),0.5 l | |
| 384720 | Companion flange | 50 | 1.00 | ||
| 951901 | Plug | 9 | 1.00 | ||
| 383222 | Sealing ring | 7 | 2.00 | ||
| 1229165 | Bushing | 8 | 2.00 | (1229628) Both bushings must be replaced at the same time. |
rear axle MARKED 1031
EXC ANTI-SPIN
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1216097 | Rear axle | 1 | 1.00 | ||
| 1216160 | Rear axle | 1 | 1.00 | ||
| 1216129 | Rear axle | 1 | 1.00 | ||
| 1216159 | Rear axle | 1 | 1.00 | ||
| 1216162 | Rear axle | 1 | 1.00 | ||
| 1216098 | Rear axle | 1 | 1.00 | ||
| 271914 | Differential pinion set | 26 | 1.00 | ||
| 1307369 | O-ring | 17 | 1.00 | For cars with gear shift indicator. | |
| 1232436 | Thrust washer | 29 | 2.00 | ||
| 191834 | Shim | 18 | x | THK 0.1 mm For cars with gear shift indicator. | |
| 1209287 | Shim | 18 | x | OP | THK 2.5 mm For cars with gear shift indicator. |
| 1209277 | Shim | 18 | x | THK 1.5 mm For cars with gear shift indicator. | |
| 191836 | Shim | 18 | x | THK 0.7 mm For cars with gear shift indicator. | |
| 191837 | Shim | 18 | x | THK 0.25 mm For cars with gear shift indicator. | |
| 191835 | Shim | 18 | x | THK 0.15 mm For cars with gear shift indicator. | |
| 89671 | Inspection cover | 12 | 1.00 | R.AX MARKED 1216097 1216098, 1216129, 1216138, 1216151 1216155, 1216159 1216162. | |
| 1209772 | Inspection cover | 12 | 1.00 | R.AX MARKED 1216160 For cars with gear shift indicator. | |
| 1377332 | Gasket asbestos-free | 22 | 1.00 | (89254) | |
| 1232772 | Lock nut | 19 | 1.00 | For cars with gear shift indicator. | |
| 384209 | Thrust washer | 30 | 2.00 | ||
| 1308024 | Impulse sensor | 16 | 1.00 | R.AX MARKED 1216160 For cars with gear shift indicator. | |
| 979650 | Flange screw | 35 | 10.00 | (1217099) | |
| 988177 | Flange screw | 21 | 1.00 | ALTER 2. LG 14 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 982791 | Flange screw | 21 | 9.00 | ALTER 2. LG 12 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 | |
| 942624 | Flange screw | 21 | 10.00 | ALTER 1. LG 13 mm 242 CH APP 214000, 244 CH APP 745000, 245 CH APP 398000 REPL 1PCS 940113, 1PCS 986481 | |
| 1348890 | Bracket | 20 | 1.00 | (1324068) For cars with gear shift indicator. | |
| 952359 | Plug | 13 | 1.00 | ||
| 384201 | Spindle | 31 | 1.00 | ||
| 986817 | Plug | 14 | 1.00 | ||
| 957181 | Gasket | 15 | 1.00 | ||
| 183842 | Roller bearing | 39 | 2.00 | (181305),(181662) | |
| 191838 | Spring pin | 32 | 1.00 | ||
| 1232733 | Sensor wheel | 33 | 1.00 | R.AX MARKED 1216160 For cars with gear shift indicator. | |
| 1232722 | Differential housing | 25 | 1.00 | OP | (383258) |
| 274322 | Differential | 24 | 1.00 | EXC R.AX MARKED 1216160 (1232771)(1217079) | |
| 985387 | Flange screw | 4 | 4.00 | M10x55 (963248) (970881) (969446) | |
| 955551 | Hexagon screw | 4 | 4.00 | ALTER 1. LG 57 mm | |
| 383253 | Lock plate | 38 | 1.00 | ||
| 81374 | Shim | 41 | x | THK 0.08 mm | |
| 81375 | Shim | 41 | x | THK 0.13 mm | |
| 81377 | Shim | 41 | x | THK 0.75 mm | |
| 183841 | Roller bearing | 42 | 1.00 | (183327),(183328) | |
| 1221660 | Anchorage | 23 | 1.00 | ||
| 273924 | Drive gear set | 34 | 1.00 | OP | R.AX RATIO 3.15/1 |
| 271650 | Drive gear set | 34 | 1.00 | (271254) R.AX RATIO 3.31/1 | |
| 274194 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.54/1 (271255)(273410) | |
| 271335 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.73/1 (271256) | |
| 271257 | Drive gear set | 34 | 1.00 | R.AX RATIO 3.91/1 (273980) | |
| 81383 | Shim | 44 | x | THK 0.08 mm | |
| 120623 | Shim | 44 | x | THK 0.25 mm | |
| 81384 | Shim | 44 | x | THK 0.13 mm | |
| 1340791 | Pretensioning sleeve | 52 | 1.00 | Pinions marked VOLVO-1232254, -1232258, -1220940, -1220962, -1220934. | |
| 384871 | Shim | 47 | x | THK 1.20 mm | |
| 1220983 | Shim | 47 | x | THK 0.25 mm | |
| 1220984 | Shim | 47 | x | THK 0.13 mm | |
| 1220985 | Shim | 47 | x | THK 0.08 mm | |
| 957181 | Gasket | 11 | 1.00 | ||
| 80506 | Shim | 48 | 1.00 | ||
| 9143317 | Sealing ring | 49 | 1.00 | (3520682) | |
| 81388 | Dust cover | 51 | 1.00 | ||
| 183839 | Roller bearing | 45 | 1.00 | (181301),(181302) | |
| 947855 | Flange lock nut | 36 | 1.00 | IK | |
| 1381498 | Magnetic plug | 10 | 1.00 | (1209293)(1377334) | |
| 1232406 | Rear axle casing | 2 | 1.00 | R.AX MARKED 1216097 1216098, 1216138. REPL 1 PCS 1209355, 10 PCS 947107. | |
| 6814453 | Rear axle casing | 2 | 1.00 | R.AX MARKED 1216159 1216160, 1216162 (1209359) | |
| 982791 | Flange screw | 2 | 10.00 | M8x12 | |
| 1209355 | Rear axle casing | 2 | 1.00 | R.AX MARKED 1216129. REPL 1 PCS 1209359-7, 10 PCS 947107-9. | |
| 1161329 | Rear axle oil | 37 | 3.00 | (1161276),0.5 l | |
| 384720 | Companion flange | 50 | 1.00 | ||
| 951901 | Plug | 9 | 1.00 | ||
| 383222 | Sealing ring | 7 | 2.00 | ||
| 1229165 | Bushing | 8 | 2.00 | (1229628) Both bushings must be replaced at the same time. |
Front axle spring support
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1205982 | Protecting cap | 41 | 2.00 | OP | |
| 985868 | Flange lock nut | 40 | 6.00 | (946036) | |
| 986481 | Washer | 39 | 2.00 | ||
| 1228577 | Cover plate | 38 | 2.00 | ||
| 1247816 | Support plate | 37 | 2.00 | ||
| 1272455 | Shock absorber anchorage | 35 | 2.00 | ||
| 1330551 | Spring seat | 54 | 2.00 | ||
| 1359630 | Spring strut, right | 22 | 1.00 | (1229918) M16 REPL 1 PCS 1330739-2, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000 | |
| 1330738 | Spring strut, left | 22 | 1.00 | OP | (1273439) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. |
| 1359629 | Spring strut, left | 22 | 1.00 | (1229917) M16 REPL 1 PCS 1330738-4, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000 | |
| 1330739 | Spring strut, right | 22 | 1.00 | (1273440) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. | |
| 1229808 | Wheel stud front | 45 | 10.00 | ||
| 274100 | Repair kit | 55 | 2.00 | ||
| 1161241 | Wheel bearing grease | 55 | 1.00 | (1161232) | |
| 274119 | Ball joint kit | 55 | 1.00 | R.H. P.S | |
| 274118 | Ball joint kit | 55 | 1.00 | L.H. P.S | |
| 274117 | Ball joint kit | 55 | 1.00 | L.H. STD W/O P.S | |
| 271391 | Front wheel bearing kit | 55 | 2.00 | (273824) | |
| 273161 | Front wheel bearing kit | 55 | 2.00 | ||
| 948068 | Nut | 34 | 2.00 | ||
| 1229423 | Seat | 25 | 2.00 | ||
| 949147 | Snap ring | 23 | 2.00 | ||
| 184071 | Cone | 47 | 2.00 | ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9. | |
| 181585 | Cone | 47 | 2.00 | IK | ALTER 1 |
| 944185 | Sealing ring | 49 | 2.00 | ||
| 986656 | Spring washer | 50 | 2.00 | 18 mm | |
| 1272918 | Nut | 51 | 2.00 | ALTER 2. M18 | |
| 1273045 | Nut | 51 | 2.00 | (948518) ALTER 1. M16 | |
| 1229425 | Anchorage | 24 | 2.00 | OP | |
| 1229075 | Sealing washer | 48 | 2.00 | 242 CH APP 191001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. | |
| 1273517 | Sealing washer | 48 | 2.00 | ALTER 2. I.DIA 43 mm | |
| 684731 | Sealing washer | 48 | 2.00 | ALTER 1. I.DIA 46 mm | |
| 183576 | Cone | 46 | 2.00 | ALTER 2 | |
| 181588 | Cone | 46 | 2.00 | ALTER 1 | |
| 181587 | Cup | 43 | 2.00 | IK | ALTER 1 |
| 183577 | Cup | 43 | 2.00 | ALTER 2 | |
| 1206478 | Rubber cushion | 3 | 1.00 | 4 CYL EXC DSL (CA),(US) | |
| 1229417 | Lock washer | 26 | 4.00 | ||
| 985039 | Flange screw | 27 | 8.00 | ||
| 1205674 | Front member | 1 | 1.00 | ||
| 1229073 | Front wheel hub | 42 | 2.00 | ALTER 2. M18 | |
| 1228941 | Front wheel hub | 42 | 2.00 | ALTER 1. M16 | |
| 181584 | Cup | 44 | 2.00 | IK | ALTER 1 |
| 184070 | Cup | 44 | 2.00 | ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9. | |
| 907862 | Split pin | 52 | 2.00 | OP | |
| 946474 | Flange screw | 2 | 4.00 | ||
| 1359149 | Grease cup | 53 | 2.00 | (1273046) | |
| 982849 | Flange screw | 7 | 2.00 | ||
| 986485 | Washer | 8 | 2.00 | ||
| 985870 | Flange lock nut | 10 | 4.00 | (971084)(946034) | |
| 986504 | Washer | 9 | 2.00 | ||
| 988182 | Flange screw | 16 | 4.00 | ||
| 1359812 | Bushing, left left rear | 6 | 1.00 | (1273711) | |
| 1273778 | Bushing right rear | 6 | 1.00 | (1273711) | |
| 1272494 | Bracket, right reinforced | 11 | 1.00 | OP | |
| 1205819 | Bracket, left | 11 | 1.00 | ||
| 1273792 | Bracket, left reinforced | 11 | 1.00 | REPL 1 PCS 1272493-6, 1 PCS 1273711-0 | |
| 1205822 | Bracket, right | 11 | 1.00 | ||
| 1273793 | Bracket, right reinforced | 11 | 1.00 | REPL 1 PCS 1272494-4 1 PCS 1273711-0 | |
| 1272493 | Bracket, left reinforced | 11 | 1.00 | ||
| 946418 | Spring nut | 20 | 1.00 | (1255989) | |
| 986483 | Washer | 14 | 2.00 | ||
| 1273398 | Heat shield | 19 | 1.00 | (1304237) B21 TURBO, B28F | |
| 985191 | Flange screw | 13 | 2.00 | M10x25 | |
| 985191 | Flange screw | 12 | 4.00 | M10x25 | |
| 1229483 | Stay | 15 | 2.00 | ||
| 986483 | Washer | 17 | 4.00 | ||
| 987891 | Flange lock nut | 18 | 4.00 | (971083) (985869)(971098) | |
| 985393 | Flange screw | 31 | 2.00 | (963265) (970898) | |
| 946485 | Sems screw | 21 | 1.00 | REPL 1PCS 985744, 1PCS 986500 | |
| 1205825 | Bushing, front | 5 | 2.00 | ||
| 986485 | Washer | 32 | 2.00 | ||
| 1221549 | Screw plate | 29 | 2.00 | ||
| 1229925 | Control arm, right reinforced | 4 | 1.00 | EXC (CA),(US) | |
| 1205686 | Control arm, right | 4 | 1.00 | ||
| 1229923 | Control arm, left reinforced | 4 | 1.00 | EXC (CA),(US) | |
| 1205680 | Control arm, left | 4 | 1.00 | ||
| 969317 | Flange lock nut | 33 | 6.00 | (946810) |
rear axle
ANTI-SPIN
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1216102 | Rear axle | 1 | 1.00 | RATIO 3.54/1 MARKED 1216102 | |
| 1340498 | Sign | 2a | 1.00 | OP | |
| 1161619 | Rear axle oil | 14 | 3.00 | 1 l (1161129) | |
| 1340620 | Differential | 2 | 1.00 | OP | For other parts component to complete rear axles, see the corresponding standard rear axles according to the table above. |
| 666248 | Disc | 10 | 2.00 | OP | THK 1.5 mm |
| 666250 | Card cupped | 12 | 2.00 | THK 2.4 mm | |
| 633262 | Disc | 5 | 4.00 | ||
| 666249 | Card flat | 11 | 2.00 | THK 2.4 mm | |
| 384510 | Disc hub | 6 | 2.00 | ||
| 384504 | Differential pinion | 9 | 2.00 | OP | |
| 384507 | Shaft | 8 | 2.00 | OP | |
| 1377049 | Screw | 4 | 8.00 | ||
| 384505 | Differential side gear | 7 | 4.00 | OP |
