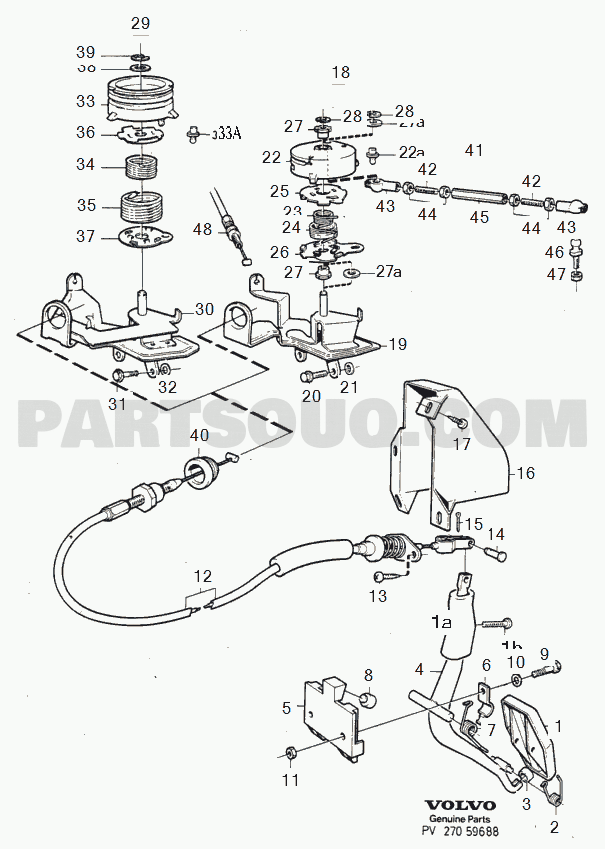

| 1257732 | Throttle control complete | 29 | 1.00 | 244 CH 817565- 245 CH 436850- (1328488) |
| 951669 | E-circlip | 39 | 1.00 | |
| 986481 | Washer | 38 | 1.00 | |
| 1257834 | Throttle pulley | 33 | 1.00 | |
| 951669 | E-circlip | 28 | 1.00 | |
| 1257728 | Spring guide upper | 36 | 1.00 | |
| 1257291 | Ball stud | 33A | x | |
| 1257702 | Pull rod | 41 | 1.00 | |
| 1257291 | Ball stud | 22a | 1.00 | |
| 1257658 | Throttle pulley | 22 | 1.00 | ALTER 1 REPL 1 PCS 1257746-6, |
| 1257746 | Throttle pulley | 22 | 1.00 | ALTER 2 |
| 1257837 | Spring inner | 34 | 1.00 | |
| 1257403 | Spring retainer upper | 25 | 1.00 | |
| 1257836 | Spring outer | 35 | 1.00 | |
| 946704 | Ball socket left-hand thread | 43 | 1.00 | |
| 946703 | Ball socket | 43 | 1.00 | |
| 1257659 | Spring outer | 24 | 1.00 | |
| 1257401 | Spring outer | 24 | 1.00 | REPL 1 PCS 1257659-1 1 PCS 1257660-9 |
| 942836 | Hexagon nut left-hand thread | 44 | 2.00 | |
| 985875 | Hexagon nut | 44 | 2.00 | |
| 1257402 | Spring inner | 23 | 1.00 | |
| 1257729 | Spring guide | 37 | 1.00 | |
| 1257660 | Spring retainer lower | 26 | 1.00 | |
| 1257404 | Spring retainer lower | 26 | 1.00 | REPL 1 PCS 1257659-1 1 PCS 1257660-9 |
| 959083 | Ball stud | 46 | 1.00 | |
| 1257748 | Washer | 27a | 2.00 | ALTER 2. SEE FIG 22. |
| 1276512 | Bushing | 27 | 2.00 | ALTER 1. SEE FIG 22. (463702) |
| 985865 | Flange lock nut | 47 | 1.00 | |
| 1257732 | Throttle control | 30 | 1.00 | (1328488) 242 CH-237369, 244 CH-939339, 245 CH-506269, 265 CH-34029. |
| 1257373 | Bracket | 19 | 1.00 | |
| 986499 | Washer | 21 | x | |
| 986499 | Washer | 32 | x | |
| 982757 | Flange screw | 20 | 2.00 | LG 16 mm AUTO.TRANS |
| 982755 | Flange screw | 20 | 3.00 | LG 12 mm. MAN.TRANS |
| 982755 | Flange screw | 31 | 3.00 | LG 12 mm. MAN.TRANS |
| 982757 | Flange screw | 31 | 2.00 | LG 16 mm. AUTO.TRANS |
| 1257284 | Rubber bushing | 40 | 1.00 | |
| 986160 | Six point socket screw | 17 | 3.00 | L.H.D (969473) (969473)(946451) |
| 3536068 | Cover | 16 | 1.00 | L.H.D |
| 907824 | Split pin | 15 | 1.00 | |
| 952704 | Bolt | 14 | 1.00 | |
| 1272669 | Throttle control cable | 12 | 1.00 | L.H.D 244 CH -APP 485499, 245 CH -APP 265899. (1229705) |
| 986116 | Six point socket screw | 13 | 2.00 | (955141) |
| 1272651 | Oscillation damper | 1a | 1.00 | |
| 986217 | Six point socket screw | 1b | 1.00 | (956098) |
| 986967 | Hexagon screw | 9 | 2.00 | L.H.D |
| 986969 | Hexagon screw | 9 | 2.00 | R.H.D |
| 120306 | Washer | 10 | 2.00 | L.H.D |
| 986478 | Washer | 10 | 2.00 | R.H.D |
| 6842176 | Cap | 6 | 2.00 | (1272618)(1229475) |
| 1229443 | Intermediate lever | 4 | 1.00 | L.H.D |
| 1229445 | Intermediate lever | 4 | 1.00 | R.H.D |
| 667751 | Buffer | 8 | 1.00 | |
| 1330781 | Bearing | 5 | 1.00 | (1272617) |
| 1272606 | Accelerator pedal | 1 | 1.00 | (1205957) |
| 1205927 | Spring | 7 | 1.00 | |
| 985866 | Flange lock nut | 11 | 2.00 | |
| 1221749 | Knob | 3 | 1.00 | |
| 1206520 | Spring | 2 | 1.00 | |
