Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |

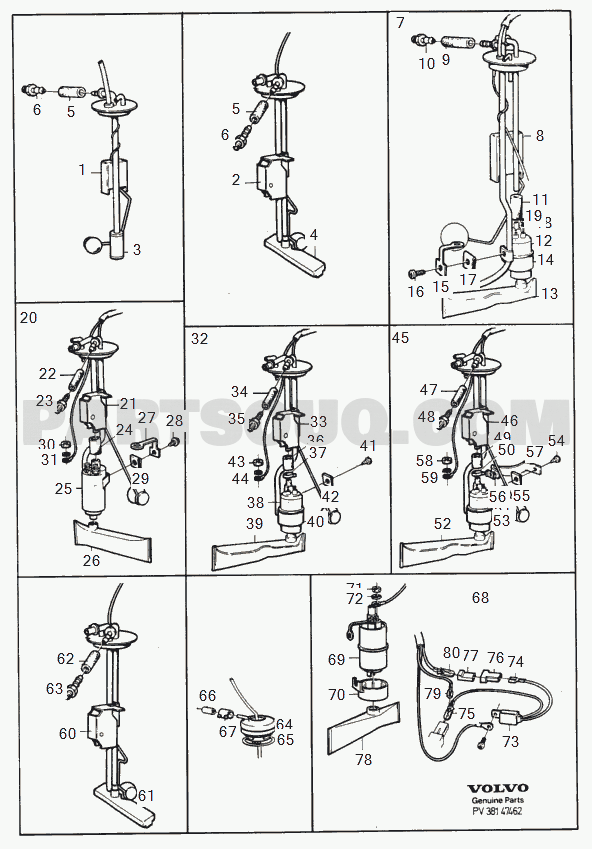

38 Instrumentation
tank sender DSL
D20
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 271785 | Fuel hose kit | 62 | 1.00 | (1228910) |
| 948199 | Nipple | 63 | 1.00 | |
| 687245 | Sealing sleeve | 66 | 1.00 | |
| 1235324 | Snap ring | 64 | 1.00 | |
| 988022 | Hose clamp | 67 | 1.00 | (946709) |
| 1235913 | Combined tank unit | 60 | 1.00 | REPL 1 PCS 1312397-1 242 CH-237369, 244 CH-939339, 245 CH-506269, 265 CH-34029. |
| 1312397 | Combined tank unit | 60 | 1.00 | REPL 1 PCS 1367255-5 242 CH 237370-, 244 CH 939340-, 245 CH 506270-, 265 CH 34030- |
| 1367255 | Level sensor | 60 | 1.00 | |
| 949276 | O-ring | 65 | 1.00 | |
| 1235912 | Primary filter | 61 | 1.00 |
Injector Fuel pipe fuel filter D20
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1257431 | Clamp | 24 | 1.00 | OP | |
| 1257524 | Fuel pipe cylinder 4 | 20 | 1.00 | ||
| 1257531 | Fuel pipe cylinder 5 | 21 | 1.00 | OP | |
| 1257523 | Fuel pipe cylinder 3 | 19 | 1.00 | ||
| 1257522 | Fuel pipe cylinder 2 | 18 | 1.00 | ||
| 1257521 | Fuel pipe cylinder 1 | 17 | 1.00 | ||
| 9180602 | Cap | 32 | 1.00 | (1257250) | |
| 1257639 | Hose | 33 | x | LG 520 mm 4x130 | |
| 980613 | Hose clamp | 34 | 10.00 | ||
| 1542303 | Fuel injection nozzle | 29 | 5.00 | D20, D24 498700, 498701 | |
| 1328073 | Injection valve | 27 | 5.00 | D20, D24 498700, 498701. (1257144) | |
| 1257427 | Spacer | 26 | 8.00 | ||
| 870261 | Adjusting washer | 30 | x | THK 1.20 mm | |
| 870259 | Adjusting washer | 30 | x | THK 1.10 mm | |
| 870271 | Adjusting washer | 30 | x | THK 1.70 mm | |
| 870270 | Adjusting washer | 30 | x | THK 1.65 mm | |
| 870269 | Adjusting washer | 30 | x | THK 1.60 mm | |
| 6212456 | Adjusting washer | 30 | x | THK 1.55 mm (870268) | |
| 870267 | Adjusting washer | 30 | x | THK 1.50 mm | |
| 6212562 | Adjusting washer | 30 | x | THK 1.45 mm (870266) | |
| 870265 | Adjusting washer | 30 | x | OP | THK 1.40 mm |
| 870264 | Adjusting washer | 30 | x | THK 1.35 mm | |
| 870263 | Adjusting washer | 30 | x | THK 1.30 mm | |
| 870262 | Adjusting washer | 30 | x | THK 1.25 mm | |
| 870260 | Adjusting washer | 30 | x | THK 1.15 mm | |
| 6212455 | Adjusting washer | 30 | x | THK 1 mm (870257) | |
| 870258 | Adjusting washer | 30 | x | THK 1.05 mm | |
| 870273 | Adjusting washer | 30 | x | THK 1.80 mm | |
| 870274 | Adjusting washer | 30 | x | THK 1.85 mm | |
| 870275 | Adjusting washer | 30 | x | THK 1.90 mm | |
| 870276 | Adjusting washer | 30 | x | THK 1.95 mm | |
| 870272 | Adjusting washer | 30 | x | THK 1.75 mm | |
| 1257147 | Heat shield ring | 31 | 5.00 | IK | |
| 240664 | Bleeder screw | 7 | 1.00 | (244372) | |
| 25534 | Gasket | 8 | 1.00 | OP | |
| 968179 | Hollow screw | 15 | 1.00 | (25167) | |
| 18671 | Gasket | 16 | 2.00 | (947621) | |
| 985191 | Flange screw | 9 | 2.00 | ||
| 1257200 | Fuel filter | 3 | 1.00 | OP | |
| 18671 | Gasket | 11 | 1.00 | (947621) | |
| 6638088 | Gasket | 5 | 1.00 | ||
| 1257391 | Nipple | 10 | 1.00 | ||
| 3547862 | Filter insert | 4 | 1.00 | MARKED FLEETGUARD Service alternative. | |
| 1257201 | Filter insert | 4 | 1.00 | MARKED BOSCH | |
| 988022 | Hose clamp | 13 | 2.00 | ||
| 9179420 | Fuel hose | 12 | x | LG 320 mm (1266500) | |
| 1257331 | Bracket | 1 | 1.00 | ||
| 1257201 | Filter insert | 6 | 1.00 | (243463) | |
| 988182 | Flange screw | 2 | 3.00 |
