Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
86 Bumpers and mudflaps
guard plates, heat shields
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1233382 | Heat shield | 15 | 1.00 | B28F BW55 (1233340) | |
| 1255202 | Shield | 18 | 1.00 | (CA),(JP),(US) | |
| 955948 | Toothed washer | 17 | 1.00 | ||
| 955268 | Hexagon screw | 16 | 1.00 | ||
| 986160 | Six point socket screw | 19 | 2.00 | 10x9.5 (969473)(955137) | |
| 947248 | Cross recessed screw | 19 | 1.00 | 10x16 REPL 1PCS 987105 | |
| 1247910 | Shield | 20 | 1.00 | OP | B21F AW55. B21F BW55. |
| 1247964 | Shield | 20 | 1.00 | OP | B21F M45. |
| 982814 | Flange screw | 21 | 2.00 | ||
| 985738 | Flange screw | 29 | 1.00 | ||
| 1306829 | Protecting plate | 28 | 1.00 | 1981- B17, B19, B21, B23 EXC TURBO | |
| 1304521 | Bracket | 4 | 1.00 | OP | -1980 (CH) D24 MAN.TRANS |
| 669871 | Spacer sleeve | 9 | 1.00 | ||
| 1304864 | Protecting plate, right | 6 | 1.00 | OP | B21A, B23E (CH) B21ET (SE) D24 (CH),(SE) (1247847) |
| 1304865 | Rail | 7 | 1.00 | OP | 1981- |
| 1255989 | Spring nut | 12 | 4.00 | -1980 | |
| 1304862 | Protecting plate | 3 | 1.00 | D24 (CH),(SE) B21ET (SE) (1304593) | |
| 1304860 | Protecting plate | 3 | 1.00 | OP | B21A (CH) B23E (CH) (1247719) |
| 1304863 | Protecting plate, left | 5 | 1.00 | OP | B21A, B23E (CH) B21ET (SE) D24 (CH),(SE) (1247846) |
| 986500 | Washer | 13 | 3.00 | -1980 | |
| 985743 | Flange screw | 13 | 3.00 | -1980 | |
| 1304869 | Heat shield upper | 22 | 1.00 | B28, B21FT (1304316) | |
| 985743 | Flange screw | 8 | 4.00 | ||
| 986500 | Washer | 8 | 4.00 | ||
| 985738 | Flange screw | 23 | 1.00 | 10x13 | |
| 986160 | Six point socket screw | 23 | 1.00 | 10x9.5 (969473)(946451) | |
| 946215 | Sems screw | 10 | 1.00 | ALTER 14x25 REPL 1PCS 985745, 1PCS 986500 | |
| 986500 | Washer | 10 | 1.00 | ALTER 14x13 | |
| 985743 | Flange screw | 10 | 1.00 | ALTER 14x13 | |
| 986500 | Washer | 11 | 10.00 | -1980 | |
| 985743 | Flange screw | 11 | 10.00 | -1980 | |
| 1304239 | Heat shield | 27 | 1.00 | OP | B28F (JP) |
| 1382407 | Protecting plate | 1 | 1.00 | (1254390) | |
| 1273398 | Heat shield lower | 24 | 1.00 | B28F, B21FT (1304237) | |
| 982757 | Flange screw | 2 | 8.00 | ||
| 986499 | Washer | 2 | 8.00 | ||
| 1255989 | Spring nut | 25 | 1.00 | ||
| 1229566 | Protecting plate slave cylinder | 14 | 1.00 | B27F M45, M46 | |
| 946485 | Sems screw | 26 | 1.00 |
Front axle spring support
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1205982 | Protecting cap | 41 | 2.00 | OP | |
| 985868 | Flange lock nut | 40 | 6.00 | (946036) | |
| 986481 | Washer | 39 | 2.00 | ||
| 1228577 | Cover plate | 38 | 2.00 | ||
| 1247816 | Support plate | 37 | 2.00 | ||
| 1272455 | Shock absorber anchorage | 35 | 2.00 | ||
| 1330551 | Spring seat | 54 | 2.00 | ||
| 1359630 | Spring strut, right | 22 | 1.00 | (1229918) M16 REPL 1 PCS 1330739-2, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000 | |
| 1330738 | Spring strut, left | 22 | 1.00 | OP | (1273439) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. |
| 1359629 | Spring strut, left | 22 | 1.00 | (1229917) M16 REPL 1 PCS 1330738-4, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000 | |
| 1330739 | Spring strut, right | 22 | 1.00 | (1273440) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. | |
| 1229808 | Wheel stud front | 45 | 10.00 | ||
| 274100 | Repair kit | 55 | 2.00 | ||
| 1161241 | Wheel bearing grease | 55 | 1.00 | (1161232) | |
| 274119 | Ball joint kit | 55 | 1.00 | R.H. P.S | |
| 274118 | Ball joint kit | 55 | 1.00 | L.H. P.S | |
| 274117 | Ball joint kit | 55 | 1.00 | L.H. STD W/O P.S | |
| 271391 | Front wheel bearing kit | 55 | 2.00 | (273824) | |
| 273161 | Front wheel bearing kit | 55 | 2.00 | ||
| 948068 | Nut | 34 | 2.00 | ||
| 1229423 | Seat | 25 | 2.00 | ||
| 949147 | Snap ring | 23 | 2.00 | ||
| 184071 | Cone | 47 | 2.00 | ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9. | |
| 181585 | Cone | 47 | 2.00 | IK | ALTER 1 |
| 944185 | Sealing ring | 49 | 2.00 | ||
| 986656 | Spring washer | 50 | 2.00 | 18 mm | |
| 1272918 | Nut | 51 | 2.00 | ALTER 2. M18 | |
| 1273045 | Nut | 51 | 2.00 | (948518) ALTER 1. M16 | |
| 1229425 | Anchorage | 24 | 2.00 | OP | |
| 1229075 | Sealing washer | 48 | 2.00 | 242 CH APP 191001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. | |
| 1273517 | Sealing washer | 48 | 2.00 | ALTER 2. I.DIA 43 mm | |
| 684731 | Sealing washer | 48 | 2.00 | ALTER 1. I.DIA 46 mm | |
| 183576 | Cone | 46 | 2.00 | ALTER 2 | |
| 181588 | Cone | 46 | 2.00 | ALTER 1 | |
| 181587 | Cup | 43 | 2.00 | IK | ALTER 1 |
| 183577 | Cup | 43 | 2.00 | ALTER 2 | |
| 1206478 | Rubber cushion | 3 | 1.00 | 4 CYL EXC DSL (CA),(US) | |
| 1229417 | Lock washer | 26 | 4.00 | ||
| 985039 | Flange screw | 27 | 8.00 | ||
| 1205674 | Front member | 1 | 1.00 | ||
| 1229073 | Front wheel hub | 42 | 2.00 | ALTER 2. M18 | |
| 1228941 | Front wheel hub | 42 | 2.00 | ALTER 1. M16 | |
| 181584 | Cup | 44 | 2.00 | IK | ALTER 1 |
| 184070 | Cup | 44 | 2.00 | ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9. | |
| 907862 | Split pin | 52 | 2.00 | OP | |
| 946474 | Flange screw | 2 | 4.00 | ||
| 1359149 | Grease cup | 53 | 2.00 | (1273046) | |
| 982849 | Flange screw | 7 | 2.00 | ||
| 986485 | Washer | 8 | 2.00 | ||
| 985870 | Flange lock nut | 10 | 4.00 | (971084)(946034) | |
| 986504 | Washer | 9 | 2.00 | ||
| 988182 | Flange screw | 16 | 4.00 | ||
| 1359812 | Bushing, left left rear | 6 | 1.00 | (1273711) | |
| 1273778 | Bushing right rear | 6 | 1.00 | (1273711) | |
| 1272494 | Bracket, right reinforced | 11 | 1.00 | OP | |
| 1205819 | Bracket, left | 11 | 1.00 | ||
| 1273792 | Bracket, left reinforced | 11 | 1.00 | REPL 1 PCS 1272493-6, 1 PCS 1273711-0 | |
| 1205822 | Bracket, right | 11 | 1.00 | ||
| 1273793 | Bracket, right reinforced | 11 | 1.00 | REPL 1 PCS 1272494-4 1 PCS 1273711-0 | |
| 1272493 | Bracket, left reinforced | 11 | 1.00 | ||
| 946418 | Spring nut | 20 | 1.00 | (1255989) | |
| 986483 | Washer | 14 | 2.00 | ||
| 1273398 | Heat shield | 19 | 1.00 | (1304237) B21 TURBO, B28F | |
| 985191 | Flange screw | 13 | 2.00 | M10x25 | |
| 985191 | Flange screw | 12 | 4.00 | M10x25 | |
| 1229483 | Stay | 15 | 2.00 | ||
| 986483 | Washer | 17 | 4.00 | ||
| 987891 | Flange lock nut | 18 | 4.00 | (971083) (985869)(971098) | |
| 985393 | Flange screw | 31 | 2.00 | (963265) (970898) | |
| 946485 | Sems screw | 21 | 1.00 | REPL 1PCS 985744, 1PCS 986500 | |
| 1205825 | Bushing, front | 5 | 2.00 | ||
| 986485 | Washer | 32 | 2.00 | ||
| 1221549 | Screw plate | 29 | 2.00 | ||
| 1229925 | Control arm, right reinforced | 4 | 1.00 | EXC (CA),(US) | |
| 1205686 | Control arm, right | 4 | 1.00 | ||
| 1229923 | Control arm, left reinforced | 4 | 1.00 | EXC (CA),(US) | |
| 1205680 | Control arm, left | 4 | 1.00 | ||
| 969317 | Flange lock nut | 33 | 6.00 | (946810) |

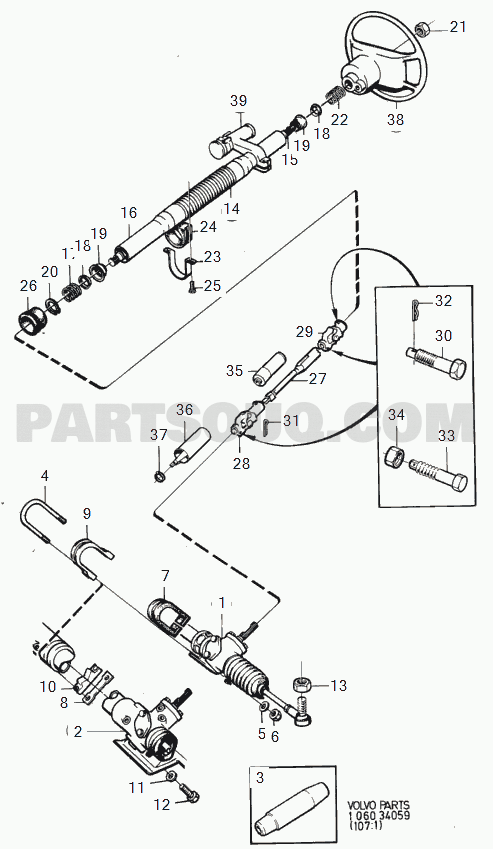

Steering steering box Steering shaft R.H.D P.S
R.H.D
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 973995 | Nut | 21 | 1.00 | (1272286) | |
| 85612 | Spring | 22 | 1.00 | ||
| 1229733 | Steering column | 14 | 1.00 | ||
| 1221677 | Bushing | 24 | 1.00 | ||
| 85611 | Ball bearing | 19 | 2.00 | OP | |
| 85613 | Seat | 18 | 2.00 | ||
| 85612 | Spring | 17 | 1.00 | ||
| 1221417 | Clamp | 23 | 1.00 | ||
| 914456 | Snap ring | 20 | 1.00 | ||
| 1205839 | Sealing | 26 | 1.00 | ||
| 982793 | Flange screw | 25 | 2.00 | ||
| 664822 | Split pin | 32 | 1.00 | ||
| 1229213 | Joint | 29 | 1.00 | REPL 1 PCS 1359403-1 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 1359403 | Joint | 29 | 1.00 | OP | (1330199) |
| 977294 | Flange screw | 30 | 2.00 | (1229343) for joint 1229212, 1229421, 1229213. | |
| 1229209 | Steering shaft | 27 | 1.00 | ||
| 1272890 | Heat shield | 36 | 1.00 | OP | |
| 985868 | Flange lock nut | 34 | 2.00 | (946036) | |
| 907819 | Split pin | 31 | 1.00 | ||
| 943472 | Hose clamp | 37 | 1.00 | ||
| 985316 | Flange screw | 33 | 2.00 | (1272992) For joint 1330197, 1330199, 1359403, 1359404. | |
| 6819550 | Universal joint | 28 | 1.00 | OP | (1359404) |
| 1229421 | Joint | 28 | 1.00 | REPL 1 PCS 1330197-3 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 1272597 | Clamp | 4 | x | ||
| 1272678 | Brace | 9 | 1.00 | OP | CAM 242 CH APP 177710-, 244 CH 541036-1000000, CH 1-, 245 CH 291682-, 264 CH 94024-, 265 CH 24408- |
| 946109 | Lock nut | 13 | 2.00 | ||
| 1272679 | Intermediate section aluminum | 10 | 1.00 | LG 72 mm CAM 242 CH APP 177710-, 244 CH 541036-1000000, CH 1-, 245 CH 291682-, 264 CH 94024-, 265 CH 24408- | |
| 1272593 | Intermediate section | 10 | 1.00 | LG 74 mm. ZF CAM 242 CH-APP 177710, 244 CH-541035, 245 CH-291681, 264 CH-94023, 265 CH-24407. | |
| 1272517 | Spacer | 8 | 1.00 | ZF 242 CH-191210, 244 CH-606891, 245 CH-324851, 264 CH-109706, 265 CH-28913. CAM 242 CH-APP 177710, 244 CH-541035, 245 CH-291681, 264 CH-94023, 265 CH-24407. | |
| 986481 | Washer | 5 | 2.00 | ||
| 985868 | Flange lock nut | 6 | 2.00 | (946036) | |
| 1229388 | Locating pin | 3 | 1.00 | ||
| 986606 | Spacer washer | 11 | 2.00 | ALTER 2 8.4x18x10 | |
| 986481 | Washer | 11 | 2.00 | ALTER 1 8.4x16x10 | |
| 985038 | Flange screw | 12 | 2.00 | ALTER 2. M8x25 | |
| 985042 | Flange screw | 12 | 2.00 | ALTER 1 M8x60 (949039) (982136) |
