Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
26 Cooling system
Electric fan 240
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1274045 | 6 | 1.00 | |||
| 1274042 | Fan | 3 | 1.00 | ||
| 948211 | Cable tie | 8 | 1.00 | ||
| 1274041 | Fan motor | 2 | 1.00 | ||
| 985875 | Hexagon nut | 7 | 3.00 | ||
| 1274043 | Lock washer | 4 | 1.00 | ||
| 1274044 | Nut | 5 | 1.00 | ||
| 985919 | Flange nut | 14 | 3.00 | ||
| 982755 | Flange screw | 15 | 1.00 | M6x12 | |
| 986499 | Washer | 16 | 1.00 | ||
| 1274051 | Bracket, right | 10 | 1.00 | 242 CH -189179, 244 CH -592109, 245 CH -317939, CH -8374, 264 CH -107609, 265 CH -28319 | |
| 985919 | Flange nut | 17 | 1.00 | ||
| 1306343 | Bracket, right | 11 | 1.00 | EXC (US) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 1274050 | Bracket, left | 9 | 1.00 | ||
| 985743 | Flange screw | 18 | 2.00 | ||
| 986500 | Washer | 18 | 2.00 | ||
| 986962 | Hexagon screw | 13 | 3.00 | M6x12 | |
| 1306342 | Bracket, right | 12 | 1.00 | EXC (US) 242 CH 189180-, 244 CH 592110-, 245 CH 317940-, 262 CH 8375-, 264 CH 107610-, 265 CH 28320- | |
| 982755 | Flange screw | 19 | 3.00 | M6x12 | |
| 985919 | Flange nut | 21 | 3.00 | ||
| 986499 | Washer | 20 | 3.00 | ||
| 8360390 | Fan kit | 27 | 1.00 | OP | B21FT With Intercooler |
| 1378504 | Thermo contact | 24 | 1.00 | (1276229) | |
| 18671 | Gasket | 25 | 1.00 | (947621) | |
| 1276187 | Connection pipe | 22 | 1.00 | ||
| 983729 | Hose clamp | 23 | 2.00 |
cooling system D20
D20
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1257446 | Hose | 49 | 1.00 | OP | |
| 983724 | Hose clamp | 51 | 1.00 | ||
| 955283 | Hexagon screw | 66 | 1.00 | M6x75 | |
| 986654 | Spring washer | 67 | 1.00 | ||
| 1257448 | Hose | 52 | 1.00 | ||
| 1257360 | Radiator hose | 61 | 1.00 | ||
| 1257041 | Nipple | 64 | 1.00 | ||
| 1257295 | O-ring | 65 | 1.00 | ||
| 988025 | Hose clamp | 63 | 1.00 | ||
| 988024 | Hose clamp | 62 | 1.00 | ||
| 983724 | Hose clamp | 53 | 2.00 | ||
| 1257181 | Pulley | 19 | 1.00 | W/O COMBU COMBU, W/O P.S | |
| 1257640 | Pulley | 19 | 1.00 | COMBU, P.S | |
| 988025 | Hose clamp | 59 | 1.00 | ||
| 1328458 | Connection pipe | 56 | 1.00 | ||
| 1257445 | Hose | 58 | 1.00 | ||
| 1257447 | Hose | 54 | 1.00 | ||
| 988025 | Hose clamp | 55 | 2.00 | ||
| 973534 | V-belt | 21 | 1.00 | 38x800 | |
| 973544 | V-belt servo pump-fan | 21 | 1.00 | 38x1238 P.S, COMBU (966923) | |
| 973541 | V-belt | 21 | 1.00 | 38x975 P.S, W/O COMBU COMBU, W/O P.S (966968) | |
| 966723 | Drain | 57 | 1.00 | ||
| 988024 | Hose clamp | 60 | 1.00 | ||
| 988025 | Hose clamp | 50 | 1.00 | ||
| 3547853 | Gasket | 13 | 1.00 | IK | (1257534) |
| 986965 | Hexagon screw | 10 | 2.00 | (955273) M6x22 | |
| 986652 | Spring washer | 11 | 2.00 | ||
| 1257380 | Screw | 14 | 2.00 | M6x18 | |
| 986652 | Spring washer | 15 | 2.00 | ||
| 1257533 | Connection pipe | 12 | 1.00 | ||
| 1257185 | Coolant pump | 1 | 1.00 | OP | |
| 1257706 | Washer | 5 | 2.00 | ||
| 986654 | Spring washer | 4 | 3.00 | ||
| 986988 | Hexagon screw | 3 | 3.00 | (940132) | |
| 988031 | Hose clamp | 44 | 1.00 | ||
| 1257184 | Thermostat housing | 9 | 1.00 | ||
| 1257183 | Sealing ring | 8 | 1.00 | IK | |
| 273728 | Thermostat kit | 6 | 1.00 | 87C, 189F | |
| 1257197 | Sealing ring | 2 | 1.00 | ||
| 986498 | Washer | 35 | 1.00 | ||
| 985739 | Flange screw | 35 | 1.00 | ||
| 463610 | Clamp | 34 | 1.00 | ||
| 983729 | Hose clamp | 39 | 1.00 | ||
| 1357776 | Filler cap | 32 | 1.00 | (1274100) | |
| 9142000 | Expansion tank | 31 | 1.00 | (463604) | |
| 988031 | Hose clamp | 41 | 1.00 | ||
| 1257363 | Radiator hose | 38 | 1.00 | ||
| 954336 | Nipple | 23 | 2.00 | AUTO.TRANS | |
| 947788 | O-ring | 40 | 1.00 | ||
| 986114 | Six point socket screw | 70 | 2.00 | ||
| 972079 | Six point socket screw | 70 | 2.00 | REPL 1PCS 969278-1 REPL 1PCS 986114, 1PCS 986498 1PCS 960138-6. (965395) | |
| 1257372 | Clip | 69 | 3.00 | ||
| 986498 | Washer | 73 | 2.00 | ||
| 464289 | Bracket | 33 | 1.00 | ||
| 983729 | Hose clamp | 17 | 2.00 | ||
| 986122 | Six point socket screw | 37 | 3.00 | (958244) | |
| 1257454 | Coolant pipe | 16 | 1.00 | ||
| 1257370 | Fan shroud | 68 | 1.00 | ||
| 982758 | Flange screw | 29 | 2.00 | M6x20 | |
| 464648 | Bracket | 27 | 2.00 | ||
| 191391 | Spring nut | 36 | 1.00 | ||
| 988024 | Hose clamp | 47 | 1.00 | ||
| 463304 | Rubber cushion | 28 | 4.00 | ||
| 942700 | Hose | 48 | x | LG 295 mm | |
| 1257462 | Check valve | 71 | 5.00 | TROPIC | |
| 669871 | Spacer sleeve | 30 | 2.00 | 242 CH -244864 244 CH -APP 55779, 245 CH -APP 581429, 265 CH -APP 34729 | |
| 986565 | Spacer sleeve | 30 | 2.00 | 242 CH 244865- 244 CH APP 55780-, 245 CH APP 581430-, 265 CH APP 34730- | |
| 1257362 | Hose | 45 | 1.00 | ||
| 1257364 | Radiator hose | 42 | 1.00 | ||
| 988024 | Hose clamp | 46 | 1.00 | ||
| 8601864 | Radiator, exch | 22 | 1.00 | EU | STD, AUTO.TRANS (1257351) REPL 1PCS 8601959-3 1PCS 1378869-0, 1PCS 1274052-8. |
| 8601863 | Radiator | 22 | 1.00 | EU | STD, MAN.TRANS (1257350) |
| 1274052 | Plug | 26 | 1.00 | TROPIC | |
| 8601959 | Radiator, exch | 22 | 1.00 | EU | TROPIC, MAN.TRANS (1257352) |
| 983729 | Hose clamp | 43 | 1.00 | ||
| 1378869 | Rubber bushing | 24 | 1.00 | TROPIC | |
| 1306885 | Clip | 25 | 1.00 | TROPIC |

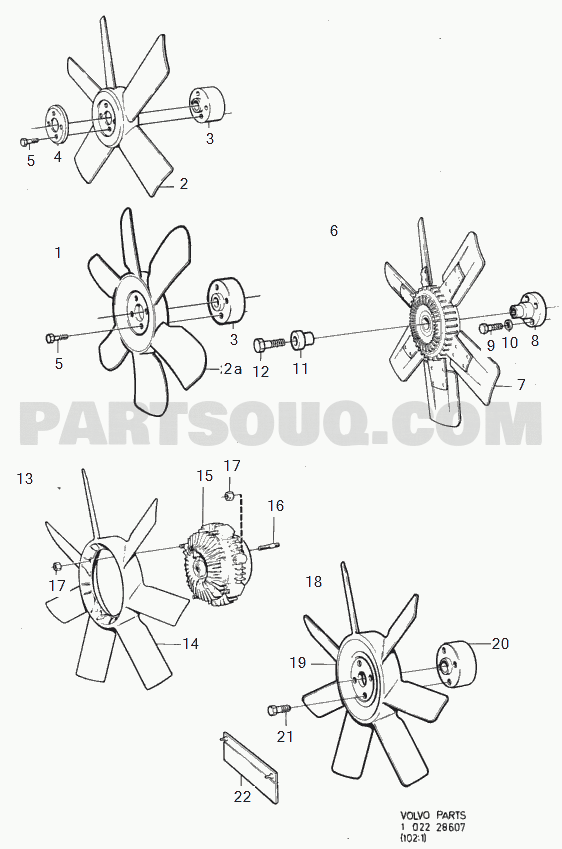

Fan
D20B17, B19, B21, B23, D20, D24.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 463301 | Washer | 4 | 1.00 | EXC D20, D24 COMBU | |
| 463821 | Fan | 2 | 1.00 | EXC D20, D24 COMBU | |
| 463302 | Spacer | 3 | 1.00 | OP | |
| 986652 | Spring washer | 10 | 4.00 | ||
| 463463 | Clutch flange | 8 | 1.00 | ||
| 986966 | Hexagon screw | 9 | 4.00 | M6x25 | |
| 985030 | Flange screw | 5 | 4.00 | M6x55 (948081) (969357) | |
| 1257866 | Fan | 2a | x | OP | D20, D24 COMBU 244 CH 615610-, 245 CH 330271- |
| 460530 | Washer | 11 | 1.00 | ||
| 970950 | Hexagon screw | 12 | 1.00 | M10x40 (955320) | |
| 1266789 | Slip fan | 7 | 1.00 | REPL 1 PCS 1317465-1 1 PCS 1306259-1 4 PCS 1266775-4 8 PCS 945407-5. | |
| 1306259 | Slip clutch thermostatic | 15 | 1.00 | (1266574) | |
| 1266775 | Stud | 16 | 4.00 | ||
| 1129070 | Fan kit | 18 | 1.00 | D20, D24 A.C REPL 1 PCS 1257866-2 1 PCS 463302-0, 4 PCS 948081-5, 5 PCS 1257462-0. Optional extra. | |
| 985919 | Flange nut | 17 | 8.00 | (945407). | |
| 1317465 | Fan | 14 | 1.00 | (1266669) | |
| 1257554 | Spacer | 20 | 1.00 | REPL 1 PCS 1257866-2 1 PCS 463302-0, 4 PCS 948081-5. | |
| 1257553 | Fan | 19 | 1.00 | REPL 1 PCS 1257866-2 1 PCS 463302-0, 4 PCS 948081-5. |
