Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
72 Springs
Front axle spring support
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1205982 | Protecting cap | 41 | 2.00 | OP | |
| 985868 | Flange lock nut | 40 | 6.00 | (946036) | |
| 986481 | Washer | 39 | 2.00 | ||
| 1228577 | Cover plate | 38 | 2.00 | ||
| 1247816 | Support plate | 37 | 2.00 | ||
| 1272455 | Shock absorber anchorage | 35 | 2.00 | ||
| 1330551 | Spring seat | 54 | 2.00 | ||
| 1359630 | Spring strut, right | 22 | 1.00 | (1229918) M16 REPL 1 PCS 1330739-2, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000 | |
| 1330738 | Spring strut, left | 22 | 1.00 | OP | (1273439) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. |
| 1359629 | Spring strut, left | 22 | 1.00 | (1229917) M16 REPL 1 PCS 1330738-4, 1 PCS 1229073-0, 1 PCS 271391-5, 1 PCS 1272918-2. 242 CH -APP 190000 244 CH -APP 595000 245 CH -APP 320000 262 CH -APP 8400 264 CH -APP 110000 265 CH -APP 29000 | |
| 1330739 | Spring strut, right | 22 | 1.00 | (1273440) M18 242 CH APP 190001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. | |
| 1229808 | Wheel stud front | 45 | 10.00 | ||
| 274100 | Repair kit | 55 | 2.00 | ||
| 1161241 | Wheel bearing grease | 55 | 1.00 | (1161232) | |
| 274119 | Ball joint kit | 55 | 1.00 | R.H. P.S | |
| 274118 | Ball joint kit | 55 | 1.00 | L.H. P.S | |
| 274117 | Ball joint kit | 55 | 1.00 | L.H. STD W/O P.S | |
| 271391 | Front wheel bearing kit | 55 | 2.00 | (273824) | |
| 273161 | Front wheel bearing kit | 55 | 2.00 | ||
| 948068 | Nut | 34 | 2.00 | ||
| 1229423 | Seat | 25 | 2.00 | ||
| 949147 | Snap ring | 23 | 2.00 | ||
| 184071 | Cone | 47 | 2.00 | ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9. | |
| 181585 | Cone | 47 | 2.00 | IK | ALTER 1 |
| 944185 | Sealing ring | 49 | 2.00 | ||
| 986656 | Spring washer | 50 | 2.00 | 18 mm | |
| 1272918 | Nut | 51 | 2.00 | ALTER 2. M18 | |
| 1273045 | Nut | 51 | 2.00 | (948518) ALTER 1. M16 | |
| 1229425 | Anchorage | 24 | 2.00 | OP | |
| 1229075 | Sealing washer | 48 | 2.00 | 242 CH APP 191001- 244 CH APP 595001-1000000, CH 1- 245 CH APP 320001- 262 CH APP 8401- 264 CH APP 110001- 265 CH APP 29001-. | |
| 1273517 | Sealing washer | 48 | 2.00 | ALTER 2. I.DIA 43 mm | |
| 684731 | Sealing washer | 48 | 2.00 | ALTER 1. I.DIA 46 mm | |
| 183576 | Cone | 46 | 2.00 | ALTER 2 | |
| 181588 | Cone | 46 | 2.00 | ALTER 1 | |
| 181587 | Cup | 43 | 2.00 | IK | ALTER 1 |
| 183577 | Cup | 43 | 2.00 | ALTER 2 | |
| 1206478 | Rubber cushion | 3 | 1.00 | 4 CYL EXC DSL (CA),(US) | |
| 1229417 | Lock washer | 26 | 4.00 | ||
| 985039 | Flange screw | 27 | 8.00 | ||
| 1205674 | Front member | 1 | 1.00 | ||
| 1229073 | Front wheel hub | 42 | 2.00 | ALTER 2. M18 | |
| 1228941 | Front wheel hub | 42 | 2.00 | ALTER 1. M16 | |
| 181584 | Cup | 44 | 2.00 | IK | ALTER 1 |
| 184070 | Cup | 44 | 2.00 | ALTER 2 REPL 1 PCS 1387691-7, 1 PCS 1387690-9. | |
| 907862 | Split pin | 52 | 2.00 | OP | |
| 946474 | Flange screw | 2 | 4.00 | ||
| 1359149 | Grease cup | 53 | 2.00 | (1273046) | |
| 982849 | Flange screw | 7 | 2.00 | ||
| 986485 | Washer | 8 | 2.00 | ||
| 985870 | Flange lock nut | 10 | 4.00 | (971084)(946034) | |
| 986504 | Washer | 9 | 2.00 | ||
| 988182 | Flange screw | 16 | 4.00 | ||
| 1359812 | Bushing, left left rear | 6 | 1.00 | (1273711) | |
| 1273778 | Bushing right rear | 6 | 1.00 | (1273711) | |
| 1272494 | Bracket, right reinforced | 11 | 1.00 | OP | |
| 1205819 | Bracket, left | 11 | 1.00 | ||
| 1273792 | Bracket, left reinforced | 11 | 1.00 | REPL 1 PCS 1272493-6, 1 PCS 1273711-0 | |
| 1205822 | Bracket, right | 11 | 1.00 | ||
| 1273793 | Bracket, right reinforced | 11 | 1.00 | REPL 1 PCS 1272494-4 1 PCS 1273711-0 | |
| 1272493 | Bracket, left reinforced | 11 | 1.00 | ||
| 946418 | Spring nut | 20 | 1.00 | (1255989) | |
| 986483 | Washer | 14 | 2.00 | ||
| 1273398 | Heat shield | 19 | 1.00 | (1304237) B21 TURBO, B28F | |
| 985191 | Flange screw | 13 | 2.00 | M10x25 | |
| 985191 | Flange screw | 12 | 4.00 | M10x25 | |
| 1229483 | Stay | 15 | 2.00 | ||
| 986483 | Washer | 17 | 4.00 | ||
| 987891 | Flange lock nut | 18 | 4.00 | (971083) (985869)(971098) | |
| 985393 | Flange screw | 31 | 2.00 | (963265) (970898) | |
| 946485 | Sems screw | 21 | 1.00 | REPL 1PCS 985744, 1PCS 986500 | |
| 1205825 | Bushing, front | 5 | 2.00 | ||
| 986485 | Washer | 32 | 2.00 | ||
| 1221549 | Screw plate | 29 | 2.00 | ||
| 1229925 | Control arm, right reinforced | 4 | 1.00 | EXC (CA),(US) | |
| 1205686 | Control arm, right | 4 | 1.00 | ||
| 1229923 | Control arm, left reinforced | 4 | 1.00 | EXC (CA),(US) | |
| 1205680 | Control arm, left | 4 | 1.00 | ||
| 969317 | Flange lock nut | 33 | 6.00 | (946810) |

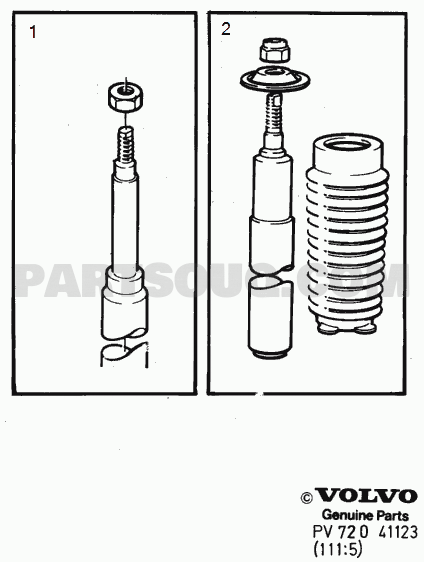

Front spring suspension
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1273775 | Fitting | 9 | 2.00 | (1205777) | |
| 963121 | Lock nut | 7 | 1.00 | ||
| 1272623 | Washer | 6 | 1.00 | ||
| 1272231 | Fitting | 8 | 2.00 | ||
| 274235 | Shock absorber kit | 2 | 2.00 | (271579)(273704) | |
| 273662 | Shock absorber kit | 2 | 2.00 | ||
| 3529819 | Shock absorber kit gas pressure | 4 | 2.00 | OP | (1128793) |
| 1272624 | Protecting bellows | 5 | 1.00 | ||
| 1229337 | Front spring | 1 | 2.00 | O.DIA 14.2 mm | |
| 1229137 | Front spring | 1 | 2.00 | O.DIA 13.85 mm | |
| 1229339 | Front spring | 1 | 2.00 | O.DIA 13.3 mm | |
| 1229338 | Front spring | 1 | 2.00 | O.DIA 13.5 mm | |
| 963121 | Lock nut | 3 | 1.00 | ||
| 986488 | Washer | 13 | 2.00 | ||
| 1205823 | Spring seat, left | 12 | 1.00 | ||
| 1228515 | Spring seat, right | 12 | 1.00 | ||
| 1221647 | Bump rubber | 11 | 2.00 | ||
| 1229659 | Sleeve | 10 | 2.00 | ||
| 1206667 | Rod | 19 | 2.00 | ||
| 1272374 | Stabilizer bar | 14 | 1.00 | O.DIA 19.5 mm. 6CYL, DSL | |
| 1228839 | Stabilizer bar | 14 | 1.00 | O.DIA 21 mm. 6CYL, DSL | |
| 1272778 | Stabilizer bar | 14 | 1.00 | OP | O.DIA 23 mm. 4CYL |
| 1272104 | Stabilizer bar | 14 | 1.00 | O.DIA 19.5 mm. 4CYL REPL 1 PCS 1228840-3 2 PCS 9131955-8, 2 PCS 1228894-0, 2 PCS 1205699-0. | |
| 1228840 | Stabilizer bar | 14 | 1.00 | O.DIA 21 mm. 4CYL | |
| 1205698 | Brace | 16 | 2.00 | F.STAB O.DIA 19.5 mm REPL 1PCS 1229389-0 1PCS 1359391-8, 1PCS 1330185-8. | |
| 1359391 | Brace | 16 | 2.00 | F.STAB O.DIA 21 mm | |
| 1272789 | Brace | 16 | 2.00 | F.STAB O.DIA 23 mm REPL 1PCS 1273184-0 1PCS 1359391-8, 1PCS 1330185-8. | |
| 1228894 | Brace | 16 | 2.00 | REPL 1PCS 1229389-0 1PCS 1359391-8, 1PCS 1330185-8. | |
| 987891 | Flange lock nut | 23 | 2.00 | (971089) (985869)(971098) | |
| 1228199 | Rubber bushing | 15 | 2.00 | F.STAB O.DIA 19.5 mm REPL 1PCS 1229389-0 1PCS 1359391-8, 1PCS 1330185-8. | |
| 9131955 | Rubber bushing | 15 | 2.00 | F.STAB O.DIA 21 mm REPL 1PCS 1229389-0 1PCS 1359391-8, 1PCS 1330185-8. | |
| 1229389 | Bushing | 15 | 2.00 | F.STAB O.DIA 21 mm | |
| 1272779 | Rubber bushing | 15 | 2.00 | F.STAB O.DIA 23 mm REPL 1PCS 1273184-0 1PCS 1359391-8, 1PCS 1330185-8. | |
| 1273184 | Bushing | 15 | 2.00 | F.STAB 0.DIA 23 mm | |
| 1205926 | Bushing | 20 | 2.00 | ||
| 1205991 | Bushing | 21 | 4.00 | ||
| 987003 | Hexagon screw | 24 | 2.00 | (955323) | |
| 1330185 | Clamp | 17 | 2.00 | F.STAB O.DIA 19.5 mm O.DIA 21 mm | |
| 1205699 | Clamp | 17 | 2.00 | REPL 1PCS 1229389-0 1PCS 1359391-8, 1PCS 130185-8. | |
| 1229301 | Clamp | 17 | 2.00 | F.STAB O.DIA 23 mm REPL 1PCS 1229389-0 1PCS 1359391-8, 1PCS 1330185-8. | |
| 1229303 | Washer | 22 | 4.00 | (1205990) ALTER 1. I.DIA 10.2 mm | |
| 987891 | Flange lock nut | 25 | 2.00 | (971089) (985869)(971098) | |
| 986423 | Washer | 18a | 4.00 | ||
| 986997 | Hexagon screw | 18 | 4.00 |
Rear suspension
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986485 | Washer | 7 | 2.00 | ||
| 1272210 | Bearing bolt | 6 | 2.00 | ||
| 1206641 | Shock absorber | 5 | 2.00 | (1272126) 242/244DL, GL EXC 244GL (US). EXC 244GL B21E (AT),(CH),(DE). 244GLE (JP). EXC 244GT. | |
| 1228344 | Shock absorber | 5 | 2.00 | 245DL (AU) | |
| 1128794 | Shock absorber gas pressure | 5 | 2.00 | 242GT CH -16569 (1272194) | |
| 1272649 | Shock absorber gas pressure | 5 | 2.00 | OP | 244GLT B27/B28. 262C. 264. |
| 9131927 | Shock absorber levelling control | 5 | 2.00 | OP | (1272127) 265GL (DE),(FR),(NL),(US) |
| 947218 | Washer | 8 | 2.00 | REPL 1PCS 986445 | |
| 985870 | Flange lock nut | 9 | 4.00 | M12x13.8 (971084) (971099) | |
| 982814 | Flange screw | 14 | 2.00 | M10x16 | |
| 1221882 | Spring seat | 13 | 2.00 | ||
| 3530734 | Stabilizer bar | 1 | 1.00 | (1229956) O.DIA 19 mm | |
| 3530736 | Stabilizer bar | 1 | 1.00 | (1229313) O.DIA 16 mm | |
| 3529521 | Stabilizer bar | 1 | 1.00 | (1272792) O.DIA 21 mm | |
| 1229957 | Stabilizer bar | 1 | 1.00 | O.DIA 23 mm | |
| 1221885 | Spacer | 15 | 2.00 | ||
| 1221956 | Bracket | 2 | 2.00 | ||
| 947292 | Square neck screw | 3 | 2.00 | ||
| 1206640 | Spacer sleeve | 11 | 2.00 | ||
| 1212426 | Rear spring | 16 | 2.00 | O.DIA 12 mm 244GL (US) EXC (CA),244GL B21E (AT),(CH),(DE),244GLE EXC (JP),242/244GLT B21/B23, 242GT CH 165570- 242/244DL, GL EXC 244GL (US). EXC 244GL B21E (AT),(CH),(DE). 244GLE (JP). EXC 244GT. | |
| 1212427 | Rear spring | 16 | 2.00 | 245DL, GL (DE) (FR),O.DIA 12.7 mm | |
| 1229052 | Rear spring | 16 | 2.00 | O.DIA 12.95 mm 245/265GL (AU) 245DL, GL. EXC 245DL, GL (AU),(DE),(FR). 245/265GLE. 265GL. EXC 265GL (AU),(DE),(FR),(NL),(US) | |
| 1206750 | Rear spring | 16 | 2.00 | 245DL (AU) O.DIA 13.8 mm | |
| 985861 | Flange nut | 4 | 2.00 | M10 (945409) | |
| 1206811 | Attaching washer | 17 | 2.00 | ||
| 970985 | Hexagon screw | 10 | 2.00 | (955355) R.STAB O.DIA 16 mm | |
| 970986 | Hexagon screw | 10 | 2.00 | (955356) R.STAB O.DIA 19 mm O.DIA 21 mm O.DIA 23 mm. | |
| 987891 | Flange lock nut | 18 | 2.00 | (971089) (985869)(971098) | |
| 985870 | Flange lock nut | 12 | 2.00 | M12x13.8 (971084) (971099) |
