Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
64 Steering

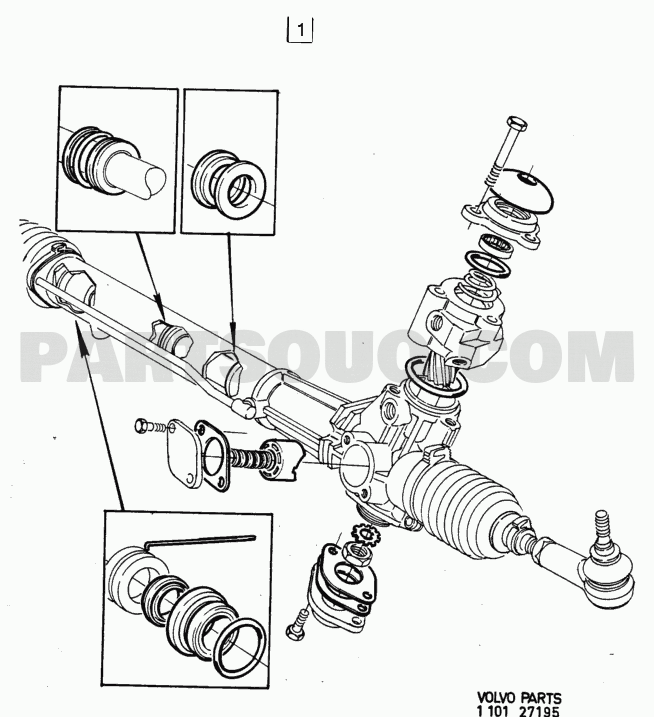

repair kits steering box 1229394
| Number | Name | Code | Quantity |
|---|---|---|---|
| 1272537 | Sealing kit | 1 | 1.00 |
repair kits steering box 1329694
| Number | Name | Code | Quantity |
|---|---|---|---|
| 271562 | Sealing kit | 1 | 1.00 |
repair kits steering box
1272460, 1272461.
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 271547 | Repair kit | 1 | 1.00 | OP | P.S |
Steering steering box Steering shaft L.H.D W/O P.S
L.H.D
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 973995 | Nut | 21 | 1.00 | (1272286) | |
| 85612 | Spring | 22 | 1.00 | ||
| 1229733 | Steering column | 14 | 1.00 | ||
| 1221677 | Bushing | 24 | 1.00 | ||
| 85611 | Ball bearing | 19 | 2.00 | OP | |
| 85613 | Seat | 18 | 2.00 | ||
| 85612 | Spring | 17 | 1.00 | ||
| 1221417 | Clamp | 23 | 1.00 | ||
| 914456 | Snap ring | 20 | 1.00 | ||
| 1205839 | Sealing | 26 | 1.00 | ||
| 982793 | Flange screw | 25 | 2.00 | ||
| 664822 | Split pin | 32 | 2.00 | ||
| 1359403 | Joint | 29 | 1.00 | OP | (1330199) |
| 1229213 | Joint | 29 | 1.00 | REPL 1 PCS 1359403-1 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 977294 | Flange screw | 30 | 2.00 | (1229343) for joint 1229212, 1229421, 1229213. | |
| 1229260 | Protecting sleeve | 35 | 1.00 | ||
| 1229208 | Steering shaft | 27 | 1.00 | ||
| 985868 | Flange lock nut | 34 | 2.00 | (946036) | |
| 985316 | Flange screw | 33 | 2.00 | (1272992) For joint 1330197, 1330199, 1359403, 1359404. | |
| 1229212 | Joint | 28 | 1.00 | ||
| 1272597 | Clamp | 4 | 2.00 | ||
| 1228508 | Brace | 9 | 2.00 | ||
| 1205667 | Spacer | 7 | 2.00 | ||
| 3516943 | Steering gear | 1 | 1.00 | (1229324) Service plate marked 3. | |
| 946109 | Lock nut | 13 | 2.00 | ||
| 986481 | Washer | 5 | 4.00 | ||
| 985868 | Flange lock nut | 6 | 4.00 | (946036) | |
| 1229388 | Locating pin | 3 | 2.00 |
Steering steering box Steering shaft R.H.D W/O P.S
R.H.D
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 973995 | Nut | 21 | 1.00 | (1272286) | |
| 85612 | Spring | 22 | 1.00 | ||
| 1229733 | Steering column | 14 | 1.00 | ||
| 1221677 | Bushing | 24 | 1.00 | ||
| 85611 | Ball bearing | 19 | 2.00 | OP | |
| 85613 | Seat | 18 | 2.00 | ||
| 85612 | Spring | 17 | 1.00 | ||
| 1221417 | Clamp | 23 | 1.00 | ||
| 914456 | Snap ring | 20 | 1.00 | ||
| 1205839 | Sealing | 26 | 1.00 | ||
| 982793 | Flange screw | 25 | 2.00 | ||
| 664822 | Split pin | 32 | 2.00 | ||
| 1359403 | Joint | 29 | 1.00 | OP | (1330199) |
| 1229213 | Joint | 29 | 1.00 | REPL 1 PCS 1359403-1 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 977294 | Flange screw | 30 | 2.00 | (1229343) for joint 1229212, 1229421, 1229213. | |
| 1229260 | Protecting sleeve | 35 | 1.00 | ||
| 1229208 | Steering shaft | 27 | 1.00 | ||
| 985868 | Flange lock nut | 34 | 2.00 | (946036) | |
| 985316 | Flange screw | 33 | 2.00 | (1272992) For joint 1330197, 1330199, 1359403, 1359404. | |
| 1229212 | Joint | 28 | 1.00 | ||
| 1272597 | Clamp | 4 | 2.00 | ||
| 1228508 | Brace | 9 | 2.00 | ||
| 1205667 | Spacer | 7 | 2.00 | ||
| 1229321 | Steering gear | 1 | 1.00 | OP | CAM Service plate marked 2, 4, 5. |
| 946109 | Lock nut | 13 | 2.00 | ||
| 986481 | Washer | 5 | 4.00 | ||
| 985868 | Flange lock nut | 6 | 4.00 | (946036) | |
| 1229388 | Locating pin | 3 | 2.00 |
Steering steering box Steering shaft L.H.D P.S
L.H.D
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 973995 | Nut | 21 | 1.00 | (1272286) | |
| 85612 | Spring | 22 | 1.00 | ||
| 1229733 | Steering column | 14 | 1.00 | ||
| 1221677 | Bushing | 24 | 1.00 | ||
| 85611 | Ball bearing | 19 | 2.00 | OP | |
| 85613 | Seat | 18 | 2.00 | ||
| 85612 | Spring | 17 | 1.00 | ||
| 1221417 | Clamp | 23 | 1.00 | ||
| 914456 | Snap ring | 20 | 1.00 | ||
| 1205839 | Sealing | 26 | 1.00 | ||
| 982793 | Flange screw | 25 | 2.00 | ||
| 664822 | Split pin | 32 | 1.00 | ||
| 1359403 | Joint | 29 | 1.00 | OP | (1330199) |
| 1229213 | Joint | 29 | 1.00 | REPL 1 PCS 1359403-1 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 977294 | Flange screw | 30 | 2.00 | (1229343) for joint 1229212, 1229421, 1229213. | |
| 1229209 | Steering shaft | 27 | 1.00 | ||
| 985868 | Flange lock nut | 34 | 2.00 | (946036) | |
| 907819 | Split pin | 31 | 1.00 | ||
| 985316 | Flange screw | 33 | 2.00 | (1272992) For joint 1330197, 1330199, 1359403, 1359404. | |
| 1229421 | Joint | 28 | 1.00 | REPL 1 PCS 1330197-3 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 6819550 | Universal joint | 28 | 1.00 | OP | (1359404) |
| 1272597 | Clamp | 4 | x | ||
| 1272678 | Brace | 9 | 1.00 | OP | CAM 242 CH APP 177710-, 244 CH 531595-1000000, CH 1-, 245 CH 287114-, 264 CH 91860-, 265 CH 23909- |
| 946109 | Lock nut | 13 | 2.00 | ||
| 1272679 | Intermediate section aluminum | 10 | 1.00 | LG 72 mm CAM 242 CH APP 177710-, 244 CH 531595-1000000, CH 1-, 245 CH 287114-, 264 CH 91860-, 265 CH 23909- | |
| 1272593 | Intermediate section | 10 | 1.00 | LG 74 mm. ZF CAM 242 CH-APP 177710, 244 CH-531594, 245 CH-287113, 264 CH-91859, 265 CH-23908. | |
| 1272517 | Spacer | 8 | 1.00 | ZF 242 CH-191210, 244 CH-606891, 245 CH-324851, 264 CH-109706, 265 CH-28913. CAM 242 CH-APP 177710, 244 CH-531594, 245 CH-287113, 264 CH-91859, 265 CH-23908. | |
| 986481 | Washer | 5 | 2.00 | ||
| 985868 | Flange lock nut | 6 | 2.00 | (946036) | |
| 1229388 | Locating pin | 3 | 1.00 | ||
| 986481 | Washer | 11 | 2.00 | ALTER 1 8.4x16x10 | |
| 986606 | Spacer washer | 11 | 2.00 | ALTER 2 8.4x18x10 | |
| 985042 | Flange screw | 12 | 2.00 | ALTER 1 M8x60 (949039) (982136) | |
| 985038 | Flange screw | 12 | 2.00 | ALTER 2. M8x25 |
Steering steering box Steering shaft R.H.D P.S
R.H.D
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 973995 | Nut | 21 | 1.00 | (1272286) | |
| 85612 | Spring | 22 | 1.00 | ||
| 1229733 | Steering column | 14 | 1.00 | ||
| 1221677 | Bushing | 24 | 1.00 | ||
| 85611 | Ball bearing | 19 | 2.00 | OP | |
| 85613 | Seat | 18 | 2.00 | ||
| 85612 | Spring | 17 | 1.00 | ||
| 1221417 | Clamp | 23 | 1.00 | ||
| 914456 | Snap ring | 20 | 1.00 | ||
| 1205839 | Sealing | 26 | 1.00 | ||
| 982793 | Flange screw | 25 | 2.00 | ||
| 664822 | Split pin | 32 | 1.00 | ||
| 1229213 | Joint | 29 | 1.00 | REPL 1 PCS 1359403-1 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 1359403 | Joint | 29 | 1.00 | OP | (1330199) |
| 977294 | Flange screw | 30 | 2.00 | (1229343) for joint 1229212, 1229421, 1229213. | |
| 1229209 | Steering shaft | 27 | 1.00 | ||
| 1272890 | Heat shield | 36 | 1.00 | OP | |
| 985868 | Flange lock nut | 34 | 2.00 | (946036) | |
| 907819 | Split pin | 31 | 1.00 | ||
| 943472 | Hose clamp | 37 | 1.00 | ||
| 985316 | Flange screw | 33 | 2.00 | (1272992) For joint 1330197, 1330199, 1359403, 1359404. | |
| 6819550 | Universal joint | 28 | 1.00 | OP | (1359404) |
| 1229421 | Joint | 28 | 1.00 | REPL 1 PCS 1330197-3 2 PCS 1272992-7, 2 PCS 946036-1. | |
| 1272597 | Clamp | 4 | x | ||
| 1272678 | Brace | 9 | 1.00 | OP | CAM 242 CH APP 177710-, 244 CH 541036-1000000, CH 1-, 245 CH 291682-, 264 CH 94024-, 265 CH 24408- |
| 946109 | Lock nut | 13 | 2.00 | ||
| 1272679 | Intermediate section aluminum | 10 | 1.00 | LG 72 mm CAM 242 CH APP 177710-, 244 CH 541036-1000000, CH 1-, 245 CH 291682-, 264 CH 94024-, 265 CH 24408- | |
| 1272593 | Intermediate section | 10 | 1.00 | LG 74 mm. ZF CAM 242 CH-APP 177710, 244 CH-541035, 245 CH-291681, 264 CH-94023, 265 CH-24407. | |
| 1272517 | Spacer | 8 | 1.00 | ZF 242 CH-191210, 244 CH-606891, 245 CH-324851, 264 CH-109706, 265 CH-28913. CAM 242 CH-APP 177710, 244 CH-541035, 245 CH-291681, 264 CH-94023, 265 CH-24407. | |
| 986481 | Washer | 5 | 2.00 | ||
| 985868 | Flange lock nut | 6 | 2.00 | (946036) | |
| 1229388 | Locating pin | 3 | 1.00 | ||
| 986606 | Spacer washer | 11 | 2.00 | ALTER 2 8.4x18x10 | |
| 986481 | Washer | 11 | 2.00 | ALTER 1 8.4x16x10 | |
| 985038 | Flange screw | 12 | 2.00 | ALTER 2. M8x25 | |
| 985042 | Flange screw | 12 | 2.00 | ALTER 1 M8x60 (949039) (982136) |
