Volvo Parts Catalogs 240
| Brand | Name | Engine | Manufactured | Market | Profile Description | Gearbox | |
|---|---|---|---|---|---|---|---|
 VOLVO | 240 | D20 | 1979 | International Misc (INT) | 240, 1979, D20, AW55 | AW55 |
88 Interior equipment

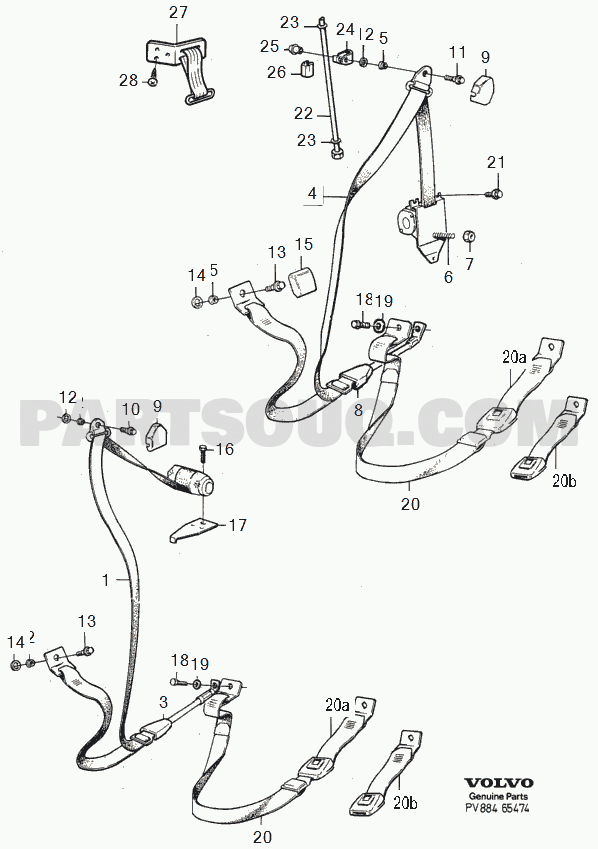

seat belt Rear 245, 265.
5DRS S.REXC (CA),(JP),(US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 685719 | Lug | 24 | 2.00 | ||
| 1360818 | Lug black | 24 | 2.00 | (1313104) | |
| 1360819 | Sleeve black | 25 | 2.00 | (1313103) | |
| 685720 | Sleeve | 25 | 2.00 | ||
| 1221304 | Screw | 11 | 2.00 | ||
| 685898 | Spacer | 26 | 2.00 | ||
| 986114 | Six point socket screw | 28 | 6.00 | (AU) (955138) | |
| 1313102 | Pull rod black | 22 | 2.00 | ||
| 1221165 | Pull rod | 22 | 2.00 | ||
| 1254346 | Grommet | 23 | 4.00 | ||
| 988177 | Flange screw | 21 | 6.00 | ||
| 1244354 | Seat belt | 4 | 2.00 | 1980- (FI) REPL 1 PCS 3506764-4. | |
| 3506764 | Seat belt | 4 | 2.00 | OP | 1979 (AU),(FI) (1244354) |
| 1264238 | Seat belt | 4 | 2.00 | REPL 1 PCS 1388229-5 1 PCS 3506526-7. | |
| 1225859 | Seat belt | 4 | 2.00 | 1979 REPL 1 PCS 1244354-5 1 PCS 1244321-4 | |
| 1294080 | Seat belt | 4 | 2.00 | REPL 1 PCS 1244354-5. | |
| 1207666 | Cover | 15 | 2.00 | ||
| 940153 | Hexagon nut | 7 | 1.00 | ||
| 1221010 | Bushing | 5 | 2.00 | ||
| 943394 | Hexagon screw | 6 | 1.00 | ||
| 986433 | Washer | 12 | 2.00 | ||
| 1244008 | Cover, grey | 9 | 2.00 | ||
| 1244007 | Cover, beige | 9 | 2.00 | ||
| 681533 | Cover, black | 9 | 2.00 | ||
| 1244006 | Cover, blue | 9 | 2.00 | ||
| 1244009 | Cover, brown | 9 | 2.00 | ||
| 3506526 | Belt catch | 8 | 1.00 | 1979 (1388531) | |
| 1264334 | Belt catch, right | 8 | 1.00 | (AU) | |
| 1264333 | Belt catch, left | 8 | 1.00 | OP | (AU) |
| 1204775 | Screw | 13 | 2.00 | ||
| 986433 | Washer | 14 | 2.00 | ||
| 1313105 | Washer | 14 | 2.00 | OP | |
| 943395 | Hexagon screw | 18 | 2.00 | ||
| 986484 | Washer | 19 | 2.00 | ||
| 3506528 | Belt catch | 20b | 1.00 | FOR 1388529,1373621. (1388532) | |
| 1373261 | Seat belt center | 20 | 1.00 | ||
| 1224789 | Seat belt | 20 | 1.00 | REPL 1PCS 1310091-2. | |
| 1310091 | Seat belt center | 20 | 1.00 | REPL 1PCS 1373261-5 1PCS 3506528-3 |
seat belt Rear 245, 265.
5DRS W/O S.REXC (CA),(JP),(US)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 685719 | Lug | 24 | 2.00 | ||
| 1360818 | Lug black | 24 | 2.00 | (1313104) | |
| 1360819 | Sleeve black | 25 | 2.00 | (1313103) | |
| 685720 | Sleeve | 25 | 2.00 | ||
| 1221304 | Screw | 11 | 2.00 | ||
| 685898 | Spacer | 26 | 2.00 | ||
| 986114 | Six point socket screw | 28 | 6.00 | (AU) (955138) | |
| 1313102 | Pull rod black | 22 | 2.00 | ||
| 1221165 | Pull rod | 22 | 2.00 | ||
| 1254346 | Grommet | 23 | 4.00 | ||
| 988177 | Flange screw | 21 | 6.00 | ||
| 1244354 | Seat belt | 4 | 2.00 | 1980- (FI) REPL 1 PCS 3506764-4. | |
| 3506764 | Seat belt | 4 | 2.00 | OP | 1979 (AU),(FI) (1244354) |
| 1264238 | Seat belt | 4 | 2.00 | REPL 1 PCS 1388229-5 1 PCS 3506526-7. | |
| 1225859 | Seat belt | 4 | 2.00 | 1979 REPL 1 PCS 1244354-5 1 PCS 1244321-4 | |
| 1294080 | Seat belt | 4 | 2.00 | REPL 1 PCS 1244354-5. | |
| 1207666 | Cover | 15 | 2.00 | ||
| 940153 | Hexagon nut | 7 | 1.00 | ||
| 1221010 | Bushing | 5 | 2.00 | ||
| 943394 | Hexagon screw | 6 | 1.00 | ||
| 986433 | Washer | 12 | 2.00 | ||
| 1244008 | Cover, grey | 9 | 2.00 | ||
| 1244007 | Cover, beige | 9 | 2.00 | ||
| 681533 | Cover, black | 9 | 2.00 | ||
| 1244006 | Cover, blue | 9 | 2.00 | ||
| 1244009 | Cover, brown | 9 | 2.00 | ||
| 3506526 | Belt catch | 8 | 1.00 | 1979 (1388531) | |
| 1264334 | Belt catch, right | 8 | 1.00 | (AU) | |
| 1264333 | Belt catch, left | 8 | 1.00 | OP | (AU) |
| 1204775 | Screw | 13 | 2.00 | ||
| 986433 | Washer | 14 | 2.00 | ||
| 1313105 | Washer | 14 | 2.00 | OP | |
| 943395 | Hexagon screw | 18 | 2.00 | ||
| 986484 | Washer | 19 | 2.00 | ||
| 3506528 | Belt catch | 20b | 1.00 | FOR 1388529,1373621. (1388532) | |
| 1373261 | Seat belt center | 20 | 1.00 | ||
| 1224789 | Seat belt | 20 | 1.00 | REPL 1PCS 1310091-2. | |
| 1310091 | Seat belt center | 20 | 1.00 | REPL 1PCS 1373261-5 1PCS 3506528-3 |

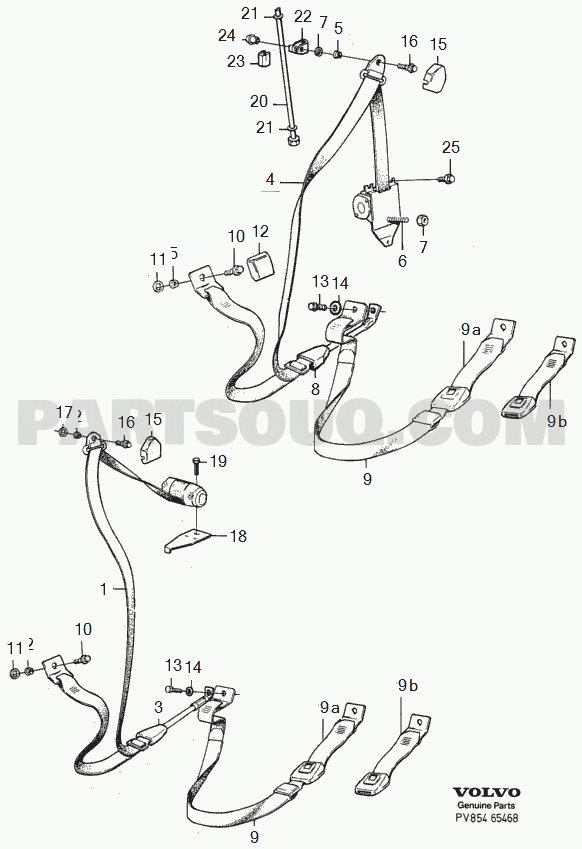

seat belt Rear 245, 265.
5DRS S.R(CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 685719 | Lug | 22 | 2.00 | |
| 1360818 | Lug black | 22 | 2.00 | (1313104) |
| 1360819 | Sleeve black | 24 | 2.00 | (1313103) |
| 685720 | Sleeve | 24 | 2.00 | |
| 685898 | Spacer | 23 | 2.00 | |
| 1313102 | Pull rod black | 20 | 2.00 | |
| 1221165 | Pull rod | 20 | 2.00 | |
| 1254346 | Grommet | 21 | 4.00 | |
| 988177 | Flange screw | 25 | 6.00 | |
| 3506764 | Seat belt | 4 | 2.00 | |
| 1225861 | Seat belt | 4 | 2.00 | REPL 1PCS 3506764-4. |
| 1207666 | Cover | 12 | 2.00 | |
| 940153 | Hexagon nut | 7 | 1.00 | |
| 1221010 | Bushing | 5 | 2.00 | |
| 943394 | Hexagon screw | 6 | 1.00 | |
| 3506526 | Belt catch | 8 | 1.00 | 1979 (1244321) |
| 986433 | Washer | 17 | 2.00 | |
| 1313105 | Washer | 17 | 2.00 | |
| 1244009 | Cover, brown | 15 | 2.00 | 1980- |
| 1244008 | Cover, grey | 15 | 2.00 | 1980- |
| 1244007 | Cover, beige | 15 | 2.00 | 1980- |
| 681533 | Cover, black | 15 | 2.00 | 1979 |
| 1244006 | Cover, blue | 15 | 2.00 | 1980- |
| 1221304 | Screw | 16 | 2.00 | LG 25 |
| 1204775 | Screw | 10 | 2.00 | |
| 986433 | Washer | 11 | 2.00 | |
| 943395 | Hexagon screw | 13 | 2.00 | |
| 986484 | Washer | 14 | 2.00 | |
| 3506528 | Belt catch | 9b | 1.00 | (1388532) FOR 1388529,1373261. |
| 1373261 | Seat belt | 9 | 1.00 | |
| 1310091 | Seat belt center | 9 | 1.00 | REPL 1PCS 1373261-5 1PCS 3506528-3. |
seat belt Rear 245, 265.
5DRS W/O S.R(CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 685719 | Lug | 22 | 2.00 | |
| 1360818 | Lug black | 22 | 2.00 | (1313104) |
| 1360819 | Sleeve black | 24 | 2.00 | (1313103) |
| 685720 | Sleeve | 24 | 2.00 | |
| 685898 | Spacer | 23 | 2.00 | |
| 1313102 | Pull rod black | 20 | 2.00 | |
| 1221165 | Pull rod | 20 | 2.00 | |
| 1254346 | Grommet | 21 | 4.00 | |
| 988177 | Flange screw | 25 | 6.00 | |
| 3506764 | Seat belt | 4 | 2.00 | |
| 1225861 | Seat belt | 4 | 2.00 | REPL 1PCS 3506764-4. |
| 1207666 | Cover | 12 | 2.00 | |
| 940153 | Hexagon nut | 7 | 1.00 | |
| 1221010 | Bushing | 5 | 2.00 | |
| 943394 | Hexagon screw | 6 | 1.00 | |
| 3506526 | Belt catch | 8 | 1.00 | 1979 (1244321) |
| 986433 | Washer | 17 | 2.00 | |
| 1313105 | Washer | 17 | 2.00 | |
| 1244009 | Cover, brown | 15 | 2.00 | 1980- |
| 1244008 | Cover, grey | 15 | 2.00 | 1980- |
| 1244007 | Cover, beige | 15 | 2.00 | 1980- |
| 681533 | Cover, black | 15 | 2.00 | 1979 |
| 1244006 | Cover, blue | 15 | 2.00 | 1980- |
| 1221304 | Screw | 16 | 2.00 | LG 25 |
| 1204775 | Screw | 10 | 2.00 | |
| 986433 | Washer | 11 | 2.00 | |
| 943395 | Hexagon screw | 13 | 2.00 | |
| 986484 | Washer | 14 | 2.00 | |
| 3506528 | Belt catch | 9b | 1.00 | (1388532) FOR 1388529,1373261. |
| 1373261 | Seat belt | 9 | 1.00 | |
| 1310091 | Seat belt center | 9 | 1.00 | REPL 1PCS 1373261-5 1PCS 3506528-3. |
seat belt Rear 242.
2DRS S.REXC (CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 12 | 2.00 | |
| 1244007 | Cover, beige | 9 | 2.00 | |
| 1244009 | Cover, brown | 9 | 2.00 | |
| 1244008 | Cover, grey | 9 | 2.00 | |
| 681533 | Cover, black | 9 | 2.00 | |
| 1244006 | Cover, blue | 9 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 943395 | Hexagon screw | 16 | 2.00 | |
| 1224704 | Locating plate | 17 | 2.00 | |
| 1244353 | Seat belt | 1 | 2.00 | 1980- REPL 1 PCS 1388227-9 |
| 1225862 | Seat belt | 1 | 2.00 | 1979 (AU),(FI) REPL 1 PCS 1244353-7 |
| 1264237 | Seat belt | 1 | 2.00 | REPL 1 PCS 1388227-9, 1 PCS 1297613-0. (AU) |
| 1294079 | Seat belt | 1 | 2.00 | REPL 1 PCS 1244353-7 |
| 1225858 | Seat belt | 1 | 2.00 | 1979 REPL 1 PCS 1244353-7, 1 PCS 1244320-6. |
| 1204775 | Screw | 13 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 14 | 2.00 | |
| 943395 | Hexagon screw | 18 | 2.00 | |
| 986484 | Washer | 19 | 2.00 | |
| 1264332 | Belt catch | 3 | 2.00 | (AU) |
| 1297613 | Belt catch | 3 | 2.00 | EXC (AU) (1244320) |
| 3506528 | Belt catch | 20b | 1.00 | FOR 1388529,1373621. (1388532) |
| 1224789 | Seat belt | 20 | 1.00 | REPL 1PCS 1310091-2. |
| 1310091 | Seat belt center | 20 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3 |
| 1388529 | Seat belt center | 20 | 1.00 | REPL 1PCS 9188119-3. |
| 9188119 | Belt catch center | 20 | 1.00 |
seat belt Rear 242.
2DRS W/O S.REXC (CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 12 | 2.00 | |
| 1244007 | Cover, beige | 9 | 2.00 | |
| 1244009 | Cover, brown | 9 | 2.00 | |
| 1244008 | Cover, grey | 9 | 2.00 | |
| 681533 | Cover, black | 9 | 2.00 | |
| 1244006 | Cover, blue | 9 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 943395 | Hexagon screw | 16 | 2.00 | |
| 1224704 | Locating plate | 17 | 2.00 | |
| 1244353 | Seat belt | 1 | 2.00 | 1980- REPL 1 PCS 1388227-9 |
| 1225862 | Seat belt | 1 | 2.00 | 1979 (AU),(FI) REPL 1 PCS 1244353-7 |
| 1264237 | Seat belt | 1 | 2.00 | REPL 1 PCS 1388227-9, 1 PCS 1297613-0. (AU) |
| 1294079 | Seat belt | 1 | 2.00 | REPL 1 PCS 1244353-7 |
| 1225858 | Seat belt | 1 | 2.00 | 1979 REPL 1 PCS 1244353-7, 1 PCS 1244320-6. |
| 1204775 | Screw | 13 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 14 | 2.00 | |
| 943395 | Hexagon screw | 18 | 2.00 | |
| 986484 | Washer | 19 | 2.00 | |
| 1264332 | Belt catch | 3 | 2.00 | (AU) |
| 1297613 | Belt catch | 3 | 2.00 | EXC (AU) (1244320) |
| 3506528 | Belt catch | 20b | 1.00 | FOR 1388529,1373621. (1388532) |
| 1224789 | Seat belt | 20 | 1.00 | REPL 1PCS 1310091-2. |
| 1310091 | Seat belt center | 20 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3 |
| 1388529 | Seat belt center | 20 | 1.00 | REPL 1PCS 9188119-3. |
| 9188119 | Belt catch center | 20 | 1.00 |
seat belt Rear 244, 264.
4DRS S.REXC (CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 12 | 2.00 | |
| 1244007 | Cover, beige | 9 | 2.00 | |
| 1244009 | Cover, brown | 9 | 2.00 | |
| 1244008 | Cover, grey | 9 | 2.00 | |
| 681533 | Cover, black | 9 | 2.00 | |
| 1244006 | Cover, blue | 9 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 943395 | Hexagon screw | 16 | 2.00 | |
| 1224704 | Locating plate | 17 | 2.00 | |
| 1244353 | Seat belt | 1 | 2.00 | 1980- REPL 1 PCS 1388227-9 |
| 1225862 | Seat belt | 1 | 2.00 | 1979 (AU),(FI) REPL 1 PCS 1244353-7 |
| 1264237 | Seat belt | 1 | 2.00 | REPL 1 PCS 1388227-9, 1 PCS 1297613-0. (AU) |
| 1294079 | Seat belt | 1 | 2.00 | REPL 1 PCS 1244353-7 |
| 1225858 | Seat belt | 1 | 2.00 | 1979 REPL 1 PCS 1244353-7, 1 PCS 1244320-6. |
| 1204775 | Screw | 13 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 14 | 2.00 | |
| 943395 | Hexagon screw | 18 | 2.00 | |
| 986484 | Washer | 19 | 2.00 | |
| 1264332 | Belt catch | 3 | 2.00 | (AU) |
| 1297613 | Belt catch | 3 | 2.00 | EXC (AU) (1244320) |
| 3506528 | Belt catch | 20b | 1.00 | FOR 1388529,1373621. (1388532) |
| 1224789 | Seat belt | 20 | 1.00 | REPL 1PCS 1310091-2. |
| 1310091 | Seat belt center | 20 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3 |
| 1388529 | Seat belt center | 20 | 1.00 | REPL 1PCS 9188119-3. |
| 9188119 | Belt catch center | 20 | 1.00 |
seat belt Rear 244, 264.
4DRS W/O S.REXC (CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 12 | 2.00 | |
| 1244007 | Cover, beige | 9 | 2.00 | |
| 1244009 | Cover, brown | 9 | 2.00 | |
| 1244008 | Cover, grey | 9 | 2.00 | |
| 681533 | Cover, black | 9 | 2.00 | |
| 1244006 | Cover, blue | 9 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 943395 | Hexagon screw | 16 | 2.00 | |
| 1224704 | Locating plate | 17 | 2.00 | |
| 1244353 | Seat belt | 1 | 2.00 | 1980- REPL 1 PCS 1388227-9 |
| 1225862 | Seat belt | 1 | 2.00 | 1979 (AU),(FI) REPL 1 PCS 1244353-7 |
| 1264237 | Seat belt | 1 | 2.00 | REPL 1 PCS 1388227-9, 1 PCS 1297613-0. (AU) |
| 1294079 | Seat belt | 1 | 2.00 | REPL 1 PCS 1244353-7 |
| 1225858 | Seat belt | 1 | 2.00 | 1979 REPL 1 PCS 1244353-7, 1 PCS 1244320-6. |
| 1204775 | Screw | 13 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 14 | 2.00 | |
| 943395 | Hexagon screw | 18 | 2.00 | |
| 986484 | Washer | 19 | 2.00 | |
| 1264332 | Belt catch | 3 | 2.00 | (AU) |
| 1297613 | Belt catch | 3 | 2.00 | EXC (AU) (1244320) |
| 3506528 | Belt catch | 20b | 1.00 | FOR 1388529,1373621. (1388532) |
| 1224789 | Seat belt | 20 | 1.00 | REPL 1PCS 1310091-2. |
| 1310091 | Seat belt center | 20 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3 |
| 1388529 | Seat belt center | 20 | 1.00 | REPL 1PCS 9188119-3. |
| 9188119 | Belt catch center | 20 | 1.00 |
seat belt Rear 242.
2DRS S.R(CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 17 | 2.00 | |
| 681533 | Cover, black | 15 | 2.00 | 1979 |
| 1244009 | Cover, brown | 15 | 2.00 | 1980- |
| 1244008 | Cover, grey | 15 | 2.00 | 1980- |
| 1244007 | Cover, beige | 15 | 2.00 | 1980- |
| 1244006 | Cover, blue | 15 | 2.00 | 1980- |
| 1204775 | Screw | 16 | 2.00 | LG 32 |
| 943395 | Hexagon screw | 19 | 2.00 | |
| 1224704 | Locating plate | 18 | 2.00 | FOR 1225860 |
| 1225860 | Seat belt | 1 | 2.00 | REPL 1PCS 1388227-9. |
| 1388227 | Seat belt | 1 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 11 | 2.00 | |
| 943395 | Hexagon screw | 13 | 2.00 | |
| 986484 | Washer | 14 | 2.00 | |
| 3506528 | Belt catch | 9b | 1.00 | (1388532) FOR 1388529,1373261. |
| 1297613 | Belt catch | 3 | 2.00 | (1244320) |
| 1388529 | Seat belt | 9 | 1.00 | |
| 1310091 | Seat belt center | 9 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3. |
seat belt Rear 242.
2DRS W/O S.R(CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 17 | 2.00 | |
| 681533 | Cover, black | 15 | 2.00 | 1979 |
| 1244009 | Cover, brown | 15 | 2.00 | 1980- |
| 1244008 | Cover, grey | 15 | 2.00 | 1980- |
| 1244007 | Cover, beige | 15 | 2.00 | 1980- |
| 1244006 | Cover, blue | 15 | 2.00 | 1980- |
| 1204775 | Screw | 16 | 2.00 | LG 32 |
| 943395 | Hexagon screw | 19 | 2.00 | |
| 1224704 | Locating plate | 18 | 2.00 | FOR 1225860 |
| 1225860 | Seat belt | 1 | 2.00 | REPL 1PCS 1388227-9. |
| 1388227 | Seat belt | 1 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 11 | 2.00 | |
| 943395 | Hexagon screw | 13 | 2.00 | |
| 986484 | Washer | 14 | 2.00 | |
| 3506528 | Belt catch | 9b | 1.00 | (1388532) FOR 1388529,1373261. |
| 1297613 | Belt catch | 3 | 2.00 | (1244320) |
| 1388529 | Seat belt | 9 | 1.00 | |
| 1310091 | Seat belt center | 9 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3. |
seat belt Rear 244, 264.
4DRS S.R(CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 17 | 2.00 | |
| 681533 | Cover, black | 15 | 2.00 | 1979 |
| 1244009 | Cover, brown | 15 | 2.00 | 1980- |
| 1244008 | Cover, grey | 15 | 2.00 | 1980- |
| 1244007 | Cover, beige | 15 | 2.00 | 1980- |
| 1244006 | Cover, blue | 15 | 2.00 | 1980- |
| 1204775 | Screw | 16 | 2.00 | LG 32 |
| 943395 | Hexagon screw | 19 | 2.00 | |
| 1224704 | Locating plate | 18 | 2.00 | FOR 1225860 |
| 1225860 | Seat belt | 1 | 2.00 | REPL 1PCS 1388227-9. |
| 1388227 | Seat belt | 1 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 11 | 2.00 | |
| 943395 | Hexagon screw | 13 | 2.00 | |
| 986484 | Washer | 14 | 2.00 | |
| 3506528 | Belt catch | 9b | 1.00 | (1388532) FOR 1388529,1373261. |
| 1297613 | Belt catch | 3 | 2.00 | (1244320) |
| 1388529 | Seat belt | 9 | 1.00 | |
| 1310091 | Seat belt center | 9 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3. |
seat belt Rear 244, 264.
4DRS W/O S.R(CA),(JP),(US)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 17 | 2.00 | |
| 681533 | Cover, black | 15 | 2.00 | 1979 |
| 1244009 | Cover, brown | 15 | 2.00 | 1980- |
| 1244008 | Cover, grey | 15 | 2.00 | 1980- |
| 1244007 | Cover, beige | 15 | 2.00 | 1980- |
| 1244006 | Cover, blue | 15 | 2.00 | 1980- |
| 1204775 | Screw | 16 | 2.00 | LG 32 |
| 943395 | Hexagon screw | 19 | 2.00 | |
| 1224704 | Locating plate | 18 | 2.00 | FOR 1225860 |
| 1225860 | Seat belt | 1 | 2.00 | REPL 1PCS 1388227-9. |
| 1388227 | Seat belt | 1 | 2.00 | |
| 1204775 | Screw | 10 | 2.00 | |
| 1221010 | Bushing | 2 | 2.00 | |
| 986433 | Washer | 11 | 2.00 | |
| 943395 | Hexagon screw | 13 | 2.00 | |
| 986484 | Washer | 14 | 2.00 | |
| 3506528 | Belt catch | 9b | 1.00 | (1388532) FOR 1388529,1373261. |
| 1297613 | Belt catch | 3 | 2.00 | (1244320) |
| 1388529 | Seat belt | 9 | 1.00 | |
| 1310091 | Seat belt center | 9 | 1.00 | REPL 1PCS 1388529-8, 1PCS 3506528-3. |
seat belt Front
2DRS S.R242 EXC (AT),(AU),(BE),(CH),(DE),(DK),(FI),(FR),(GB),(IT),(NL)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 18 | 2.00 | |
| 1221010 | Bushing | 4 | 1.00 | |
| 1221304 | Screw | 17 | 2.00 | |
| 1244009 | Cover, brown | 16 | 2.00 | |
| 1244008 | Cover, grey | 16 | 2.00 | |
| 1244007 | Cover, beige | 16 | 2.00 | |
| 1244006 | Cover, blue | 16 | 2.00 | |
| 681533 | Cover, black | 16 | 2.00 | |
| 1313425 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) 1982- REPL 1 PCS 3506052-4 |
| 1294000 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313425-9 |
| 1294001 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313426-7 |
| 1313426 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) REPL 1 PCS 3506051-6 1982- |
| 1294002 | Seat belt, left | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 1294003 | Seat belt, right | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 3506051 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 3506052 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 9131847 | Seat belt, front | 1 | 2.00 | For component parts, see other catalog using MASTER INDEX. |
| 1210999 | Cover | 14 | 2.00 | |
| 1360788 | Cover | 2 | 1.00 | FOR 3506051, 3506052 |
| 1210572 | Cover | 2 | 1.00 | FOR 1294000, 1313425 1294001, 1313426, 1294002 1294003. |
| 955692 | Hexagon screw | 5 | 1.00 | |
| 1215509 | Ashtray lamp | 19b | 1.00 | |
| 989800 | Bulb | 19c | 1.00 | |
| 982793 | Flange screw | 15 | 8.00 | (949734)(955294) |
| 950385 | Nut | 6 | 1.00 | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) |
| 1264381 | Cover | 27 | 1.00 | |
| 1264171 | Locating plate | 12 | 1.00 | |
| 1264169 | Spring, right | 11 | 1.00 | |
| 1264168 | Spring, left | 11 | 1.00 | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) |
| 1224704 | Locating plate | 3 | 1.00 | ALTER |
| 1264170 | Sleeve | 7 | 1.00 | |
| 1264167 | Spacer sleeve | 9 | 1.00 | |
| 1350276 | Cover | 23a | 1.00 | |
| 943530 | Hexagon screw | 10 | 1.00 | ALTER |
| 1244703 | Cover, beige | 26 | 1.00 | |
| 1224588 | Cover, black | 26 | 1.00 | |
| 955691 | Hexagon screw | 20 | 1.00 | |
| 940147 | Toothed washer | 21 | 1.00 | |
| 986433 | Washer | 22 | 1.00 | |
| 986498 | Washer | 29 | 2.00 | |
| 987105 | Cross recessed screw | 28 | 2.00 | |
| 1210473 | Bushing, black | 25 | 2.00 | |
| 1244013 | Bushing, brown | 25 | 2.00 | |
| 1244012 | Bushing, grey | 25 | 2.00 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1264726 | Parking brake cover,black | 23 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
| 1244254 | Parking brake cover,blue | 23 | 1.00 | REPL 1 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. |
| 1207923 | Parking brake cover,black | 23 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. |
| 1244016 | Parking brake cover,grey | 23 | 1.00 | |
| 1244256 | Parking brake cover,grey | 23 | 1.00 | REPL 1PCS 1244016-0 1PCS 1350276-0 |
| 1350970 | Parking brake cover,beige | 23 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. |
| 1244255 | Parking brake cover,beige | 23 | 1.00 | REPL 1 PCS 1373617-8, 1 PCS 1350942-7, 1 PCS 1350276-0. |
| 1350968 | Parking brake cover,blue | 23 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. |
| 1313123 | Lock | 19 | 1.00 | REPL 1 PCS 1360367-5 1 PCS 949490-7, 1 PCS 958212-3. |
| 1350971 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6. |
| 1244257 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. |
| 986115 | Six point socket screw | 24 | 2.00 | (947251) |
seat belt Front
2DRS W/O S.R242 EXC (AT),(AU),(BE),(CH),(DE),(DK),(FI),(FR),(GB),(IT),(NL)
| Number | Name | Code | Quantity | Note |
|---|---|---|---|---|
| 986433 | Washer | 18 | 2.00 | |
| 1221010 | Bushing | 4 | 1.00 | |
| 1221304 | Screw | 17 | 2.00 | |
| 1244009 | Cover, brown | 16 | 2.00 | |
| 1244008 | Cover, grey | 16 | 2.00 | |
| 1244007 | Cover, beige | 16 | 2.00 | |
| 1244006 | Cover, blue | 16 | 2.00 | |
| 681533 | Cover, black | 16 | 2.00 | |
| 1313425 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) 1982- REPL 1 PCS 3506052-4 |
| 1294000 | Seat belt, left | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313425-9 |
| 1294001 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) -1981 REPL 1 PCS 1313426-7 |
| 1313426 | Seat belt, right | 1 | 1.00 | (CA),(JP),(US) REPL 1 PCS 3506051-6 1982- |
| 1294002 | Seat belt, left | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 1294003 | Seat belt, right | 1 | 1.00 | EXC (CA),(US) (JP) REPL 1 PCS 3506052-4 1 PCS 1264169-2. |
| 3506051 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 3506052 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131847-7. |
| 9131847 | Seat belt, front | 1 | 2.00 | For component parts, see other catalog using MASTER INDEX. |
| 1210999 | Cover | 14 | 2.00 | |
| 1360788 | Cover | 2 | 1.00 | FOR 3506051, 3506052 |
| 1210572 | Cover | 2 | 1.00 | FOR 1294000, 1313425 1294001, 1313426, 1294002 1294003. |
| 955692 | Hexagon screw | 5 | 1.00 | |
| 1215509 | Ashtray lamp | 19b | 1.00 | |
| 989800 | Bulb | 19c | 1.00 | |
| 982793 | Flange screw | 15 | 8.00 | (949734)(955294) |
| 950385 | Nut | 6 | 1.00 | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) |
| 1264381 | Cover | 27 | 1.00 | |
| 1264171 | Locating plate | 12 | 1.00 | |
| 1264169 | Spring, right | 11 | 1.00 | |
| 1264168 | Spring, left | 11 | 1.00 | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) |
| 1224704 | Locating plate | 3 | 1.00 | ALTER |
| 1264170 | Sleeve | 7 | 1.00 | |
| 1264167 | Spacer sleeve | 9 | 1.00 | |
| 1350276 | Cover | 23a | 1.00 | |
| 943530 | Hexagon screw | 10 | 1.00 | ALTER |
| 1244703 | Cover, beige | 26 | 1.00 | |
| 1224588 | Cover, black | 26 | 1.00 | |
| 955691 | Hexagon screw | 20 | 1.00 | |
| 940147 | Toothed washer | 21 | 1.00 | |
| 986433 | Washer | 22 | 1.00 | |
| 986498 | Washer | 29 | 2.00 | |
| 987105 | Cross recessed screw | 28 | 2.00 | |
| 1210473 | Bushing, black | 25 | 2.00 | |
| 1244013 | Bushing, brown | 25 | 2.00 | |
| 1244012 | Bushing, grey | 25 | 2.00 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 |
| 1264726 | Parking brake cover,black | 23 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
| 1244254 | Parking brake cover,blue | 23 | 1.00 | REPL 1 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. |
| 1207923 | Parking brake cover,black | 23 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. |
| 1244016 | Parking brake cover,grey | 23 | 1.00 | |
| 1244256 | Parking brake cover,grey | 23 | 1.00 | REPL 1PCS 1244016-0 1PCS 1350276-0 |
| 1350970 | Parking brake cover,beige | 23 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. |
| 1244255 | Parking brake cover,beige | 23 | 1.00 | REPL 1 PCS 1373617-8, 1 PCS 1350942-7, 1 PCS 1350276-0. |
| 1350968 | Parking brake cover,blue | 23 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. |
| 1313123 | Lock | 19 | 1.00 | REPL 1 PCS 1360367-5 1 PCS 949490-7, 1 PCS 958212-3. |
| 1350971 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6. |
| 1244257 | Parking brake cover,brown | 24 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. |
| 986115 | Six point socket screw | 24 | 2.00 | (947251) |
extra seat
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 1364021 | Courtesy handle, white | 55 | 1.00 | (1204594) | |
| 986477 | Washer | 57 | 4.00 | ||
| 985739 | Flange screw | 56 | 4.00 | ||
| 1264880 | Shoulder screw | 9 | 1.00 | ||
| 986652 | Spring washer | 10 | 1.00 | ||
| 986499 | Washer | 11 | 1.00 | ||
| 1264987 | Lock | 8 | 1.00 | ||
| 3524817 | Extra seat, beige beige | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 1128800 | Extra seat black | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 3524818 | Extra seat, beige | 1 | 1.00 | REPL 1 PCS 6820225-8. | |
| 6820225 | Extra seat | 1 | 1.00 | ||
| 1128720 | Extra seat beige | 1 | 1.00 | (AU) REPL 1 PCS 3524818-6. | |
| 3524816 | Auxiliary seat, black black | 1 | 1.00 | EXC (AU),(US) REPL 1 PCS 6820222-5. | |
| 1221304 | Screw | 35 | 2.00 | ||
| 1264576 | Attaching brace | 20 | 2.00 | ||
| 986114 | Six point socket screw | 22 | 8.00 | (955138) | |
| 1294048 | Backrest stay | 19 | 1.00 | OP | (AU) |
| 1264568 | Backrest cushion beige | 7 | 1.00 | REPL 1PCS 3529162-4. | |
| 1242876 | Backrest cushion black | 7 | 1.00 | REPL 1PCS 3529160-8. | |
| 1207743 | Retainer | 45 | 1.00 | ||
| 1264985 | Lock brace | 17 | 1.00 | OP | EXC (AU) |
| 986114 | Six point socket screw | 18 | 6.00 | EXC (AU) (955138) | |
| 1294191 | Spring, right | 16 | 1.00 | ||
| 1264986 | Spring, left | 16 | 1.00 | ||
| 1224992 | Arm rest | 23 | 1.00 | ||
| 1224993 | Arm rest | 23 | 1.00 | ||
| 1264576 | Attaching brace | 15 | 2.00 | EXC (AU) | |
| 986293 | Six point socket screw | 12 | 4.00 | (956317) | |
| 941761 | Hex. socket screw | 13 | 2.00 | M8x40 | |
| 959241 | Hex. socket screw | 13 | 2.00 | M10x40 Only early versions of car. | |
| 986656 | Spring washer | 14 | 2.00 | ||
| 982757 | Flange screw | 5 | 2.00 | ||
| 986213 | Six point socket screw | 5 | 4.00 | (956093) | |
| 986964 | Hexagon screw | 5 | 6.00 | (955270) Only early versions of car. | |
| 1242875 | Seat cushion black | 6 | 1.00 | REPL 1PCS 3529161-6. | |
| 1264578 | Seat cushion beige | 6 | 1.00 | REPL 1PCS 3529163-2. | |
| 986160 | Six point socket screw | 24 | 4.00 | (969473)(955137) | |
| 955948 | Toothed washer | 4 | 6.00 | ||
| 1221010 | Bushing | 37 | 4.00 | ||
| 1264563 | Bushing | 3 | 4.00 | OP | |
| 1264897 | Bracket | 25 | 1.00 | ||
| 679993 | Nut plate | 41 | 2.00 | ||
| 1381182 | Seat belt | 34 | 2.00 | (1244829) | |
| 1264900 | Spring | 33 | 1.00 | ||
| 672818 | Spacer sleeve | 43 | 2.00 | ||
| 986433 | Washer | 38 | 4.00 | ||
| 986964 | Hexagon screw | 28 | 6.00 | (955270) | |
| 943419 | Punch nut | 3a | 2.00 | ||
| 1204775 | Screw | 36 | 2.00 | ||
| 943395 | Hexagon screw | 49 | 1.00 | ||
| 955948 | Toothed washer | 27 | 6.00 | ||
| 1264877 | Clamp | 30 | 1.00 | ||
| 1207666 | Cover | 46 | 4.00 | ||
| 950385 | Nut | 44 | 1.00 | ||
| 1264898 | Intermediate lever | 29 | 1.00 | ||
| 1264878 | Plate | 31 | 1.00 | ||
| 1264899 | Lock plate | 32 | 1.00 | ||
| 1264563 | Bushing | 26 | 6.00 | OP | |
| 1224595 | Bracket | 52 | 1.00 | (CA),(US) | |
| 6820201 | Latch | 47 | 1.00 | OP | (1224592) |
| 986504 | Washer | 50 | 1.00 | ||
| 1264197 | Frame | 54 | 2.00 | ||
| 986997 | Hexagon screw | 53 | 6.00 | (CA),(US) (955315) | |
| 985186 | Flange screw | 59 | 2.00 | ||
| 986501 | Washer | 61 | 2.00 | (960141) | |
| 955849 | Hexagon nut | 51 | 1.00 | EXC (CA),(US) |
seat belt Front
2DRS S.R242 (BE),(DE),(FR),(GB),(IT),(NL) (DK),(NO),(SE) CH 181070-181099, 189180-
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 38 | 2.00 | ||
| 1221010 | Bushing | 4 | 1.00 | ||
| 1221304 | Screw | 37 | 2.00 | ||
| 1244009 | Cover, brown | 39 | 2.00 | 1980- | |
| 681533 | Cover, black | 39 | 2.00 | 1979 | |
| 1244006 | Cover, blue | 39 | 2.00 | 1980- | |
| 1244007 | Cover, beige | 39 | 2.00 | 1980- | |
| 1244008 | Cover, grey | 39 | 2.00 | 1980- | |
| 681493 | Fitting | 4a | 1.00 | ||
| 1244266 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506054-0 1 PCS 1370060-4. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244265 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506053-2 1 PCS 1370057-0. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244417 | Seat belt, left | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244422-0 | |
| 9131838 | Seat belt | 1 | 1.00 | ||
| 3506054 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 3506053 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 1244418 | Seat belt, right | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244423-8 | |
| 1244422 | Seat belt, left | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506053-2. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244423 | Seat belt, right | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506054-0 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 32 | 2.00 | ||
| 986113 | Six point socket screw | 17 | 1.00 | ||
| 986675 | Toothed washer | 17a | 1.00 | ||
| 1360788 | Cover | 2 | 1.00 | FOR 3506053, 3506054 | |
| 1244771 | Cover | 2 | 1.00 | OP | FOR 1244422, 1244423 |
| 1210572 | Cover | 2 | 1.00 | FOR 1244265, 1244266 1244417,1244418. | |
| 1215509 | Ashtray lamp | 24 | 1.00 | OP | |
| 948855 | Insulator | 16 | 1.00 | (958212) | |
| 949490 | Cable terminal | 15 | 3.00 | (958203) | |
| 1313546 | Wiring harness | 25 | 1.00 | ||
| 956946 | Cable terminal | 26 | 1.00 | ||
| 955692 | Hexagon screw | 5 | 1.00 | ||
| 955689 | Hexagon screw | 5 | 1.00 | ||
| 989800 | Bulb | 25a | 1.00 | ||
| 1244344 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370057-0 3PCS 949490-7, 1PCS 958212-3 | |
| 1244345 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370060-4 3PCS 949490-7, 1PCS 958212-3 | |
| 948855 | Insulator | 27 | 1.00 | (958212) | |
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 36 | 8.00 | (949734)(955294) | |
| 1254346 | Grommet | 20 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 986433 | Washer | 30 | 2.00 | ||
| 986433 | Washer | 19 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) CH 189180-237369 (1264542) | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) | |
| 1204775 | Screw | 18 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1264171 | Locating plate | 12 | 1.00 | OP | |
| 1204775 | Screw | 28 | 2.00 | ||
| 1264168 | Spring, left | 11 | 1.00 | OP | |
| 1264169 | Spring, right | 11 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ||
| 1221010 | Bushing | 29 | 2.00 | ||
| 1264170 | Sleeve | 7 | 1.00 | ||
| 1264381 | Cover | 33 | 1.00 | ||
| 1244483 | Tunnel tray, brown | 47 | 1.00 | 1980- | |
| 1244481 | Tunnel tray, beige | 47 | 1.00 | 1980- | |
| 1244480 | Tunnel tray, blue | 47 | 1.00 | OP | 1980- |
| 1244479 | Tunnel tray, black | 47 | 1.00 | 1979 | |
| 1244482 | Tunnel tray, grey | 47 | 1.00 | 1980- | |
| 1264167 | Spacer sleeve | 9 | 1.00 | OP | |
| 943530 | Hexagon screw | 10 | 1.00 | ||
| 955691 | Hexagon screw | 43 | 1.00 | 1979 | |
| 955689 | Hexagon screw | 43 | 1.00 | 1980- | |
| 940147 | Toothed washer | 44 | 1.00 | ||
| 986433 | Washer | 45 | 1.00 | 1979 | |
| 9131857 | Bracket | 42 | 1.00 | 1979 (1244404)(1264747) | |
| 986498 | Washer | 35 | 2.00 | ||
| 987105 | Cross recessed screw | 34 | 2.00 | ||
| 1210473 | Bushing, black | 41 | 2.00 | 1979 | |
| 1244011 | Bushing, beige | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 41 | 2.00 | 1980- | |
| 1244010 | Bushing, blue | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 986115 | Six point socket screw | 40 | 2.00 | (947251) | |
| 1350968 | Parking brake cover,blue | 46 | 1.00 | 1980- REPL 2PCS 1350944-3 1PCS 1373616-0. | |
| 1350970 | Parking brake cover,beige | 46 | 1.00 | 1980- REPL 2PCS 1350942-7, 1PCS 1373617-8. | |
| 1350971 | Parking brake cover,brown | 46 | 1.00 | 1980- REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 46 | 1.00 | 1980- 242 CH 165570- | |
| 1373615 | Parking brake cover,black | 46 | 1.00 | 1979 REPL 2PCS 1210690-2 1PCS 1373615-2. | |
| 1264726 | Parking brake cover,black | 46 | 1.00 | 1980- REPL 2PCS 1210690-2 1PCS 1373615-2. |
seat belt Front
2DRS W/O S.R242 (BE),(DE),(FR),(GB),(IT),(NL) (DK),(NO),(SE) CH 181070-181099, 189180-
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 38 | 2.00 | ||
| 1221010 | Bushing | 4 | 1.00 | ||
| 1221304 | Screw | 37 | 2.00 | ||
| 1244009 | Cover, brown | 39 | 2.00 | 1980- | |
| 681533 | Cover, black | 39 | 2.00 | 1979 | |
| 1244006 | Cover, blue | 39 | 2.00 | 1980- | |
| 1244007 | Cover, beige | 39 | 2.00 | 1980- | |
| 1244008 | Cover, grey | 39 | 2.00 | 1980- | |
| 681493 | Fitting | 4a | 1.00 | ||
| 1244266 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506054-0 1 PCS 1370060-4. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244265 | Seat belt | 1 | 1.00 | REPL 1 PCS 3506053-2 1 PCS 1370057-0. EXC (GB) CH 189180-237369 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244417 | Seat belt, left | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244422-0 | |
| 9131838 | Seat belt | 1 | 1.00 | ||
| 3506054 | Seat belt, right | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 3506053 | Seat belt, left | 1 | 1.00 | REPL 1PCS 9131838-6. | |
| 1244418 | Seat belt, right | 1 | 1.00 | (NO),(SE) (DK) CH -181099 REPL 1 PCS 1244423-8 | |
| 1244422 | Seat belt, left | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506053-2. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1244423 | Seat belt, right | 1 | 1.00 | EXC (GB) 1984 REPL 1 PCS 3506054-0 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 32 | 2.00 | ||
| 986113 | Six point socket screw | 17 | 1.00 | ||
| 986675 | Toothed washer | 17a | 1.00 | ||
| 1360788 | Cover | 2 | 1.00 | FOR 3506053, 3506054 | |
| 1244771 | Cover | 2 | 1.00 | OP | FOR 1244422, 1244423 |
| 1210572 | Cover | 2 | 1.00 | FOR 1244265, 1244266 1244417,1244418. | |
| 1215509 | Ashtray lamp | 24 | 1.00 | OP | |
| 948855 | Insulator | 16 | 1.00 | (958212) | |
| 949490 | Cable terminal | 15 | 3.00 | (958203) | |
| 1313546 | Wiring harness | 25 | 1.00 | ||
| 956946 | Cable terminal | 26 | 1.00 | ||
| 955692 | Hexagon screw | 5 | 1.00 | ||
| 955689 | Hexagon screw | 5 | 1.00 | ||
| 989800 | Bulb | 25a | 1.00 | ||
| 1244344 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370057-0 3PCS 949490-7, 1PCS 958212-3 | |
| 1244345 | Belt catch | 23 | 1.00 | REPL 1 PCS 1370060-4 3PCS 949490-7, 1PCS 958212-3 | |
| 948855 | Insulator | 27 | 1.00 | (958212) | |
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 36 | 8.00 | (949734)(955294) | |
| 1254346 | Grommet | 20 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 986433 | Washer | 30 | 2.00 | ||
| 986433 | Washer | 19 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 987177 | Retainer | 13 | 1.00 | CH -APP 152500 (945719) CH 189180-237369 (1264542) | |
| 973883 | Blind rivet | 8 | 1.00 | (947093) | |
| 1204775 | Screw | 18 | 2.00 | Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1264171 | Locating plate | 12 | 1.00 | OP | |
| 1204775 | Screw | 28 | 2.00 | ||
| 1264168 | Spring, left | 11 | 1.00 | OP | |
| 1264169 | Spring, right | 11 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ||
| 1221010 | Bushing | 29 | 2.00 | ||
| 1264170 | Sleeve | 7 | 1.00 | ||
| 1264381 | Cover | 33 | 1.00 | ||
| 1244483 | Tunnel tray, brown | 47 | 1.00 | 1980- | |
| 1244481 | Tunnel tray, beige | 47 | 1.00 | 1980- | |
| 1244480 | Tunnel tray, blue | 47 | 1.00 | OP | 1980- |
| 1244479 | Tunnel tray, black | 47 | 1.00 | 1979 | |
| 1244482 | Tunnel tray, grey | 47 | 1.00 | 1980- | |
| 1264167 | Spacer sleeve | 9 | 1.00 | OP | |
| 943530 | Hexagon screw | 10 | 1.00 | ||
| 955691 | Hexagon screw | 43 | 1.00 | 1979 | |
| 955689 | Hexagon screw | 43 | 1.00 | 1980- | |
| 940147 | Toothed washer | 44 | 1.00 | ||
| 986433 | Washer | 45 | 1.00 | 1979 | |
| 9131857 | Bracket | 42 | 1.00 | 1979 (1244404)(1264747) | |
| 986498 | Washer | 35 | 2.00 | ||
| 987105 | Cross recessed screw | 34 | 2.00 | ||
| 1210473 | Bushing, black | 41 | 2.00 | 1979 | |
| 1244011 | Bushing, beige | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 41 | 2.00 | 1980- | |
| 1244010 | Bushing, blue | 41 | 2.00 | 1980- REPL 1PCS 1210473-3 | |
| 986115 | Six point socket screw | 40 | 2.00 | (947251) | |
| 1350968 | Parking brake cover,blue | 46 | 1.00 | 1980- REPL 2PCS 1350944-3 1PCS 1373616-0. | |
| 1350970 | Parking brake cover,beige | 46 | 1.00 | 1980- REPL 2PCS 1350942-7, 1PCS 1373617-8. | |
| 1350971 | Parking brake cover,brown | 46 | 1.00 | 1980- REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 46 | 1.00 | 1980- 242 CH 165570- | |
| 1373615 | Parking brake cover,black | 46 | 1.00 | 1979 REPL 2PCS 1210690-2 1PCS 1373615-2. | |
| 1264726 | Parking brake cover,black | 46 | 1.00 | 1980- REPL 2PCS 1210690-2 1PCS 1373615-2. |
seat belt front (JP) 242.
2DRS S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1221304 | Screw | 15 | 2.00 | LG 26,5 | |
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 1294077 | Seat belt | 1 | 2.00 | (FI) REPL 1 PCS 1225898-4 | |
| 1225898 | Seat belt | 1 | 2.00 | -1983 (AT),(CH) ALTER | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955692 | Hexagon screw | 5 | 1.00 | LG 32 | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 986433 | Washer | 11 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1204775 | Screw | 10 | 2.00 | LG 32 | |
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 242.
2DRS W/O S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1221304 | Screw | 15 | 2.00 | LG 26,5 | |
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 1294077 | Seat belt | 1 | 2.00 | (FI) REPL 1 PCS 1225898-4 | |
| 1225898 | Seat belt | 1 | 2.00 | -1983 (AT),(CH) ALTER | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955692 | Hexagon screw | 5 | 1.00 | LG 32 | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 950385 | Nut | 6 | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 986433 | Washer | 11 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1204775 | Screw | 10 | 2.00 | LG 32 | |
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt Front 245, 265.
5DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt Front 245, 265.
5DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt Front 244, 264.
4DRS S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt Front 244, 264.
4DRS W/O S.R
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 14 | 2.00 | (1264542) | |
| 1204775 | Screw | 13 | 2.00 | ||
| 1244009 | Cover, brown | 12 | 2.00 | ||
| 1244008 | Cover, grey | 12 | 2.00 | ||
| 1244007 | Cover, beige | 12 | 2.00 | ||
| 1244006 | Cover, blue | 12 | 2.00 | ||
| 681533 | Cover, black | 12 | 2.00 | ||
| 681493 | Fitting | 2a | 1.00 | ||
| 1244267 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. L.H REPL 1PCS 1388226-1 1 PCS 1370057-0. R.H REPL 1 PCS 1388226-1 1 PCS 1370060-4. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 3525123 | Seat belt | 1 | 2.00 | REPL 1PCS 9131838-6. | |
| 1388226 | Seat belt | 1 | 2.00 | REPL 1PCS 3525123-0. | |
| 9131838 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 592110-, 245 CH 317940-, 264 CH 107610-, 265 CH 28320- 244 CH-639348, 245 CH-343148, 264 CH-115271, 265 CH- 29616. (DK) REPL 1 PCS 1388226-1 | |
| 1244419 | Seat belt | 1 | 2.00 | (NO),(SE) 244 CH 550288-555225, 245 CH 296143-299176, 264 CH 96064-97491, 265 CH 24853-25189 (DK) REPL 1 PCS 1388226-1. | |
| 1225848 | Seat belt | 1 | 2.00 | (GB) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. REPL 1 PCS 1244267-9 | |
| 1313110 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 925500-, 245 CH 498200- REPL 1 PCS 1388226-1 Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1313085 | Seat belt | 1 | 2.00 | EXC (GB) 244 CH 639349-925499, 245 CH 343149-498199 REPL 1 PCS 1388226-1. Great Britain, Germany, Belgium, Netherlands, France, Italy. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1210572 | Cover | 4 | 1.00 | FOR 1244267, 1313085 1225848,1244419. | |
| 1244771 | Cover | 4 | 1.00 | OP | FOR 1313110, 1244424 |
| 1360788 | Cover | 4 | 1.00 | FOR 1388226,3525123. | |
| 986675 | Toothed washer | 18a | 1.00 | ||
| 986113 | Six point socket screw | 18 | 1.00 | ||
| 955693 | Hexagon screw | 5 | 1.00 | LG 38 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ||
| 1313546 | Wiring harness | 38 | 1.00 | ||
| 1215509 | Ashtray lamp | 37 | 1.00 | OP | |
| 948855 | Insulator | 17 | 1.00 | (958212) | |
| 949490 | Cable terminal | 16 | 3.00 | (958203) | |
| 956946 | Cable terminal | 39 | 1.00 | ||
| 989800 | Bulb | 38a | 1.00 | ||
| 950385 | Nut | 11 | 2.00 | ||
| 1370057 | Belt catch, left | 36 | 1.00 | OP | (GB) |
| 1370060 | Belt catch, right | 36 | 1.00 | OP | (GB) |
| 1244345 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370060-4 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1244344 | Belt catch | 36 | 1.00 | REPL 1 PCS 1370052-1 3 PCS 949490-7, 1 PCS 958212-3. | |
| 948855 | Insulator | 40 | 1.00 | (958212) | |
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 986433 | Washer | 32 | 2.00 | ||
| 1254346 | Grommet | 31 | 2.00 | ||
| 986433 | Washer | 44 | 2.00 | ||
| 672818 | Spacer sleeve | 10 | 2.00 | ||
| 1221010 | Bushing | 43 | 2.00 | ||
| 1204775 | Screw | 30 | 2.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | FOR 1244267. | |
| 1204775 | Screw | 41 | 2.00 | ||
| 1264381 | Cover | 27 | 1.00 | OP | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. |
| 1244480 | Tunnel tray, blue | 23 | 1.00 | OP | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- |
| 1244481 | Tunnel tray, beige | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244479 | Tunnel tray, black | 23 | 1.00 | (1264745) 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244483 | Tunnel tray, brown | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244482 | Tunnel tray, grey | 23 | 1.00 | 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 955691 | Hexagon screw | 19 | 1.00 | LG 25 mm 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 955689 | Hexagon screw | 19 | 1.00 | LG 19 mm 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1244703 | Cover, beige | 26 | 1.00 | OP | |
| 1224588 | Cover, black | 26 | 1.00 | ||
| 940147 | Toothed washer | 20 | 1.00 | ||
| 986433 | Washer | 21 | 1.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 9131857 | Bracket | 34 | 1.00 | (1244404) 244 CH 482505-, 245 CH 264755-, 264 CH 83055-, 265 CH 21774- | |
| 1264747 | Bracket | 34 | 1.00 | REPL 1 PCS 1244404-8 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 986498 | Washer | 29 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 987105 | Cross recessed screw | 28 | 2.00 | 244 CH-482504, 245 CH-264754, 264 CH-83054, 265 CH-21774. | |
| 1244010 | Bushing, blue | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244011 | Bushing, beige | 25 | 2.00 | REPL 1PCS 1210473-3 | |
| 1210473 | Bushing, black | 25 | 2.00 | ||
| 1244013 | Bushing, brown | 25 | 2.00 | ||
| 986115 | Six point socket screw | 24 | 2.00 | (947251) | |
| 1350970 | Parking brake cover,beige | 22 | 1.00 | REPL 2 PCS 1350942-7, 1 PCS 1373617-8. | |
| 1350968 | Parking brake cover,blue | 22 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0. | |
| 1350971 | Parking brake cover,brown | 22 | 1.00 | REPL 2 PCS 1350941-9, 1 PCS 1373618-6. | |
| 1244016 | Parking brake cover,grey | 22 | 1.00 | (1244021) | |
| 1264726 | Parking brake cover,black | 22 | 1.00 | REPL 2 PCS 1210690-2 1 PCS 1373615-2. |
seat belt front (JP) 245, 265.
5DRS S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 245, 265.
5DRS W/O S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 244, 264.
4DRS S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
seat belt front (JP) 244, 264.
4DRS W/O S.R(AT),(AU),(CH),(DK),(FI)
| Number | Name | Code | Quantity | PS Code | Note |
|---|---|---|---|---|---|
| 986433 | Washer | 16 | 2.00 | ||
| 1204775 | Screw | 15 | 2.00 | LG 32 | |
| 1244006 | Cover, blue | 14 | 2.00 | ||
| 1244007 | Cover, beige | 14 | 2.00 | ||
| 681533 | Cover, black | 14 | 2.00 | ||
| 1244008 | Cover, grey | 14 | 2.00 | ||
| 1244009 | Cover, brown | 14 | 2.00 | ||
| 9131847 | Seat belt, front | 1 | 2.00 | (AU) REPL 1 PCS 1388225-3 | |
| 1388225 | Seat belt | 1 | 2.00 | REPL 1PCS 9131847-7. | |
| 1225899 | Seat belt | 1 | 2.00 | EXC (CA),(US) (AU),(JP) (FI),(SE) REPL 1 PCS 1388225-3 | |
| 1388224 | Seat belt right | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1388223 | Seat belt left | 1 | 1.00 | REPL 1PCS 9131847-7. | |
| 1210999 | Cover | 8 | 2.00 | ||
| 1360788 | Cover | 4 | 1.00 | FOR 1388223, 1388224 1388225. | |
| 1210572 | Cover | 4 | 1.00 | FOR 1225898,1294077, 1224743, 1313427, 1313428 | |
| 955694 | Hexagon screw | 5 | 1.00 | LG 45 | |
| 940147 | Toothed washer | 7 | 1.00 | ALTER | |
| 1215509 | Ashtray lamp | 17b | 1.00 | OP | |
| 989800 | Bulb | 17c | 1.00 | ||
| 982793 | Flange screw | 9 | 8.00 | (949734)(955294) | |
| 940153 | Hexagon nut | 6 | 1.00 | ||
| 1224704 | Locating plate | 3 | 1.00 | ALTER | |
| 672818 | Spacer sleeve | 12 | 2.00 | ||
| 950385 | Nut | 13 | 2.00 | ||
| 1221010 | Bushing | 2 | 2.00 | ||
| 1350276 | Cover | 21a | 1.00 | ||
| 1264381 | Cover | 25 | 1.00 | OP | 1979 |
| 1244703 | Cover, beige | 24 | 1.00 | OP | |
| 1224588 | Cover, black | 24 | 1.00 | ||
| 955691 | Hexagon screw | 18 | 1.00 | ||
| 940147 | Toothed washer | 19 | 1.00 | ||
| 986498 | Washer | 27 | 2.00 | 1979 | |
| 986433 | Washer | 20 | 1.00 | ||
| 987105 | Cross recessed screw | 26 | 2.00 | 1979 | |
| 1313123 | Lock | 17 | 1.00 | REPL 1 PCS 1360367-5 3 PCS 949490-7, 1 PCS 958212-3. | |
| 1210473 | Bushing, black | 23 | 2.00 | ||
| 1244010 | Bushing, blue | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1244013 | Bushing, brown | 23 | 2.00 | ||
| 1244012 | Bushing, grey | 23 | 2.00 | OP | |
| 1244011 | Bushing, beige | 23 | 2.00 | REPL 1PCS 1210473-3 | |
| 1207923 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 1 PCS 1350276-0. | |
| 1244014 | Parking brake cover,blue | 21 | 1.00 | REPL 1 PCS 1350968-2 | |
| 1244255 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1373617-8, 2 PCS 1350942-7, 1 PCS 1350276-0. | |
| 1264726 | Parking brake cover,black | 21 | 1.00 | REPL 1 PCS 1210690-2 1 PCS 1373615-2 | |
| 1244017 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350971-6 | |
| 1244257 | Parking brake cover,brown | 21 | 1.00 | REPL 1 PCS 1350941-9, 1 PCS 1373618-6 1 PCS 1350276-0. | |
| 1244016 | Parking brake cover,grey | 21 | 1.00 | ||
| 1244254 | Parking brake cover,blue | 21 | 1.00 | REPL 2 PCS 1350944-3 1 PCS 1373616-0, 1 PCS 1350276-0. | |
| 1244015 | Parking brake cover,beige | 21 | 1.00 | REPL 1 PCS 1350970-8 | |
| 1244256 | Parking brake cover,grey | 21 | 1.00 | REPL 1PCS 1244016-0 1 PCS 1350276-0. | |
| 986115 | Six point socket screw | 22 | 2.00 | (947251) |
