Isuzu Parts Catalogs UBS-RHD
| Brand | Name | Equipment Name | Model Series | Model Type | Model Year From | Model Year To | |
|---|---|---|---|---|---|---|---|
 ISUZU | UBS-RHD | UBS-RHD 92 - 97 | SUV | SUV | 1992 | 1997 |
0. Engine, Emission, Engine Electrical
0-28 - VENTILATION SYSTEM, 6VD1 SOHC ENG
| Number | Name | Code | Quantity | Note | Applied Date | Applied Model |
|---|---|---|---|---|---|---|
| 0-28080-612-0 | 03.278 BOLT; PIPE | 48 | 01 | 01.428M6X12 FLANGE | 9112- | D |
| 8-97029-376-0 | 03.278 PIPE; PCV,INL MANIF | 42 | 01 | 9112-9208 | D | |
| 8-94153-176-0 | 03.278 PIPE; PCV,INL MANIF | 42 | 01 | 01.745 | 9112- | C |
| 8-94238-568-0 | 03.680 CLIP; PCV HOSE | 40 | 01 | 04.930(A)ID=16 | 9112- | D |
| 8-94238-571-0 | 03.680 CLIP; PCV HOSE | 40 | 02 | 01.219(B)ID=13 | 9112- | D |
| 8-97039-185-2 | 03.278 HOSE; PCV | 43 | 01 | OD=22 | 9112-9504 | B |
| 8-94364-503-1 | 03.278 HOSE; PCV | 43 | 01 | OD=13 | 9112- | D |
| 8-97032-383-5 | 03.278 PIPE ASM; PCV | 47 | 01 | 9112- | D | |
| 8-94331-209-0 | 01.750 VALVE; PCV | 133 | 01 | L=58.5 | 9112- | C |
| 8-94386-755-0 | 01.750 VALVE; PCV | 133 | 01 | 9112- | D | |
| 8-97037-254-1 | 00.413 HOSE RUBBER VENTILATOR PIPE | 23 | 01 | 9112-9112 | D | |
| 8-97075-341-1 | 00.413 HOSE RUBBER VENTILATOR PIPE | 23 | 01 | W/JOINT:3WAY & 3-HOSE | 9201- | D |
| 8-94123-526-0 | 00.413 CLIP RUBBER HOSE VENTILATOR | 24 | 02 | 00.034ID=12 WO/PVC COATING | 9112- | D |

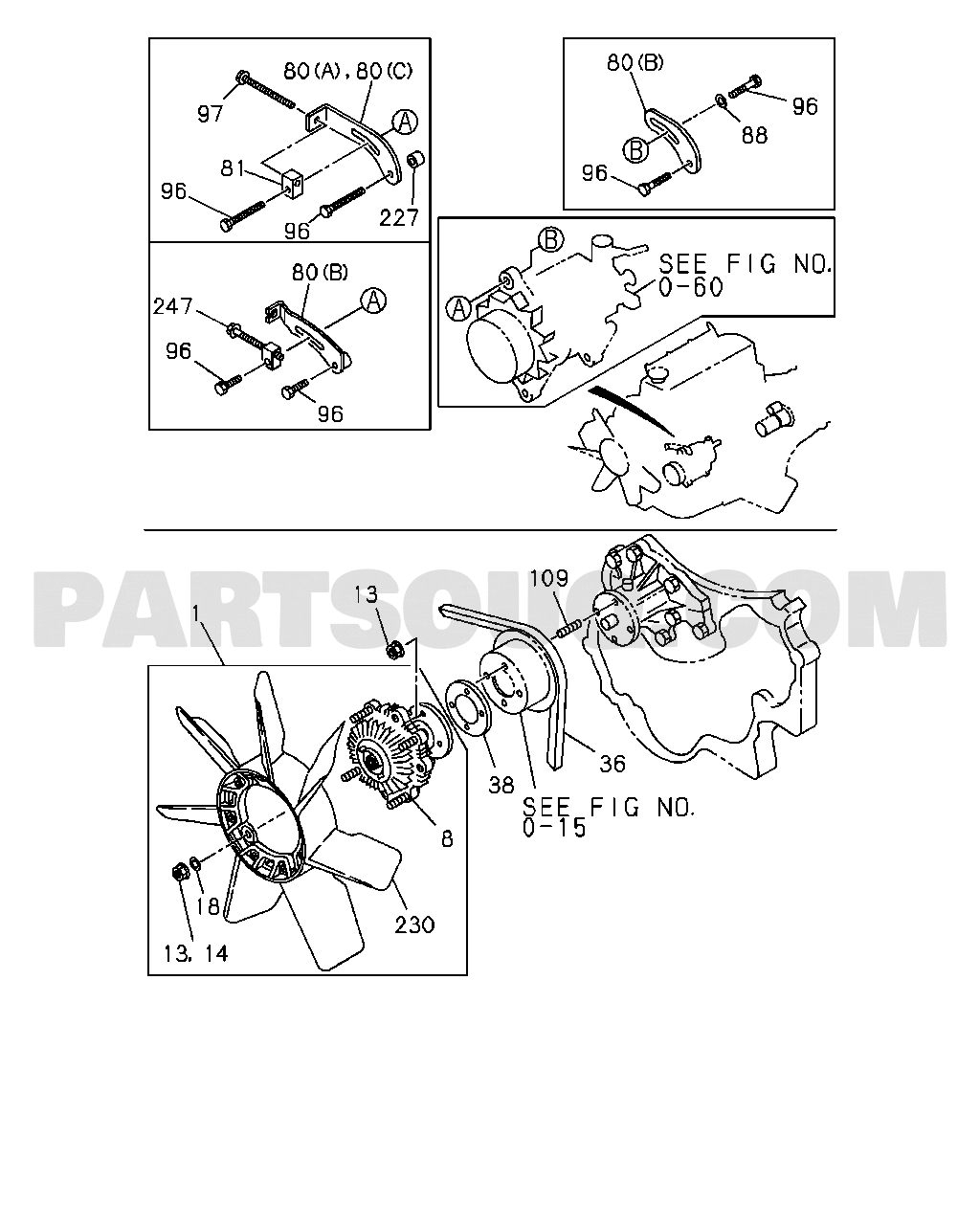

0-33 - FAN AND FAN BELT, 4JG1 ENG,4JG2 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Applied Model |
|---|---|---|---|---|---|---|
| 8-94126-866-0 | 02.317 SCREW; ADJ PLATE | 97 | 01 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | A |
| 9-09164-708-0 | 02.317 WASHER; PL,ADJ PLATE | 88 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)07.633ID=8.4 OD=22 | 9112-9504 | A |
| 8-97031-664-0 | 02.317 PIECE; SLIDING | 81 | 01 | 9112- | D | |
| 8-94453-774-0 | 02.317 PIECE; SLIDING | 81 | 01 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | A |
| 8-94367-309-0 | 02.317 PIECE; DIST | 227 | 01 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | A |
| 8-94438-403-0 | 02.317 PLATE; ADJ | 80 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(B) | 9112-9504 | A |
| 8-94367-300-0 | 02.317 PLATE; ADJ | 80 | 01 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(A) | 9112-9504 | A |
| 8-97087-142-2 | 02.317 PLATE; ADJ | 80 | 01 | 9303- | D | |
| 8-97018-939-2 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9302 | D | |
| 8-97123-738-1 | 02.317 PLATE; ADJ | 80 | 01 | 9505- | C | |
| 8-94460-846-1 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9504 | C | |
| 8-94436-178-2 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9504 | C | |
| 8-97038-402-1 | 02.317 PLATE; ADJ | 80 | 01 | EUROPE EQUIPMENT(EK4)CERAMIC HEATER<6YX>(C) | 9112-9505 | B |
| 8-97132-049-0 | 02.317 PLATE; ADJ | 80 | 01 | (B) | 9601- | B |
| 8-97132-048-0 | 02.317 SLIDER | 247 | 01 | EXC. WEST MALAYSIA EQUIPMENT(S3D)CERAMIC HEATER<6YX> | 9601-9603 | B |
| 0-50040-825-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)01.073M8X25 W/LK WASHER | 9112-9504 | A |
| 0-50040-845-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)01.252M8X45 W/LK WASHER | 9112-9504 | A |
| 0-50040-818-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | 04.785M8X18 W/LK WASHER | 9505-9505 | C |
| 0-50040-830-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | 00.780M8X30 W/LK WASHER | 9506- | C |
| 0-28080-870-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | 01.840M8X70 FLANGE | 9112-9208 | D |
| 0-50040-870-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | 01.840M8X70 W/LK WASHER | 9209-9302 | D |
| 8-97028-681-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | M6X75 FLANGE | 9112- | D |
| 8-94340-628-0 | 01.062 STUD; FAN CLU | 109 | 04 | M6X25 L=33 | 9112-9504 | AB |
| 8-94454-187-0 | 01.064 FAN; COOLING | 1 | 01 | AIR CONDITIONER MANUAL CONT(C60)OD=410 | 9112- | C |
| 8-94103-469-0 | 01.064 FAN; COOLING | 1 | 01 | OD=410 | 9112-9504 | A |
| 8-94436-150-0 | 01.064 FAN; COOLING | 1 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60)OD=410 | 9112- | C |
| 8-97100-606-0 | 01.066 BELT; COOLING FAN | 36 | 01 | L=875 | 9305- | C |
| 8-94472-378-0 | 01.066 BELT; COOLING FAN | 36 | 01 | 9112-9304 | C | |
| 8-97188-281-0 | 01.066 BELT; COOLING FAN | 36 | 01 | EUROPE EQUIPMENT(EK4)CERAMIC HEATER<6YX>L=1031 MITSUBOSHI | 9712- | B |
| 8-97062-913-1 | 01.066 BELT; COOLING FAN | 36 | 01 | CERAMIC HEATER<6YX> | 9112-9505 | B |
| 8-97141-514-0 | 01.066 BELT; COOLING FAN | 36 | 01 | CERAMIC HEATER<6YX>EXC. EUROPE EQUIPMENT(EK4)L=1041 MITSUBOSHI | 9702- | B |
| 8-97043-551-0 | 01.066 BELT; COOLING FAN | 36 | 01 | L=1041 MITSUBOSHI | 9112-9504 | A |
| 8-94441-848-0 | 01.062 SPACER; FAN | 38 | 01 | 9112-9504 | AB | |
| 8-94244-409-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9504 | A | |
| 8-94311-252-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60) | 9112- | C |
| 8-97039-034-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9504 | B | |
| 8-94412-030-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | AIR CONDITIONER MANUAL CONT(C60)01.066 | 9112- | C |
| 8-97018-918-1 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9311 | D | |
| 8-97102-903-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9312-9511 | D | |
| 8-97135-167-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9512- | D | |
| 8-94311-254-0 | 01.062 WASHER; FAN TO CLU | 18 | 04 | EXC. AIR CONDITIONER MANUAL CONT(C60) | 9112- | C |
| 9-09150-506-0 | 01.062 WASHER; FAN TO CLU | 18 | 04 | 00.206ID=6.1 | 9112-9504 | A |
| 8-94117-866-0 | 01.055 FAN; COOLING | 230 | 01 | 01.064OD=410 7-BLADE | 9112-9504 | A |
| 8-97049-499-0 | 01.055 FAN; COOLING | 230 | 01 | 01.604OD=450 8-BLADE | 9112-9504 | B |
| 8-94310-517-0 | 01.055 FAN; COOLING | 230 | 01 | AIR CONDITIONER MANUAL CONT(C60)01.604 | 9112- | C |
| 8-94311-255-0 | 01.055 FAN; COOLING | 230 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60)01.604 | 9112- | C |
| 5-09440-004-0 | 01.062 NUT; COOLING FAN | 13 | 04 | 07.829M6 FLANGE | 9112-9208 | A |
| 0-91150-106-0 | 01.062 NUT; COOLING FAN | 13 | 04 | 04.594(B)M6 FLANGE | 9112- | D |
| 0-91150-108-0 | 01.062 NUT; COOLING FAN | 13 | 04 | 07.633(A)M8 FLANGE | 9112- | D |
| 9-09110-506-0 | 01.062 NUT; FAN TO CLU | 14 | 04 | 00.413M6 | 9112-9504 | A |
| 8-94311-253-0 | 01.062 NUT; FAN TO CLU | 14 | 04 | EXC. AIR CONDITIONER MANUAL CONT(C60) | 9112- | C |
0-33 - FAN AND FAN BELT, 6VD1 SOHC ENG
| Number | Name | Code | Quantity | Note | Applied Date | Applied Model |
|---|---|---|---|---|---|---|
| 8-97089-940-0 | 02.297 COVER; MUD,GEN | 240 | 01 | 00.297100X160 T=1.5 BLACK | 9303- | D |
| 8-97804-484-0 | 02.297 RIVET; COVER | 241 | 02 | 16.742DARK GRAY | 9304- | D |
| 8-94242-150-0 | 02.297 RIVET; COVER | 241 | 02 | 12.934D5.8 SCREW & GROMMET NYLON | 9303-9303 | D |
| 8-94367-300-0 | 02.317 PLATE; ADJ | 80 | 01 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(A) | 9112-9504 | A |
| 8-97087-142-2 | 02.317 PLATE; ADJ | 80 | 01 | 9303- | D | |
| 8-97123-738-1 | 02.317 PLATE; ADJ | 80 | 01 | 9505- | C | |
| 8-94460-846-1 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9504 | C | |
| 8-94436-178-2 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9504 | C | |
| 8-97038-402-1 | 02.317 PLATE; ADJ | 80 | 01 | EUROPE EQUIPMENT(EK4)CERAMIC HEATER<6YX>(C) | 9112-9505 | B |
| 8-97132-049-0 | 02.317 PLATE; ADJ | 80 | 01 | (B) | 9601- | B |
| 8-94438-403-0 | 02.317 PLATE; ADJ | 80 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(B) | 9112-9504 | A |
| 8-97018-939-2 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9302 | D | |
| 9-09110-406-0 | 02.317 NUT; ADJ PLATE | 82 | 01 | 16.176(A) M6 | 9112-9305 | D |
| 9-09111-406-0 | 02.317 NUT; ADJ PLATE | 82 | 01 | 08.915(B)M6 | 9112-9305 | D |
| 0-50040-845-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)01.252M8X45 W/LK WASHER | 9112-9504 | A |
| 0-50040-825-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)01.073M8X25 W/LK WASHER | 9112-9504 | A |
| 8-97028-681-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | M6X75 FLANGE | 9112- | D |
| 0-50040-870-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | 01.840M8X70 W/LK WASHER | 9209-9302 | D |
| 0-28080-870-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | 01.840M8X70 FLANGE | 9112-9208 | D |
| 0-50040-830-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | 00.780M8X30 W/LK WASHER | 9506- | C |
| 0-50040-818-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | 04.785M8X18 W/LK WASHER | 9505-9505 | C |
| 8-94453-774-0 | 02.317 PIECE; SLIDING | 81 | 01 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | A |
| 8-97031-664-0 | 02.317 PIECE; SLIDING | 81 | 01 | 9112- | D | |
| 9-09160-506-0 | 01.060 WASHER; PL | 35 | 01 | 00.206ID=6.4 | 9306- | D |
| 8-97101-664-0 | 02.317 RETAINER; ADJ PLATE | 98 | 01 | 9306- | D | |
| 0-28080-890-0 | 01.060 BOLT; FAN BRKT | 233 | 01 | 09.171M8X90 FLANGE | 9112- | D |
| 8-97108-785-0 | 01.060 BRACKET; FAN | 47 | 01 | 9312- | D | |
| 8-97018-655-0 | 01.060 BRACKET; FAN | 47 | 01 | 9112-9311 | D | |
| 0-91150-108-0 | 01.060 NUT; FAN BRKT | 234 | 02 | 07.633M8 FLANGE | 9112- | D |
| 8-94382-106-0 | 01.066 BELT; GEN DRIVE | 185 | 01 | L=965 BANDO | 9112- | D |
| 8-97018-918-1 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9311 | D | |
| 8-97039-034-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9504 | B | |
| 8-97102-903-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9312-9511 | D | |
| 8-97135-167-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9512- | D | |
| 8-94311-252-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60) | 9112- | C |
| 8-94412-030-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | AIR CONDITIONER MANUAL CONT(C60)01.066 | 9112- | C |
| 8-94244-409-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9504 | A | |
| 5-09440-004-0 | 01.062 NUT; COOLING FAN | 13 | 04 | 07.829M6 FLANGE | 9112-9208 | A |
| 0-91150-106-0 | 01.062 NUT; COOLING FAN | 13 | 04 | 04.594(B)M6 FLANGE | 9112- | D |
| 0-91150-108-0 | 01.062 NUT; COOLING FAN | 13 | 04 | 07.633(A)M8 FLANGE | 9112- | D |
| 8-97018-917-0 | 01.064 BLADE; COOLING FAN | 159 | 01 | OD=470 7-BLADE | 9112- | D |
0-33 - FAN AND FAN BELT, 4ZE1 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Applied Model |
|---|---|---|---|---|---|---|
| 9-04110-820-0 | 01.064 SCREW; PULLEY | 110 | 04 | 01.428M8X20 L=32 | 9112- | C |
| 8-97102-903-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9312-9511 | D | |
| 8-94244-409-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9504 | A | |
| 8-97039-034-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9504 | B | |
| 8-94412-030-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | AIR CONDITIONER MANUAL CONT(C60)01.066 | 9112- | C |
| 8-94311-252-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60) | 9112- | C |
| 8-97018-918-1 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9112-9311 | D | |
| 8-97135-167-0 | 01.064 CLUTCH; COOLING FAN | 8 | 01 | 9512- | D | |
| 8-97141-514-0 | 01.066 BELT; COOLING FAN | 36 | 01 | CERAMIC HEATER<6YX>EXC. EUROPE EQUIPMENT(EK4)L=1041 MITSUBOSHI | 9702- | B |
| 8-97043-551-0 | 01.066 BELT; COOLING FAN | 36 | 01 | L=1041 MITSUBOSHI | 9112-9504 | A |
| 8-94472-378-0 | 01.066 BELT; COOLING FAN | 36 | 01 | 9112-9304 | C | |
| 8-97062-913-1 | 01.066 BELT; COOLING FAN | 36 | 01 | CERAMIC HEATER<6YX> | 9112-9505 | B |
| 8-97100-606-0 | 01.066 BELT; COOLING FAN | 36 | 01 | L=875 | 9305- | C |
| 8-97188-281-0 | 01.066 BELT; COOLING FAN | 36 | 01 | EUROPE EQUIPMENT(EK4)CERAMIC HEATER<6YX>L=1031 MITSUBOSHI | 9712- | B |
| 8-94454-187-0 | 01.064 FAN; COOLING | 1 | 01 | AIR CONDITIONER MANUAL CONT(C60)OD=410 | 9112- | C |
| 8-94436-150-0 | 01.064 FAN; COOLING | 1 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60)OD=410 | 9112- | C |
| 8-94103-469-0 | 01.064 FAN; COOLING | 1 | 01 | OD=410 | 9112-9504 | A |
| 9-09150-506-0 | 01.062 WASHER; FAN TO CLU | 18 | 04 | 00.206ID=6.1 | 9112-9504 | A |
| 8-94311-254-0 | 01.062 WASHER; FAN TO CLU | 18 | 04 | EXC. AIR CONDITIONER MANUAL CONT(C60) | 9112- | C |
| 8-94311-253-0 | 01.062 NUT; FAN TO CLU | 14 | 04 | EXC. AIR CONDITIONER MANUAL CONT(C60) | 9112- | C |
| 9-09110-506-0 | 01.062 NUT; FAN TO CLU | 14 | 04 | 00.413M6 | 9112-9504 | A |
| 8-94310-517-0 | 01.055 FAN; COOLING | 230 | 01 | AIR CONDITIONER MANUAL CONT(C60)01.604 | 9112- | C |
| 8-97049-499-0 | 01.055 FAN; COOLING | 230 | 01 | 01.604OD=450 8-BLADE | 9112-9504 | B |
| 8-94117-866-0 | 01.055 FAN; COOLING | 230 | 01 | 01.064OD=410 7-BLADE | 9112-9504 | A |
| 8-94311-255-0 | 01.055 FAN; COOLING | 230 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60)01.604 | 9112- | C |
| 8-97038-402-1 | 02.317 PLATE; ADJ | 80 | 01 | EUROPE EQUIPMENT(EK4)CERAMIC HEATER<6YX>(C) | 9112-9505 | B |
| 8-94460-846-1 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9504 | C | |
| 8-97123-738-1 | 02.317 PLATE; ADJ | 80 | 01 | 9505- | C | |
| 8-97018-939-2 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9302 | D | |
| 8-97087-142-2 | 02.317 PLATE; ADJ | 80 | 01 | 9303- | D | |
| 8-94367-300-0 | 02.317 PLATE; ADJ | 80 | 01 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(A) | 9112-9504 | A |
| 8-94438-403-0 | 02.317 PLATE; ADJ | 80 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(B) | 9112-9504 | A |
| 8-97132-049-0 | 02.317 PLATE; ADJ | 80 | 01 | (B) | 9601- | B |
| 8-94436-178-2 | 02.317 PLATE; ADJ | 80 | 01 | 9112-9504 | C | |
| 8-97028-681-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | M6X75 FLANGE | 9112- | D |
| 0-50040-830-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | 00.780M8X30 W/LK WASHER | 9506- | C |
| 0-50040-870-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | 01.840M8X70 W/LK WASHER | 9209-9302 | D |
| 0-28080-870-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | 01.840M8X70 FLANGE | 9112-9208 | D |
| 0-50040-818-0 | 02.317 BOLT; ADJ PLATE | 96 | 01 | 04.785M8X18 W/LK WASHER | 9505-9505 | C |
| 0-50040-825-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)01.073M8X25 W/LK WASHER | 9112-9504 | A |
| 0-50040-845-0 | 02.317 BOLT; ADJ PLATE | 96 | 02 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)01.252M8X45 W/LK WASHER | 9112-9504 | A |
| 0-50040-825-0 | 02.277 BOLT; GEN TO ADJ PLATE | 73 | 01 | 01.073M8X25 W/LK WASHER | 9112- | C |
| 9-09164-708-0 | 02.277 WASHER PL GEN TO ADJ PLATE | 77 | 01 | 07.633ID=8.4 OD=22 | 9112- | C |
1-31 - AIR DUCT, 4ZE1 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-94101-706-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | ID=75 | 9112- | D | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94158-979-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (B)ID=100 | 9112-9208 | AB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94216-977-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.417 | 9112- | C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94238-570-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | EXC. EUROPE EQUIPMENT(EK4)03.163(F)ID=11 | 9112-9504 | B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94316-991-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (C)ID=50-69 | 9209-9504 | B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94320-428-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (D)ID=68-85 | 9209- | B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-97014-301-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (D)ID=82 | 9112-9208 | A | B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94298-119-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.003(E)D6X11 POP RIVET | 9112-9504 | AB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1-09707-114-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (B)ID=77-95 | 9209-9504 | AB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94158-976-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.417(C)ID=48-68 | 9112-9208 | A | B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94126-771-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.417(A)ID=58-79 | 9209-9504 | AB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94158-977-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (A)ID=75 | 9112-9208 | A | AB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-97132-799-0 | 03.417 HOSE; ACL | 2 | 01 | (A) | 9504-9504 | B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-97038-180-2 | 03.417 HOSE; ACL | 2 | 01 | (C) | 9112-9408 | C | A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-94386-835-2 | 03.417 HOSE; ACL | 2 | 01 | (A) | 9112-9503 | C | B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-97120-089-0 | 03.417 HOSE; ACL | 2 | 01 | (C) | 9409-9504 | A | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-97120-089-1 | 03.417 HOSE; ACL | 2 | 01 | EXC. TURBOCHARGER| 9505- | B | 8-97047-061-0 | 03.417 HOSE; ACL | 2 | 01 | (B) | 9112-9504 | B | 8-97117-272-0 | 03.417 HOSE; ACL | 2 | 01 | TURBOCHARGER | 9505- | B | 8-94321-187-2 | 03.417 HOSE; ACL | 2 | 01 | HEAVY DUTY AIR CLEANER(K46) | 9112- | C | 9-09915-502-1 | 03.403 CLIP; DUCT TO SUB ACL | 360 | 01 | HEAVY DUTY AIR CLEANER(K46)03.407D=101.6 | 9209- | C | 8-94244-886-1 | 03.403 CLIP; DUCT TO SUB ACL | 360 | 01 | HEAVY DUTY AIR CLEANER(K46)03.417 | 9112-9208 | C | 8-94408-386-1 | 03.405 BOLT; ACL BRKT | 210 | 03 | HEAVY DUTY AIR CLEANER(K46)08.077M6X18 | 9112- | C | 8-94175-084-2 | 03.417 HOSE; ACL TO CYL HD COVER | 343 | 01 | 9112- | C | 8-94238-572-0 | 03.417 CLIP; PCV HOSE | 345 | 01 | 01.166(A)ID=14 | 9112- | C | 8-94238-568-0 | 03.417 CLIP; PCV HOSE | 345 | 01 | 04.930ID=16 | 9112- | D | 8-94242-034-0 | 03.417 CLIP; PCV HOSE | 345 | 01 | 06.672(B)ID=21 | 9112- | C | 8-94386-831-1 | 03.405 BRACKET; ACL | 209 | 01 | 9112-9504 | AB | 8-94480-336-2 | 03.405 BRACKET; ACL | 209 | 01 | HEAVY DUTY AIR CLEANER(K46) | 9112- | C | 8-94324-193-1 | 03.417 HOSE; HOT AIR,ACL | 27 | 01 | HOT AIR INTAKE(RN4) | 9112- | C | 8-97044-027-0 | 03.417 COVER; DUCT,AIR INT | 193 | 01 | EXC. HEAVY DUTY AIR CLEANER(K46) | 9112- | C | 8-97043-855-1 | 03.417 COVER; DUCT,AIR INT | 193 | 01 | EXC. EUROPE EQUIPMENT(EK4),FRIGIDZONE | 9112-9410 | AB | 8-94156-238-1 | 03.417 DUCT; AIR,INL | 1 | 01 | EXC. HEAVY DUTY AIR CLEANER(K46) | 9112- | C | 5-09440-004-0 | 03.417 NUT; DUCT COVER | 367 | 01 | EXC. HEAVY DUTY AIR CLEANER(K46)07.829M6 FLANGE | 9112- | C | 0-50040-616-0 | 03.417 BOLT; DUCT COVER | 194 | 03 | EXC. HEAVY DUTY AIR CLEANER(K46)04.686M6X16 W/LK WASHER | 9205- | C | 9-01900-616-0 | 03.417 BOLT; DUCT COVER | 194 | 03 | EXC. HEAVY DUTY AIR CLEANER(K46)09.211M6X16 W/LK WASHER | 9112-9204 | C | 0-28080-812-0 | 03.417 BOLT; DUCT COVER | 194 | 01 | EXC. EUROPE EQUIPMENT(EK4),FRIGIDZONE | 9205-9410 | AB | 0-28010-812-0 | 03.417 BOLT; DUCT COVER | 194 | 01 | EXC. EUROPE EQUIPMENT(EK4),FRIGIDZONE | 9112-9204 | A | AB | 0-28080-612-0 | 03.417 BOLT; DUCT COVER | 194 | 01 | EXC. EUROPE EQUIPMENT(EK4),FRIGIDZONE | 9205-9410 | AB | 0-28010-612-0 | 03.417 BOLT; DUCT COVER | 194 | 01 | EXC. EUROPE EQUIPMENT(EK4),FRIGIDZONE | 9112-9204 | C | AB | |
1-31 - AIR DUCT, 6VD1 SOHC ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 8-97039-003-2 | 03.402 RESONATOR; AIR INT | 102 | 01 | 9112- | D | ||
| 8-94126-771-0 | 03.417 CLIP; HOSE,RESONATOR | 301 | 01 | ID=58-79 | 9112- | D | |
| 8-94238-568-0 | 03.417 CLIP; PCV HOSE | 345 | 01 | 04.930ID=16 | 9112- | D | |
| 8-94242-034-0 | 03.417 CLIP; PCV HOSE | 345 | 01 | 06.672(B)ID=21 | 9112- | C | |
| 8-94238-572-0 | 03.417 CLIP; PCV HOSE | 345 | 01 | 01.166(A)ID=14 | 9112- | C | |
| 8-97115-954-0 | 03.417 HOSE; CONN | 232 | 01 | 9408- | D | ||
| 8-97039-004-2 | 03.417 HOSE; CONN | 232 | 01 | 9112-9407 | D | ||
| 8-94126-769-0 | 03.407 CLIP; HOSE | 192 | 02 | ID=65-70 | 9112-9407 | D | |
| 8-97018-434-0 | 03.407 DUCT; SUB ACL | 201 | 01 | HEAVY DUTY AIR CLEANER(K46)(A) | 9112- | D | |
| 8-97018-433-1 | 03.407 DUCT; SUB ACL | 201 | 01 | HEAVY DUTY AIR CLEANER(K46)(B) | 9112- | D | |
| 8-94126-771-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.417(A)ID=58-79 | 9209-9504 | AB | |
| 8-94158-977-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (A)ID=75 | 9112-9208 | A | AB |
| 8-94238-570-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | EXC. EUROPE EQUIPMENT(EK4)03.163(F)ID=11 | 9112-9504 | B | |
| 8-94298-119-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.003(E)D6X11 POP RIVET | 9112-9504 | AB | |
| 8-94101-706-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | ID=75 | 9112- | D | |
| 8-94158-979-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (B)ID=100 | 9112-9208 | AB | |
| 8-94216-977-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.417 | 9112- | C | |
| 1-09707-114-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (B)ID=77-95 | 9209-9504 | AB | |
| 8-94316-991-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (C)ID=50-69 | 9209-9504 | B | |
| 8-94158-976-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | 03.417(C)ID=48-68 | 9112-9208 | A | B |
| 8-94320-428-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (D)ID=68-85 | 9209- | B | |
| 8-97014-301-0 | 03.407 CLIP; AIR DUCT | 5 | 01 | (D)ID=82 | 9112-9208 | A | B |
| 0-28080-816-0 | 03.417 BOLT; AIR INT DUCT | 62 | 02 | 01.062M8X16 FLANGE | 9112-9504 | B | |
| 0-28480-816-0 | 03.417 BOLT; AIR INT DUCT | 62 | 01 | 08.155M8X16 FLANGE | 9502-9504 | AB | |
| 8-97020-619-0 | 03.417 BOLT; AIR INT DUCT | 62 | 02 | 07.832M6X16 | 9112- | D | |
| 8-97038-179-3 | 03.417 DUCT; AIR INT | 26 | 01 | 9112-9504 | AB | ||
| 8-97133-651-1 | 03.417 DUCT; AIR INT | 26 | 01 | EUROPE EQUIPMENT(EK4) | 9602-9607 | B | |
| 8-97039-001-1 | 03.417 DUCT; AIR INT | 26 | 01 | EXC. HEAVY DUTY AIR CLEANER(K46)(B) | 9112- | D | |
| 8-97022-769-1 | 03.417 DUCT; AIR INT | 26 | 01 | EXC. HEAVY DUTY AIR CLEANER(K46)(A) | 9112- | D |
3-60 - BRAKE PIPING; VACUUM
| Number | Name | Code | Quantity | Note | Applied Date | Applied Model |
|---|---|---|---|---|---|---|
| 8-94357-279-0 | 04.681 CLIP; VAC HOSE | 136 | 01 | 4ZE1 ENG(RLJ)03.162(A) | 9209- | AB |
| 8-94486-777-1 | 04.681 CLIP; VAC HOSE | 136 | 01 | 6VD1 SOHC ENG(RLU)03.278(B) | 9303- | AB |
| 8-94415-087-0 | 04.681 CLIP; HOSE | 12 | 01 | 4ZE1 ENG(RLJ)02.183ID=16.5 & 4.8 | 9112- | AB |
| 0-08158-300-0 | 04.931 HOSE; VAC,M/VAC | 116 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)SERVICED BY L=3000 | 9502-9504 | AB |
| 8-97175-856-1 | 04.931 HOSE; VAC,M/VAC | 116 | 01 | 4JG2 ENG(RJC) | 9608- | AB |
| 8-97038-471-1 | 04.931 HOSE; VAC,M/VAC | 116 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB |
| 8-97018-370-1 | 04.931 HOSE; VAC,M/VAC | 116 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9302 | AB |
| 8-97085-694-1 | 04.931 HOSE; VAC,M/VAC | 116 | 01 | 6VD1 SOHC ENG(RLU) | 9303- | AB |
| 0-08358-100-0 | 04.931 HOSE; VAC,M/VAC | 116 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)L=180SERVICED BY L=1000 | 9112-9208 | AB |
| 0-08358-300-0 | 04.931 HOSE; VAC,M/VAC | 116 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)L=180SERVICED BY L=3000 | 9209-9501 | AB |
| 0-28080-612-0 | 04.930 BOLT; CLIP | 127 | 01 | 6VD1 SOHC ENG(RLU)01.428M6X12 FLANGE | 9303- | AB |
| 8-94238-568-0 | 04.681 CLIP; HOSE | 158 | 04 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.930ID=16 | 9112-9504 | AB |
| 8-97173-222-0 | 04.681 CLIP; HOSE | 158 | 04 | 4JG2 ENG(RJC)ID=16 | 9705- | AB |
| 0-08358-300-0 | 04.681 HOSE VAC TANK TO PUMP | 199 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.931L=230SERVICED BY L=3000 | 9112-9504 | AB |
| 0-08358-100-0 | 04.681 HOSE VAC TANK TO PUMP | 199 | 01 | 4JG2 ENG(RJC)04.931L=230SERVICED BY L=1000 | 9608- | AB |
| 8-97043-602-1 | 04.685 PIPE; VAC | 191 | 01 | 4JG2 ENG(RJC)EUROPE EQUIPMENT(EK4),AUSTRALIAEQUIPMENT(RR3)00.685(A) | 9112-9308 | AB |
| 8-97109-533-2 | 04.685 PIPE; VAC | 191 | 01 | 4JG2 ENG(RJC)ENG QUICK WARM UP SYSTEM<6JZ>(A) | 9505-9607 | AB |
| 8-97133-271-1 | 04.685 PIPE; VAC | 191 | 01 | 4JG2 ENG(RJC)ENG QUICK WARM UP SYSTEM<6JZ>(A) | 9608- | AB |
| 8-97043-603-1 | 04.685 PIPE; VAC | 191 | 01 | 4JG2 ENG(RJC)EUROPE EQUIPMENT(EK4),AUSTRALIAEQUIPMENT(RR3)00.685(B) | 9112-9308 | AB |
4-35 - POWER STEERING CONTROL; CHASSIS SIDE, 4JG1 ENG,4JG2 ENG (NO.1)
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 8-97165-975-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9609- | AB | |
| 8-97137-019-1 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9510-9608 | C | AB |
| 8-97020-589-2 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9509 | C | AB |
| 8-97165-978-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4ZE1 ENG(RLJ)06.673 | 9609- | AB | |
| 8-94473-737-3 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4ZE1 ENG(RLJ)06.673 | 9112-9608 | C | AB |
| 8-97165-979-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4JG2 ENG(RJC) | 9609- | AB | |
| 8-97038-205-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 8-94434-125-2 | 06.672 HOSE; RUBBER,POWER STRG | 33 | 01 | 4ZE1 ENG(RLJ)06.673 | 9112- | AB | |
| 8-97037-467-0 | 06.672 HOSE; RUBBER,POWER STRG | 33 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.673 | 9112-9308 | AB | |
| 8-97023-665-2 | 06.672 HOSE; RUBBER,POWER STRG | 33 | 01 | 6VD1 SOHC ENG(RLU)06.673 | 9112- | AB | |
| 8-94238-568-0 | 01.762 CLIP; HOSE,P/S | 37 | 02 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.930ID=16 | 9112-9504 | AB | |
| 8-94122-679-0 | 01.762 CLIP; HOSE,P/S | 37 | 01 | 6VD1 SOHC ENG(RLU)03.280ID=17.1 | 9609- | AB | |
| 8-94178-110-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 4ZE1 ENG(RLJ)(E) | 9112- | AB | |
| 8-94147-869-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 6VD1 SOHC ENG(RLU)04.785(C) | 9112- | AB | |
| 8-94222-795-1 | 06.672 CLIP; OIL PIPE | 54 | 02 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.342(D) | 9112-9504 | AB | |
| 8-97026-703-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)(A) | 9112-9504 | AB | |
| 5-09707-054-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 03.162(B)L=170 | 9112- | AB | |
| 8-97037-908-0 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 8-94329-645-2 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-97023-716-2 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9607 | AB | |
| 8-97133-567-0 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-97111-113-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-97076-453-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9204-9607 | AB | |
| 8-94374-924-2 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9203 | C | AB |
| 8-97111-116-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9608- | AB | |
| 8-97076-458-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9204-9607 | AB | |
| 8-97031-532-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9112-9203 | C | AB |
| 8-97111-114-2 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC) | 9608- | AB | |
| 8-97076-455-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9204-9504 | AB | |
| 8-97023-036-1 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9203 | C | AB |
| 0-28010-822-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)04.785M8X22 FLANGE | 9112-9204 | A | AB |
| 0-28680-820-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)M/T MUA 5 SPEED(RMN)02.664M8X20 FLANGE | 9602- | AB | |
| 0-28080-822-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)08.900M8X22 FLANGE | 9205-9504 | AB | |
| 0-28410-616-0 | 06.672 BOLT; CLIP | 58 | 08 | 4JG2 ENG(RJC),4JG1 ENG(RLT)M6X16 | 9112-9204 | C | AB |
| 0-28480-616-0 | 06.672 BOLT; CLIP | 58 | 08 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.635M6X16 FLANGE | 9205-9501 | AB | |
| 8-97133-469-0 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-94454-664-0 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9211 | C | AB |
| 8-94387-726-2 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9607 | AB | |
| 8-97087-533-1 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9212-9504 | AB | |
| 8-97076-456-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9204-9504 | AB | |
| 8-97111-119-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4JG2 ENG(RJC) | 9608- | AB | |
| 8-97031-533-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4ZE1 ENG(RLJ) | 9112-9203 | C | AB |
| 8-97076-459-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4ZE1 ENG(RLJ) | 9204-9607 | AB | |
| 8-97111-120-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4ZE1 ENG(RLJ) | 9608- | AB | |
| 8-97023-037-1 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9203 | C | AB |
| 9-99111-416-0 | 06.672 NUT; FLEX HOSE,P/S | 82 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.681M16 | 9112-9504 | AB | |
| 0-91150-106-0 | 06.672 NUT; FLEX HOSE,P/S | 82 | 01 | 4ZE1 ENG(RLJ)04.594M6 FLANGE | 9112- | AB | |
| 8-94252-455-2 | 06.672 CLIP; OIL PIPE | 61 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)(A)ID=10X2 H=22 | 9112-9504 | AB | |
| 8-94363-358-0 | 06.672 CLIP; OIL PIPE | 61 | 01 | 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)(B) | 9112- | AB | |
| 8-97120-706-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9502-9504 | AB | |
| 8-97075-968-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9204-9501 | C | AB |
| 8-94442-105-1 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9112-9203 | AB | |
| 8-97120-705-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9502- | AB | |
| 8-97075-969-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9204-9501 | C | AB |
| 8-94442-104-1 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9112-9203 | C | AB |
4-35 - POWER STEERING CONTROL; CHASSIS SIDE, 6VD1 SOHC ENG (NO.1)
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 8-94122-679-0 | 01.762 CLIP; HOSE,P/S | 37 | 01 | 6VD1 SOHC ENG(RLU)03.280ID=17.1 | 9609- | AB | |
| 8-94238-568-0 | 01.762 CLIP; HOSE,P/S | 37 | 02 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.930ID=16 | 9112-9504 | AB | |
| 8-97037-467-0 | 06.672 HOSE; RUBBER,POWER STRG | 33 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.673 | 9112-9308 | AB | |
| 8-94434-125-2 | 06.672 HOSE; RUBBER,POWER STRG | 33 | 01 | 4ZE1 ENG(RLJ)06.673 | 9112- | AB | |
| 8-97023-665-2 | 06.672 HOSE; RUBBER,POWER STRG | 33 | 01 | 6VD1 SOHC ENG(RLU)06.673 | 9112- | AB | |
| 8-97037-908-0 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 8-94329-645-2 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-97023-716-2 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9607 | AB | |
| 8-97133-567-0 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-97165-975-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9609- | AB | |
| 8-97137-019-1 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9510-9608 | C | AB |
| 8-97020-589-2 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9509 | C | AB |
| 8-97165-978-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4ZE1 ENG(RLJ)06.673 | 9609- | AB | |
| 8-94473-737-3 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4ZE1 ENG(RLJ)06.673 | 9112-9608 | C | AB |
| 8-97165-979-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4JG2 ENG(RJC) | 9609- | AB | |
| 8-97038-205-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 9-09164-710-0 | 06.673 WASHER; PL,FLEX HOSE,P/S | 313 | 01 | 6VD1 SOHC ENG(RLU)04.085ID=10.5 OD=26 | 9112- | AB | |
| 9-09571-416-0 | 06.673 GASKET; FLEX HOSE,P/S PUMP | 207 | 02 | 6VD1 SOHC ENG(RLU)01.252ID=16.2 OD=24 | 9112- | AB | |
| 8-94383-489-0 | 06.673 BOLT; EYE,FLEX HOSE,P/S | 205 | 01 | 6VD1 SOHC ENG(RLU)M16X28 | 9112- | AB | |
| 8-94384-434-1 | 08.846 SWITCH PRESSURE POWER STEERING | 140 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9608 | A | AB |
| 8-97162-814-0 | 08.846 SWITCH PRESSURE POWER STEERING | 140 | 01 | 6VD1 SOHC ENG(RLU)'960826- | 9608- | AB | |
| 8-97120-706-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9502-9504 | AB | |
| 8-97075-968-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9204-9501 | C | AB |
| 8-97120-705-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9502- | AB | |
| 8-97075-969-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9204-9501 | C | AB |
| 8-94442-104-1 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9112-9203 | C | AB |
| 8-94442-105-1 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9112-9203 | AB | |
| 8-97133-469-0 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-94387-726-2 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9607 | AB | |
| 8-97087-533-1 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9212-9504 | AB | |
| 8-94454-664-0 | 06.672 BRACKET; POWER STRG PIPE | 57 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9211 | C | AB |
| 8-97035-367-0 | 06.672 BRACKET; P/S PIPE | 263 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9203 | C | AB |
| 8-97076-470-0 | 06.672 BRACKET; P/S PIPE | 263 | 01 | 6VD1 SOHC ENG(RLU) | 9204- | AB | |
| 8-97111-116-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9608- | AB | |
| 8-97023-036-1 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9203 | C | AB |
| 8-97076-455-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9204-9504 | AB | |
| 8-97111-114-2 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC) | 9608- | AB | |
| 8-97031-532-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9112-9203 | C | AB |
| 8-97076-458-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9204-9607 | AB | |
| 8-97111-113-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-97076-453-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9204-9607 | AB | |
| 8-94374-924-2 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9203 | C | AB |
| 0-28680-820-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)M/T MUA 5 SPEED(RMN)02.664M8X20 FLANGE | 9602- | AB | |
| 0-28080-822-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)08.900M8X22 FLANGE | 9205-9504 | AB | |
| 0-28010-822-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)04.785M8X22 FLANGE | 9112-9204 | A | AB |
| 0-28480-616-0 | 06.672 BOLT; CLIP | 58 | 08 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.635M6X16 FLANGE | 9205-9501 | AB | |
| 0-28410-616-0 | 06.672 BOLT; CLIP | 58 | 08 | 4JG2 ENG(RJC),4JG1 ENG(RLT)M6X16 | 9112-9204 | C | AB |
| 5-09707-054-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 03.162(B)L=170 | 9112- | AB | |
| 8-94147-869-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 6VD1 SOHC ENG(RLU)04.785(C) | 9112- | AB | |
| 8-94178-110-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 4ZE1 ENG(RLJ)(E) | 9112- | AB | |
| 8-94222-795-1 | 06.672 CLIP; OIL PIPE | 54 | 02 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.342(D) | 9112-9504 | AB | |
| 8-97026-703-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)(A) | 9112-9504 | AB | |
| 8-94363-358-0 | 06.672 CLIP; OIL PIPE | 61 | 01 | 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)(B) | 9112- | AB | |
| 8-94252-455-2 | 06.672 CLIP; OIL PIPE | 61 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)(A)ID=10X2 H=22 | 9112-9504 | AB |
4-35 - POWER STEERING CONTROL; CHASSIS SIDE, 4ZE1 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 9-99111-416-0 | 06.672 NUT; FLEX HOSE,P/S | 82 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.681M16 | 9112-9504 | AB | |
| 0-91150-106-0 | 06.672 NUT; FLEX HOSE,P/S | 82 | 01 | 4ZE1 ENG(RLJ)04.594M6 FLANGE | 9112- | AB | |
| 0-28680-820-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)M/T MUA 5 SPEED(RMN)02.664M8X20 FLANGE | 9602- | AB | |
| 0-28080-822-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)08.900M8X22 FLANGE | 9205-9504 | AB | |
| 0-28010-822-0 | 06.672 BOLT; CLIP | 58 | 03 | 4ZE1 ENG(RLJ)04.785M8X22 FLANGE | 9112-9204 | A | AB |
| 0-28480-616-0 | 06.672 BOLT; CLIP | 58 | 08 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.635M6X16 FLANGE | 9205-9501 | AB | |
| 0-28410-616-0 | 06.672 BOLT; CLIP | 58 | 08 | 4JG2 ENG(RJC),4JG1 ENG(RLT)M6X16 | 9112-9204 | C | AB |
| 8-97165-975-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9609- | AB | |
| 8-97137-019-1 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9510-9608 | C | AB |
| 8-97020-589-2 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9509 | C | AB |
| 8-97165-978-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4ZE1 ENG(RLJ)06.673 | 9609- | AB | |
| 8-94473-737-3 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4ZE1 ENG(RLJ)06.673 | 9112-9608 | C | AB |
| 8-97165-979-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4JG2 ENG(RJC) | 9609- | AB | |
| 8-97038-205-0 | 06.670 HOSE; FLEX,P/S | 84 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 9-09716-061-0 | 06.672 CLIP; P/S PIPE | 262 | 01 | 4ZE1 ENG(RLJ)04.930 | 9112- | AB | |
| 8-97115-869-1 | 06.635 TANK ASM; OIL,P/S | 1 | 01 | 9407- | AB | ||
| 8-97029-653-1 | 06.635 TANK ASM; OIL,P/S | 1 | 01 | 9112-9406 | C | AB | |
| 8-94481-841-1 | 06.672 CAP; OIL TANK,P/S | 2 | 01 | 9112- | AB | ||
| 9-09561-322-0 | 06.673 GASKET; OIL TANK,P/S | 3 | 01 | (B)ID=22.1 | 9112-9406 | AB | |
| 8-94363-359-1 | 06.673 GASKET; OIL TANK,P/S | 3 | 01 | (A) | 9112- | AB | |
| 8-97038-335-0 | 06.600 STRAINER; OIL TANK,P/S | 5 | 01 | 9112-9406 | AB | ||
| 9-46133-003-0 | 06.672 SPACER; PIPE,P/S | 189 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-94329-683-0 | 06.672 BRACKET; CLIP,P/S | 63 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-94146-056-1 | 06.671 PIPE; SUCTION,P/S | 102 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-94440-403-1 | 06.672 BRACKET; OIL TANK,P/S | 23 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-94381-052-1 | 06.672 BRACKET; OIL TANK,P/S | 23 | 01 | 6VD1 SOHC ENG(RLU) | 9112- | AB | |
| 8-97037-988-0 | 06.672 BRACKET; OIL TANK,P/S | 23 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 8-94122-679-0 | 01.762 CLIP; HOSE,P/S | 37 | 01 | 6VD1 SOHC ENG(RLU)03.280ID=17.1 | 9609- | AB | |
| 8-94238-568-0 | 01.762 CLIP; HOSE,P/S | 37 | 02 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.930ID=16 | 9112-9504 | AB | |
| 0-28280-816-0 | 06.760 BOLT; P/S SUCTION PIPE | 103 | 01 | 4ZE1 ENG(RLJ)06.672M8X16 FLANGE | 9205- | AB | |
| 0-28210-816-0 | 06.760 BOLT; P/S SUCTION PIPE | 103 | 01 | 4ZE1 ENG(RLJ)M8X16 FLANGE | 9112-9204 | A | AB |
| 8-94222-795-1 | 06.672 CLIP; OIL PIPE | 54 | 02 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.342(D) | 9112-9504 | AB | |
| 8-94147-869-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 6VD1 SOHC ENG(RLU)04.785(C) | 9112- | AB | |
| 8-94178-110-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 4ZE1 ENG(RLJ)(E) | 9112- | AB | |
| 5-09707-054-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 03.162(B)L=170 | 9112- | AB | |
| 8-97026-703-0 | 06.672 CLIP; OIL PIPE | 54 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)(A) | 9112-9504 | AB | |
| 0-28410-816-0 | 06.635 BOLT; OIL TANK BRKT | 25 | 02 | 4ZE1 ENG(RLJ)(B)M8X16 FLANGE | 9112-9204 | A | AB |
| 0-28410-616-0 | 06.635 BOLT; OIL TANK BRKT | 25 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)06.672(B)M6X16 | 9112-9204 | C | AB |
| 0-28480-616-0 | 06.635 BOLT; OIL TANK BRKT | 25 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)(B)M6X16 FLANGE | 9205-9504 | AB | |
| 0-28480-816-0 | 06.635 BOLT; OIL TANK BRKT | 25 | 02 | 4ZE1 ENG(RLJ)08.155(B)M8X16 FLANGE | 9205-9208 | AB | |
| 8-94329-645-2 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-97037-908-0 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 8-97023-716-2 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9607 | AB | |
| 8-97133-567-0 | 06.671 HOSE; RETURN,P/S TANK | 35 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-94252-455-2 | 06.672 CLIP; OIL PIPE | 61 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHCENG(RLU)(A)ID=10X2 H=22 | 9112-9504 | AB | |
| 8-94363-358-0 | 06.672 CLIP; OIL PIPE | 61 | 01 | 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)(B) | 9112- | AB | |
| 8-97031-078-0 | 06.672 BRACKET POWER STEERING HOSE | 77 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-97076-453-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9204-9607 | AB | |
| 8-97023-036-1 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9203 | C | AB |
| 8-97076-455-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9204-9504 | AB | |
| 8-97111-114-2 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4JG2 ENG(RJC) | 9608- | AB | |
| 8-97076-458-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9204-9607 | AB | |
| 8-97111-113-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-97031-532-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9112-9203 | C | AB |
| 8-94374-924-2 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9203 | C | AB |
| 8-97111-116-0 | 06.671 PIPE OIL FLEX HOSE TO STRG UNIT | 48 | 01 | 4ZE1 ENG(RLJ) | 9608- | AB | |
| 8-94442-104-1 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9112-9203 | C | AB |
| 8-94442-105-1 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9112-9203 | AB | |
| 8-97075-969-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9204-9501 | C | AB |
| 8-97120-706-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9502-9504 | AB | |
| 8-97075-968-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)(A) | 9204-9501 | C | AB |
| 8-97120-705-0 | 06.672 BRACKET; CLIP,OIL PIPE | 59 | 01 | (B) | 9502- | AB | |
| 8-97111-120-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4ZE1 ENG(RLJ) | 9608- | AB | |
| 8-97076-459-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4ZE1 ENG(RLJ) | 9204-9607 | AB | |
| 8-97031-533-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4ZE1 ENG(RLJ) | 9112-9203 | C | AB |
| 8-97111-119-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4JG2 ENG(RJC) | 9608- | AB | |
| 8-97076-456-0 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9204-9504 | AB | |
| 8-97023-037-1 | 06.671 PIPE OIL P/S UNIT TO TANK | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9203 | C | AB |
4-36 - POWER STEERING CONTROL; ENGINE SIDE, 4JG1 ENG,4JG2 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 0-50041-060-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.104(B)M10X60 W/LK WASHER | 9112-9504 | AB | |
| 0-50040-818-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.785(A)M8X18 W/LK WASHER | 9112-9504 | AB | |
| 0-50040-830-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)00.780(F)M8X30 W/LK WASHER | 9112-9308 | AB | |
| 0-50041-040-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 02 | 4ZE1 ENG(RLJ)00.004(H)M10X40 W/LK WASHER | 9112- | AB | |
| 0-28080-835-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC)03.415(E)M8X35 FLANGE | 9508- | AB | |
| 0-28080-616-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)00.738(E)M6X16 FLANGE | 9208-9504 | AB | |
| 8-97075-268-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)01.270(E)M6X16 W/WASHER | 9203-9207 | C | AB |
| 0-50140-616-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)12.187(E)M6X16 W/LK&PL WASHER | 9112-9202 | AB | |
| 0-50041-035-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(G)M10X35 W/LK WASHER | 9112-9308 | AB | |
| 0-50041-028-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 02 | 4JG2 ENG(RJC),4JG1 ENG(RLT)00.029(C)M10X28 W/LK WASHER | 9112-9504 | AB | |
| 0-50040-860-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)01.252(D)M8X60 W/LK WASHER | 9112-9504 | AB | |
| 8-94449-652-0 | 06.655 BRACKET; IDLE PULLEY,P/S | 45 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9309-9504 | AB | |
| 8-97068-765-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9209-9308 | AB | |
| 8-94434-864-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)06.655(B) | 9309-9405 | A | AB |
| 8-94450-564-2 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4ZE1 ENG(RLJ)06.655 | 9112- | AB | |
| 8-94386-088-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9208 | A | AB |
| 8-97112-740-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(B) | 9406-9504 | AB | |
| 8-97068-764-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9309- | AB | |
| 8-97042-266-1 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.655(A) | 9112-9504 | AB | |
| 8-94476-310-0 | 06.665 COVER; IDLER | 48 | 02 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9112-9405 | AB | |
| 8-97092-819-0 | 06.665 COVER; IDLER | 48 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)FRONT | 9406-9504 | AB | |
| 9-13669-603-0 | 06.665 COVER; IDLER | 48 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)09.181REAR | 9406-9504 | AB | |
| 9-09180-147-0 | 06.665 RING; SNAP,IDLER | 49 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)04.412OD=50.5 | 9112-9405 | AB | |
| 8-94175-036-0 | 06.665 RING; SNAP,IDLER | 49 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9406-9504 | AB | |
| 8-94251-052-0 | 06.665 BEARING; IDLER | 50 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94372-495-0 | 06.665 NUT; IDLER | 51 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9112-9405 | AB | |
| 8-97092-813-0 | 06.665 NUT; IDLER | 51 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9406-9504 | AB | |
| 0-91150-208-0 | 06.672 NUT; ADJ PLATE | 42 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)01.540M8 FLANGE | 9112-9504 | AB | |
| 5-09440-005-0 | 06.672 NUT; ADJ PLATE | 42 | 01 | 4ZE1 ENG(RLJ)00.854M8 FLANGE | 9112- | AB | |
| 0-91150-210-0 | 06.672 NUT; ADJ PLATE | 42 | 02 | 4ZE1 ENG(RLJ)08.917M10 FLANGE | 9401- | AB | |
| 9-99111-412-0 | 06.673 NUT; HOSE TO PUMP | 20 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)07.347M12 | 9112-9504 | AB | |
| 9-09150-512-0 | 06.673 WASHER; LK,FLEX HOSE,P/S | 13 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.634(B)ID=12.2 | 9112-9504 | AB | |
| 9-09151-216-0 | 06.673 WASHER; LK,FLEX HOSE,P/S | 13 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.672(A)ID=16.5 TOOTH LK INT | 9112-9504 | AB | |
| 8-94139-015-0 | 06.606 NUT; POWER STRG PUMP | 17 | 01 | 6VD1 SOHC ENG(RLU)M12 | 9112-9607 | AB | |
| 0-91150-210-0 | 06.606 NUT; POWER STRG PUMP | 17 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)08.917M10 FLANGE | 9112-9504 | AB | |
| 8-97066-758-1 | 06.606 BRACKET; PLATE,P/S PUMP | 36 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)(B) | 9112-9504 | AB | |
| 8-94478-880-1 | 06.606 BRACKET; PLATE,P/S PUMP | 36 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)(A) | 9112-9504 | AB | |
| 9-04411-025-0 | 06.665 STUD; IDLER PULLEY | 44 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)03.275M10X25 L=40 | 9309-9504 | AB | |
| 8-97061-711-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9211 | C | AB |
| 8-97110-269-0 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9406-9504 | AB | |
| 8-97084-953-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9212-9405 | AB | |
| 8-97129-593-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC) | 9506- | AB | |
| 8-94388-923-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4ZE1 ENG(RLJ) | 9112-9504 | AB | |
| 8-97104-020-0 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4ZE1 ENG(RLJ) | 9505- | AB | |
| 8-94365-012-4 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9112-9308 | AB | |
| 8-94375-242-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9309-9607 | AB | |
| 8-97094-200-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-97134-149-0 | 06.635 BRACKET; P/S PUMP,RR | 26 | 01 | 4JG2 ENG(RJC) | 9508- | AB | |
| 8-97062-791-3 | 06.635 BRACKET; P/S PUMP,RR | 26 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 9-02051-070-0 | 09.181 BOLT; ADJ PLATE | 34 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.655M10X70 | 9112-9304 | C | AB |
| 0-20801-070-0 | 09.181 BOLT; ADJ PLATE | 34 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)M10X70 | 9305-9504 | AB | |
| 0-50041-022-0 | 09.181 BOLT; ADJ PLATE | 34 | 02 | 4ZE1 ENG(RLJ)02.277M10X22 W/LK WASHER | 9112-9403 | AB | |
| 0-50041-025-0 | 09.181 BOLT; ADJ PLATE | 34 | 02 | 4ZE1 ENG(RLJ)01.652M10X25 W/LK WASHER | 9404- | AB | |
| 9-09150-510-0 | 06.606 WASHER; LK,OIL PUMP,P/S | 22 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)00.002ID=10.2 | 9112-9504 | AB | |
| 8-94479-122-0 | 06.655 SLIDER BELT ADJ P/S OIL PUMP | 58 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9504 | AB | |
| 9-09651-116-0 | 06.168 WASHER; PL,BRKT | 41 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)05.510ID=10 OD=18 T=2 | 9211-9504 | AB | |
| 9-09164-508-0 | 06.168 WASHER; PL,BRKT | 41 | 01 | 4JG2 ENG(RJC)00.206ID=8.4 | 9508- | AB | |
| 1-09503-045-0 | 06.168 WASHER; PL,BRKT | 41 | 01 | 4JG2 ENG(RJC)00.029ID=10.5 OD=22 T=4 | 9508- | AB | |
| 9-09164-706-0 | 06.168 WASHER; PL,BRKT | 41 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)02.334ID=6.4 OD=18 | 9208-9504 | AB | |
| 8-94382-792-1 | 06.672 CLIP; FLEX HOSE | 11 | 01 | 6VD1 SOHC ENG(RLU)(B)ID=17 | 9112- | AB | |
| 8-94242-034-0 | 06.672 CLIP; FLEX HOSE | 11 | 02 | 4ZE1 ENG(RLJ)(A)ID=21 | 9112- | AB | |
| 8-94139-015-0 | 07.874 NUT; PULLEY,OIL PUMP | 19 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)06.606M12 | 9112-9504 | AB | |
| 0-50041-000-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 01 | 6VD1 SOHC ENG(RLU)06.606(A)M10X100 W/LK WASHER | 9112- | AB | |
| 0-50041-020-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 03 | 4ZE1 ENG(RLJ)11.377(B)M10X20 W/LK WASHER | 9112- | AB | |
| 8-97033-053-1 | 09.181 BOLT; OIL PUMP,P/S | 7 | 03 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.606(D)M10X20 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-025-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 01 | 6VD1 SOHC ENG(RLU)01.652(C)M10X25 W/LK WASHER | 9112- | AB | |
| 8-94450-395-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9112-9210 | AB | |
| 1-13671-301-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)L=1451 MITSUBOSHI | 9211-9504 | AB | |
| 8-94452-904-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4ZE1 ENG(RLJ)L=1019 | 9112-9504 | AB | |
| 8-94382-105-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 6VD1 SOHC ENG(RLU) | 9112- | AB |
4-36 - POWER STEERING CONTROL; ENGINE SIDE, 6VD1 SOHC ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 8-94242-034-0 | 06.672 CLIP; FLEX HOSE | 11 | 02 | 4ZE1 ENG(RLJ)(A)ID=21 | 9112- | AB | |
| 8-94382-792-1 | 06.672 CLIP; FLEX HOSE | 11 | 01 | 6VD1 SOHC ENG(RLU)(B)ID=17 | 9112- | AB | |
| 8-94374-508-1 | 06.606 BRACKET; P/S PUMP | 25 | 01 | 6VD1 SOHC ENG(RLU) | 9112- | AB | |
| 8-94420-004-0 | 06.606 BRACKET; P/S PUMP | 25 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-97094-200-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-97084-953-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9212-9405 | AB | |
| 8-97061-711-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9211 | C | AB |
| 8-94375-242-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9309-9607 | AB | |
| 8-97104-020-0 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4ZE1 ENG(RLJ) | 9505- | AB | |
| 8-94388-923-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4ZE1 ENG(RLJ) | 9112-9504 | AB | |
| 8-94365-012-4 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9112-9308 | AB | |
| 8-97129-593-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC) | 9506- | AB | |
| 8-97110-269-0 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9406-9504 | AB | |
| 8-97033-053-1 | 09.181 BOLT; OIL PUMP,P/S | 7 | 03 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.606(D)M10X20 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-020-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 03 | 4ZE1 ENG(RLJ)11.377(B)M10X20 W/LK WASHER | 9112- | AB | |
| 0-50041-000-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 01 | 6VD1 SOHC ENG(RLU)06.606(A)M10X100 W/LK WASHER | 9112- | AB | |
| 0-50041-025-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 01 | 6VD1 SOHC ENG(RLU)01.652(C)M10X25 W/LK WASHER | 9112- | AB | |
| 8-97042-266-1 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.655(A) | 9112-9504 | AB | |
| 8-94386-088-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9208 | A | AB |
| 8-94450-564-2 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4ZE1 ENG(RLJ)06.655 | 9112- | AB | |
| 8-97068-765-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9209-9308 | AB | |
| 8-97112-740-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(B) | 9406-9504 | AB | |
| 8-94434-864-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)06.655(B) | 9309-9405 | A | AB |
| 8-97068-764-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9309- | AB | |
| 1-13671-301-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)L=1451 MITSUBOSHI | 9211-9504 | AB | |
| 8-94452-904-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4ZE1 ENG(RLJ)L=1019 | 9112-9504 | AB | |
| 8-94382-105-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 6VD1 SOHC ENG(RLU) | 9112- | AB | |
| 8-94450-395-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9112-9210 | AB | |
| 0-91150-110-0 | 06.672 NUT; FLEX HOSE | 31 | 02 | 4ZE1 ENG(RLJ)04.785M10 FLANGE | 9112- | AB | |
| 8-94139-015-0 | 06.606 NUT; POWER STRG PUMP | 17 | 01 | 6VD1 SOHC ENG(RLU)M12 | 9112-9607 | AB | |
| 0-91150-210-0 | 06.606 NUT; POWER STRG PUMP | 17 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)08.917M10 FLANGE | 9112-9504 | AB |

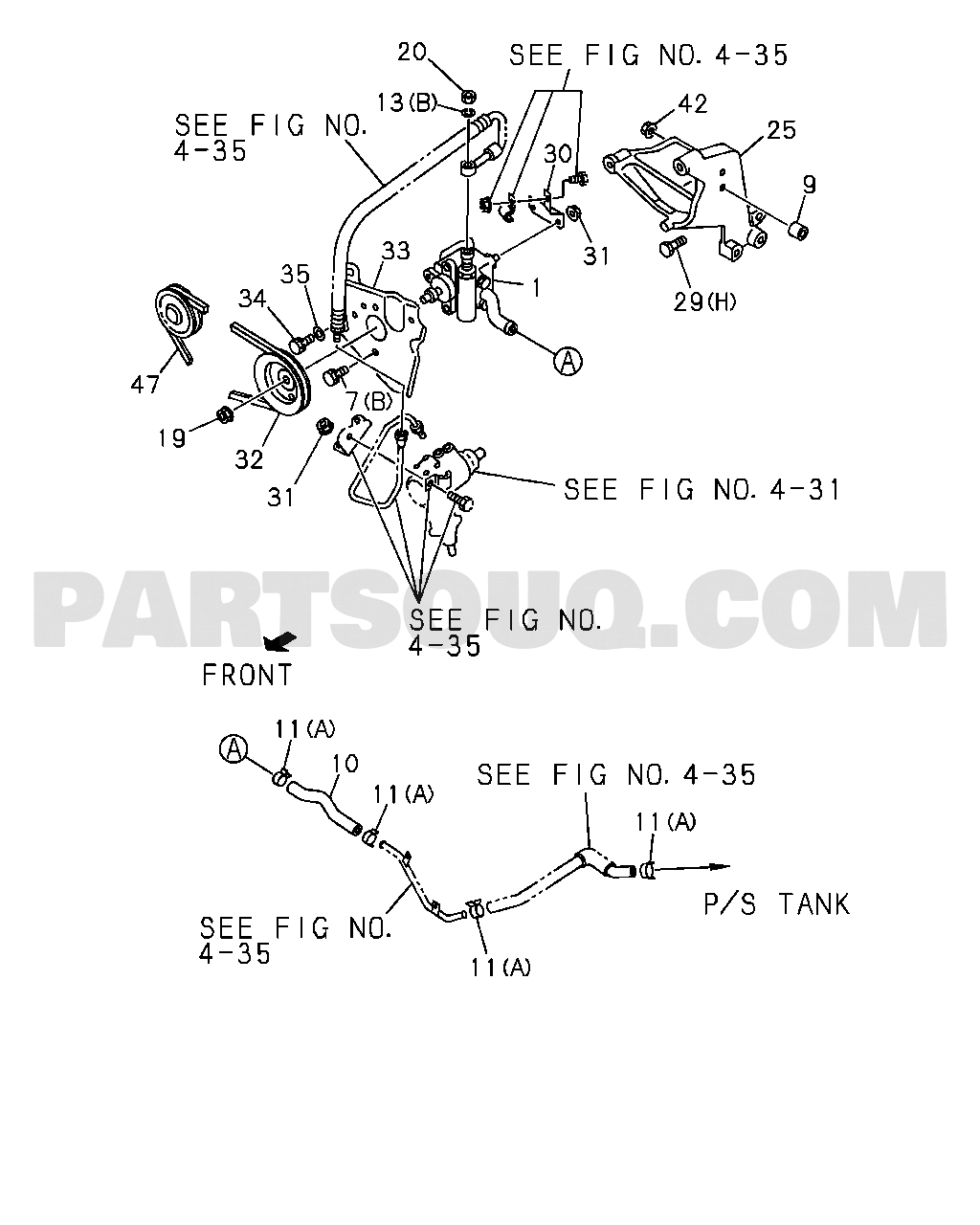

4-36 - POWER STEERING CONTROL; ENGINE SIDE, 4ZE1 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 9-99111-412-0 | 06.673 NUT; HOSE TO PUMP | 20 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)07.347M12 | 9112-9504 | AB | |
| 9-09151-216-0 | 06.673 WASHER; LK,FLEX HOSE,P/S | 13 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.672(A)ID=16.5 TOOTH LK INT | 9112-9504 | AB | |
| 9-09150-512-0 | 06.673 WASHER; LK,FLEX HOSE,P/S | 13 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)04.634(B)ID=12.2 | 9112-9504 | AB | |
| 0-91150-210-0 | 06.672 NUT; ADJ PLATE | 42 | 02 | 4ZE1 ENG(RLJ)08.917M10 FLANGE | 9401- | AB | |
| 5-09440-005-0 | 06.672 NUT; ADJ PLATE | 42 | 01 | 4ZE1 ENG(RLJ)00.854M8 FLANGE | 9112- | AB | |
| 0-91150-208-0 | 06.672 NUT; ADJ PLATE | 42 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)01.540M8 FLANGE | 9112-9504 | AB | |
| 8-94374-508-1 | 06.606 BRACKET; P/S PUMP | 25 | 01 | 6VD1 SOHC ENG(RLU) | 9112- | AB | |
| 8-94420-004-0 | 06.606 BRACKET; P/S PUMP | 25 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-94463-474-0 | 06.672 BRACKET; FLEX HOSE | 30 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 8-94146-294-0 | 06.606 COLLAR; IDLER | 9 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 0-91150-110-0 | 06.672 NUT; FLEX HOSE | 31 | 02 | 4ZE1 ENG(RLJ)04.785M10 FLANGE | 9112- | AB | |
| 8-94472-342-0 | 06.655 PLATE; ADJ,P/S | 33 | 01 | 4ZE1 ENG(RLJ) | 9112- | AB | |
| 9-09164-710-0 | 04.085 WASHER; PL,ADJ PLATE | 35 | 02 | 4ZE1 ENG(RLJ)ID=10.5 OD=26 | 9112- | AB | |
| 8-97061-711-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9112-9211 | C | AB |
| 8-97084-953-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9212-9405 | AB | |
| 8-97094-200-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9608- | AB | |
| 8-94375-242-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9309-9607 | AB | |
| 8-94365-012-4 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.6VD1 SOHC ENG(RLU) | 9112-9308 | AB | |
| 8-97104-020-0 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4ZE1 ENG(RLJ) | 9505- | AB | |
| 8-94388-923-2 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4ZE1 ENG(RLJ) | 9112-9504 | AB | |
| 8-97129-593-1 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC) | 9506- | AB | |
| 8-97110-269-0 | 06.605 PUMP ASM; OIL,P/S | 1 | 01 | SEE FIG-NO 4-42 FOR COMPONENT.4JG2 ENG(RJC),4JG1 ENG(RLT) | 9406-9504 | AB | |
| 0-50041-022-0 | 09.181 BOLT; ADJ PLATE | 34 | 02 | 4ZE1 ENG(RLJ)02.277M10X22 W/LK WASHER | 9112-9403 | AB | |
| 0-20801-070-0 | 09.181 BOLT; ADJ PLATE | 34 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)M10X70 | 9305-9504 | AB | |
| 9-02051-070-0 | 09.181 BOLT; ADJ PLATE | 34 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.655M10X70 | 9112-9304 | C | AB |
| 0-50041-025-0 | 09.181 BOLT; ADJ PLATE | 34 | 02 | 4ZE1 ENG(RLJ)01.652M10X25 W/LK WASHER | 9404- | AB | |
| 0-28080-616-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)00.738(E)M6X16 FLANGE | 9208-9504 | AB | |
| 0-50041-040-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 02 | 4ZE1 ENG(RLJ)00.004(H)M10X40 W/LK WASHER | 9112- | AB | |
| 0-28080-835-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC)03.415(E)M8X35 FLANGE | 9508- | AB | |
| 0-50041-060-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.104(B)M10X60 W/LK WASHER | 9112-9504 | AB | |
| 8-97075-268-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)01.270(E)M6X16 W/WASHER | 9203-9207 | C | AB |
| 0-50041-035-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(G)M10X35 W/LK WASHER | 9112-9308 | AB | |
| 0-50140-616-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)12.187(E)M6X16 W/LK&PL WASHER | 9112-9202 | AB | |
| 0-50040-830-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)00.780(F)M8X30 W/LK WASHER | 9112-9308 | AB | |
| 0-50040-818-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)04.785(A)M8X18 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-028-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 02 | 4JG2 ENG(RJC),4JG1 ENG(RLT)00.029(C)M10X28 W/LK WASHER | 9112-9504 | AB | |
| 0-50040-860-0 | 09.171 BOLT; BRKT,POWER STRG | 29 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)01.252(D)M8X60 W/LK WASHER | 9112-9504 | AB | |
| 8-94452-904-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4ZE1 ENG(RLJ)L=1019 | 9112-9504 | AB | |
| 1-13671-301-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)L=1451 MITSUBOSHI | 9211-9504 | AB | |
| 8-94450-395-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9112-9210 | AB | |
| 8-94382-105-0 | 01.066 BELT; P/S PUMP | 47 | 01 | 6VD1 SOHC ENG(RLU) | 9112- | AB | |
| 0-50041-000-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 01 | 6VD1 SOHC ENG(RLU)06.606(A)M10X100 W/LK WASHER | 9112- | AB | |
| 0-50041-025-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 01 | 6VD1 SOHC ENG(RLU)01.652(C)M10X25 W/LK WASHER | 9112- | AB | |
| 0-50041-020-0 | 09.181 BOLT; OIL PUMP,P/S | 7 | 03 | 4ZE1 ENG(RLJ)11.377(B)M10X20 W/LK WASHER | 9112- | AB | |
| 8-97033-053-1 | 09.181 BOLT; OIL PUMP,P/S | 7 | 03 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.606(D)M10X20 W/LK WASHER | 9112-9504 | AB | |
| 8-94139-015-0 | 07.874 NUT; PULLEY,OIL PUMP | 19 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)06.606M12 | 9112-9504 | AB | |
| 8-97068-765-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9209-9308 | AB | |
| 8-97068-764-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9309- | AB | |
| 8-94386-088-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 6VD1 SOHC ENG(RLU) | 9112-9208 | A | AB |
| 8-94450-564-2 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4ZE1 ENG(RLJ)06.655 | 9112- | AB | |
| 8-97042-266-1 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)06.655(A) | 9112-9504 | AB | |
| 8-97112-740-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(B) | 9406-9504 | AB | |
| 8-94434-864-0 | 06.665 PULLEY; IDLER,P/S | 32 | 01 | 4JG1 ENG(RLT)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)06.655(B) | 9309-9405 | A | AB |
| 8-94242-034-0 | 06.672 CLIP; FLEX HOSE | 11 | 02 | 4ZE1 ENG(RLJ)(A)ID=21 | 9112- | AB | |
| 8-94382-792-1 | 06.672 CLIP; FLEX HOSE | 11 | 01 | 6VD1 SOHC ENG(RLU)(B)ID=17 | 9112- | AB | |
| 8-94471-683-0 | 06.670 HOSE FLEX P/S OIL PUMP INL | 10 | 01 | 4ZE1 ENG(RLJ)06.673 | 9112- | AB |
8-50 - AIR CONDITIONING SYSTEM; FRONT, 4JG1 ENG,4JG2 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 8-94470-854-1 | 09.242 SCREW; CLIP | 278 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)02.343 | 9112-9309 | AB | |
| 8-94374-507-5 | 09.171 BRACKET; CMPR | 46 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97114-782-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)09.242(B) | 9411-9504 | AB | |
| 8-97085-065-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(B) | 9208-9410 | AB | |
| 8-97114-780-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)09.242(A) | 9411-9504 | AB | |
| 8-97085-063-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)09.242(A) | 9208-9410 | AB | |
| 8-97074-766-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(A) | 9203-9207 | C | AB |
| 8-94421-543-1 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(A) | 9112-9202 | C | AB |
| 0-50041-035-0 | 09.171 BOLT; BRKT | 8 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)(F)M10X35 W/LK WASHER | 9112-9504 | AB | |
| 0-28181-016-0 | 09.171 BOLT; BRKT | 8 | 01 | 6VD1 SOHC ENG(RLU)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)03.604(D)M10X16 FLANGE | 9112-9504 | AB | |
| 0-50041-025-0 | 09.171 BOLT; BRKT | 8 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)01.652(E)M10X25 W/LK WASHER | 9112-9504 | AB | |
| 5-09030-038-1 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.724(C)M10X55 | 9208-9504 | AB | |
| 0-50041-032-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)06.525(B)M10X32 W/LK WASHER | 9208-9504 | AB | |
| 0-50041-050-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.386(B)M10X50 W/LK WASHER | 9205-9207 | AB | |
| 5-09000-243-1 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(B)M10X50 | 9112-9204 | A | AB |
| 0-50041-040-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(A)M10X40 W/LK WASHER | 9501-9504 | AB | |
| 0-50041-045-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(A)M10X45 W/LK WASHER | 9112-9412 | AB | |
| 0-50040-840-0 | 09.171 BOLT; BRKT | 8 | 02 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)03.706(A)M8X40 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-040-0 | 09.171 BOLT; A/C CMPR BRKT | 4 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(B)M10X40 W/LK WASHER | 9112-9207 | AB | |
| 0-50041-035-0 | 09.171 BOLT; A/C CMPR BRKT | 4 | 04 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)M10X35 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-032-0 | 09.171 BOLT; A/C CMPR BRKT | 4 | 02 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)06.525(A)M10X32 W/LK WASHER | 9112-9504 | AB | |
| 8-94434-926-0 | 01.066 BELT; A/C CMPR | 32 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94222-310-1 | 08.850 PLUG; PIPE HOLE | 90 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(A) | 9112-9504 | AB | |
| 9-09956-122-0 | 08.850 PLUG; PIPE HOLE | 90 | 02 | 16.550(B)OD=12 | 9112-9303 | AB | |
| 8-97077-716-0 | 09.190 INSULATOR; HEAT,CONDENSER | 223 | 02 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9202-9308 | AB |
8-50 - AIR CONDITIONING SYSTEM; FRONT, 6VD1 SOHC ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 8-97039-000-0 | 09.173 BRACKET; HARNESS CLIP,A/C | 118 | 01 | 6VD1 SOHC ENG(RLU)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) | 9112-9504 | AB | |
| 0-50040-840-0 | 09.171 BOLT; BRKT | 8 | 02 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)03.706(A)M8X40 W/LK WASHER | 9112-9504 | AB | |
| 5-09030-038-1 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.724(C)M10X55 | 9208-9504 | AB | |
| 0-50041-035-0 | 09.171 BOLT; BRKT | 8 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)(F)M10X35 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-025-0 | 09.171 BOLT; BRKT | 8 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)01.652(E)M10X25 W/LK WASHER | 9112-9504 | AB | |
| 0-28181-016-0 | 09.171 BOLT; BRKT | 8 | 01 | 6VD1 SOHC ENG(RLU)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)03.604(D)M10X16 FLANGE | 9112-9504 | AB | |
| 0-50041-032-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)06.525(B)M10X32 W/LK WASHER | 9208-9504 | AB | |
| 0-50041-050-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.386(B)M10X50 W/LK WASHER | 9205-9207 | AB | |
| 5-09000-243-1 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(B)M10X50 | 9112-9204 | A | AB |
| 0-50041-040-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(A)M10X40 W/LK WASHER | 9501-9504 | AB | |
| 0-50041-045-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(A)M10X45 W/LK WASHER | 9112-9412 | AB | |
| 8-94158-393-1 | 09.171 BOLT; CMPR | 14 | 02 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.349M8X65 | 9112-9402 | A | AB |
| 1-09044-072-0 | 09.171 BOLT; CMPR | 14 | 02 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)01.097M8X65 FLANGE | 9403-9504 | AB | |
| 1-09044-072-1 | 09.171 BOLT; CMPR | 14 | 02 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60)01.097M8X65 FLANGE | 9505- | AB | |
| 8-94239-147-0 | 09.171 BOLT; CMPR | 14 | 02 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.206M8X75 | 9112-9504 | AB | |
| 8-94399-669-1 | 09.173 BOLT; BRKT TO BODY | 47 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)02.042(A)M10X75 FLANGE | 9112-9504 | AB | |
| 0-28181-025-0 | 09.173 BOLT; BRKT TO BODY | 47 | 03 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)04.525(B)M10X25 FLANGE | 9112-9504 | AB | |
| 8-97114-782-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)09.242(B) | 9411-9504 | AB | |
| 8-94374-507-5 | 09.171 BRACKET; CMPR | 46 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97085-065-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(B) | 9208-9410 | AB | |
| 8-97114-780-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)09.242(A) | 9411-9504 | AB | |
| 8-97085-063-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)09.242(A) | 9208-9410 | AB | |
| 8-97074-766-0 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(A) | 9203-9207 | C | AB |
| 8-94421-543-1 | 09.171 BRACKET; CMPR | 46 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(A) | 9112-9202 | C | AB |
| 8-94382-107-1 | 01.066 BELT; A/C CMPR | 66 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94478-173-1 | 01.066 BELT; A/C CMPR | 66 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)L=999 | 9112-9504 | AB | |
| 0-28080-816-0 | 09.181 BOLT; IDLER PULLEY TO C/BL | 35 | 02 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)01.062M8X16 FLANGE | 9112-9504 | AB | |
| 8-94160-543-0 | 09.171 BRACKET; IDLER PULLEY | 57 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-670-0 | 09.171 BRACKET; IDLER PULLEY | 57 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97077-716-0 | 09.190 INSULATOR; HEAT,CONDENSER | 223 | 02 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9202-9308 | AB | |
| 8-94160-544-0 | 09.180 PULLEY; IDLER WITH COVER | 53 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-667-0 | 09.180 PULLEY; IDLER WITH COVER | 53 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94161-805-0 | 09.181 COLLAR; IDLER PULLEY | 59 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-669-0 | 09.181 COLLAR; IDLER PULLEY | 59 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-671-0 | 09.181 COVER; IDLER PULLEY | 62 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94160-545-0 | 09.181 COVER; IDLER PULLEY | 62 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)FRONT | 9112-9504 | AB | |
| 8-94172-502-0 | 09.181 WASHER; SHAFT,IDLER PULLEY | 63 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-672-0 | 09.181 WASHER; SHAFT,IDLER PULLEY | 63 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94160-678-0 | 09.181 NUT; SHAFT,IDLER PULLEY | 64 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-668-0 | 09.181 NUT; SHAFT,IDLER PULLEY | 64 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94222-310-1 | 08.850 PLUG; PIPE HOLE | 90 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(A) | 9112-9504 | AB | |
| 9-09956-122-0 | 08.850 PLUG; PIPE HOLE | 90 | 02 | 16.550(B)OD=12 | 9112-9303 | AB |
8-50 - AIR CONDITIONING SYSTEM; FRONT, 4ZE1 ENG
| Number | Name | Code | Quantity | Note | Applied Date | Itc | Applied Model |
|---|---|---|---|---|---|---|---|
| 8-94470-854-1 | 09.242 SCREW; CLIP | 278 | 01 | 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)02.343 | 9112-9309 | AB | |
| 0-50041-032-0 | 09.171 BOLT; A/C CMPR BRKT | 4 | 02 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)06.525(A)M10X32 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-040-0 | 09.171 BOLT; A/C CMPR BRKT | 4 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(B)M10X40 W/LK WASHER | 9112-9207 | AB | |
| 0-50041-035-0 | 09.171 BOLT; A/C CMPR BRKT | 4 | 04 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)M10X35 W/LK WASHER | 9112-9504 | AB | |
| 8-94441-552-4 | 09.242 BRACKET; A/C | 1 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)09.171 | 9112-9504 | AB | |
| 0-50041-045-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(A)M10X45 W/LK WASHER | 9112-9412 | AB | |
| 0-50040-840-0 | 09.171 BOLT; BRKT | 8 | 02 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)03.706(A)M8X40 W/LK WASHER | 9112-9504 | AB | |
| 5-09000-243-1 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)(B)M10X50 | 9112-9204 | A | AB |
| 0-50041-050-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.386(B)M10X50 W/LK WASHER | 9205-9207 | AB | |
| 0-50041-032-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)06.525(B)M10X32 W/LK WASHER | 9208-9504 | AB | |
| 5-09030-038-1 | 09.171 BOLT; BRKT | 8 | 01 | 4JG2 ENG(RJC),4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.724(C)M10X55 | 9208-9504 | AB | |
| 0-50041-025-0 | 09.171 BOLT; BRKT | 8 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)01.652(E)M10X25 W/LK WASHER | 9112-9504 | AB | |
| 0-50041-035-0 | 09.171 BOLT; BRKT | 8 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)GENERATOR 55A(S9S)(F)M10X35 W/LK WASHER | 9112-9504 | AB | |
| 0-28181-016-0 | 09.171 BOLT; BRKT | 8 | 01 | 6VD1 SOHC ENG(RLU)EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)03.604(D)M10X16 FLANGE | 9112-9504 | AB | |
| 0-50041-040-0 | 09.171 BOLT; BRKT | 8 | 01 | 4JG1 ENG(RLT)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)00.004(A)M10X40 W/LK WASHER | 9501-9504 | AB | |
| 8-94382-107-1 | 01.066 BELT; A/C CMPR | 66 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94478-173-1 | 01.066 BELT; A/C CMPR | 66 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)L=999 | 9112-9504 | AB | |
| 8-97061-670-0 | 09.171 BRACKET; IDLER PULLEY | 57 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94160-543-0 | 09.171 BRACKET; IDLER PULLEY | 57 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-669-0 | 09.181 COLLAR; IDLER PULLEY | 59 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94161-805-0 | 09.181 COLLAR; IDLER PULLEY | 59 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94161-804-0 | 09.181 COVER; IDLER PULLEY | 60 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)REAR | 9112-9504 | AB | |
| 8-94172-502-0 | 09.181 WASHER; SHAFT,IDLER PULLEY | 63 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-672-0 | 09.181 WASHER; SHAFT,IDLER PULLEY | 63 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94160-678-0 | 09.181 NUT; SHAFT,IDLER PULLEY | 64 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-668-0 | 09.181 NUT; SHAFT,IDLER PULLEY | 64 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97061-667-0 | 09.180 PULLEY; IDLER WITH COVER | 53 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-94160-544-0 | 09.180 PULLEY; IDLER WITH COVER | 53 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 0-50040-820-0 | 09.181 BOLT; IDLER PULLEY TO BODY | 58 | 02 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)08.900M8X20 W/LK WASHER | 9112-9504 | AB | |
| 8-94160-545-0 | 09.181 COVER; IDLER PULLEY | 62 | 01 | 4ZE1 ENG(RLJ)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1)FRONT | 9112-9504 | AB | |
| 8-97061-671-0 | 09.181 COVER; IDLER PULLEY | 62 | 01 | 6VD1 SOHC ENG(RLU)AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9112-9504 | AB | |
| 8-97077-716-0 | 09.190 INSULATOR; HEAT,CONDENSER | 223 | 02 | AIR CONDITIONER MANUAL CONT(C60),COOLERWO/HEATER(YL1) | 9202-9308 | AB | |
| 8-94222-310-1 | 08.850 PLUG; PIPE HOLE | 90 | 01 | EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)(A) | 9112-9504 | AB | |
| 9-09956-122-0 | 08.850 PLUG; PIPE HOLE | 90 | 02 | 16.550(B)OD=12 | 9112-9303 | AB |
