Open RegionYearModelModelCode Details
USA / Canada 2013 HILUX KUN26L-HRMDY
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: THAILAND PRODUCED DOUBLE CAB Color Code: 3E5 Trim Code: FZ10 Production: 201107-201504 Model Short: KUN26L-HRMDY Region: NA Native Region: US

Toyota Hilux 2013 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
83320-0K020 GAGE ASSY, FUEL SENDER 1
Note:TGN36..HTWC;TGN16..SCB..GEN;TGN26..HTWC..(ANCOM,CO,LA,SA);KUN2#,35,TGN26..SADCB,THDCB,THSCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16..ANCOM,SA Production:2011-07 – …
84810-0K010 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:KUN26..THDCB..DLX Production:2012-08 – 2015-12 Spec:ANTI-THEFT SYSTEM-*IM & *SEH&POWER DOOR LOCK-WITH
84810-0K010 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:KUN26..THDCB..DLX Production:2012-08 – 2015-12 Spec:ANTI-THEFT SYSTEM-*IM & *SEH&POWER DOOR LOCK-WITH
84820-0K101 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:KUN26..THDCB..DLX Production:2013-08 – 2015-12 Spec:ANTI-THEFT SYSTEM-*IM & *SEH&POWER DOOR LOCK-WITH
84231-0K020 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:84231-53010 (fitment: unknown)
84231-0K020 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:GGN15..DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – … Replacements:84231-53010 (fitment: unknown)
— Part does not apply to this vehicle configuration. 84222D —
— Part does not apply to this vehicle configuration. 82223F —
90164-T0005 standard —
Replacements:90164-40103 (fitment: unknown)
90109-06296 standard —
90430-18008 standard —

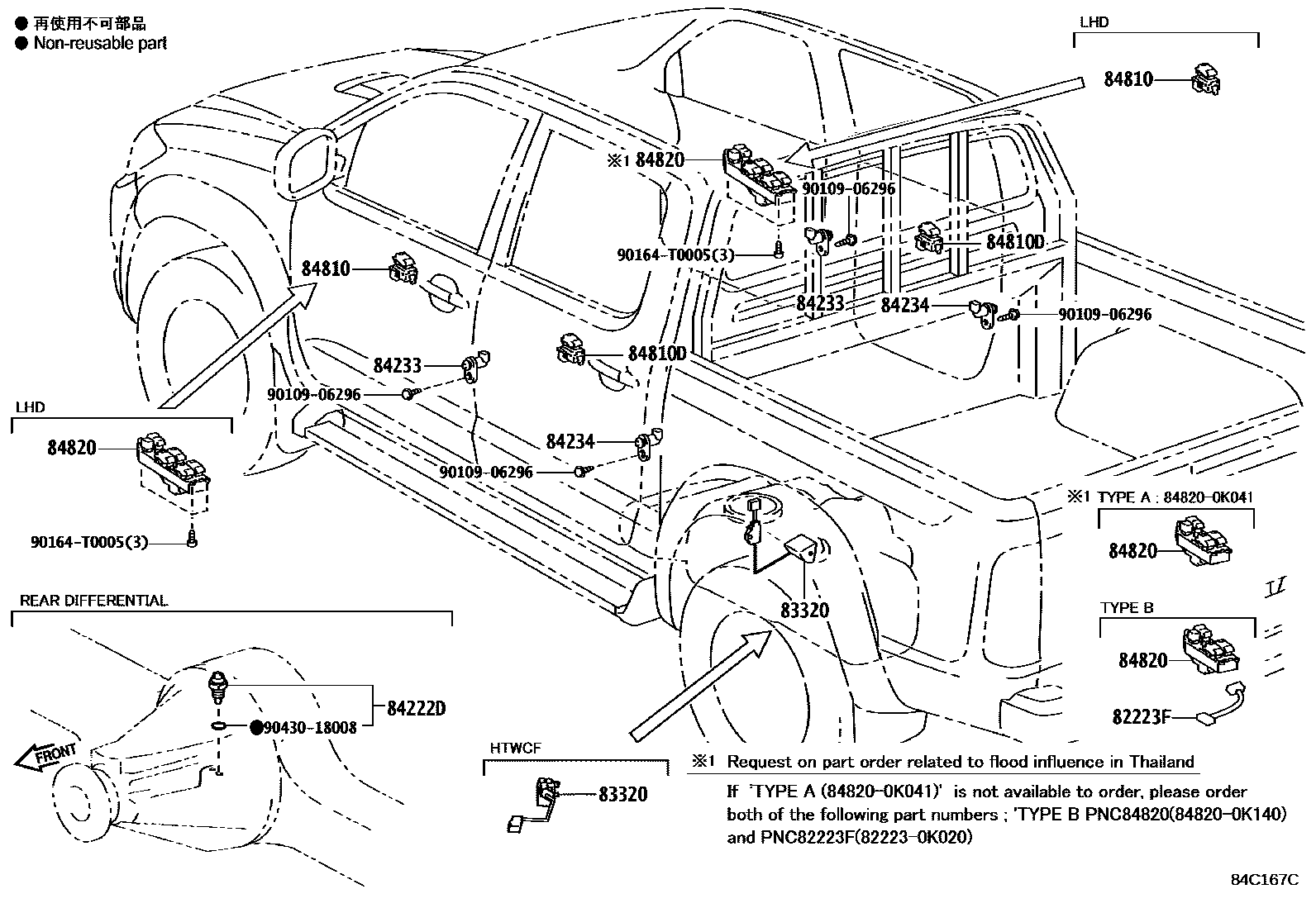

Diagram

9 parts
Toyota Hilux 2013 — Switch & Relay & Computer
