Toyota Hilux 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84052-0K020 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:KUN15,25..LHD..SR;KUN25..THDCB,THSCB,XTR;KUN15,25..RHD..(IDN,MA,SA,TH);KUN25,TGN26..4FC..(GCC,GEN,LA,SA);KUN15,25,TGN26..5F..(ANCOM,CO,GCC,LA);TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN15,TGN26..(SCB,THDCB)..(HDCR,HTWC)..GEN;GGN15,25,35,KUN10,16,26,3#,TGN10,11,15,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:84052-71010 (fitment: unknown) | |||
| 84450-0K010 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:LAN15,25..LHD;GGN15,25,35,KUN1#,2#,3#,TGN1#,26,36 Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| 84140-0K051 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:LAN25..LHD..SCB;KUN15..LHD..DLX..SA;KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN10,LAN15,TGN1#,36..LHD..(GCC,GEN,SA);KUN25,35,TGN26..LHD..DLX..(GCC,GEN,PHL,SA);KUN15,26..LHD..(SADCB,SCB,THDCB)..(DLX,STD)..DCR..(GCC,GEN,PHL) Production:2011-07 – 2015-12 | |||
| 84306-0K021 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:KUN26..THDCB..DLX Production:2011-07 – 2015-04 Spec:ANTI-THEFT SYSTEM-*IM & *SEH&SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE C:REFER ILLUST. | |||
| 84312-0K030 | PLATE, HORN CONTACT | 1 | |
Note:KUN25,35..IV3;KUN25..SCB..SA;KUN25..5F..PKN;TGN16..4FC..SR;KUN15..XTR..GEN;KUN25..CO,GCC,GEN;TGN16..SCB..(GCC,GEN);KUN25..LHD..DCB..DLX..SA;KUN35..DCB..DLX..(CO,SA);TGN16..DCB..DLX..(GCC,GEN);KUN10,26,35,LAN15,25,TGN10,11..LHD..DLX..(GCC,GEN,SA);KUN15,16,TGN26,36..(SCB,XTR)..(DCR,HTWC)..(ANCOM,LA,TH);KUN15,TGN15,26..(DLX,STD)..(DCR,HTWC)..(GCC,GEN,LA,PKN,SA) Production:2011-07 – 2016-09 | |||
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84652-0K071 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:TGN26..CO,SA;TGN26..THDCB;TGN16..SCB..GEN;KUN25..LHD..DCB..SA;KUN15,26..LHD..SR..(CO,SA);KUN15,TGN16..LHD..DLX..(PHL,SA);KUN35,LAN15,25,TGN36..LHD..DLX..(GEN,PHL,SA);KUN2#..LHD..(SADCB,SCB,THDCB,THSCB)..(GEN,SA) Production:2011-07 – 2015-12 | |||
| — | Part does not apply to this vehicle configuration. | 84250A | — |
| — | Part does not apply to this vehicle configuration. | 84247A | — |
| 90159-T0007 | standard | — | |
Replacements:90159-50199 (fitment: unknown) | |||
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) | |||
| 90159-50199 | standard | — | |

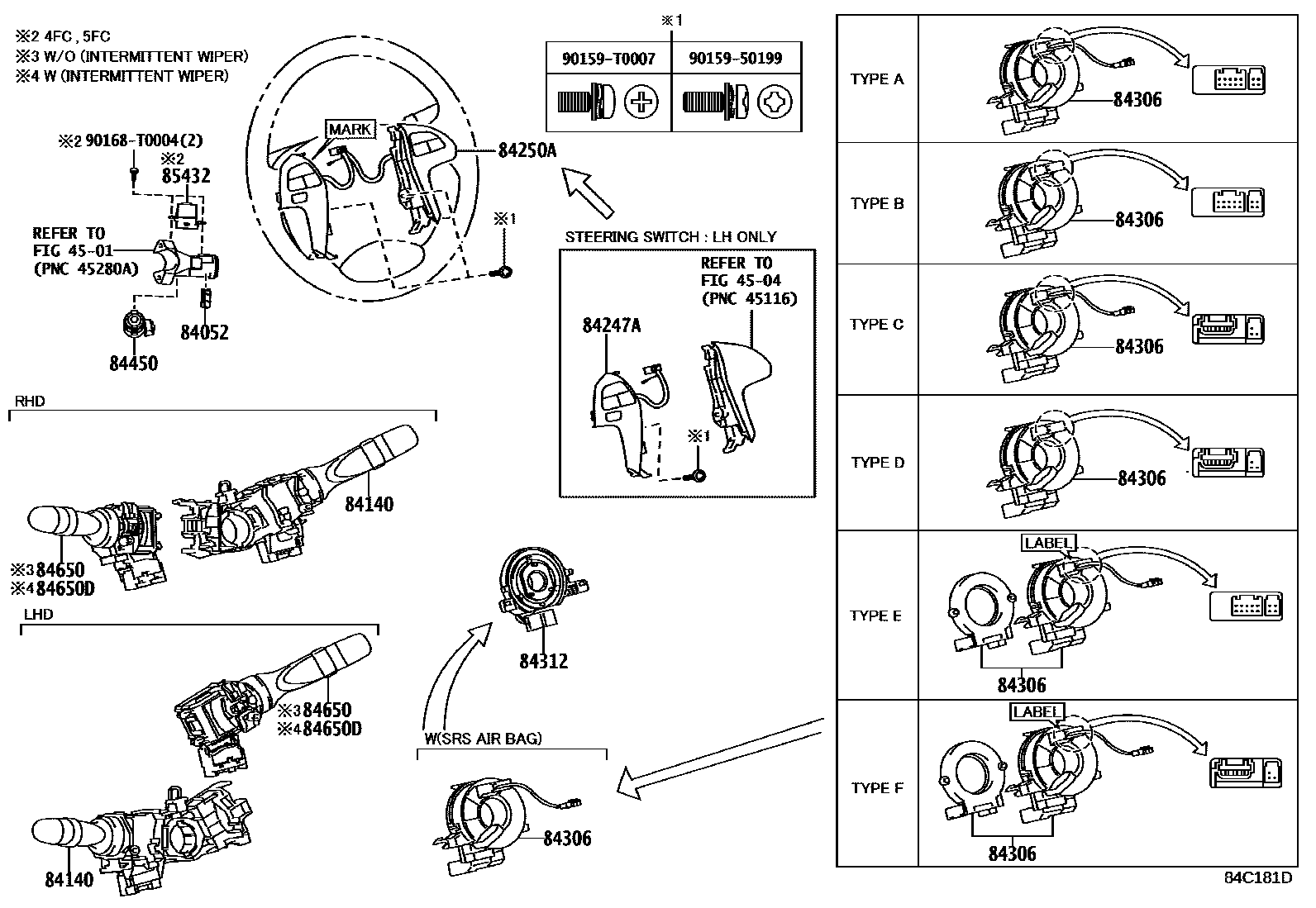

Diagram
9 parts
