Toyota Hilux 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83181-12020 | SENSOR, SPEEDOMETER | 1 | |
Note:GGN25,KUN26;KUN16,3#,TGN16,36..5F;GGN15,KUN15,25,LAN25,TGN11,26..(4FC,5F)..(DEFI,HDCR,HTWC,HTWCF) Production:2011-07 – … | |||
| 84222-35110 | SWITCH, TRANSFER INDICATOR, NO.3 | 1 | |
Note:LAN25..DCB;LAN25..LHD..SCB;GGN25,KUN2#,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 84222B | — |
| 84222-35080 | SWITCH, TRANSFER INDICATOR, NO.1 | 1 | |
Note:LAN25..DCB;KUN25..SCB..GEN;LAN25..LHD..SCB;TGN26..5F..DLX..HTWC..(GCC,GEN,LA);KUN2#..(DCB,THDCB,XTR)..5F..DLX..(CO,GCC,GEN,PKN) Production:2011-07 – 2016-09 Spec:ABS (ANTI-LOCK BRAKE SYSTEM)-WITH | |||
| 96711-24030 | RING, O (FOR SPEEDOMETER SENSOR) | 1 | |
Note:GGN25,KUN26;KUN16,3#,TGN16,36..5F;GGN15,KUN15,25,LAN25,TGN11,26..(4FC,5F)..(DEFI,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,SA,TH) Production:2011-07 – … | |||
| 84210-52050 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:KUN15..HDCR..GEN;KUN16,2#,3#..(DCB,SCB,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL) Production:2011-07 – 2015-04 Spec:TYPE B:REFER 33-01 | |||
| 84210-0K010 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – 2016-01 Replacements:84210-12040 (fitment: unknown) Spec:TYPE C:REFER 33-01 | |||
| 84210-04010 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:KUN15..HDCR..SA;KUN15,TGN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#,TGN10..5F..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – 2016-09 Spec:TYPE D:REFER 33-01 | |||
| — | Part does not apply to this vehicle configuration. | 84540 | — |
| 83530-28010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KUN26..4FC..CO;KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) Production:2011-07 – … Spec:DENSO | |||
| 83530-60010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KUN26..4FC..CO;KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) Production:2011-07 – … Spec:YAZAKI | |||
| 89491-26081 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION) | |||
| 90430-27001 | GASKET, ENGINE OIL LEVEL SENSOR | 1 | |
Note:KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION) | |||
| 82715-0K410 | standard | — | |
| 90929-01366 | standard | — | |
| 90430-18008 | standard | — | |
| 91651-40830 | standard | — | |
| 91651-40825 | standard | — | |
| 91651-60614 | standard | — | |

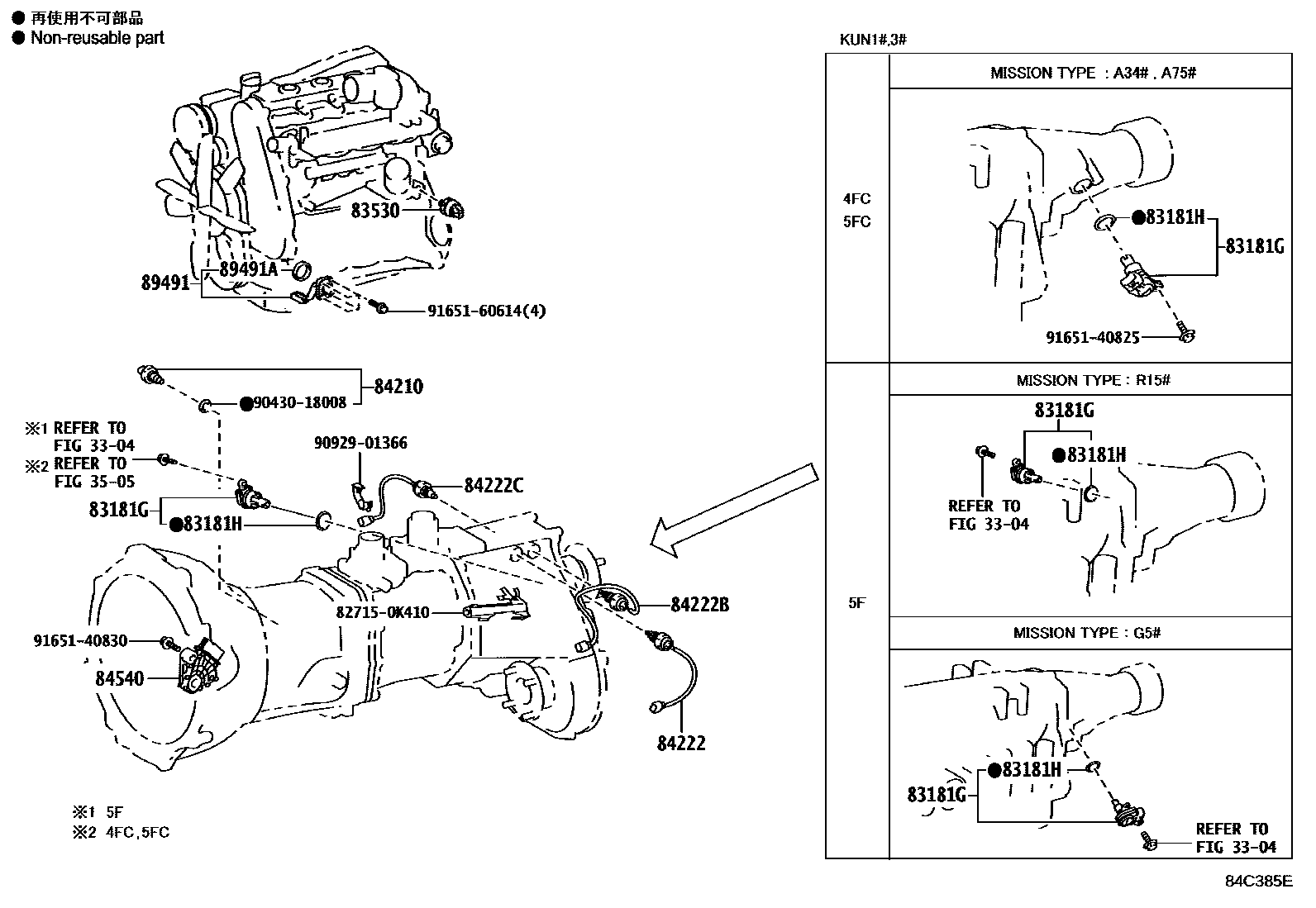

Diagram
17 parts
