USA / Canada 2020 RAV4 JPP AXAH54L-ANXGBW
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1G3 Trim Code: LA20 Production: 201902-202007 Model Short: AXAH54L-ANXGBW Region: NA Native Region: US

Toyota RAV4-JPP 2020 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82610-42100 BLOCK ASSY, FUSE 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
82620-42080 BLOCK ASSY, FUSIBLE LINK 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
82662-42720 COVER, RELAY BLOCK, UPPER, NO.4 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
82662-42690 COVER, RELAY BLOCK, UPPER, NO.3 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
82663-42200 COVER, RELAY BLOCK, LOWER, NO.3 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
82740-42070 BLOCK, ENGINE ROOM RELAY, NO.3 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
90982-09020 LUGGAGE ROOM FUSE 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07 Spec:7.5A,MINI FUSE,BROWN
90982-09021 LUGGAGE ROOM FUSE 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07 Spec:10A,MINI FUSE,RED
90982-09022 LUGGAGE ROOM FUSE 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07 Spec:15A,MINI FUSE,BLUE
90982-08284 LUGGAGE ROOM FUSIBLE LINK 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
90987-02031 RELAY, IGCT 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
90987-02027 RELAY, REAR SEAT HEATER 2
Note:AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR Production:2018-11 – 2020-07 Spec:COLD AREA SPEC,WITH(REAR SEAT HEATER)
55557-53030 CUSHION, RELAY BLOCK 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
82660-48020 BLOCK ASSY, RELAY 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
90119-08944 standard —

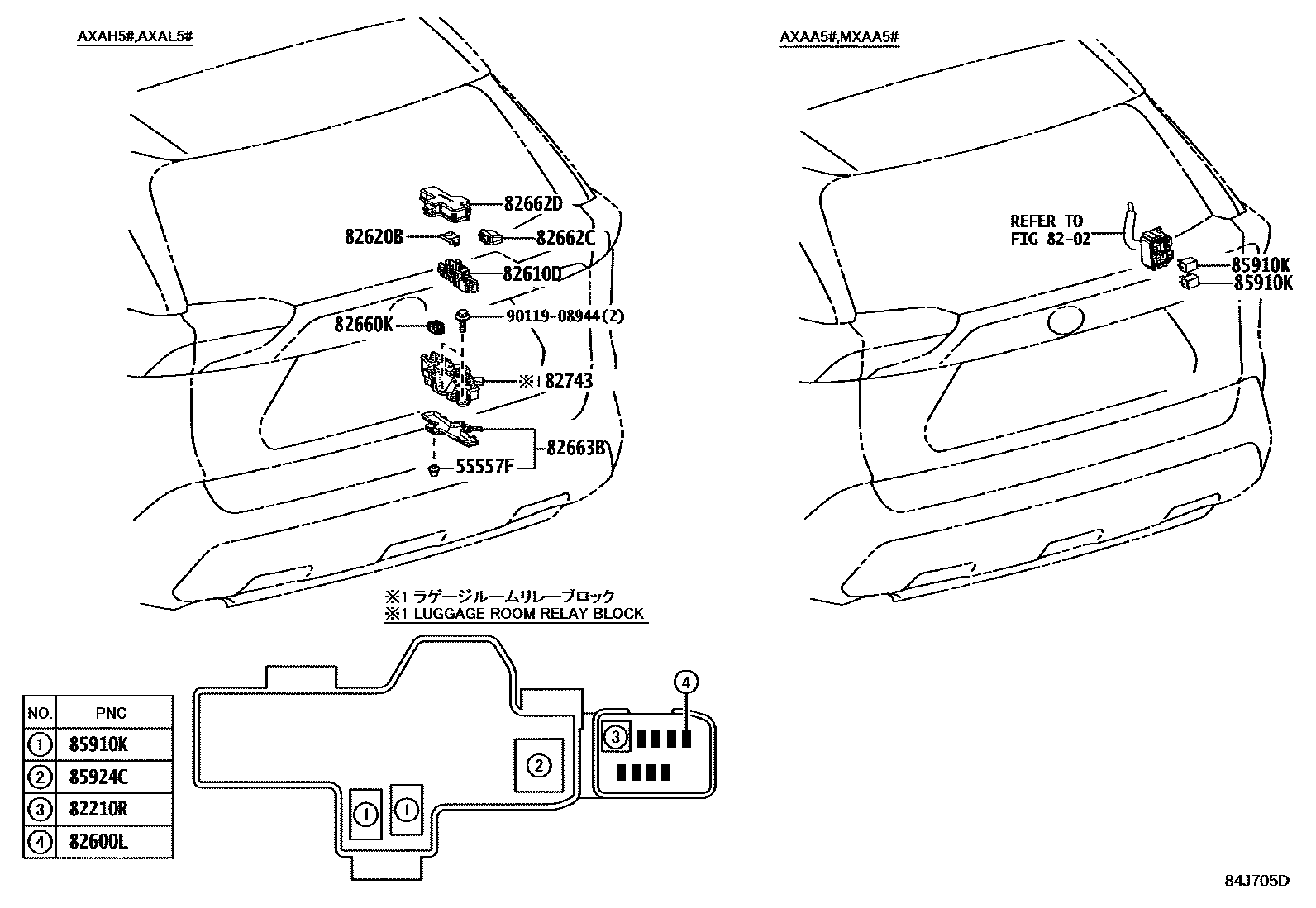

Diagram

15 parts
Toyota RAV4-JPP 2020 — Switch & Relay & Computer
