Open RegionYearModelModelCode Details
USA / Canada 2020 RAV4 JPP AXAH54L-ANXGBW
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1G3 Trim Code: LA20 Production: 201902-202007 Model Short: AXAH54L-ANXGBW Region: NA Native Region: US

Toyota RAV4-JPP 2020 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
89111-12040 COMPUTER, NETWORK GATEWAY 1
Note:AXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN Production:2018-11 – 2020-07
82673-42230 BRACKET, JUNCTION BLOCK 1
Note:AXAA54..LHD..(GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA5#..LHD..(ATM,CVT)..(EUR,GCC,GEN) Production:2018-11 – 2020-07
90987-02027 RELAY, SEAT HEATER 2
Note:AXAH52..G..(ARL,EUR);AXAA54,MXAA54..RHD..(G,V);AXAA54,AXAH52..LHD..G..(GCC,GEN);AXAA52,AXAH54,AXAL5#,MXAA5#..(ATM,CVT)..G..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
— Part does not apply to this vehicle configuration. 89730A —
90987-02027 RELAY, STEERING HEATER 1
Note:AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR Production:2018-11 – 2020-07 Spec:COLD AREA SPEC,WITH(REAR SEAT HEATER)
90982-09019 INSTRUMENT PANEL FUSE 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:5A,MINI FUSE,TAN
90982-09020 INSTRUMENT PANEL FUSE 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:7.5A,MINI FUSE,BROWN
90982-09021 INSTRUMENT PANEL FUSE 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:10A,MINI FUSE,RED
90982-09022 INSTRUMENT PANEL FUSE 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:15A,MINI FUSE,BLUE
90982-09023 INSTRUMENT PANEL FUSE 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:20A,MINI FUSE,YELLOW
90982-08306 INSTRUMENT PANEL FUSIBLE LINK 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:30A,FEMALE,PNK,32V
82672-42200 COVER, JUNCTION BLOCK 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82730-42890 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 1
Note:MXAA52..JPP..6F..X;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..LHD..6F..(G,M);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
85940-42040 RELAY ASSY, WINDSHIELD WIPER 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
89121-30020 SENSOR, AUTOMATIC LIGHT CONTROL 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
84345-51010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
84340-49105 SWITCH ASSY, STOP LAMP 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
89220-4BC60 COMPUTER, MULTIPLEX NETWORK BODY 1
Note:AXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR Production:2020-04 – 2020-07 Spec:NORWAY,SWEDEN,FINLAND,DENMARK SPEC
82877-33030 BOX, COMPUTER INTEGRATION, RH 1
Note:MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA54..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X);AXAA52,AXAH5#,AXAL5#,MXAA52..LHD..(EUR,GCC,GEN) Production:2018-11 – 2020-07
69065-12460 CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH 1
Note:AXAH5#,AXAL5#,MXAA5#..LHD..EUR Production:2018-11 – 2020-07 Spec:NORWAY,SWEDEN,FINLAND,DENMARK SPEC
— Part does not apply to this vehicle configuration. 8598A —
— Part does not apply to this vehicle configuration. 85970A —
91673-80616 standard —
90179-06274 standard —
90183-06032 standard —
90119-W0127 standard —
Replacements:90119-06951 (fitment: unknown)
90119-06951 standard —
90178-W0039 standard —

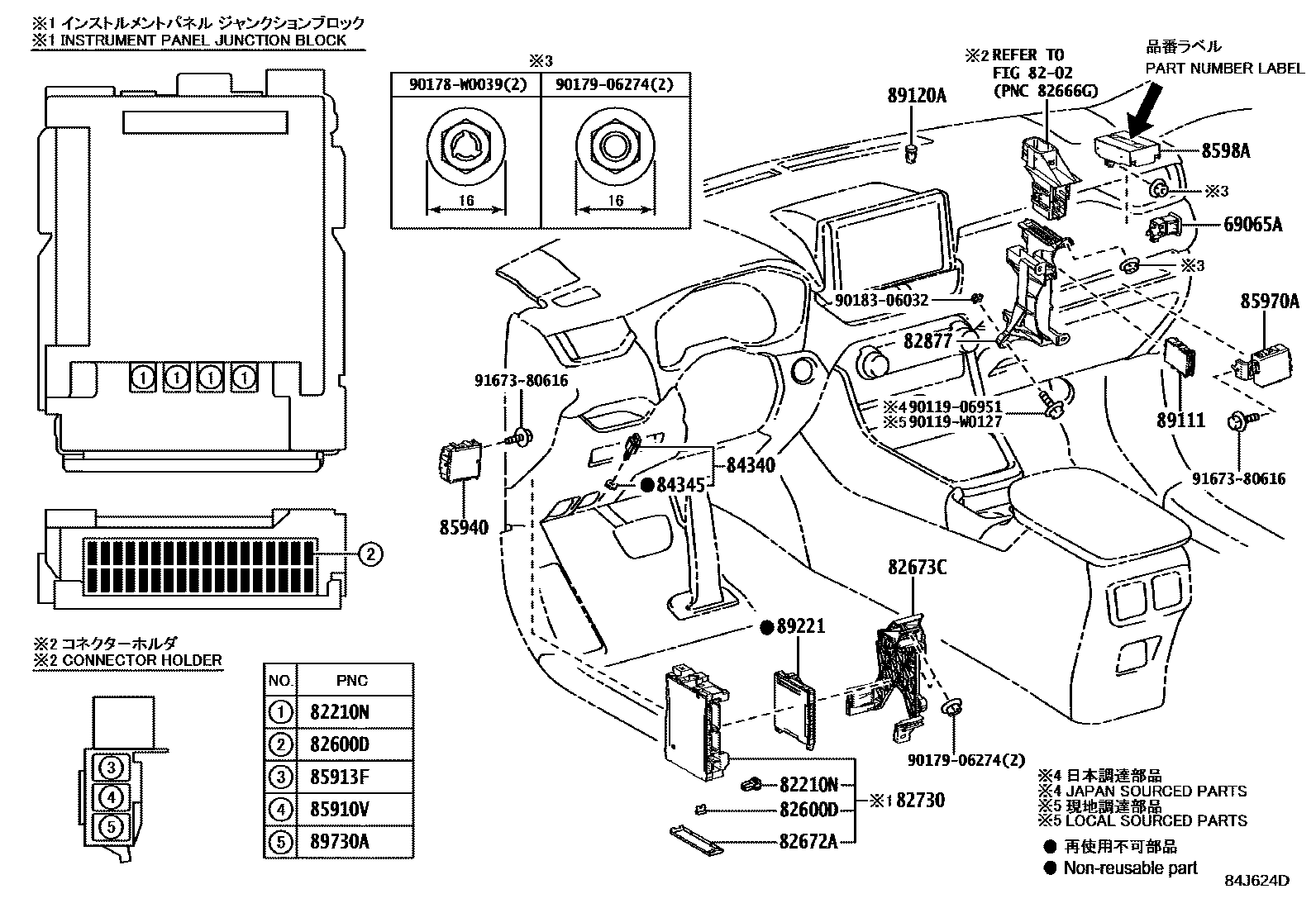

Diagram

25 parts
Toyota RAV4-JPP 2020 — Switch & Relay & Computer
