Toyota RAV4-JPP 2020 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84231-60070 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 | |||
| 84231-60070 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 | |||
| 84040-42030 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:MXAA54..6F..EUR;MXAA54..JPP..CVT..G;MXAA54..CVT..M..EUR;AXAH54,MXAA52..LHD..M..EUR;AXAH52,AXAL5#..LHD..(G,M)..EUR;AXAA5#,AXAH52..LHD..G..(GCC,GEN);AXAH54,MXAA52..LHD..G..(EUR,GCC,GEN) Production:2018-11 – 2020-07 | |||
| 84872-42030 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXAH5#,AXAL5#,MXAA5#..EUR Production:2018-11 – 2020-07 | |||
| 84810-12110 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXAA54..(M,V)..ARL;MXAA52..6F..G..EUR;MXAA52..JPP..CVT..G;AXAH52..LHD..G..GEN;MXAA52..M..(ARL,EUR);AXAH54..G..(GCC,GEN);AXAH5#,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,SA);AXAA5#,MXAA54..(ATM,CVT)..G..(ARL,GCC,GEN,SA) Production:2018-11 – 2020-07 | |||
| 84810-12110 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXAA54..(M,V)..ARL;MXAA52..6F..G..EUR;MXAA52..JPP..CVT..G;AXAH52..LHD..G..GEN;MXAA52..M..(ARL,EUR);AXAH54..G..(GCC,GEN);AXAH5#,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,SA);AXAA5#,MXAA54..(ATM,CVT)..G..(ARL,GCC,GEN,SA) Production:2018-11 – 2020-07 | |||
| 84927-42040 | SWITCH, SEAT MEMORY | 1 | |
Note:AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD..G Production:2018-11 – 2020-09 | |||
| 84751-33140 | SWITCH, SEAT HEATER(REAR) | 2 | |
Note:AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR Production:2018-11 – 2020-07 Spec:COLD AREA SPEC,WITH(REAR SEAT HEATER) | |||
| 84966-42020 | SWITCH, POWER BACK DOOR CONTROL, NO.1 | 1 | |
Note:MXAA54..G..EUR;MXAA52..6F..G..EUR;AXAA54..(G,V)..(ARL,SA);AXAH5#,AXAL5#,MXAA52..CVT..G..(ARL,EUR,SA) Production:2018-11 – 2020-07 | |||
| 85530-42010 | SOCKET ASSY, POWER OUTLET, REAR NO.1 | 1 | |
Note:MXAA52..6F..EUR;AXAA5#..(G,M,V)..(ARL,GCC,SA);MXAA54..(G,M,V)..(EUR,GCC,SA);AXAH5#,AXAL5#,MXAA52..CVT..X..EUR;AXAH5#,AXAL5#,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,SA) Production:2018-11 – 2020-07 | |||
| 85535-30020 | COVER, POWER OUTLET SOCKET, REAR | 1 | |
Note:MXAA52..6F..EUR;AXAA5#..(G,M,V)..(ARL,GCC,SA);MXAA54..(G,M,V)..(EUR,GCC,SA);AXAH5#,AXAL5#,MXAA52..CVT..X..EUR;AXAH5#,AXAL5#,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,SA) Production:2018-11 – 2020-07 | |||
| 90164-40103 | standard | — | |
| 90166-70001 | standard | — | |
| 90166-60005 | standard | — | |

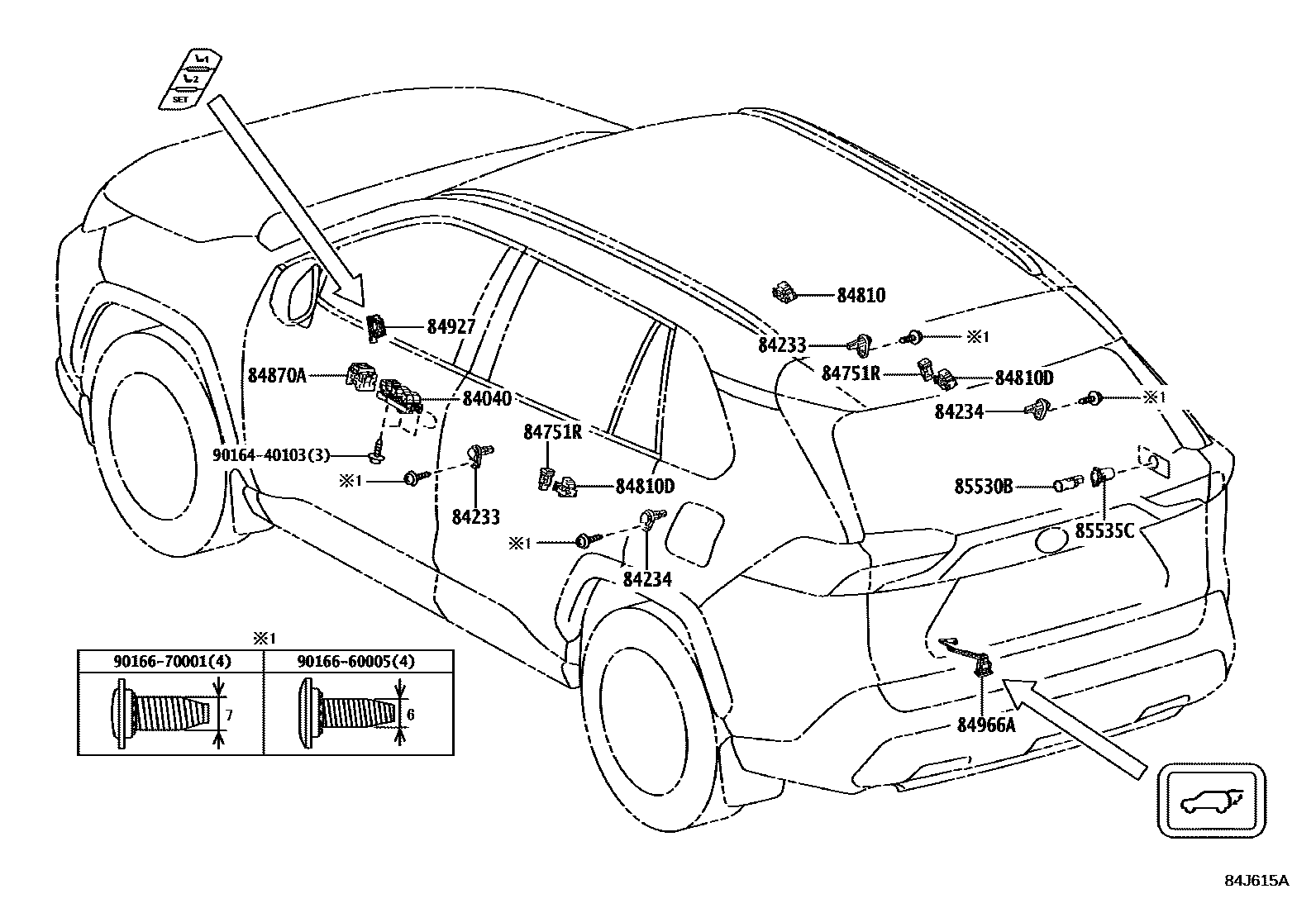

Diagram
14 parts
